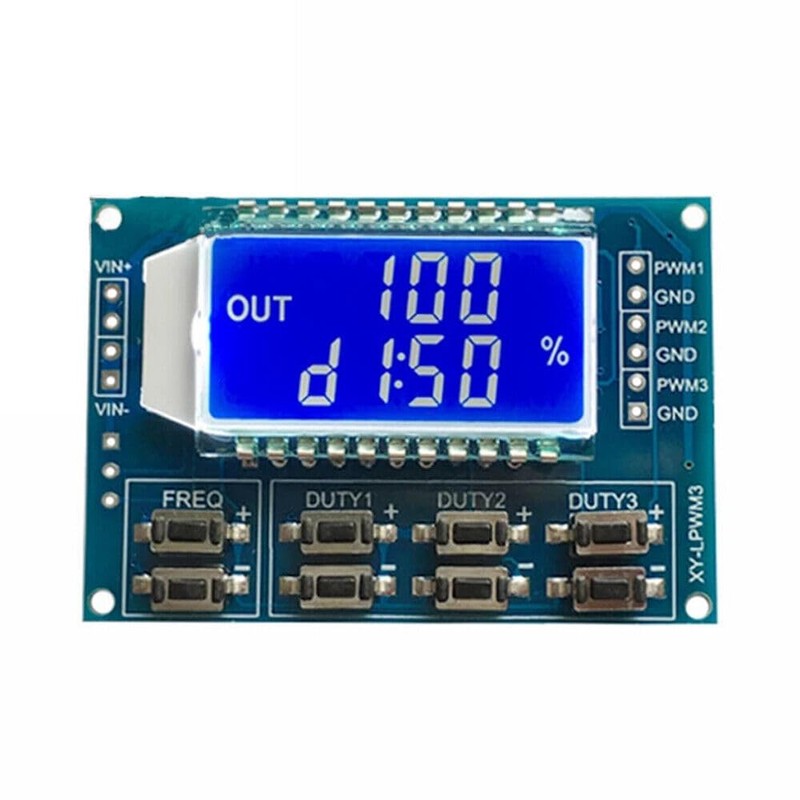

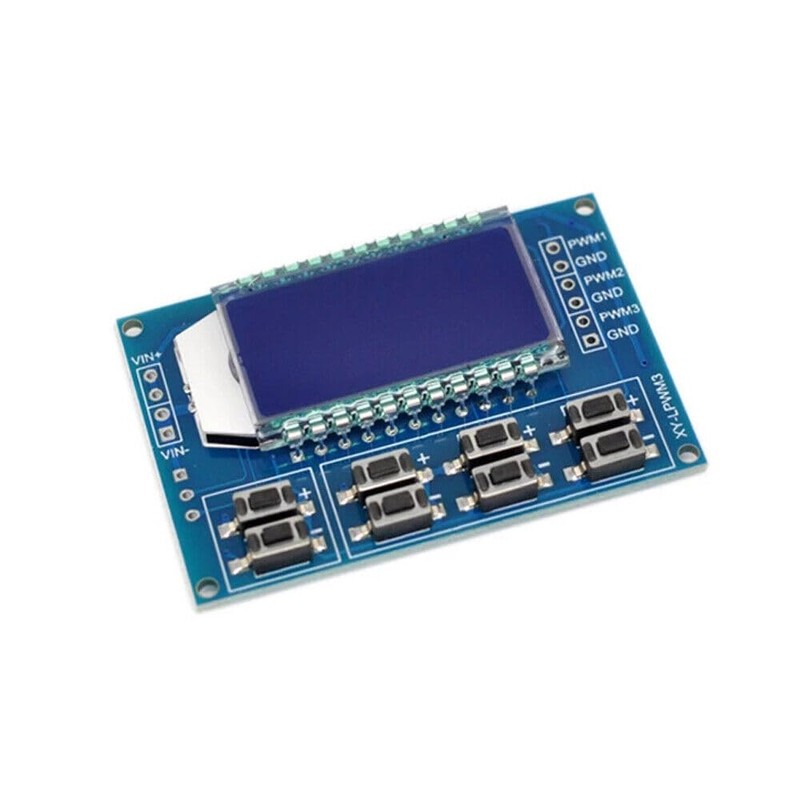

10PCS 3 Channel PWM Pulse Generator Signal Generator Module Adjustable Frequency Duty Cycle Adjustable Module with LCD Display 1Hz-150Khz
10PCS 3 Channel PWM Pulse Generator Signal Generator Module Adjustable Frequency Duty Cycle Adjustable Module with LCD Display 1Hz-150Khz
10PCS 3 Channel PWM Pulse Generator Signal Generator Module Adjustable Frequency Duty Cycle Adjustable Module with LCD Display 1Hz-150Khz

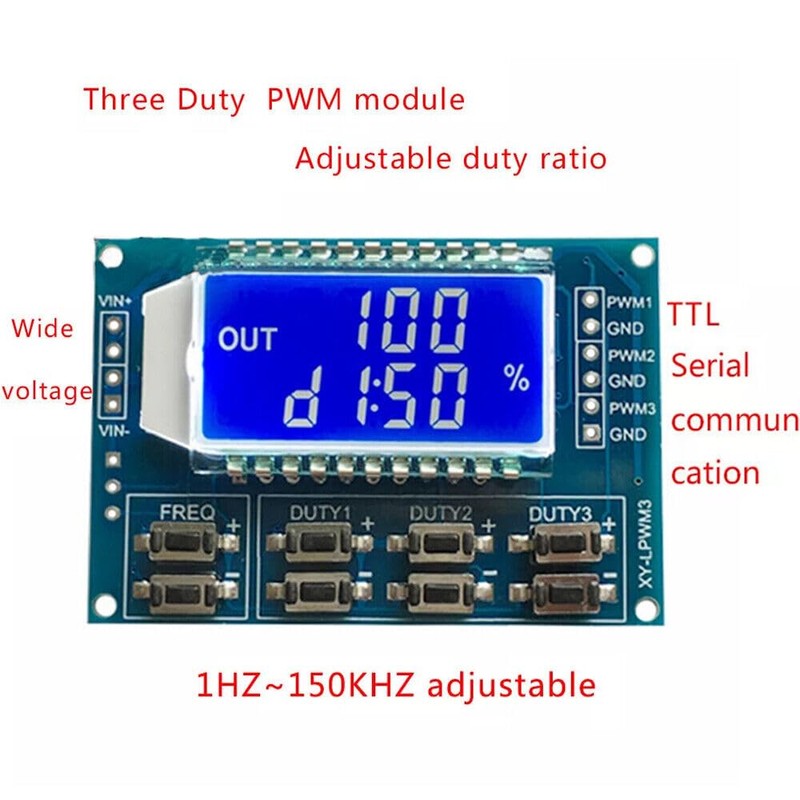

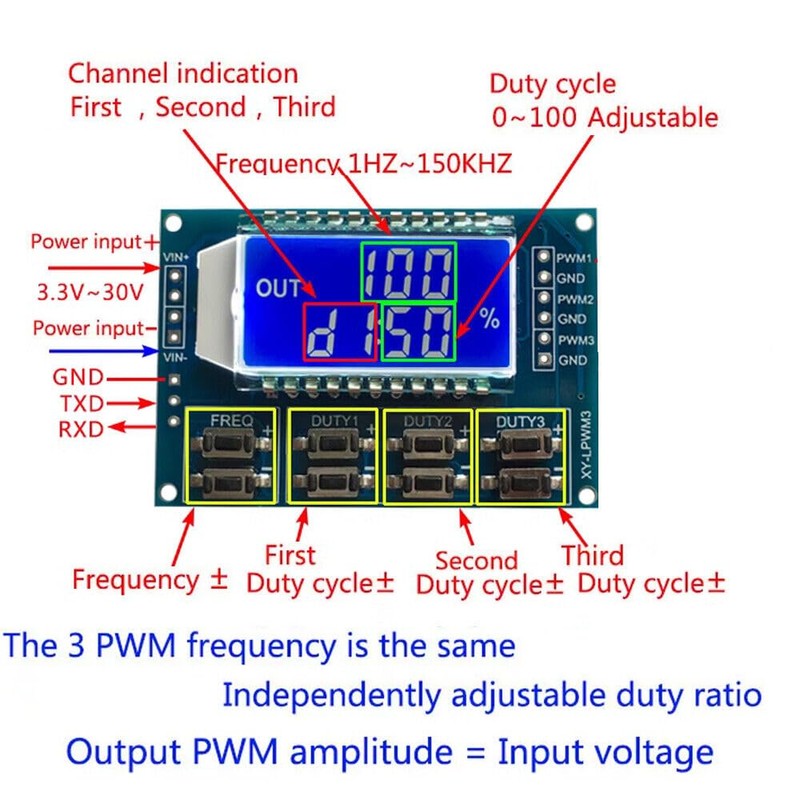

- Output of three-channel PWM at the same time, Adjustable frequency, 3-channel frequency output consistent, duty ratio can be independently adjusted, suitable for most occasions

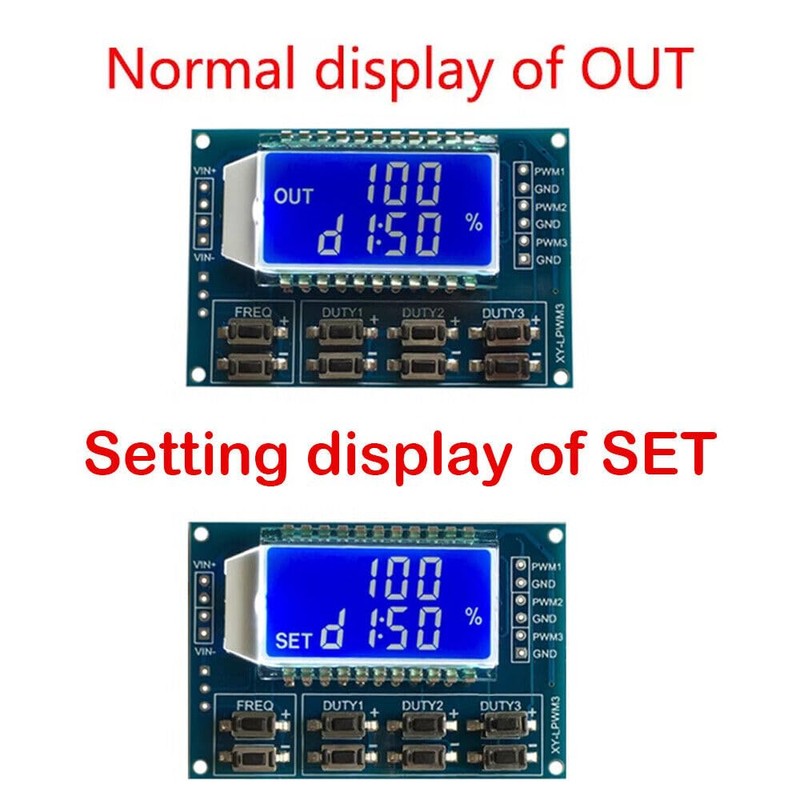

- Lcd can display frequency and duty datio,Easy to oprate;
- Has 8 independent keys,used to set the frequency and duty ratio,support short press (increase or decrease a unit) and long press (fast increase or decrease),very simple,set the parameters automatically save,power loss.
- 3-Channels duty ratio button can be pressed at the same time,real-time adjustment, liquid crystal display is the last pressed button duty ratio,real-time is very strong,can be used as a simple several road duty ratio scan.

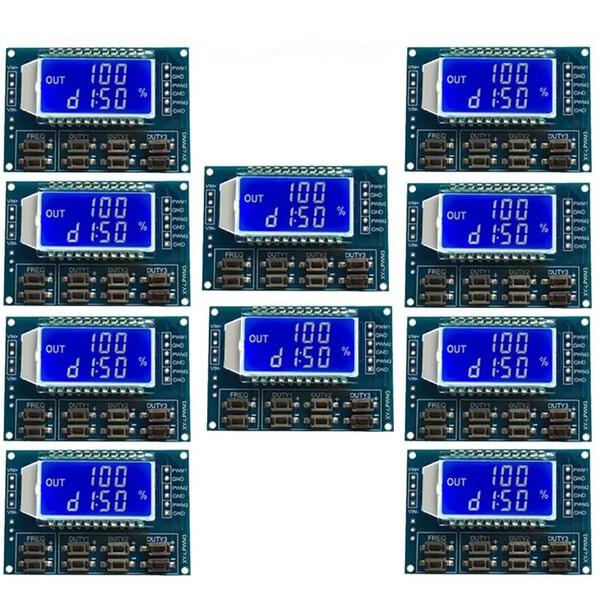

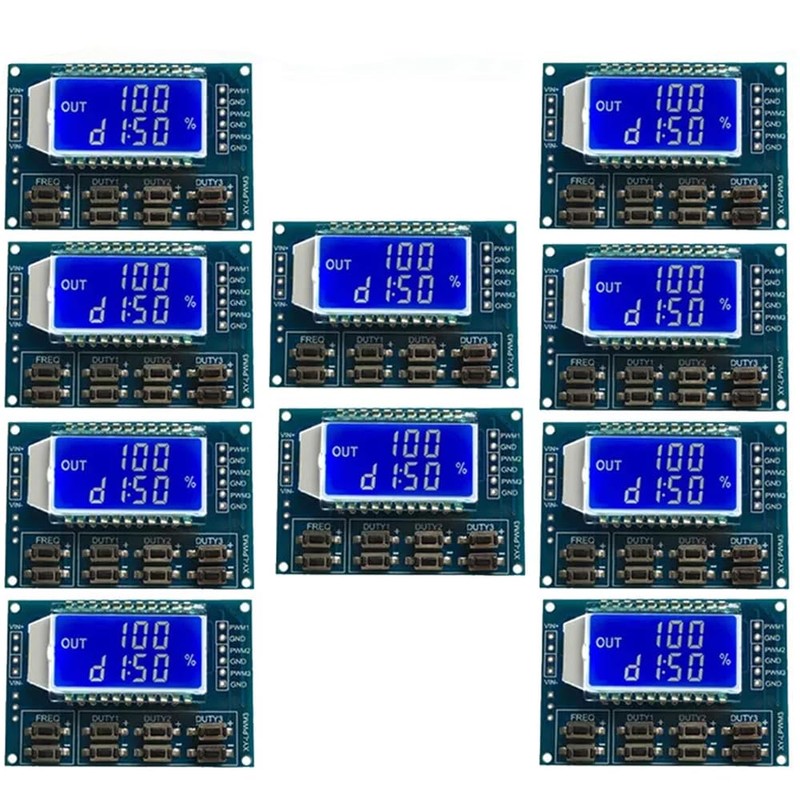

- Package Included: 10PCS 3 Way PWM Pulse Frequency Signal Generator Module
| Brand: | UCCKEYI |
|---|---|
| Manufacturer: | UCCKEYI |
| Part Number: | DTQQXSQ |
| Isin: | IFVIWOQLDMXE |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Frequency is divided into four areas, automatic switching:
XXX (No decimal point): 1HZ Stepping Unit, Range: 1Hz~999Hz;
X (The decimal is in the hundreds place): 0.01KHZ Stepping Unit, Range: 1.00Khz~9.99Khz;
XX(The decimal is in the tensplace): 0.1KHZ Stepping Unit, Range: 10.0Khz~99.9Khz;
X.X(The decimal is in the onesplace): 1KHZ Stepping Unit, Range: 1Khz~150Khz;
E.g. , frequency display: 100 represent the pulse of 100Hz ;
1.01 represent the pulse of 1.01KHz;
54.1 represent the pulse of 54.1KHz
1.2.4 represent the pulse of 124Hz
The value rangeof dutyfactor: 0~100%, 100% is represented by A0%.
All parameters setted up can be automatically saved in case of power cut.
Operating voltage: 3.3~30V;
Frequency range: 1Hz~150KHz;
Frequency accuracy: In each range of accuracy is about 2%
Signal load capacity: Output current can be around 5~30ma
Output amplitude: PWM amplitude and supply voltage equal
Ambient temperature: -20~+70°C.
Baud rate: 9600 bps Data length: 8
Set the frequency of the PWM
"F101": Set frequency of 101 HZ (001~999)
"F1.05": Set frequency of 1.05 KHZ (1.00~9.99)
"F10.5": Set frequency of 10.5KHZ (10.0~99.9)
"F1.0.5": Set frequency of 105KHZ (1.0.0~1.5.0)
Set the duty ratio of PWM
"DX:YYY": Set PWM duty ratio x: (1~3) PWM serial number, YYY: (000~100) duty ratio;
For example d1:050, set 1th PWM duty ratio to 50%
Read Setup parameters
Send a "read" string to read the parameters of the setting.
Message format: F156, D1: 052, D2: 059, D3: 058,
Set successful return: DOWN
Set failed to return: FALL
