2 in 1 Oscilloscope Handheld, WapoRich DSO153 Digital Signal Generator Oscilloscope with 1 MHz, 5 MSa/s, 14 Signal Waveforms, Online Update - Pocket Size Mini Portable Oscilloscope
2 in 1 Oscilloscope Handheld, WapoRich DSO153 Digital Signal Generator Oscilloscope with 1 MHz, 5 MSa/s, 14 Signal Waveforms, Online Update - Pocket Size Mini Portable Oscilloscope
2 in 1 Oscilloscope Handheld, WapoRich DSO153 Digital Signal Generator Oscilloscope with 1 MHz, 5 MSa/s, 14 Signal Waveforms, Online Update - Pocket Size Mini Portable Oscilloscope
- đăNew UpgradedăUpdated from DSO-152, the 2 in1 Oscilloscope DSO-153 combines Digital Oscilloscope + Signal Generator functions, upgraded 1MHz bandwidth, 5MS/s real-time sampling rate and 500ns-20S time base range. Measurement voltage: ±400V, vertical sensitivity: 10mV/Div-10V/Div.
- đ¶ă14 Waveform OutputsăSine wave, Square wave, Sawtooth wave, Half-wave, Full-wave, Positive step wave, Negative step wave, DC signal, Exponential rise, Exponential decay, Multi-tone, Sinc pulse, Lorentz waves, Noise waves. Amplitude 0.1-3.3V, frequency 0-10KHz, duty cycle: 0-100%.
- đăProfessional AnalysisăHandheld Oscilloscope is equipped with efficient one-button AUTO and complete trigger functions (single/normal/auto), supports pausing, zooming and moving waveforms. Helps you easily find hidden noise signals and deeply analyze complex modulation modes.
- đ€łăPalm SizeăWeighs only 100g (99x68x19mm). Mini Oscilloscope is lightweight and portable, and it will not feel bulky even if you put it in your pocket or hang it on your hand with the included lanyard. In addition, Oscilloscope has a built-in 1000mAh rechargeable battery with a battery life of 4 hours.

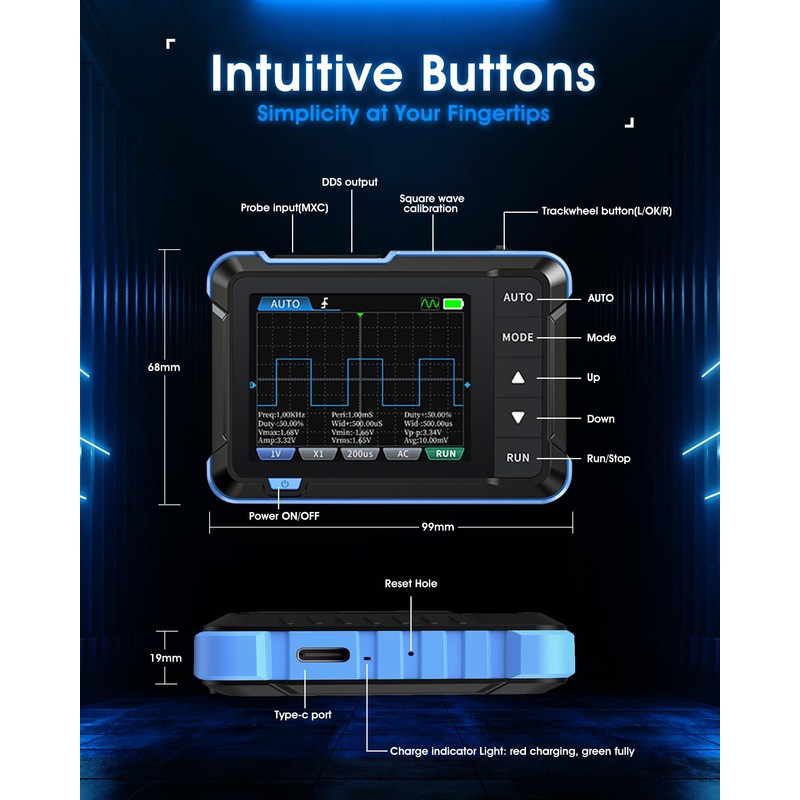

- đăUser-Friendly Designă â Gear toggle button, switch and adjust at will. âĄ2.8-inch HD LCD with 320x240 resolution for clear data display. âą90° adjustable stand, for versatile placement. âŁ8 switchable languages. â€WapoRich provides online firmware upgrades, and a 365-day after-sales guarantee, worry-free shopping.
Brand: | WapoRich |
---|---|
Color: | Blue |
Manufacturer: | WapoRich |
Part Number: | 7HKGDPF |
Isin: | ID7XHMUMRN0B |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
ăOscilloscope Parametersă
- Sampling rate: 5MSa/s
- Bandwidth: 1M
- Time base range: 500ns-20s
- Vertical sensitivity: 10mV/Div-10V/Div
- Voltage range: X1: ±40V (Vpp: 80V); X10: ±400V (Vpp: 800V)
- Trigger mode: automatic, normal, single
- Trigger type: rising edge, falling edge
- Coupling mode: AC/DC
- Calibrated square wave: frequency: 1K; duty cycle: 50%; amplitude: 3.3V
ăSignal Generator Parametersă
- Frequency: 0-10KHz
- Amplitude: 0.1-3.3V
- Duty cycle: 0-100% (Square wave and sawtooth wave)
- 14 waveforms: Sine wave, Square wave, Sawtooth wave, Half-wave, Full-wave, Positive step wave, Negative step wave, DC signal, Exponential rise, Exponential decay, Multi-tone, Sinc pulse, Lorentz waves, Noise waves.
ăProduct Parametersă
- Screen size: 2.8 inches
- Resolution: 320*240
- USB charging: TYPE-C (5V/1A)
- Battery: 1000mAh rechargeable battery
- Standby time: 4 hours (maximum value in laboratory theory)
- Language: 8 language switches (Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean)
- Product size: 99x68.3x19.5 mm
- Weight: 100g
ăMore Featuresă
- Support firmware upgrade, screen brightness adjustment, button tone adjustment, automatic shutdown (OFF/15min/30min/1h), theme setting (blue/yellow)
ăPacking Listă
- 1* DSO-153 Portable 2 in 1 Oscilloscope
- 1* 10X Probe
- 1* Adapter
- 1* Crocodile Clip Probe
- 1* Charging Cable
- 1* User Manual
- 2* Locating Sleeve
- 8* Color Marker Rings
- 1* Adjustment Tool
- 1* Lanyard
- 1* Packaging Box
