20 Pairs Solar Panel Plug Solar Plug Connector Male Female Set Photovoltaic Solar Panel Cable Plug IP67 with 2 x Spanner
20 Pairs Solar Panel Plug Solar Plug Connector Male Female Set Photovoltaic Solar Panel Cable Plug IP67 with 2 x Spanner
20 Pairs Solar Panel Plug Solar Plug Connector Male Female Set Photovoltaic Solar Panel Cable Plug IP67 with 2 x Spanner

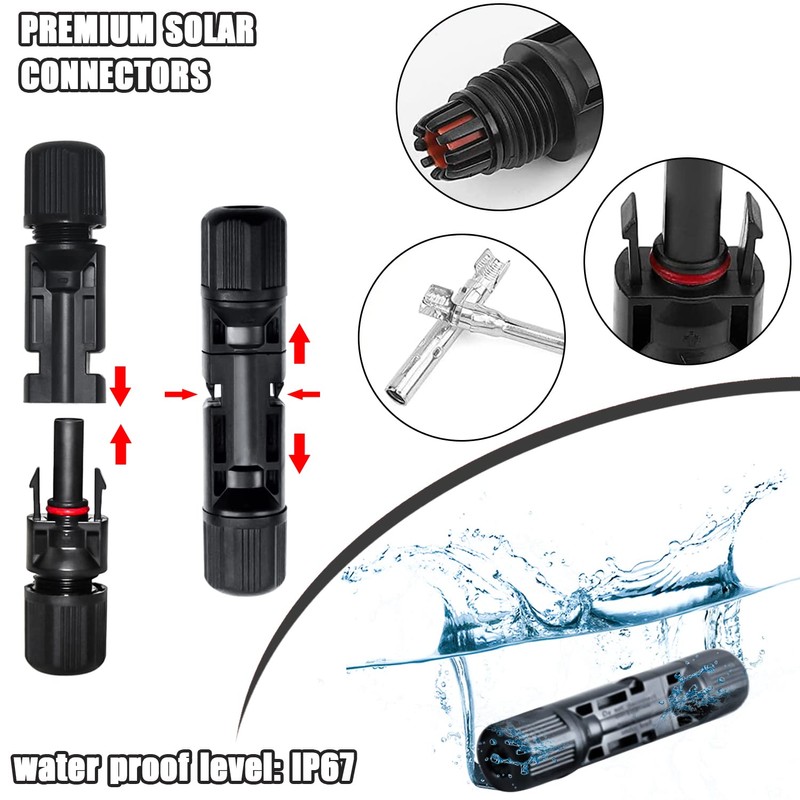

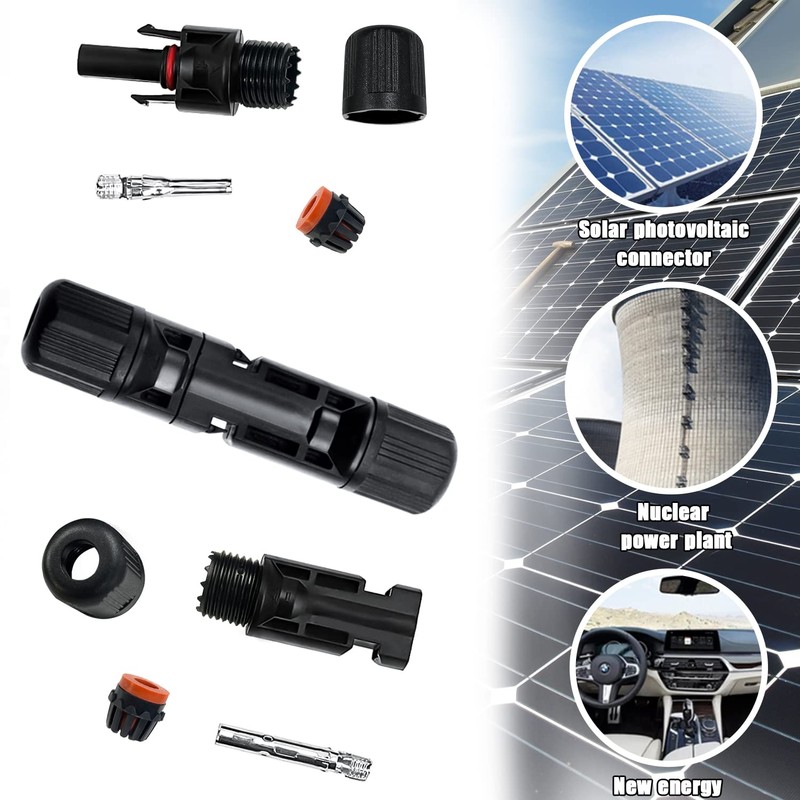

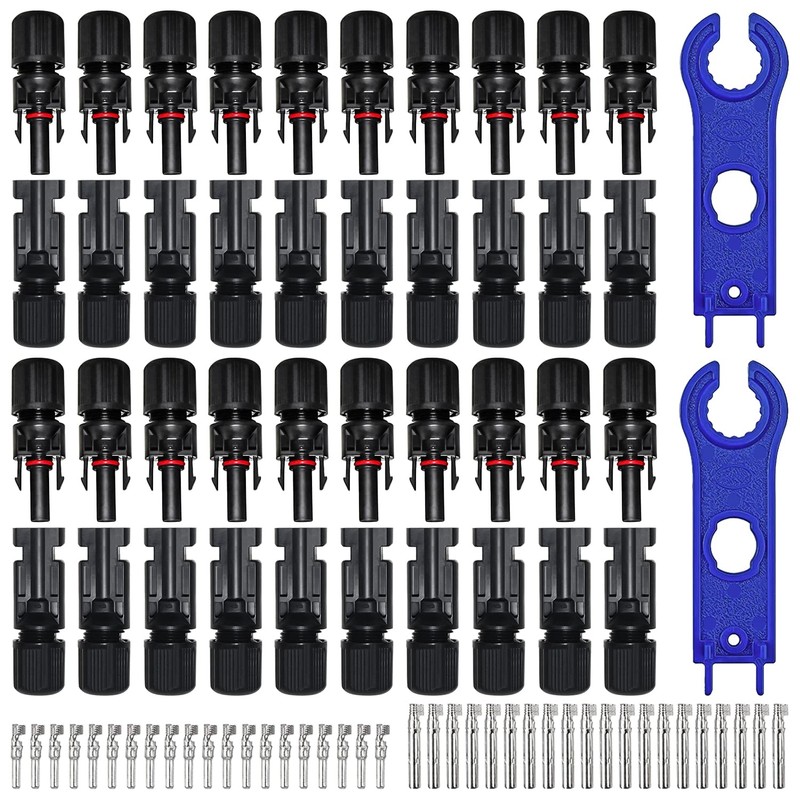

Plug set: you will receive 20 pairs of black solar panel cable plugs (20 x male and 20 x female) + 40 silver pins (20 x male and 20 x female) + 2 wrenches. This set of solar panel plugs can make your life easier, photovoltaic connectors meet your requirements and be reliable.
High quality: solar plug is made of insulating and flame retardant PPO material, the conductor is made of sturdy and wear-resistant tin-plated copper and the wrench is made of high-pressure nylon material. Solar plugs are specially designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
Good compatibility: compatible with PV cables with different insulation diameters (2.5 mm2 - 6 mm²). Solar panel cable connections plug, high and low temperature resistance. Solar plugs can be used in -40 °C + 90 °C. Flame retardant level: UL94-V0; Protection class: DC II.

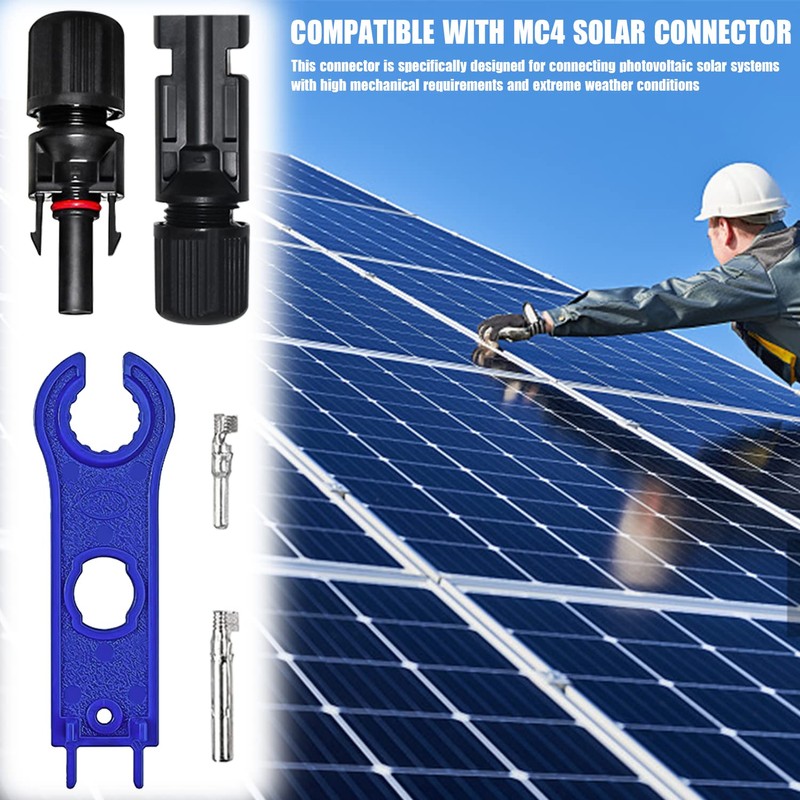

Easy installation: solar panel cable connectors, which are compatible with most photovoltaic connectors. Solar photovoltaic connector housings feature a stable and simple plug-play system with self-locking.

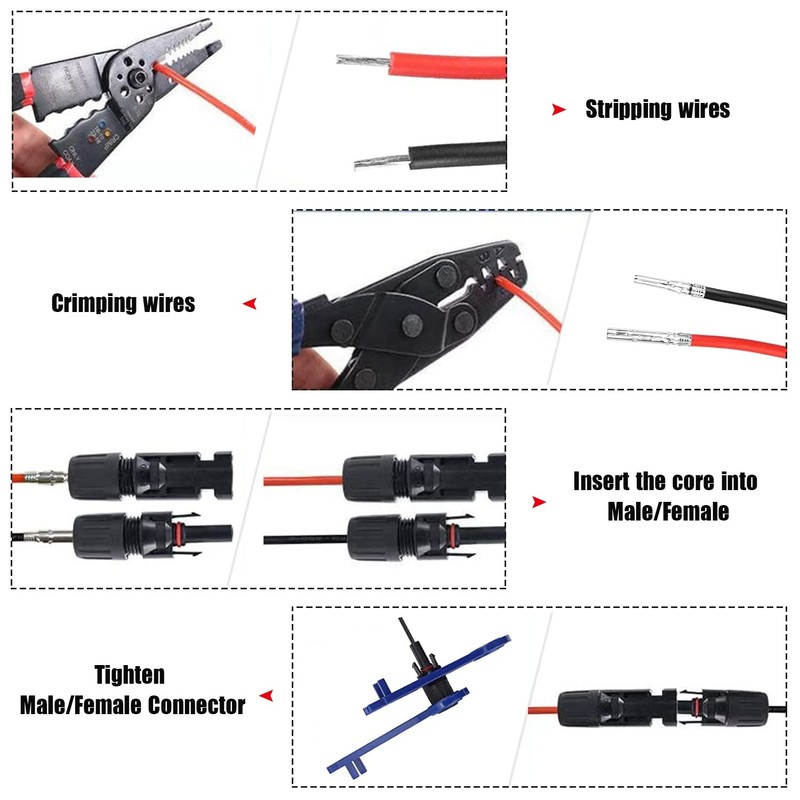

Quality service: the contact parts hold well in the plug, sealing pulls exactly. (and not just once), so you really don't need more. To connect them correctly, you would actually need a crimping tool. Then it is enough to bend the tabs with pliers. Please contact us if you have quality problems.
| Brand: | IIRC |
|---|---|
| Manufacturer: | IIRC |
| Part Number: | BMLTM2Q |
| Isin: | IK7LOU4INWUO |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Solar panel plug, photovoltaic connector, 20 pairs of solar plugs.
✔ With excellent ageing resistance and UV resistance.
✔ Solar panel plugs fit any cable with 2.5 mm2, 4.0 mm2 and 6.0 mm2 cross section.
✔ Sturdy self-locking system that is easy to lock and open.
✔ Solar panel cable plug ideal for insulating or protecting open areas on a cable.
✔ Solar plug is specially designed for connecting the solar system with high mechanical requirements and extreme weather conditions.
Product specifications:
Rated voltage: 1000 V.
Rated current: 30 A (4.0 mm2, 6 mm²).
Test voltage: 6000 V (50 Hz).
Waterproof level: IP67.
Flame class: UL94-V0.
Contact material: Copper, Brass
Operating temperature range: -40 ~ + 90 °C.
Safe Class: Class 2
Suitable wire: 2.5 mm2 / 4 mm2 / 6 mm2 (AWG 14.12.10)
Connection contact resistance: ≤ 5 mΩ.
Extraction force: no less than 50N
Insertion force: no more than 50 N.
Package contents:
20 pairs of solar plugs.
2 x wrenches
