2PCS XH-W120912V DC Digital Temperature Controller Board LED Display Digital Thermostat Module -50-110°C Electronic Temp Control Module Switch 10A One-Channel Relay with Water Resistant Case

  • [Operate Note]: Long Press SET for 5s to Get Menu, Starts at P0, Press +/- to Get Next P-Parameter, Press Set to Determine the P-Parameter, Press +/- to Set the Desired Value for the Selected Parameter, Press SET to Accept it, Long Press +/- Reset to Default(34.5°C)
  • [Temp Control Range]: XH-W1209 Temp control module has a wide Temperature Measuring Range -50~110℃. Control Precision: 0.1 Celsius.Input Power (DC): 12V; Measuring Inputs: NTC (10K 0.5%) ; Waterproof Sensor: 0.5M; Output: 1 Channel Relay Output, Capacity: 10A; Power Consumption: Static Current: 35mA; Current: 65MA
  • [High Accuracy Temp Module]: XH-W1209 Temp sensor module embedded CPU chip (MCU), more Intelligent, lower power consumption with 3-Digit LED display with high accuracy and stable performance
  • [Quality NTC Probe]: We use high quality NTC temp probe is waterproof and able to control the temperature, which allow to control heating and cooling; the board wood laminate case can protect well for the components
  • [Premium Assemble Quality]: Our temperature controller board module is well assemble in machine patch, wave soldering, stable performance and nice consistency; Embedded CPU chip, namely MCU, is more intelligent, energy saving.
Manufacturer: Winscon Electronics
Part Number: 9BM5J5B
Isin: ILJSQFZFLQAV

$27.11

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
2PCS XH-W120912V DC Digital Temperature Controller Board LED Display Digital Thermostat Module -50-110°C Electronic Temp Control Module Switch 10A One-Channel Relay with Water Resistant Case

2PCS XH-W120912V DC Digital Temperature Controller Board LED Display Digital ...

$27.11

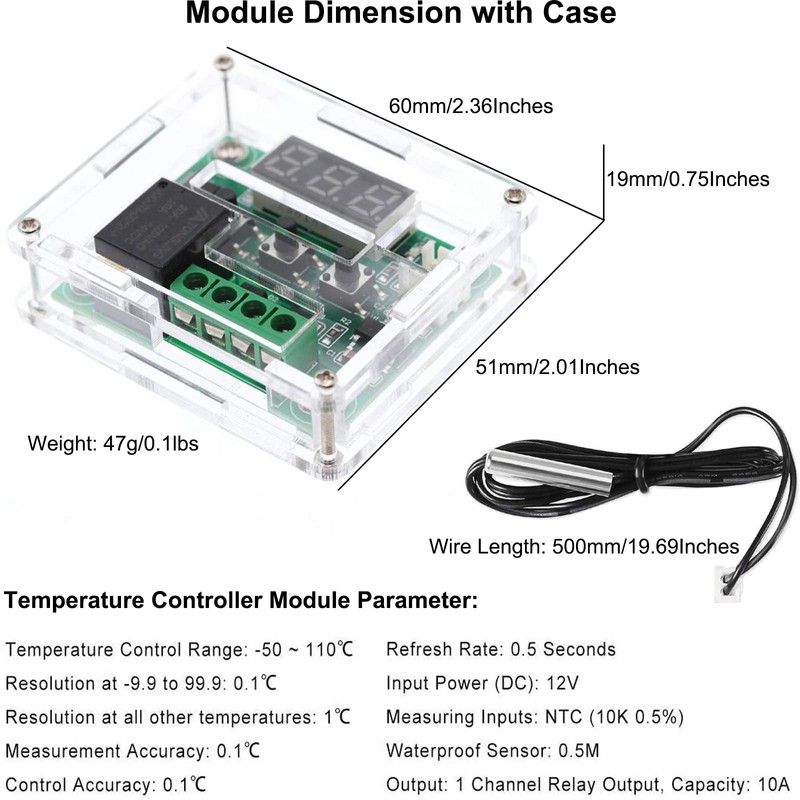

Winscon Temperature Controller Module Parameter:

[Dimensions]: 48.5 * 40mm

[Temperature Range] : -50 - 110 degree centigrade

[Resolution]: When the temperature is 0.1 degree, the resolution is -9.9~99.9, and another temperature segment is 1 degree.

[Control Accuracy]: 0.1 degree

[Hysteresis Accuracy]: 0.1 degree

[Refresh Rate]: 0.5s

[Output Voltage]: DC 12V

[Output Power]: 20A relay

[Measurement Input]: NTC (10K 0.5%) Waterproof Sensor

[Environmental Requirements]: -10 - 60 Degree Celsius; Humidity 20% - 85%

[High Temperature Protection]: 0 - 110 Degree Celsius

[Supply Voltage]: DC 12V

[Static Current]: Less than 35MA, attract current less than 65MA

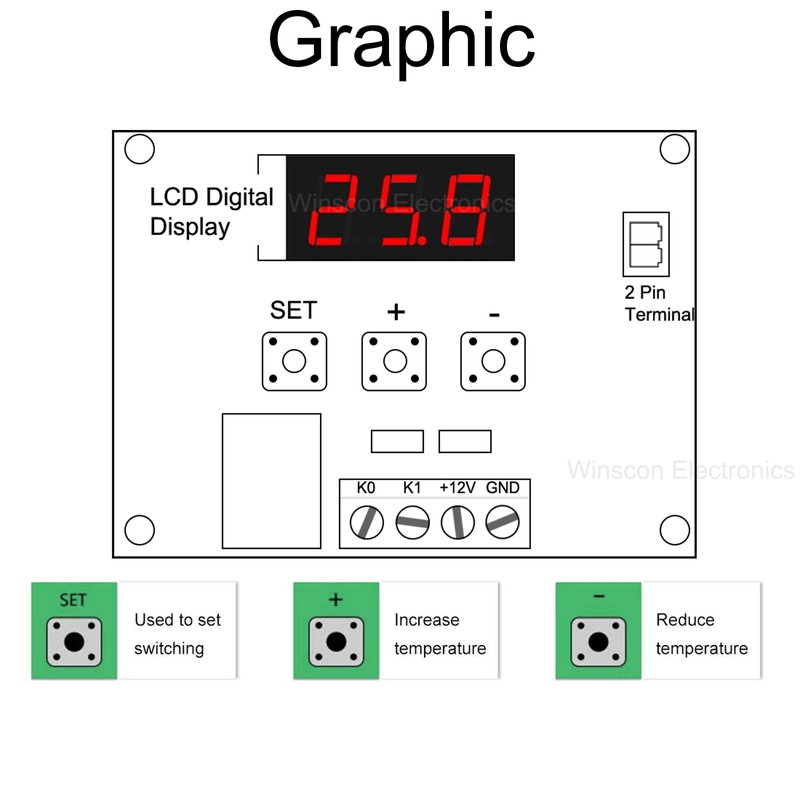

Operation Instruction:

Connect the power supply and equipment, the measuring temperature is displayed.

Press the SET button, press + or - to set the desired temperature, and long press + or - to quickly increase or decrease.

Press SET to confirm the setting and return, and the controller automatically performs the relay ON or OFF.

The thermostat output is a 10A relay and meets a variety of high-power loads. LED Indicator: LED off indicates the relay is off; Lighting indicates the relay is closed.

Digital LED tubes: LL indicates sensor open, HH indicates over range, the relay will be forcibly disconnected; --- indicates a high-temperature alarm.

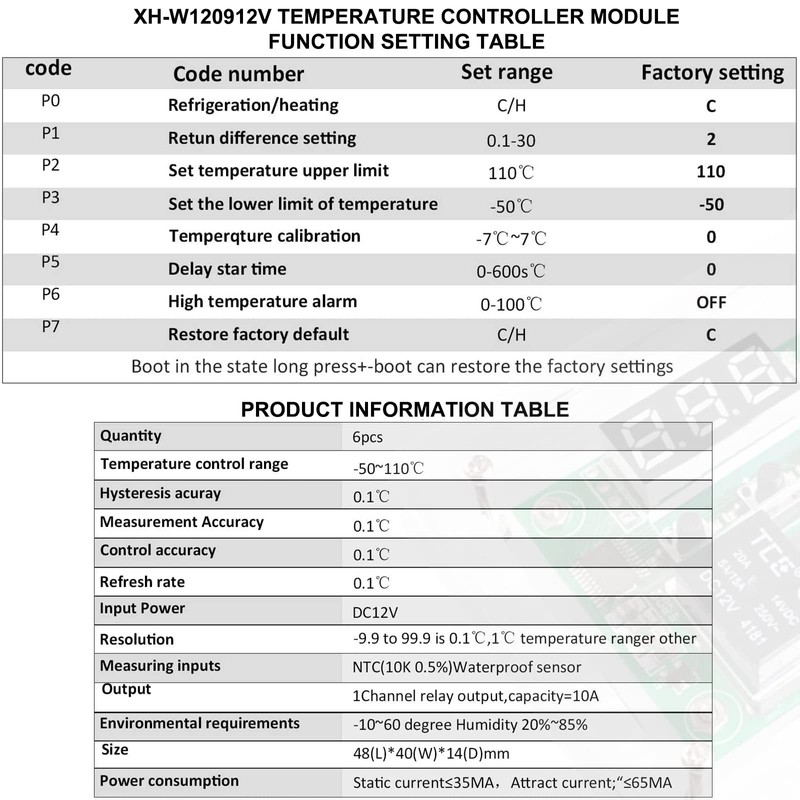

Long press the SET button to enter the main menu settings.

Press + or - to switch between P0-P6.

Then long press SET or 10 seconds without keystrokes to confirm the setting and return.

Reset:In the shutdown state, press and hold the + and - buttons at the same time. , then turn it on, and all the above parameters are restored to the factory settings.



Package Include:

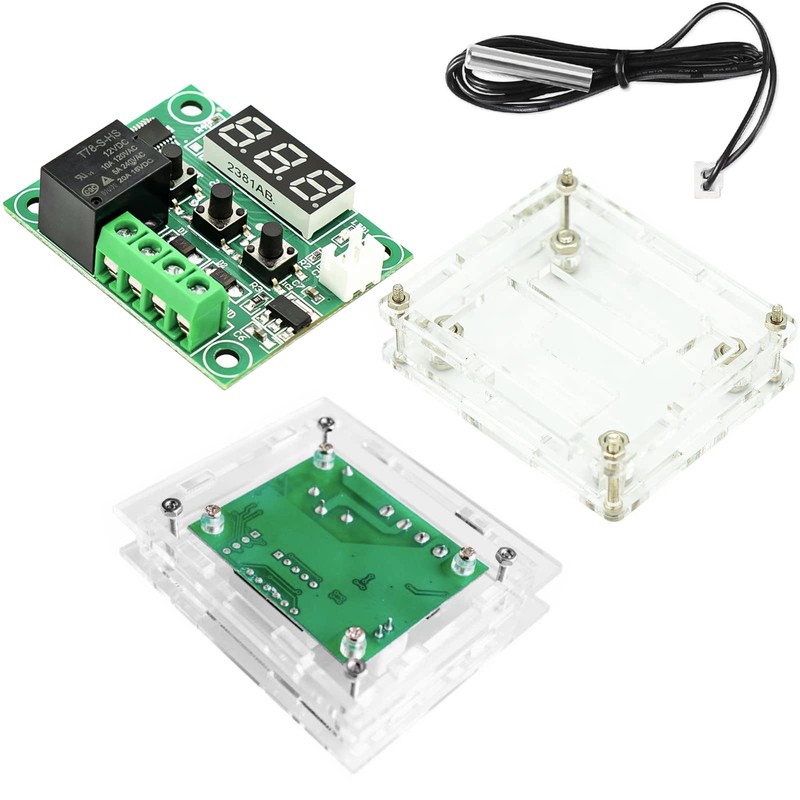

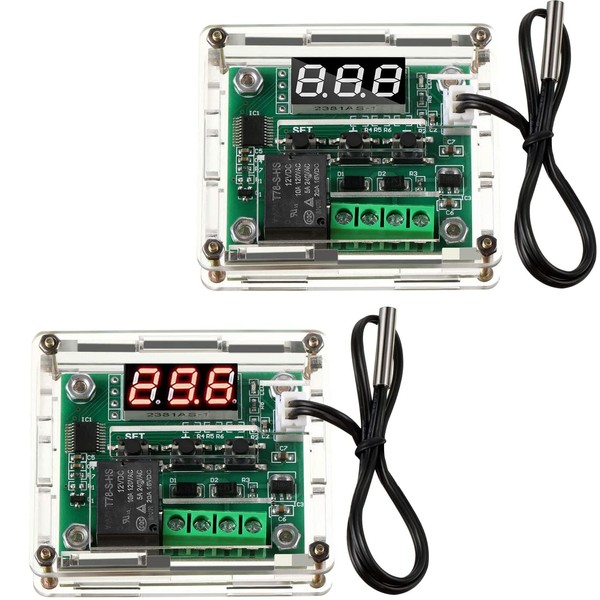

2 Winscon Temperature Controller Module with Protective Case
