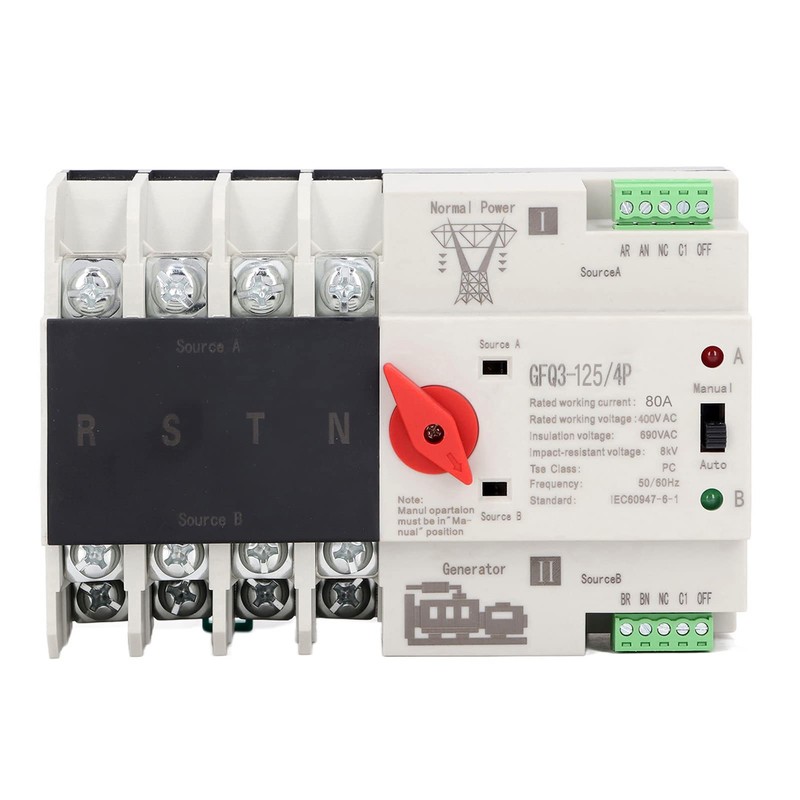

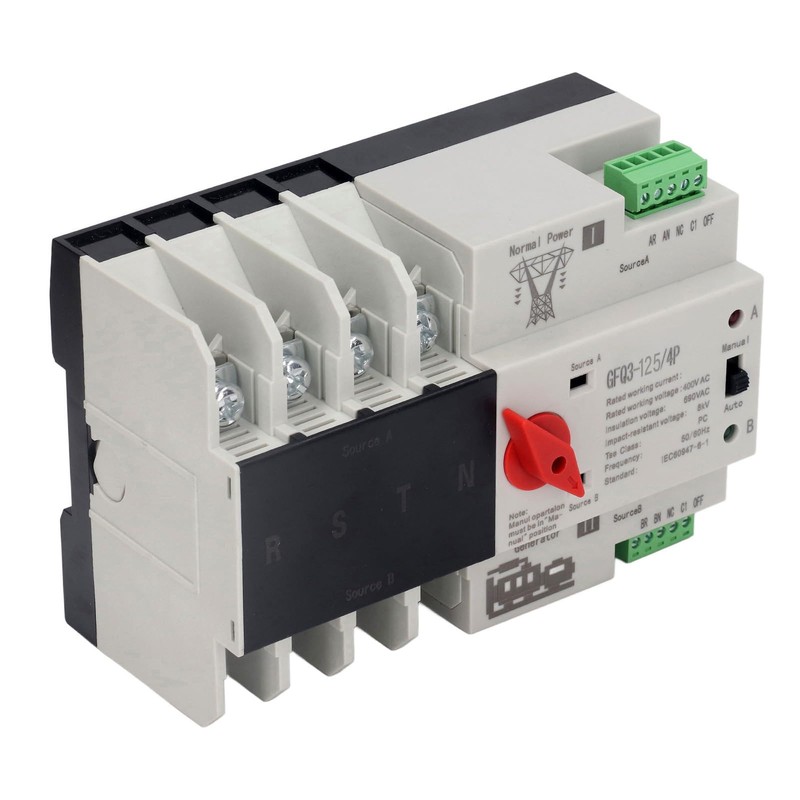

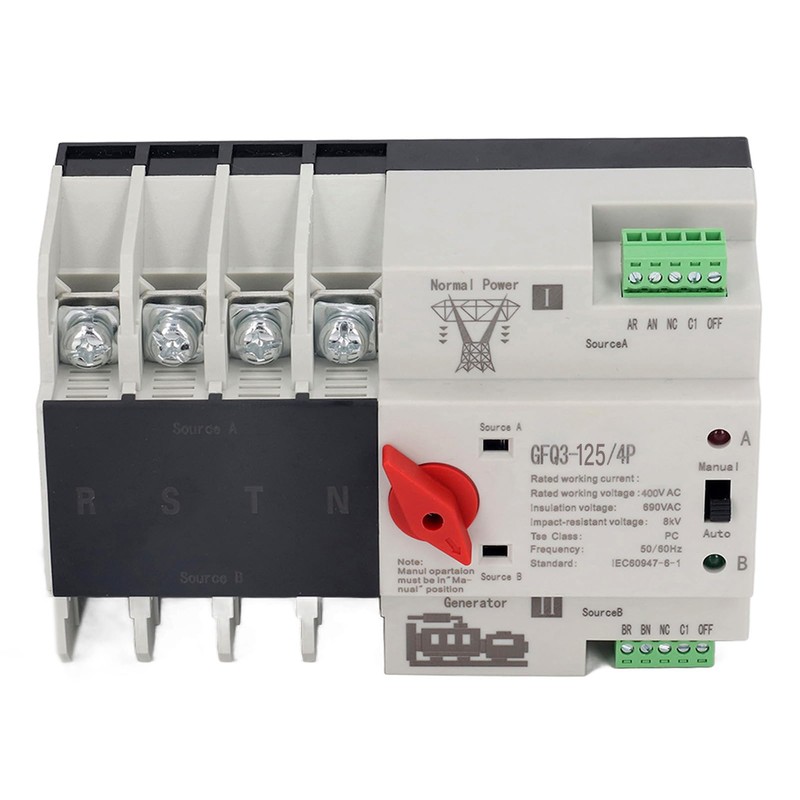

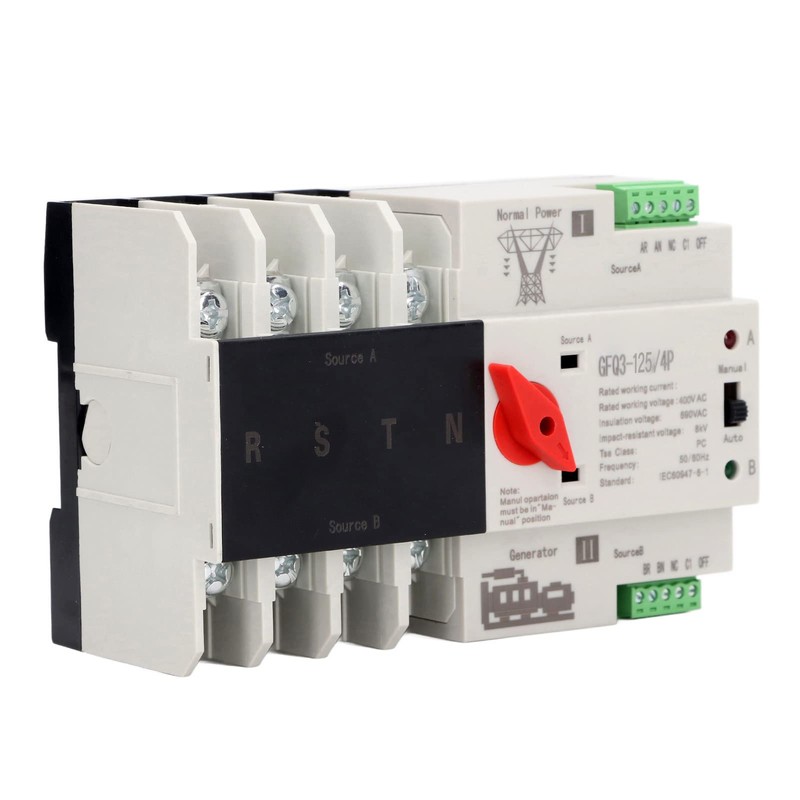

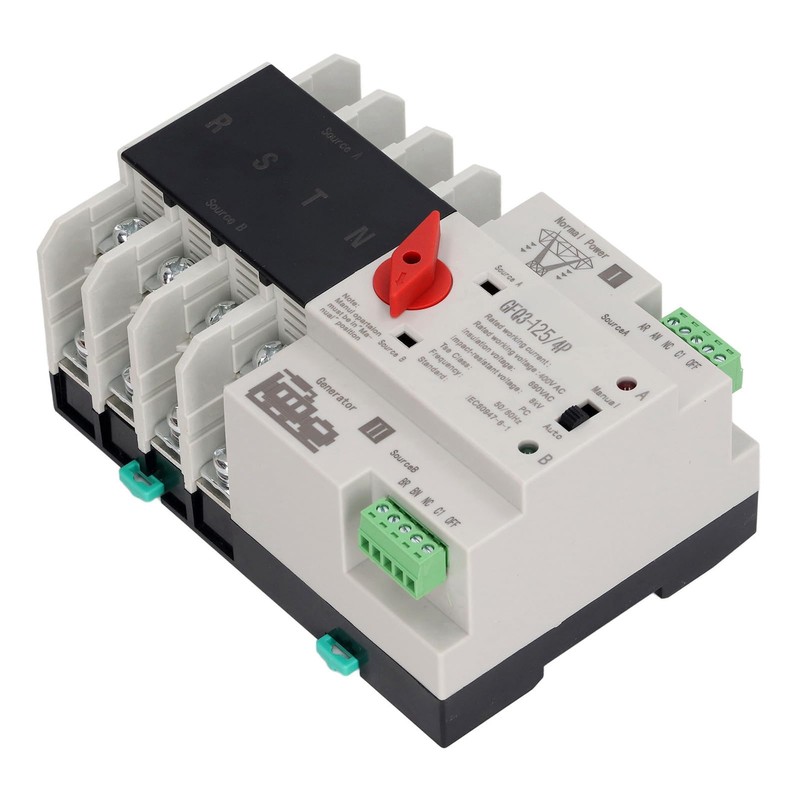

4P AC400V 80A 50 60HzDual Power Automatic Transfer Switch ATS Changeover Timing Controller Switch for Factory Shopping Center

Brand: Hilitand
  • Work Performance: The switch is mainly used for testing whether normal or spare power is normal or not, when the normal power supply is abnormal, the backup power supply works immediately, and our automatic transfer switch can achieve millisecond switching to achieve the effect of non stop power supply.
  • Work Voltage and Temperature: This switch is suitable for emergency power supply systems of 50 or 60Hz AC rated 220V. The maximum surrounding temperature shall not exceed 40℃, the minimum shall not be lower than ‑5℃, and the average temperature within 24 hours shall not be higher than 35℃.
  • Better Application: This automatic changeover switch adopts PC plastic material and silver, it is durable and practical. Allows for extensive application in factories, shopping center, nurseries and other places.
  • How to Use: Before installation, check the integrity of the ATS, turn on or off the ATS with the handle, check the flexibility of the transmission, and test the load generation and disconnection conditions for each stage of normal and standby power supply.
  • Two Operation Modes: The dual power supply automatic transfer switch can be operated automatically or manually, with compact structure, reliable transmission and easy installation and maintenance.
Brand: Hilitand
Manufacturer: Hilitand
Part Number: 1MNV5KJ
Material Type: Plastic
Isin: IUM7ZDZNNORH

$138.90

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled By IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
4P AC400V 80A 50 60HzDual Power Automatic Transfer Switch ATS Changeover Timing Controller Switch for Factory Shopping Center

4P AC400V 80A 50 60HzDual Power Automatic Transfer Switch ATS Changeover Timi...

$138.90

Specification:
Item Type: Double Power Automatic Transfer Switch
Material: PC, Silver
Rated Current Le: 80A
Insulation Voltage Ui: AC690V
Rated Voltage Ue: AC400V
Frequency: 50 60HZ
Rated Control Voltage US: 220VAC 85%Us-110%Us
Grade: PC Grade
Specification: 4P
Life Span
Electrical: 2000 Times
Mechanical: 5000 Times
Rated Short Circuit Current: 50kA
Fuse: RT16 00 63A
Rated Impulse Withstand Voltage: 8kV
Auxiliary Circuit: Two Relays, Each Relay Has Two Sets Of Contact Capacity: AC220V50HZ Le 5y
Touch Time: Operation Conversion Time: Return Time: Closing Time:

How to Use:
Before installation, check the integrity of the ATS, turn on or off the ATS with the handle, check the flexibility of the transmission, and test the load generation and disconnection conditions for each stage of normal and standby power supply.

packing list:
1 x Dual Power Automatic Transfer Switch
1 x Instruction Manual

Notice:
1. The maximum surrounding temperature shall not exceed 40℃, the minimum shall not be lower than ‑5℃, and the average temperature within 24 hours shall not be higher than 35℃.
2. The altitude of the installation site should not be higher than 2000m.
3. When the maximum temperature reaches 40℃, the relative humidity of the installation site should not exceed 50%; when the temperature is the lowest temperature ‑5℃, the relative humidity is higher, for example, the temperature is 25℃, and the relative humidity is 90%. Due to temperature changes, special measures should be taken to deal with the occasional condensation on the face of the product.
