4WD 2500 lbs ATV UTV Electric Winch, 12 V DC Boat Towing Off-Road Winch 1/5" x 32FT
4WD 2500 lbs ATV UTV Electric Winch, 12 V DC Boat Towing Off-Road Winch 1/5" x 32FT

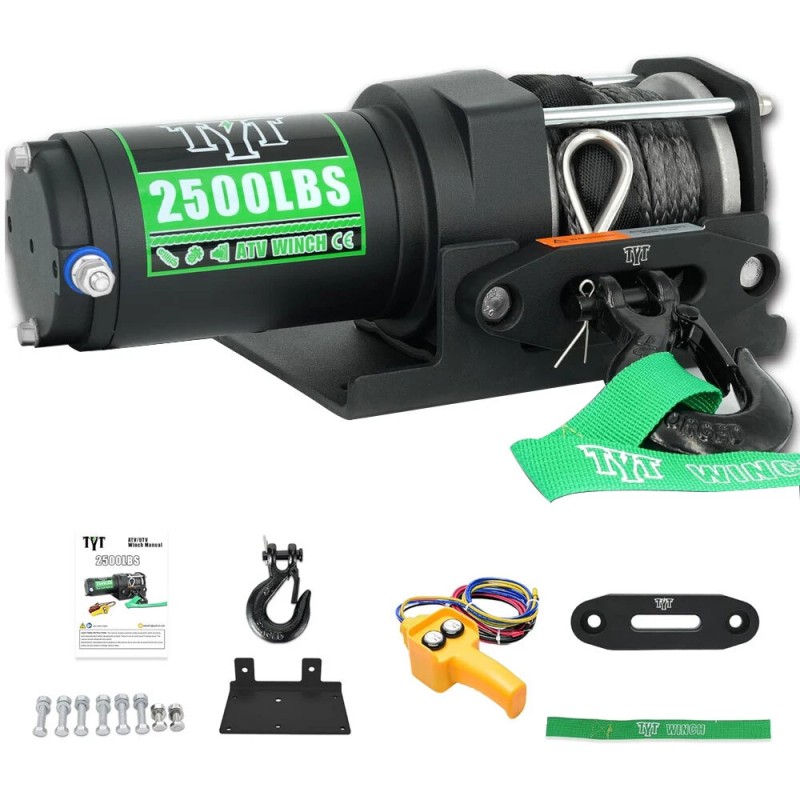

- TYT new 2500 lb. ATV synthetic rope winch kit not only includes all the winch accessories you need, but also has standard mounting dimensions.Fairlead Mounting Pattern: 4 1/4" (108mm); Mounting Plate 2-Hole: 3.10"(78mm )/3"(76mm) . Please ensure compatibility of mounting holes with your winch bracket before purchase.

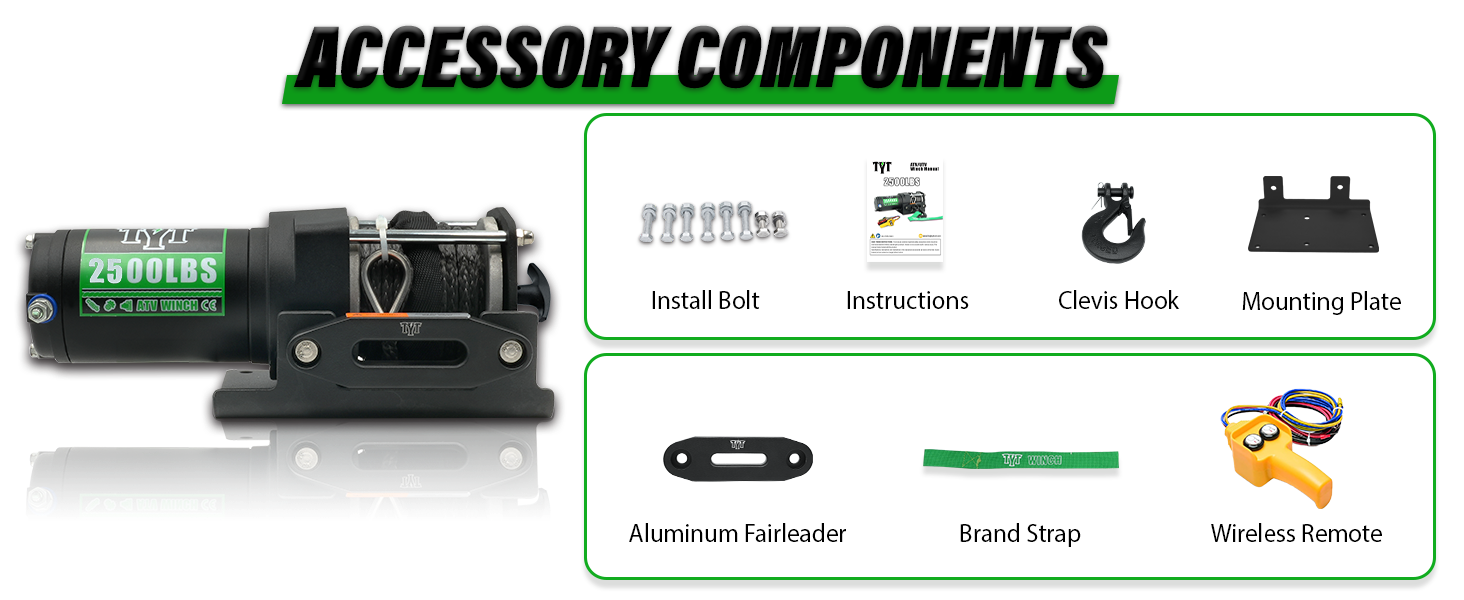

- EASY TO INSTALL AND USE: The minimum cold starting current of this winch is 10A. The winch accessories include a large yellow remote control handle, you only need to connect the power cord of the handle: red to the red terminal of the winch, black to the black terminal of the winch; the other 2 terminals: red to the power supply "+", black to the power supply "- ", by operating the handle switch, you can quickly use the winch, bringing you a new experience.
- STABLE PLANETARY GEAR SYSTEM:The 2500 lb. winch powered by a 0.9kw/1.2hp output permanent magnet DC 12V motor, provide more sufficient power and stable output, and reduce the problem of winch damage or winch burning due to insufficient power. Efficiency: 2.9 feet /min when fully loaded, 10.5 feet /min when empty.The winch uses an advanced combined planetary gear system with a gear speed ratio of 153:1, which is higher and faster than other winches, saving time and bringing a better experience.

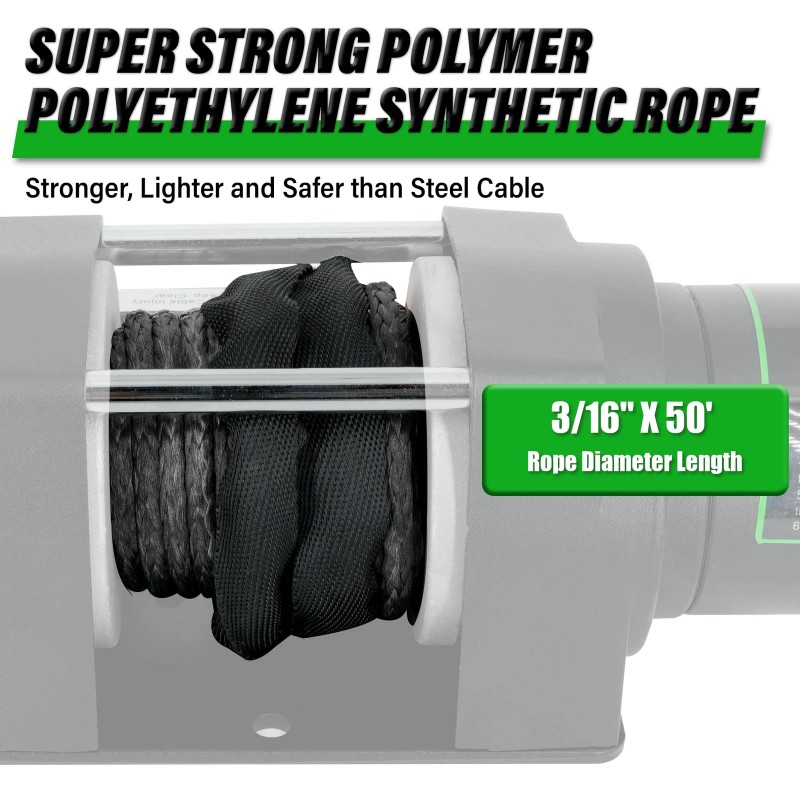

- DYNEEMA SYNTHETIC WINCH ROPE: Rope diameter length: 3/16" X 50', dyneema rope is a strong and light water-resistant material. It's the safest winching material as it does not suffer from potential snapback. The rope will not degrade or lose any of its strength in wet conditions as it floats on water, avoiding any underwater debris. Universally suitable for Outlander, Renegade, DS, Maverick, Grizzly, Kodiak, Raptor 700R and YFZ450R, Pioneer, Foreman and Rancher Series, Brute Force, Teryx.
Product Description
Similar items
2500 LBS |
Rated Line Pull |
3000 lb |
Synthetic Rope |
Rope |
Synthetic Rope |
136:1 |
Gear Ratio |
138:1 |
0.90kw/1.2HP |
Motor |
1.0kw/1.5HP |
3 stage planetary |
Gear Train |
3 stage planetary |
|
IP67 Waterproof |
|
Brand: | 4WD |
---|---|
Isin: | IB56KVCEA9BA |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
- TYT new 2500 lb. ATV synthetic rope winch kit not only includes all the winch accessories you need, but also has standard mounting dimensions.Fairlead Mounting Pattern: 4 1/4" (108mm); Mounting Plate 2-Hole: 3.10"(78mm )/3"(76mm) . Please ensure compatibility of mounting holes with your winch bracket before purchase.
- EASY TO INSTALL AND USE: The minimum cold starting current of this winch is 10A. The winch accessories include a large yellow remote control handle, you only need to connect the power cord of the handle: red to the red terminal of the winch, black to the black terminal of the winch; the other 2 terminals: red to the power supply "+", black to the power supply "- ", by operating the handle switch, you can quickly use the winch, bringing you a new experience.
- STABLE PLANETARY GEAR SYSTEM:The 2500 lb. winch powered by a 0.9kw/1.2hp output permanent magnet DC 12V motor, provide more sufficient power and stable output, and reduce the problem of winch damage or winch burning due to insufficient power. Efficiency: 2.9 feet /min when fully loaded, 10.5 feet /min when empty.The winch uses an advanced combined planetary gear system with a gear speed ratio of 153:1, which is higher and faster than other winches, saving time and bringing a better experience.
- DYNEEMA SYNTHETIC WINCH ROPE: Rope diameter length: 3/16" X 50', dyneema rope is a strong and light water-resistant material. It's the safest winching material as it does not suffer from potential snapback. The rope will not degrade or lose any of its strength in wet conditions as it floats on water, avoiding any underwater debris. Universally suitable for Outlander, Renegade, DS, Maverick, Grizzly, Kodiak, Raptor 700R and YFZ450R, Pioneer, Foreman and Rancher Series, Brute Force, Teryx.
Product Description



Similar items
2500 LBS |
Rated Line Pull |
3000 lb |
Synthetic Rope |
Rope |
Synthetic Rope |
136:1 |
Gear Ratio |
138:1 |
0.90kw/1.2HP |
Motor |
1.0kw/1.5HP |
3 stage planetary |
Gear Train |
3 stage planetary |
|
IP67 Waterproof |
|



- Brand: 4WD
- Manufacturer Part Number: PP3PL1700011
- Rated Line Pulls: 2500 Ibs(1134kg)
- Gear Reduction Ratio: 136:1
- UPC: NO
- Remote Control: 50FTl

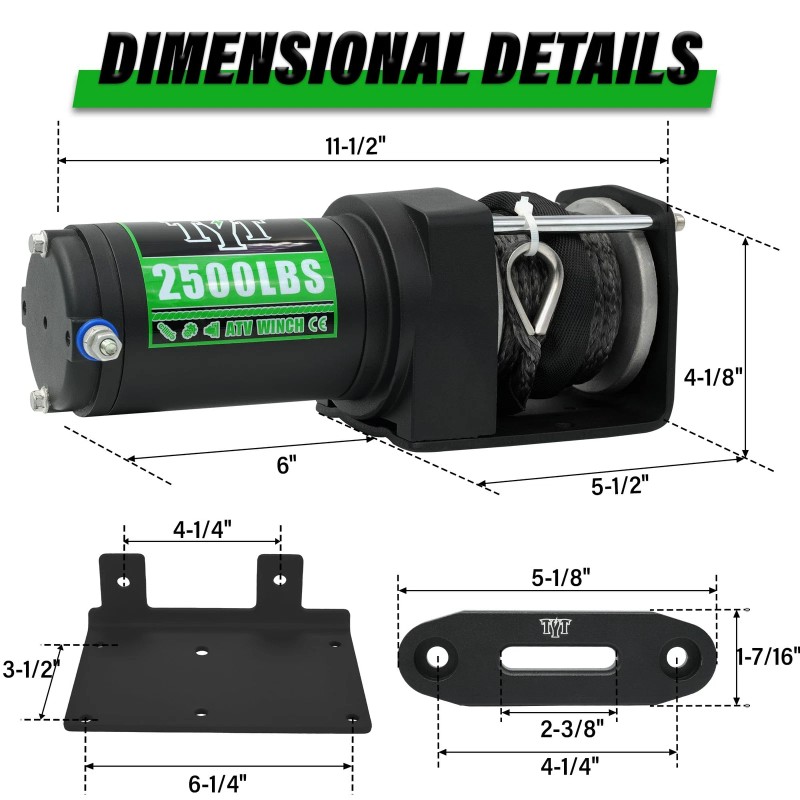

- Drum Size: Ø 1.9”(D)x3.3”(L)
- Item Weight: 17lb
- Rope: 4.8mm*10m
- Permanent Magnet Motor : 1.2HP 0.9KW
- Overall Dimensions: 12”(L)x4”(W)x6”(H)
- Country/Region of Manufacture ( / ): China ( )
- *Line Material: Synthetic Rope
- Manufacturer Warranty ( ): 1 Year
- Voltage: 12V
- Brake Type: Automatic in the Drum
