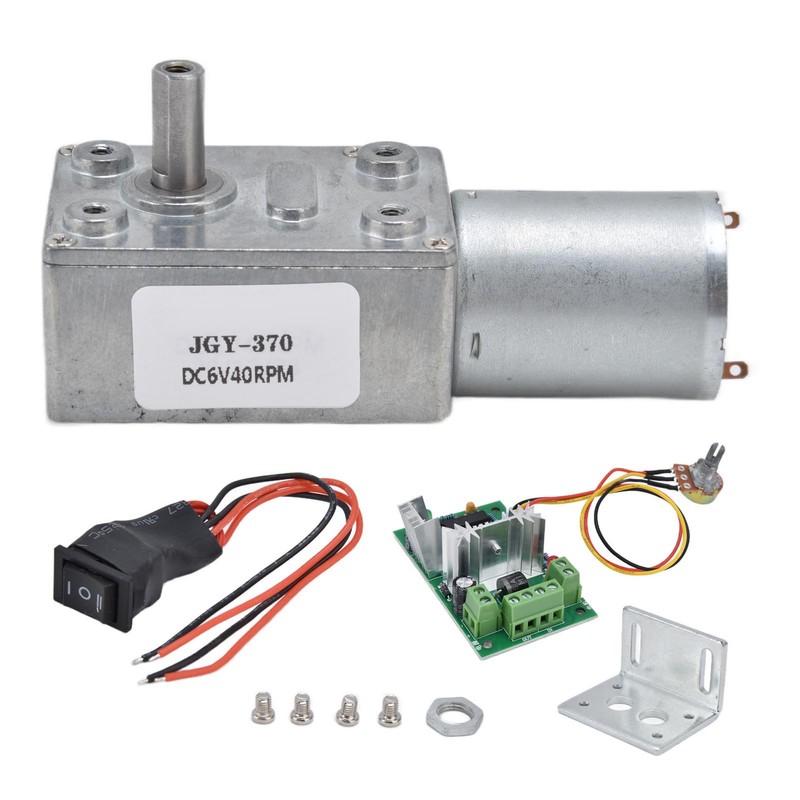

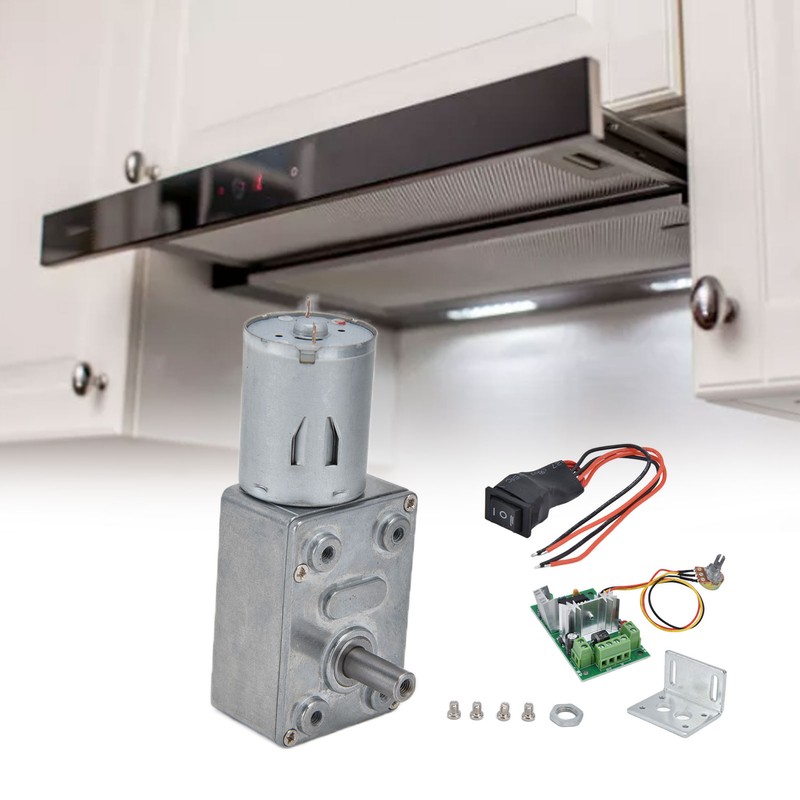

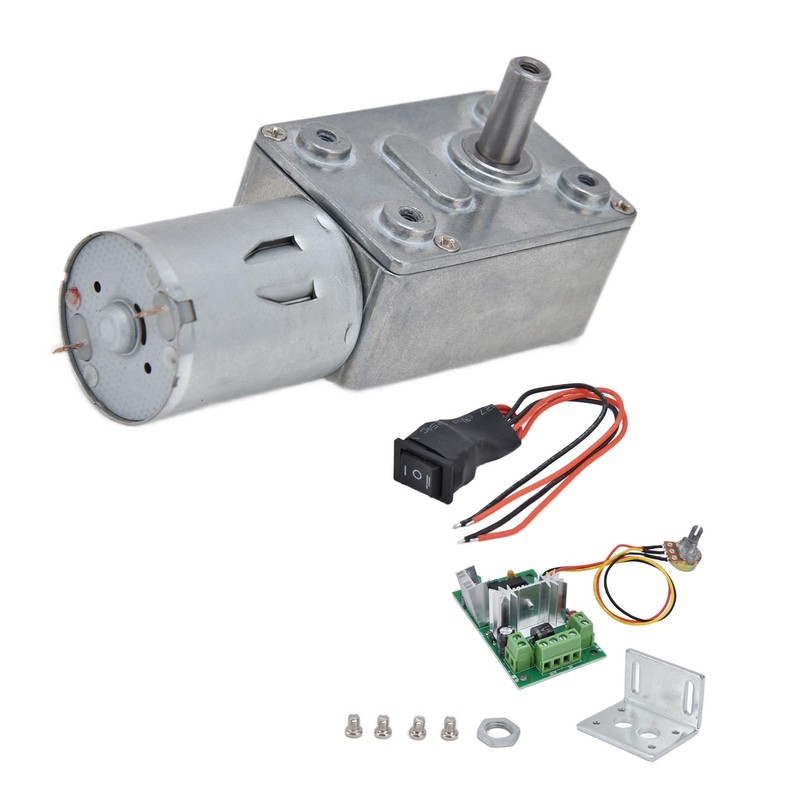

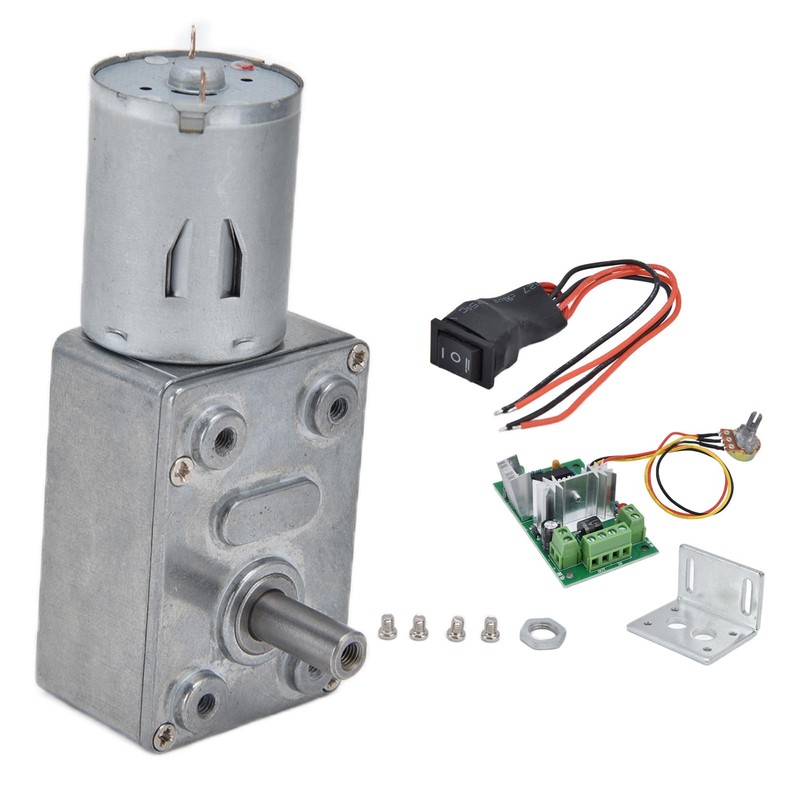

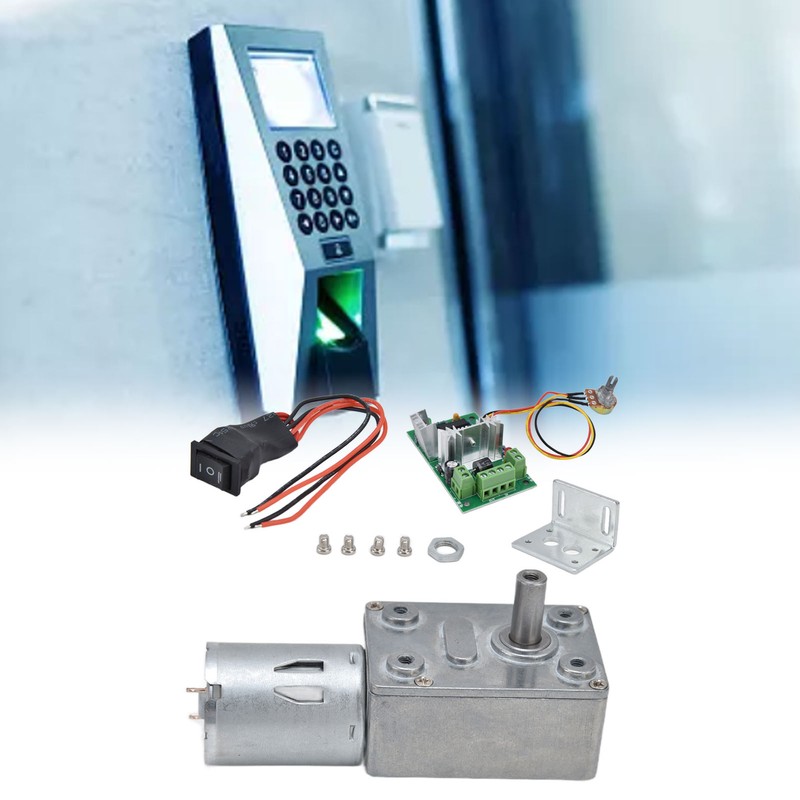

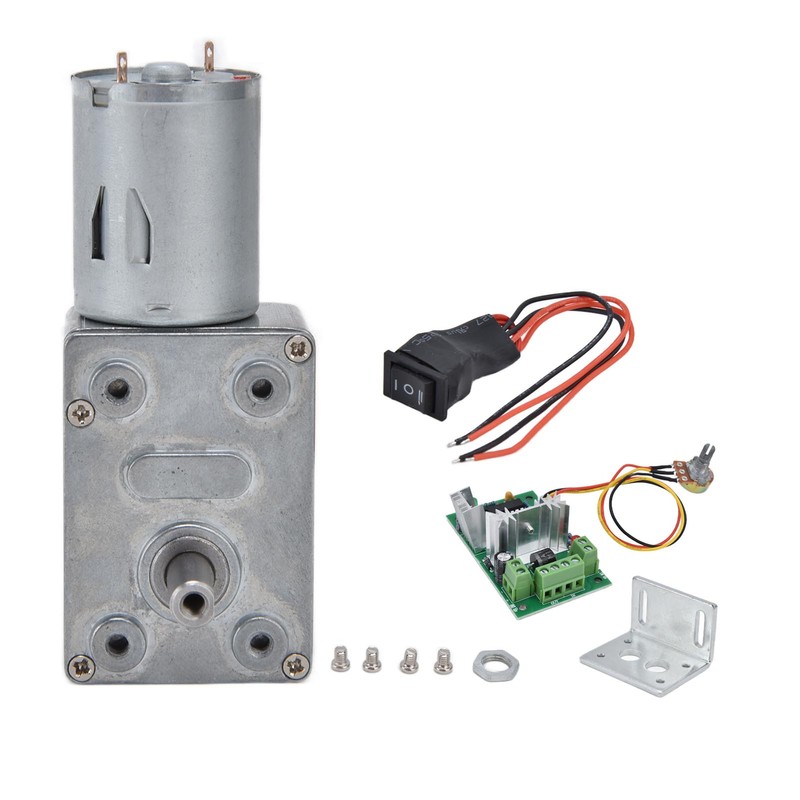

6V Geared Motor DC Turbo Worm Mini Speed Reduction Electric Motors with Governor JGY3706V40RPM
6V Geared Motor DC Turbo Worm Mini Speed Reduction Electric Motors with Governor JGY3706V40RPM
6V Geared Motor DC Turbo Worm Mini Speed Reduction Electric Motors with Governor JGY3706V40RPM

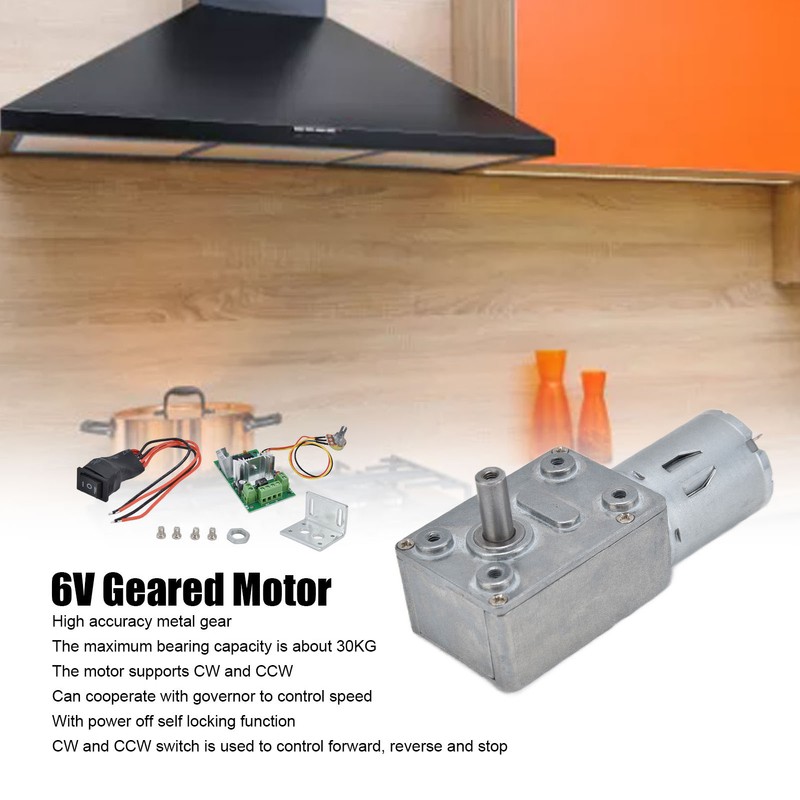

1、The geared motor adopts high accuracy metal gear and stainless iron hardened output shaft, running smoothly. 2、The motor supports forward and reverse rotation, and has power off self locking function, making the operation more flexible. 3、Turbine worm reduction design, the maximum bearing force of the gear is about 30KG, and the speed can be controlled by the governor. 4、The shell is made of zinc alloy die casting, which has good wear resistance and easy heat dissipation to extend the service life of the motor. 5、DC gear motors are often used in electronic locks, range hoods, display stands, robots, smart devices, barbecue machines, etc.
| Isin: | I2VK2KQXALUX |
|---|
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1、The geared motor adopts high accuracy metal gear and stainless iron hardened output shaft, running smoothly. 2、The motor supports forward and reverse rotation, and has power off self locking function, making the operation more flexible. 3、Turbine worm reduction design, the maximum bearing force of the gear is about 30KG, and the speed can be controlled by the governor. 4、The shell is made of zinc alloy die casting, which has good wear resistance and easy heat dissipation to extend the service life of the motor. 5、DC gear motors are often used in electronic locks, range hoods, display stands, robots, smart devices, barbecue machines, etc.
More Information
Item Type: Geared Motor
Use Range: DC3-9V

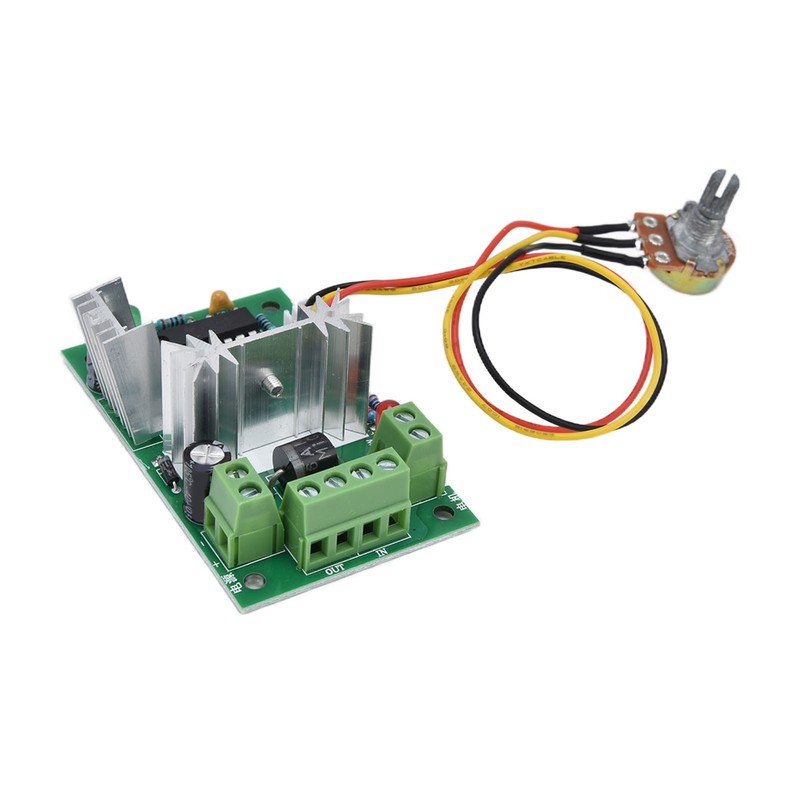

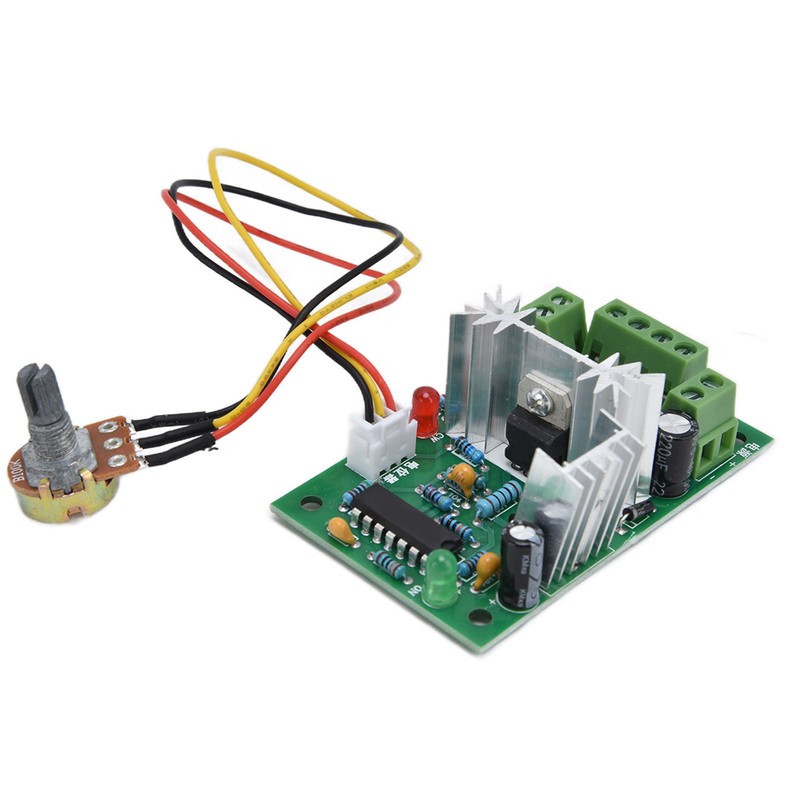

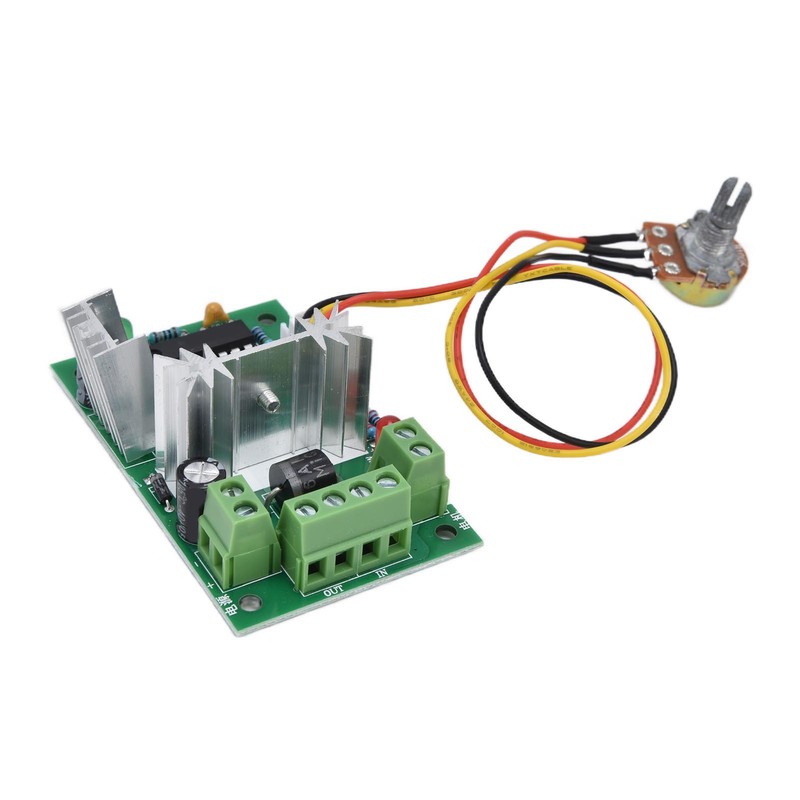

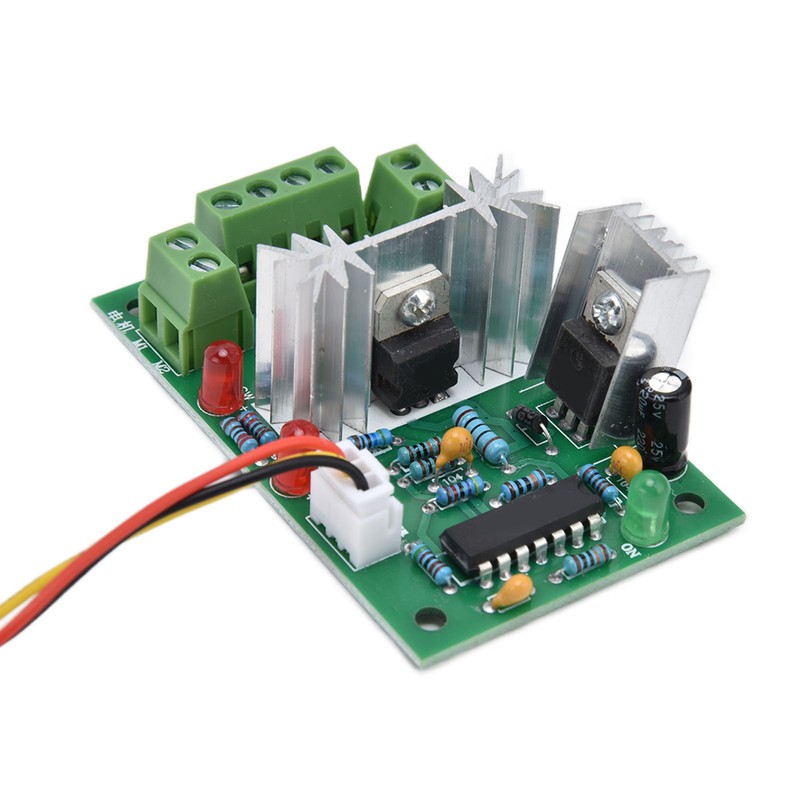

CCM2 DC Motor Governor Parameters:
DC motor regulator CW and CCW control
Model: CCM2
Control Power: 12V x 3A=36W, 24V x 3A=72W, ＞24V, maximum 120W
Rated Current: 3A
Maximum Current: 5A
PWM Pulse Width Adjustment Range: 5%-95%

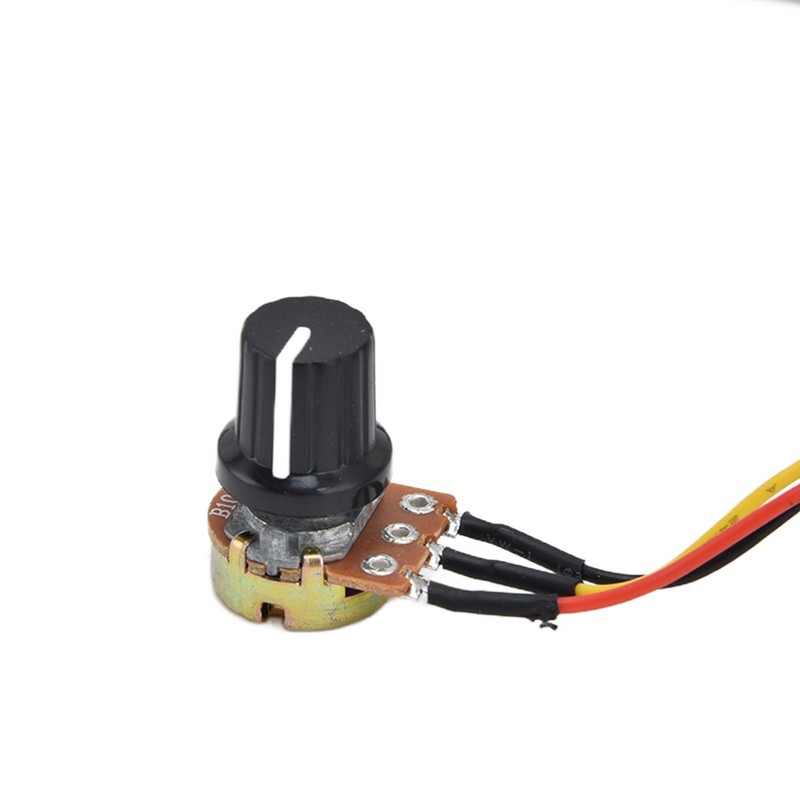

Potentiometer: Resistance value B10K, wire length is approx. 20cm / 7.9in, opening approx. 8mm / 0.3in

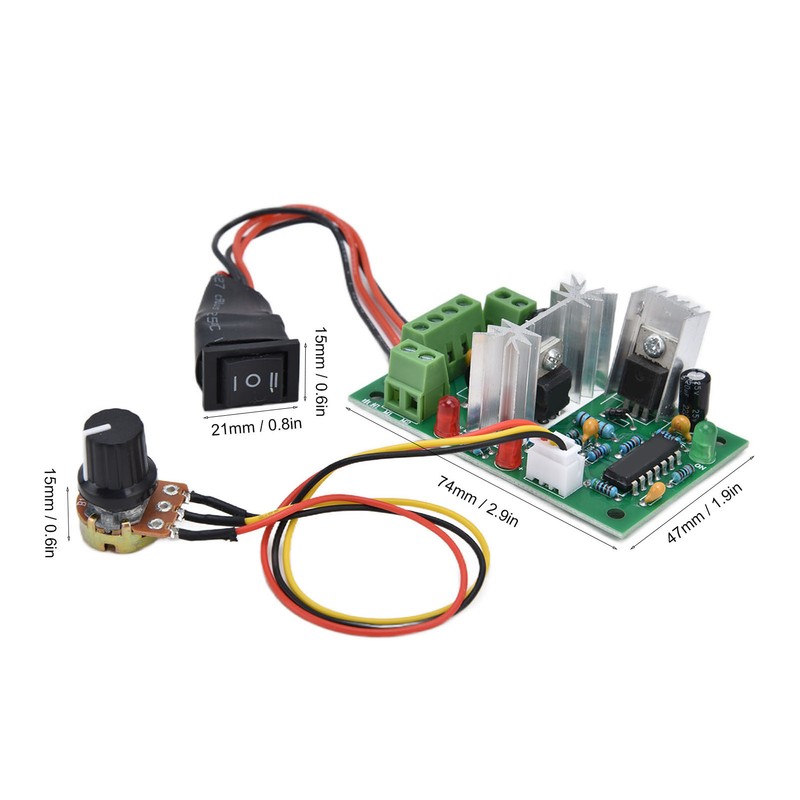

Speed Governor Size: Approx. 74 x 47 x 28mm / 2.9 x 1.9 x 1.1in
Potentiometer is used for speed regulation
CW and CCW switche is used to control forward, reverse, and stop
| Voltage V | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Rotating Speed RPM | 150 | 100 | 50 | 40 | 30 | 25 | 20 | 10 | 5 |
| Rated Torsion Kg.cm | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated Current A | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Maximum Torsion Kg.cm | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current A | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
Notice
Motor:
1. When using the motor, there should be no restrictions. For example, the adhesive should not flow into the bearing through the rotating shaft, which will affect the run of the motor.
2. In order to prolong the service life, do not overload or hang objects that hinder rotation at the shaft end.
3. Manufactured into an eccentric heavy radiation load, which is harmful to the life of the motor.
4. Do not store in high temperature or extreme humidity, and do not place in corrosive gas, which will reduce the effect of the motor.
5. When soldering is required on the positive and negative motor terminals of the power supply, the temperature of the soldering iron is 340℃±40℃, and the heating time is less than 3s. Do not deform the plastic. Let the solder points flow into the motor or break the end of the wire during work to make the motor function. decline.
6. The maximum bearing capacity of the gear is 70KG, blocking is forbidden, and the motor may be burnt if it is blocked for a long time.
7. Supply the specified power and be sure that it is within the range of measurable requirements.
8. The installation of pulleys or gears should not be abnormally aggravated when pressed in.
9. When installing the motor, if the screw is too long, it will cause contact between the motor and the rotor, thereby affecting the characteristics.
Governor:

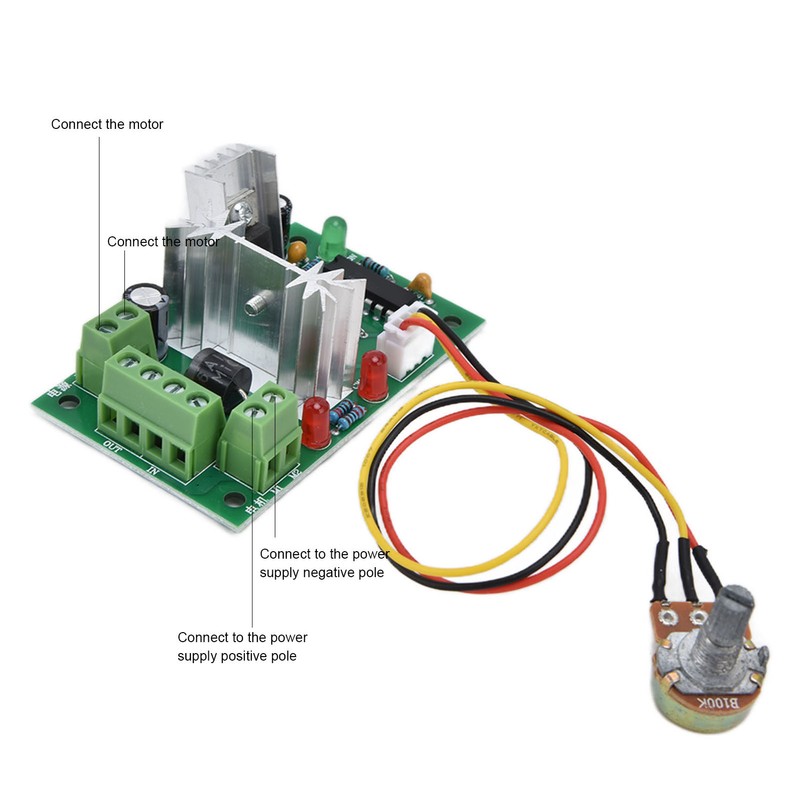

1. The input of the DC motor speed controller is direct current, and cannot be directly connected to alternating current (such as household AC motors).
2. The positive and negative poles of the DC power supply cannot be reversed.
3. The motor can be positive or negative. When the running direction is not suitable, the direction can be changed by adjusting the wire sequence.
4. The potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed.
