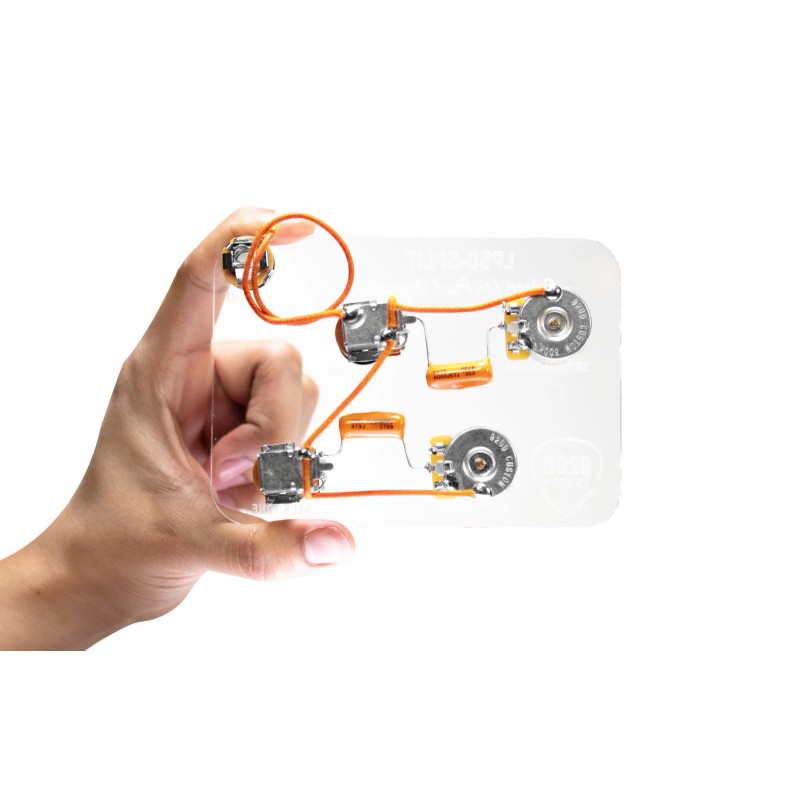

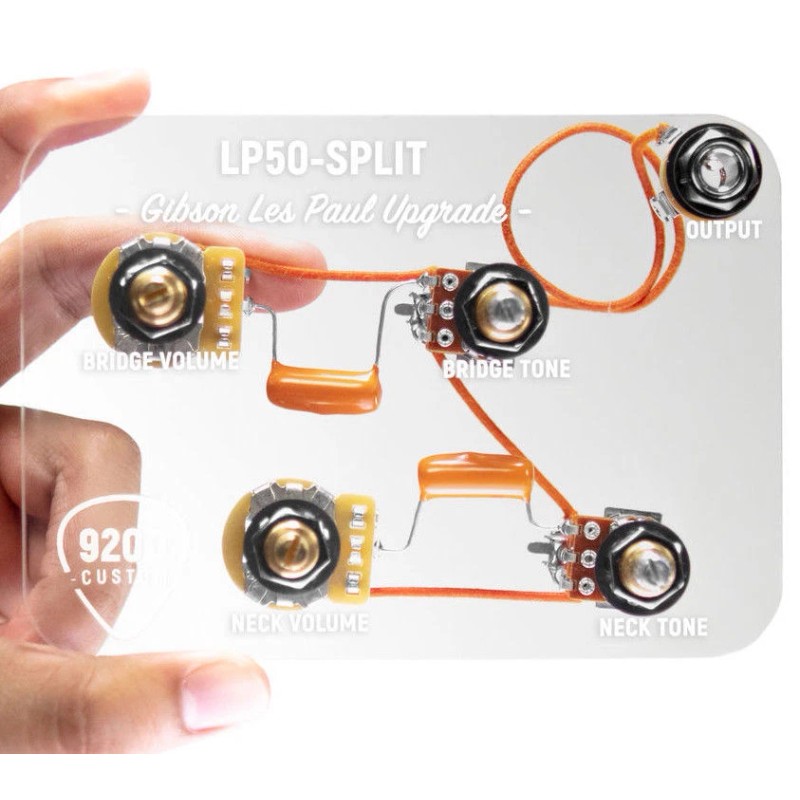

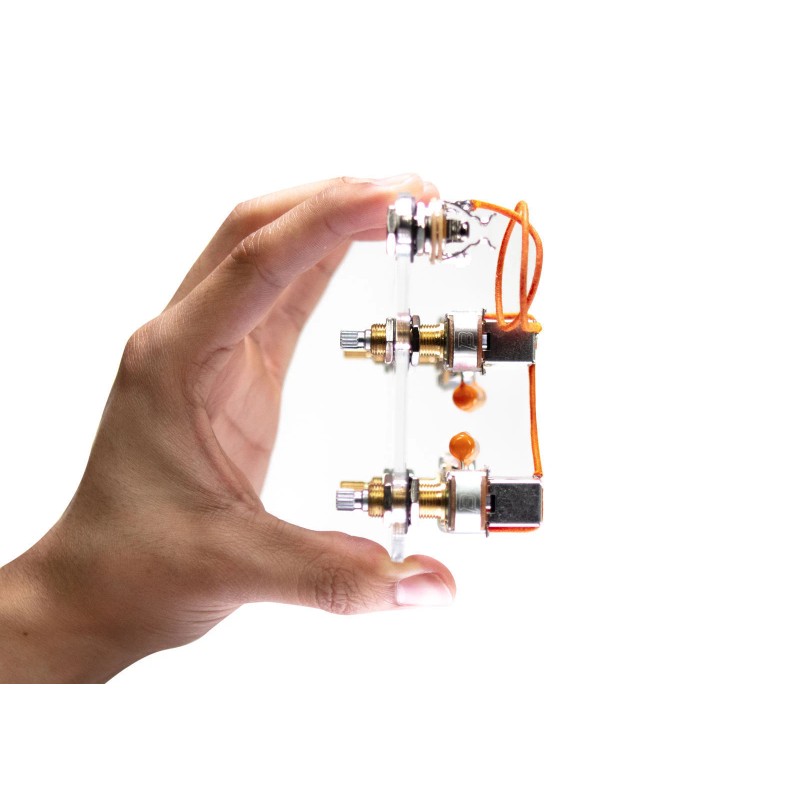

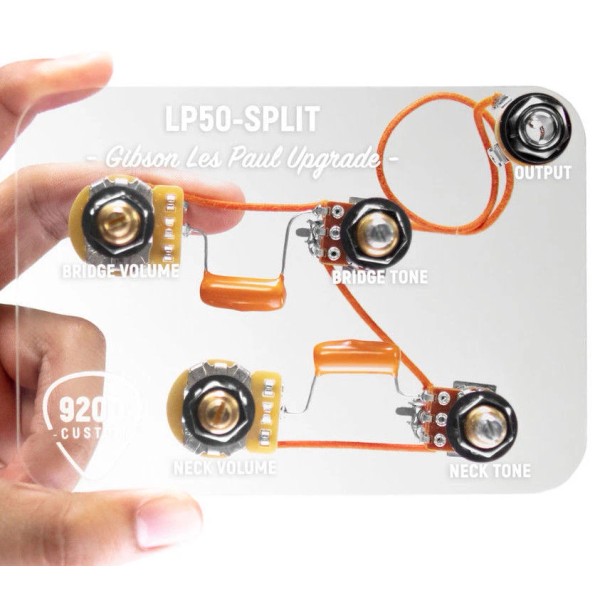

920D Custom LP50-SPLIT Les Paul Wiring Harness
A 920D Custom LP50-SPLIT Les Paul Wiring Harness is built to easily drop into your guitar and totally transform your tone. With genuine Orange Drop capacitors your guitar will have the classic sound of a vintage Les Paul. This wiring scheme provides a tight, transparent tone. Unlike modern wiring schemes, it features a reduced treble cut when rolling back the volume control. The highs seem to be clearer, especially with the volume pot rolled back. This harness effectively gives you a treble bleed kit function on each volume pot without adding the extra caps and resistors. The Push/Pull tone pots will split each respective pickup. If you are looking to clean up your tone and let your pickups sing through, then the LP50-SPLIT is for you.
Components
- 2 - 920D Custom 450G Series 500K Pots by CTS (Long Shaft)
- 2 - Bourns Push/Pull 500K Pots (Long Shaft)
- 2 - .022µF Orange Drop Capacitor by Sprague Electric
- 1 - Pure Tone Output Jack
- 920D Custom Signature Wiring by Gavitt Wire
920D Custom Signature Wiring
All 920D Custom products are highlighted with our signature orange wire. Gavitt Wire, a leading producer of premium guitar wire, has agreed to custom manufacture our signature cloth covered pushback wire, and we believe it is the perfect choice for hotrodding your guitar. The wire is built with an outer waxed cotton layer and an inner Celanese braid that provides impressive ruggedness while still maintaining a 22 gauge thickness. Limiting the amount of wire on each build compliments your choice of pickups by creating the perfect balance between capacitance and resistance.
|
Sprague Orange Drop Capacitors We’ve used Sprague Orange Drop Capacitors in our builds since day 1. Orange Drop® Polyester Film/Foil Capacitors are wound from the most reliable polyester film and aluminum foil available and are protected by a rugged conformal coating of orange epoxy. All of that to say, these capacitors do a tremendous job of warming up your tone and taking away some of the bite of an overly bright sound. Like our potentiometers, these capacitors are held to a ±10% tolerance. 920D Custom 450G Series Potentiometers920D Custom potentiometers are used in this build. Our pots are manufactured by CTS to our exact specifications and are metered for accuracy before being used in any 920D Custom gear. We specify a 10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep. We hold potentiometer tolerances to ±10%. The industry standard is ±20%. Tightening potentiometer tolerances will help you accurately shape your tone. Pure Tone 1/4” Output JackWe exclusively use Pure Tone output jacks in all builds. Why? Because they’re unquestionably better than the old, industry standard. Period. We’ve all heard the crackle of a weak connection caused by pressure grounds. This is due to the old style jack only having 1 squared-off point of contact trying to meet a rounded ¼” plug. Pure Tone has completely changed that. Pure Tone’s
multi-contact ¼” output jack has 4 rounded contact points that hold the ¼”
plug firmly in place. With 4 times the contact points, all of the
dreaded cracks, snaps, and pops are gone for good. Trust us, the second you
plug into this jack, you’ll never want to go back.
Switchcraft 3 Way SwitchOur LP-PAGE+T is built using a genuine Switchcraft 3 Way Switch. These switches are well known for their durability and noise-free reliability. Switchcraft switches are rated to last a lifetime. This switch is, hands-down, the switch you want in your Les Paul. Hand-Built In The U.S.A.All 920D Custom creations are hand-built by experienced technicians at our headquarters in Conway, Arkansas. We treat your new gear like it’s going into one of our own guitars. Every millimeter of wire is cut precisely, every solder joint is perfectly smooth and symmetrical, and every bend is purposeful and direct. We hold everything to a tremendous level of quality because we know the smallest details matter and we take great pride in our work. |
|
|
| Brand: | 920 D |
|---|---|
| Isin: | IIQ9JRWQC8RN |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
920D Custom LP50-SPLIT Les Paul Wiring Harness
A 920D Custom LP50-SPLIT Les Paul Wiring Harness is built to easily drop into your guitar and totally transform your tone. With genuine Orange Drop capacitors your guitar will have the classic sound of a vintage Les Paul. This wiring scheme provides a tight, transparent tone. Unlike modern wiring schemes, it features a reduced treble cut when rolling back the volume control. The highs seem to be clearer, especially with the volume pot rolled back. This harness effectively gives you a treble bleed kit function on each volume pot without adding the extra caps and resistors. The Push/Pull tone pots will split each respective pickup. If you are looking to clean up your tone and let your pickups sing through, then the LP50-SPLIT is for you.
Components
- 2 - 920D Custom 450G Series 500K Pots by CTS (Long Shaft)
- 2 - Bourns Push/Pull 500K Pots (Long Shaft)
- 2 - .022µF Orange Drop Capacitor by Sprague Electric
- 1 - Pure Tone Output Jack
- 920D Custom Signature Wiring by Gavitt Wire
920D Custom Signature Wiring
All 920D Custom products are highlighted with our signature orange wire. Gavitt Wire, a leading producer of premium guitar wire, has agreed to custom manufacture our signature cloth covered pushback wire, and we believe it is the perfect choice for hotrodding your guitar. The wire is built with an outer waxed cotton layer and an inner Celanese braid that provides impressive ruggedness while still maintaining a 22 gauge thickness. Limiting the amount of wire on each build compliments your choice of pickups by creating the perfect balance between capacitance and resistance.
|
Sprague Orange Drop Capacitors We’ve used Sprague Orange Drop Capacitors in our builds since day 1. Orange Drop® Polyester Film/Foil Capacitors are wound from the most reliable polyester film and aluminum foil available and are protected by a rugged conformal coating of orange epoxy. All of that to say, these capacitors do a tremendous job of warming up your tone and taking away some of the bite of an overly bright sound. Like our potentiometers, these capacitors are held to a ±10% tolerance. 920D Custom 450G Series Potentiometers920D Custom potentiometers are used in this build. Our pots are manufactured by CTS to our exact specifications and are metered for accuracy before being used in any 920D Custom gear. We specify a 10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep. We hold potentiometer tolerances to ±10%. The industry standard is ±20%. Tightening potentiometer tolerances will help you accurately shape your tone. Pure Tone 1/4” Output JackWe exclusively use Pure Tone output jacks in all builds. Why? Because they’re unquestionably better than the old, industry standard. Period. We’ve all heard the crackle of a weak connection caused by pressure grounds. This is due to the old style jack only having 1 squared-off point of contact trying to meet a rounded ¼” plug. Pure Tone has completely changed that. Pure Tone’s
multi-contact ¼” output jack has 4 rounded contact points that hold the ¼”
plug firmly in place. With 4 times the contact points, all of the
dreaded cracks, snaps, and pops are gone for good. Trust us, the second you
plug into this jack, you’ll never want to go back.
Switchcraft 3 Way SwitchOur LP-PAGE+T is built using a genuine Switchcraft 3 Way Switch. These switches are well known for their durability and noise-free reliability. Switchcraft switches are rated to last a lifetime. This switch is, hands-down, the switch you want in your Les Paul. Hand-Built In The U.S.A.All 920D Custom creations are hand-built by experienced technicians at our headquarters in Conway, Arkansas. We treat your new gear like it’s going into one of our own guitars. Every millimeter of wire is cut precisely, every solder joint is perfectly smooth and symmetrical, and every bend is purposeful and direct. We hold everything to a tremendous level of quality because we know the smallest details matter and we take great pride in our work. |
|
|
- Brand: 920 D
- Type: Wire Harness
- To Fit: Electric Guitar
- MPN: 920D-LP50-SPLIT
- UPC: Does not apply
