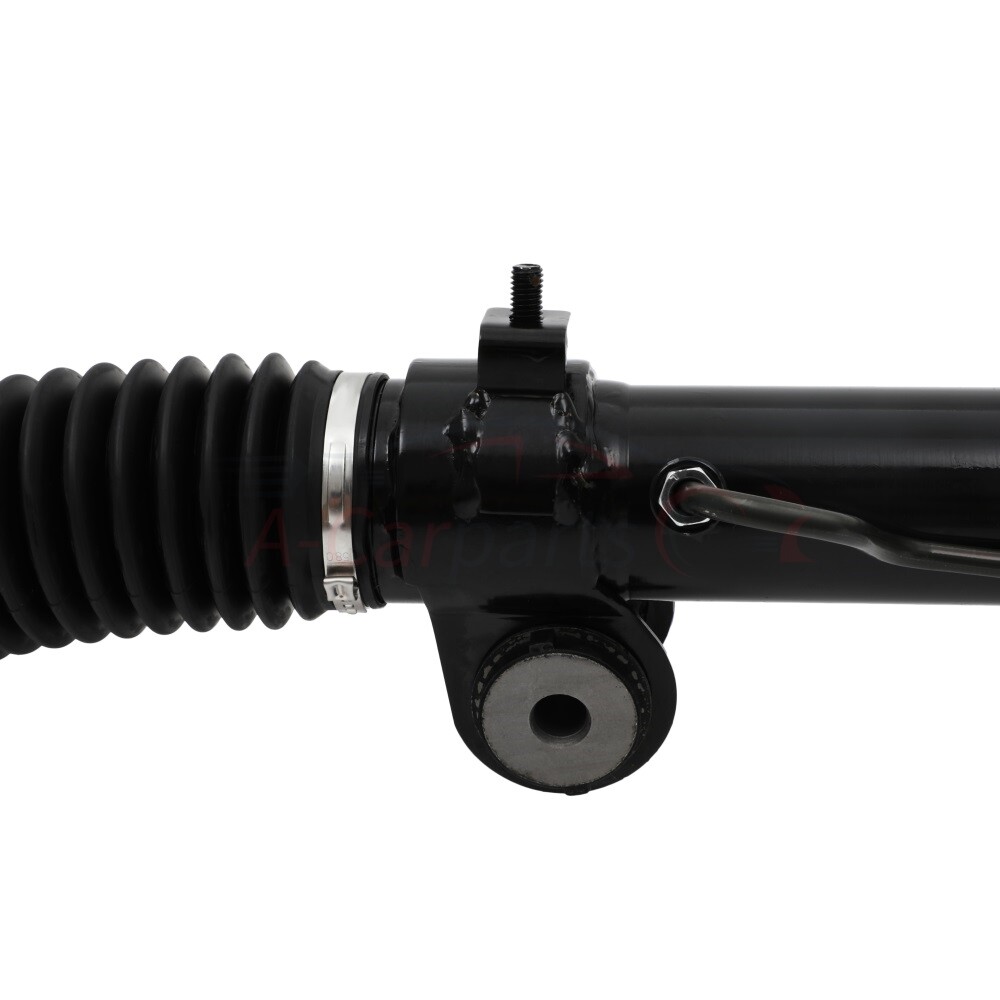

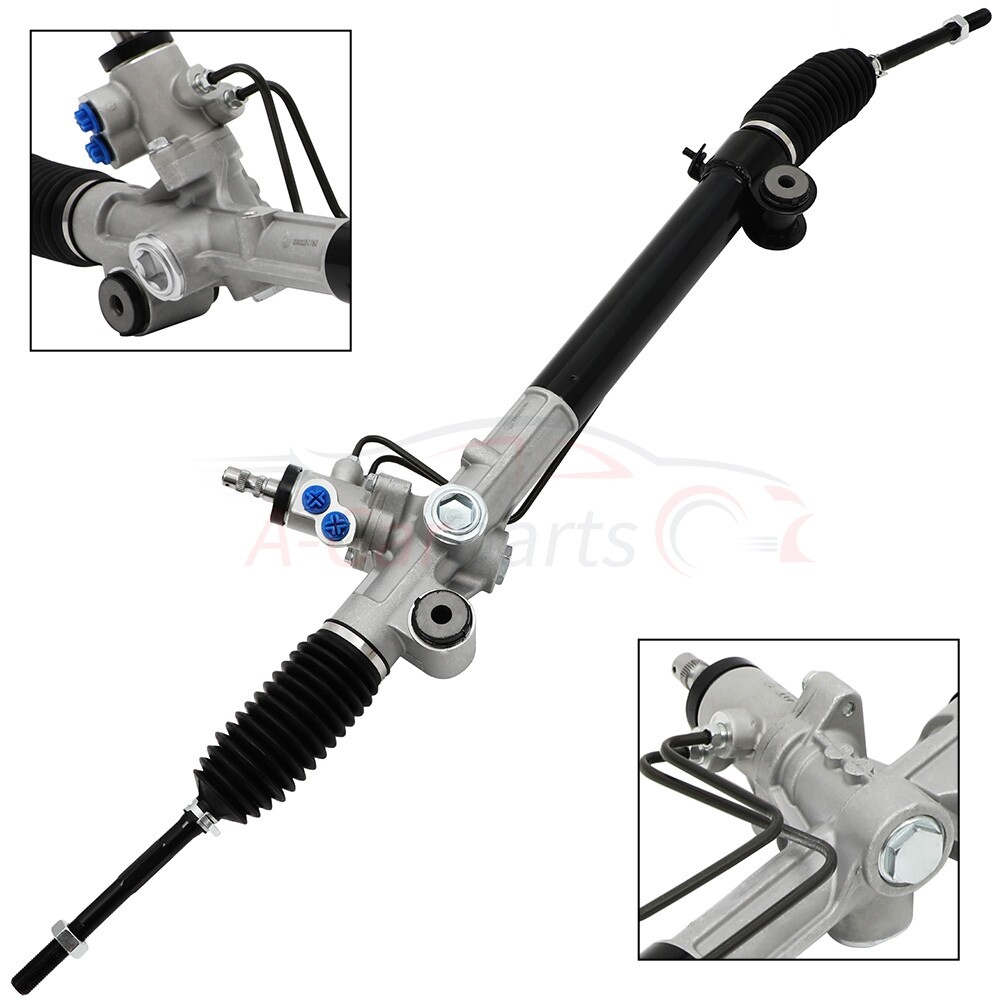

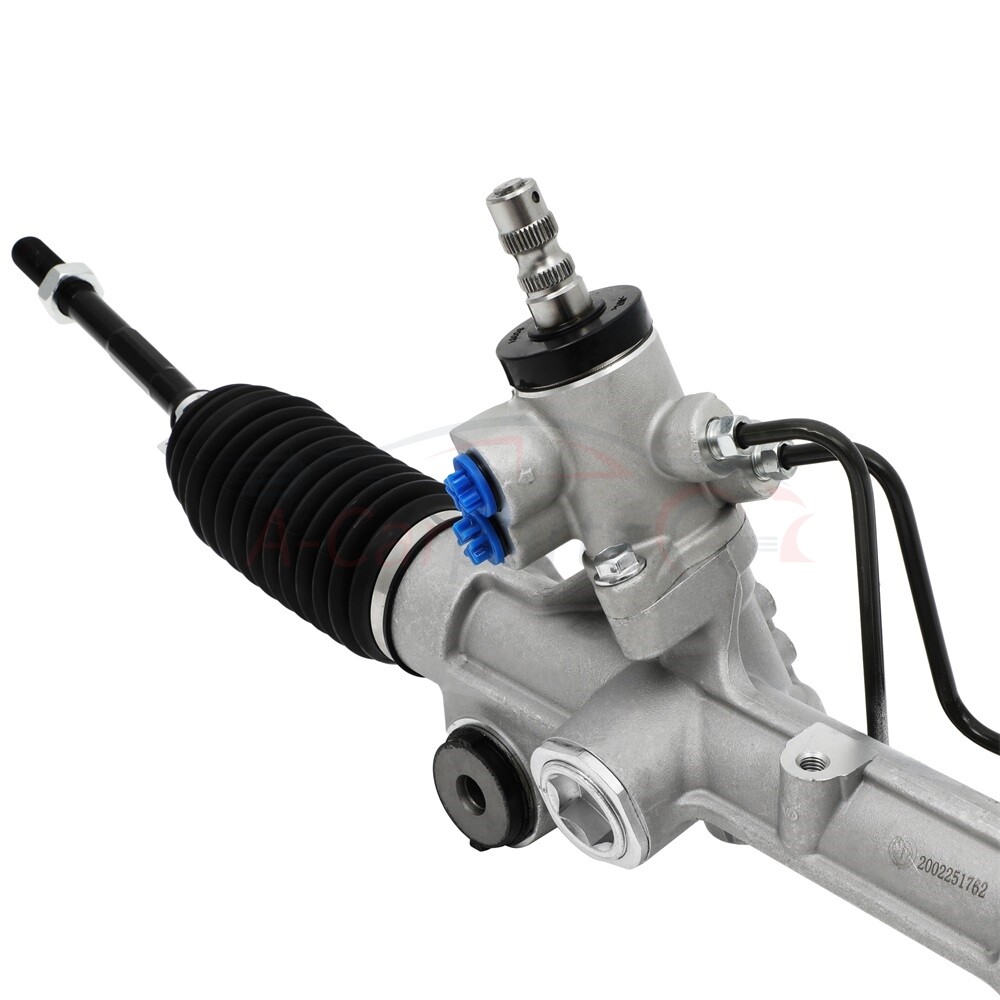

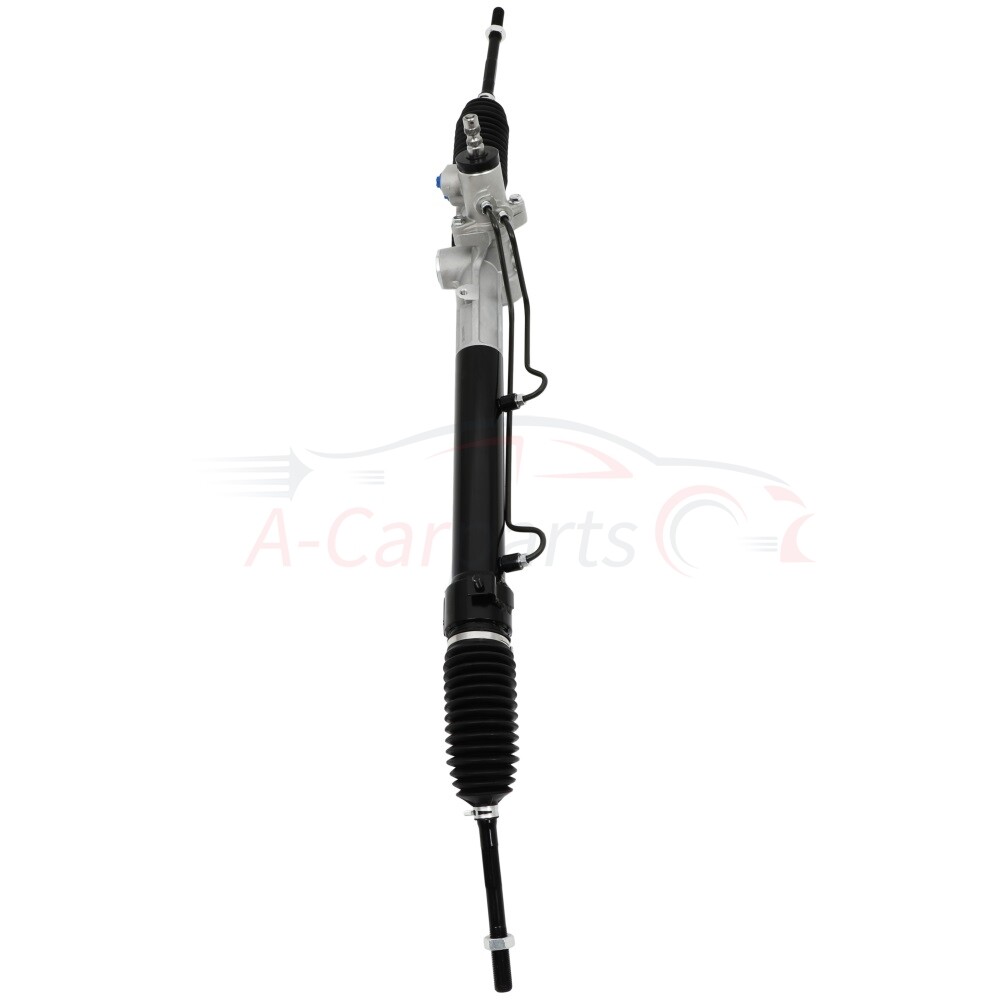

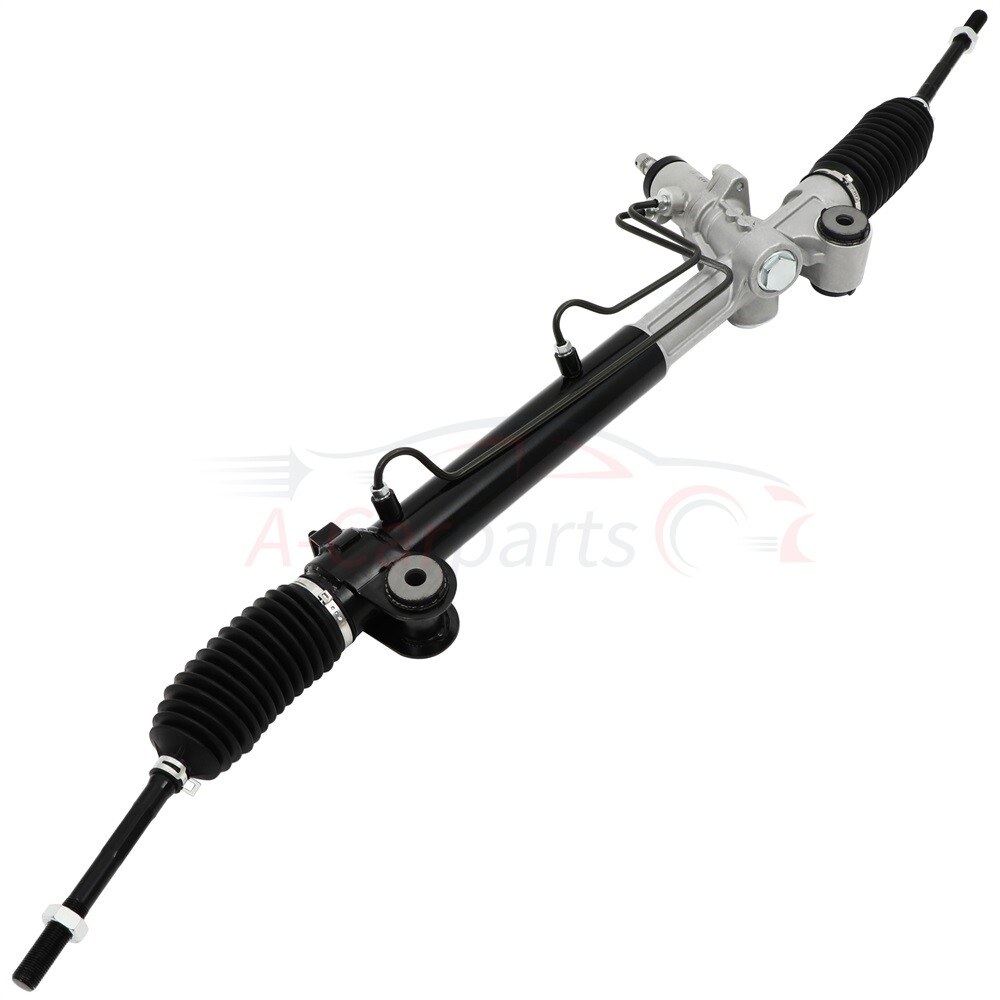

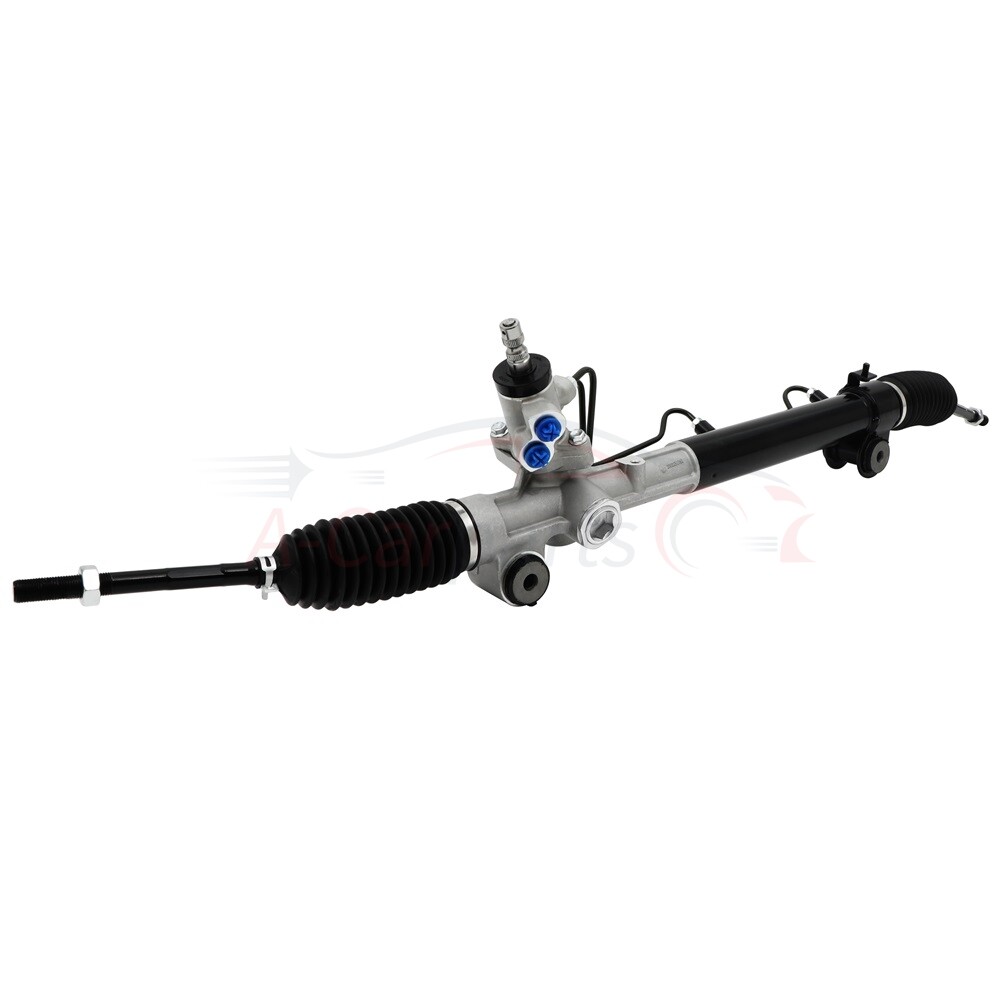

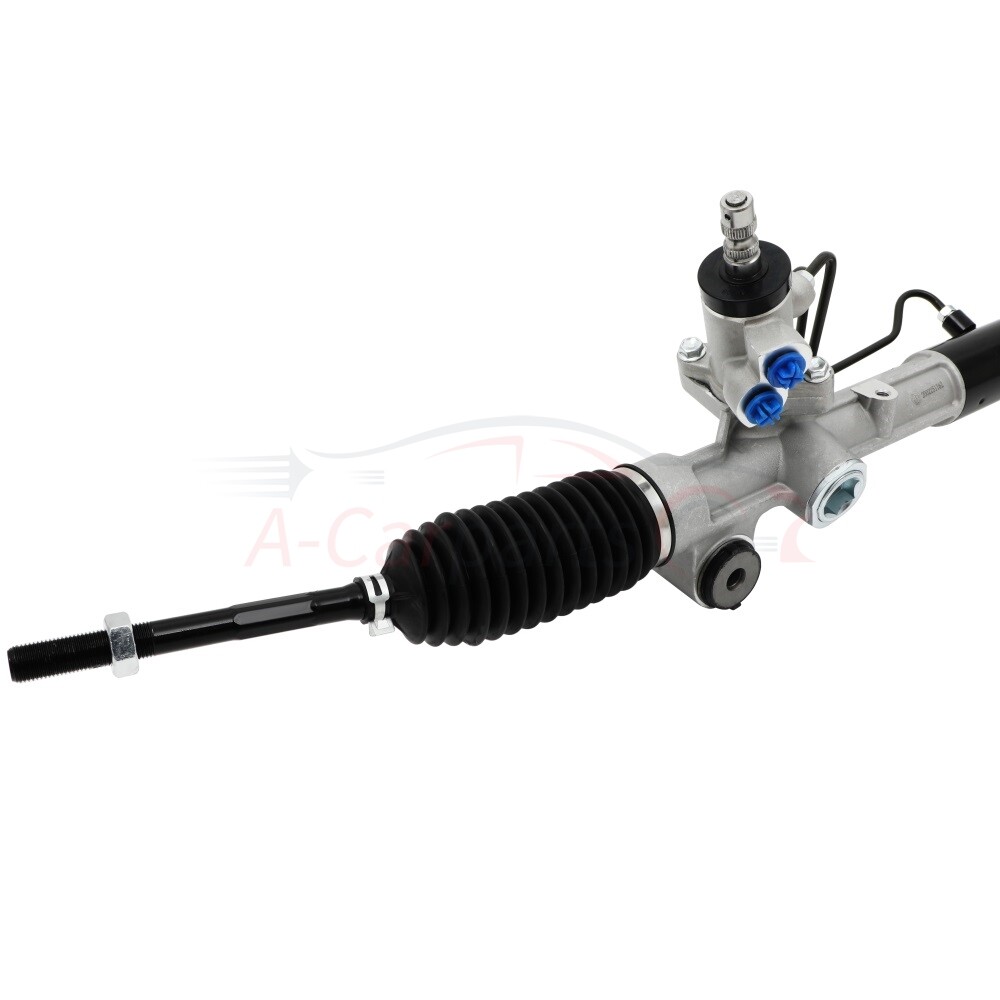

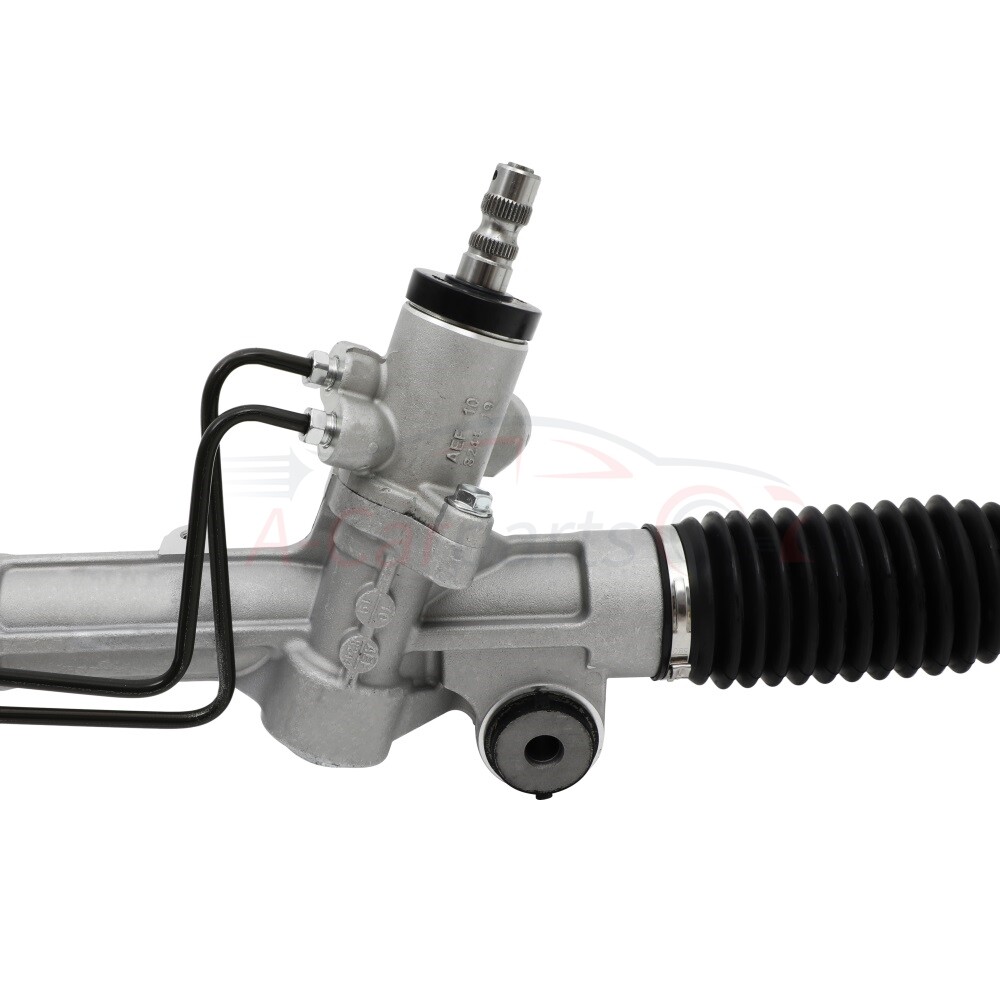

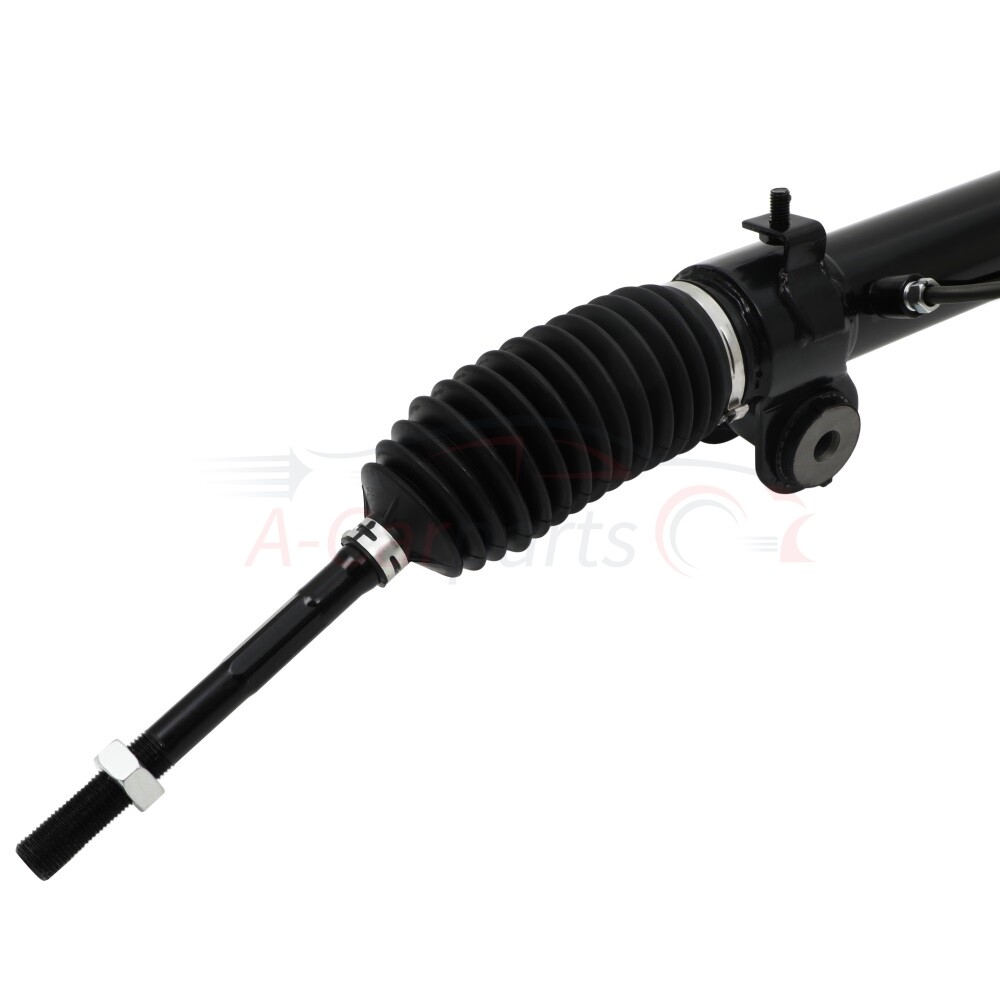

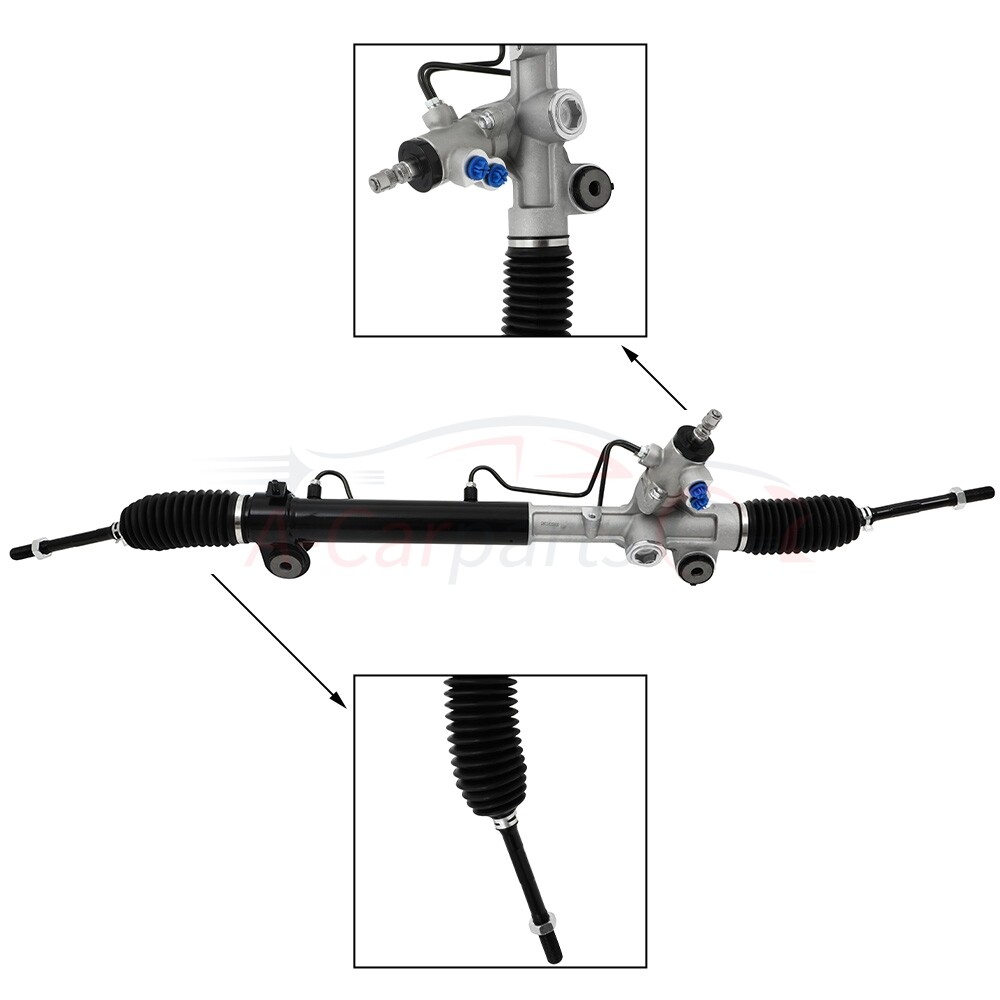

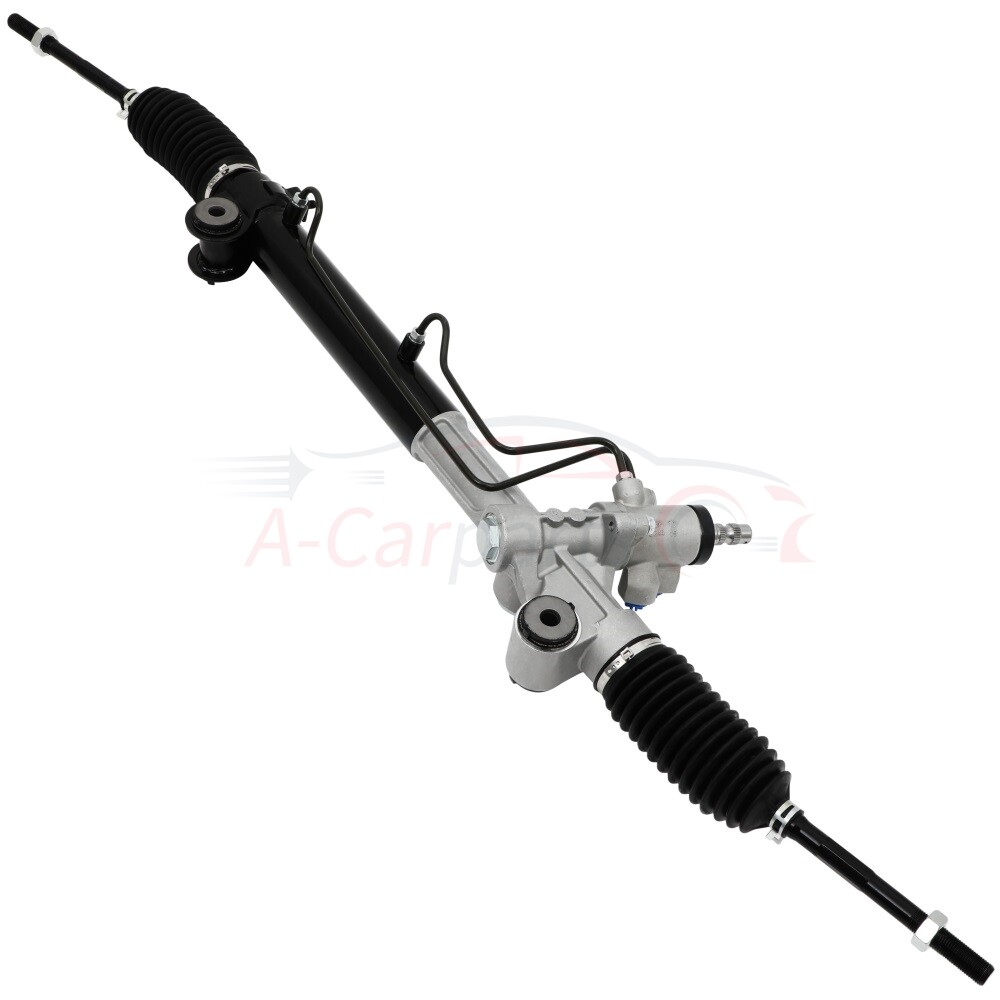

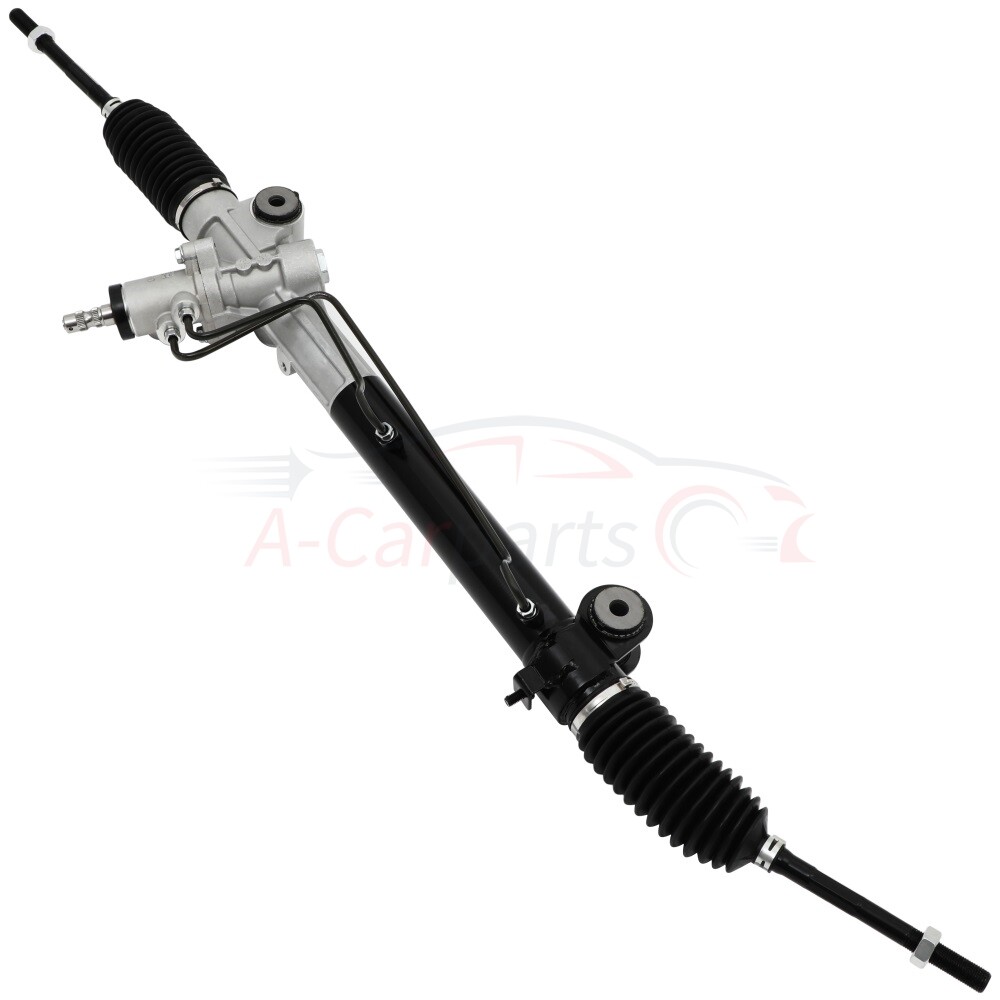

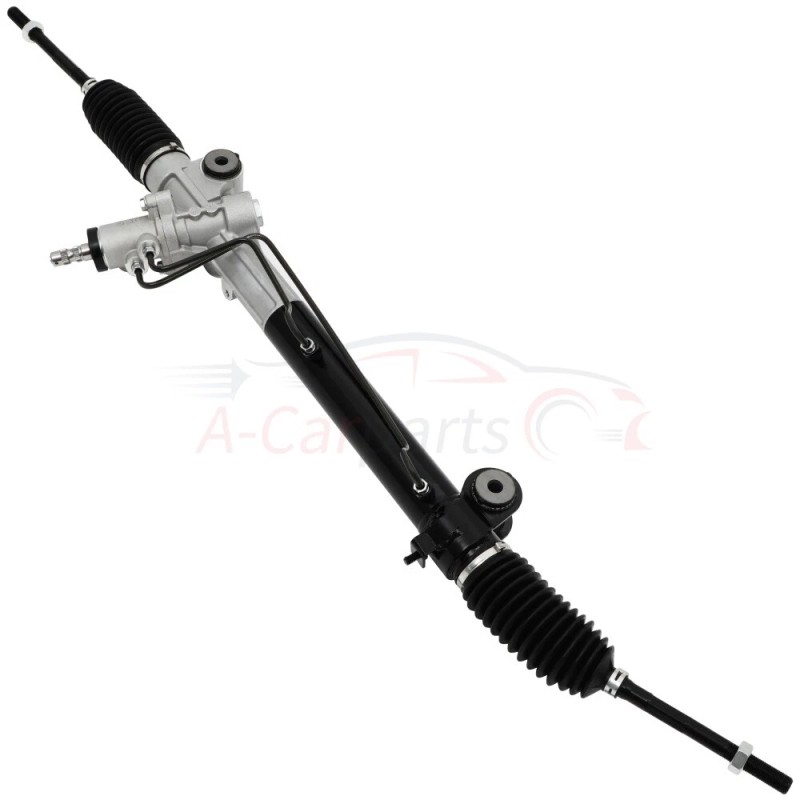

A-Carparts For 2004-20006 Toyota Sienna Complete Power Steering Rack And Pinion Assembly
A-Carparts For 2004-20006 Toyota Sienna Complete Power Steering Rack And Pinion Assembly
|
|
|
|
|
|
|
|
|
|
|
|
|
Key Features:
Item Type: Power Steering Rack and Pinion Assembly
Condition: Brand New
Warranty: One Year Warranty
Information:
Casting Material : Steel/Aluminum
Package Contents : Rack and Pinion, Installation Kit, Instruction Sheet
Product Condition : Remanufactured
Number of Mounting Holes : 2
Hose Port Type : O-Ring
Tie Rod Ends Included : Inner
Total Turns Lock To Lock : 3.38
Pressure Port Thread Size : M16 x 1.5
Return Port Thread Size : M17 x 1.5
Rack Length (mm) : 1187.45
Thread Length (In) : 2.00
Thread Length (mm) : 50.80
Distance Between Mounting Holes (in) : 19.13
Distance Between Mounting Holes (mm) : 485.78
Steering Rack Color : Black
Input Shaft Diameter (in) : 0.75
Input Shaft Diameter (mm) : 18.92
Input Shaft Length (in) : 5.786
Input Shaft Length (mm) : 146.96
Rack Length (in) : 46.75
Interchange Part Number:
4425008040, 4425008030, 26-2619
Fit For:
Make | Model | Year | Engine | Fuel | Note |
Toyota | Sienna | 2004-2006 | V6 3.3L | Petrol | w/ Hydraulic Power Steering |
Toyota | Sienna | 2007-2010 | V6 3.5L | Petrol | w/ Hydraulic Power Steering |
How to Replace a Power Steering Rack
1.Drain the power steering fluid, loosen the front wheel nuts and jack up the car. Once the vehicle is properly supported on the jack stands, remove the front wheel lug nuts and the wheels.
2.Disconnect the tie rods
Detach the clamps connecting the steering column to the piston. Disconnect the outer rod ends using a special tie rod separator or ball joint fork. Loosen the nuts and turn the rods.
3.Remove the faulty steering rack
Insert a drainage pan under the car to catch any fluid and unbolt the power steering rack from its seating. Remove the rack via one of the wheel wells. Use plenty of effort, patience and ingenuity.
4.Install the new power steering rack
Using the same exit point as your entry point, insert the replacement rack into position using the required force. Measure the length of the old rack to determine the precise positions of the tie and cotter pins. Insert the pins in the new rack.
5.Reattach the hoses, except the steering fluid reservoir return line. Replace the components that were removed to enable access to the rack, together with the front wheels.
6.Bleed the power steering system
Start the car. Turn the steering wheel back and forth for about 15 minutes to release air trapped in the system. Turn off the engine and let it stand before topping up the reservoir with fluid.If the fluid is light brown in colour or has foam on the top, repeat the process until the fluid is clear. Reattach the reservoir hose, remove the drainage pan, lower the car and tighten the wheel nuts.
Item Specifics | |
---|---|
Brand | A-Carparts |
Manufacturer Part Number | A16548401C |
Package Length | 45.28 Inch |
Package Width | 9.45 Inch |
Package Height | 5.12 Inch |
Package Weight | 22.73 LB |
Type | Power Steering Rack and Pinion Assembly |
Performance Part | Yes |
Installation method | Performance/Custom |
Transmission Type | Automatic |
Material | High Quality Steel |
Surface Finish | Polished, Rust Protected |
Warranty | 1 Year |
Vintage Car Part | Yes |
Fitment Type | Direct Replacement |
Rack Type | Hydraulic |
Greasable or Sealed | YES |
Sub Type | Steering gear |
Rack Material | Corrosion And Rust Prevention |
Notice | If you can't confirm the model, please contact us |
Note | Tested For Reliability And Performance |
Interchange Part Number | 26-2619 Rack 25935;19321036;3110203 |
Superseded Part Number | 4425008040;4550309250;4425008041 |
OE/OEM Part Number | 26-2619 |
Type | Power Steering Rack |
Sub Type | Rack and Pinion Assembly, Rack and Pinion Rack Gear |
Package | Dust plug |
Universal Fitment | No |
Condition | New |
Features | Easy to Installation |
For | 2010 Toyota Sienna CE Mini Cargo Van 5-Door 3.5L |
For | 2010 Toyota Sienna CE Mini Cargo Van 5-Door 3.5L |
