    For 2005-2007 Ford Focus 2.0L 2003-2007 2.3L Throttle Body TB1088



    What is a throttle body ?

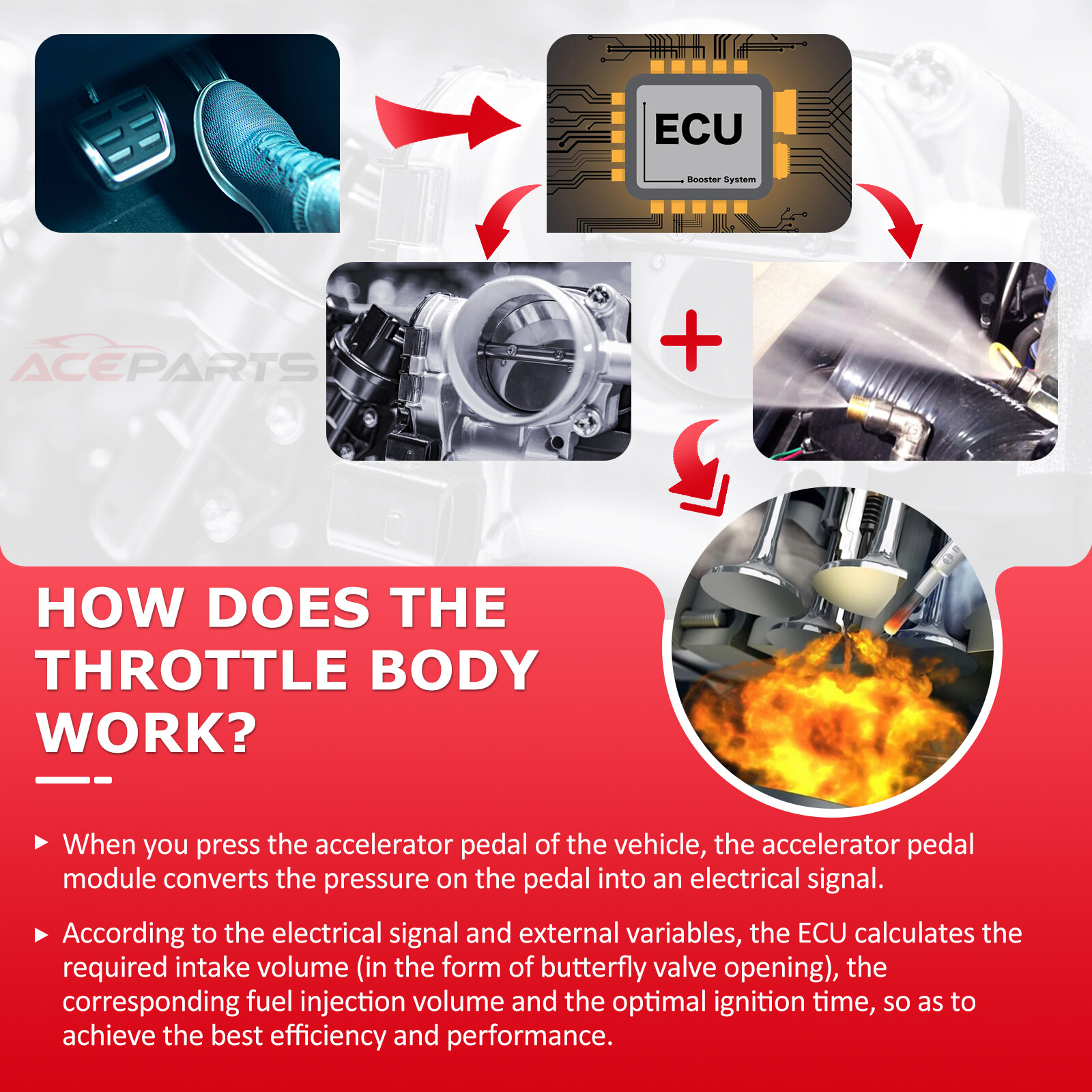

    The throttle body is the part of the engine that mixes air with the fuel to allow combustion to take place. When a throttle body gets clogged with carbon, the vehicle may suffer from issues ranging from a lack of fuel mileage, loss in efficiency or may even become totally inoperable.



    When you need to replace the throttle body:

    1. Check engine light and/or reduced power warning light is on. If the check engine light or reduced power warning light comes on, a mechanic will determine if any of the stored trouble codes implicate a throttle body malfunction.

    2. Wrong idle speed.

    3. Poor transmission shifting.



    WARNING !

    1. Do not disconnect any electrical connectors to the electronic throttle body assembly with the ignition switch in the “ON” position.   Make sure the ignition key is in the off position first.

    2. Additional components may need to be removed before proceeding with the electronic throttle body removal.

    3. Some electronic throttle body assemblies have coolant hose attachments that must be removed during replacement. To prevent coolant loss, plug hoses upon removal.

    4. After the replacement of the electronic throttle body, the idle speed may be Different or Vary. A Relearn procedure may be required on the vehicle. Refer to the appropriate technical service repair manual and follow “Relearn” instructions.



    Don't forget to relearn the new replaced ETB!



    Here is the throttle body relearn procedure:

    1. Start the engine and let it idle in park for 3 minutes. During that period the idle may be higher idle than normal.

    2. After 3 minutes, turn the engine off and leave it off for 60- seconds.

    3. Start the engine again and let it idle in park for 3 minutes one more time. During these run periods you may see a check engine light. Scan for codes and if you get throttle body related codes, clear them.

    4. If the idle speed is still off, drive the vehicle at speeds above 44-mph and operate several acceleration and deceleration cycles. Then repeat step #3 one last time.



    Some tips for locating the throttle body under the hood in the Engine Compartment:

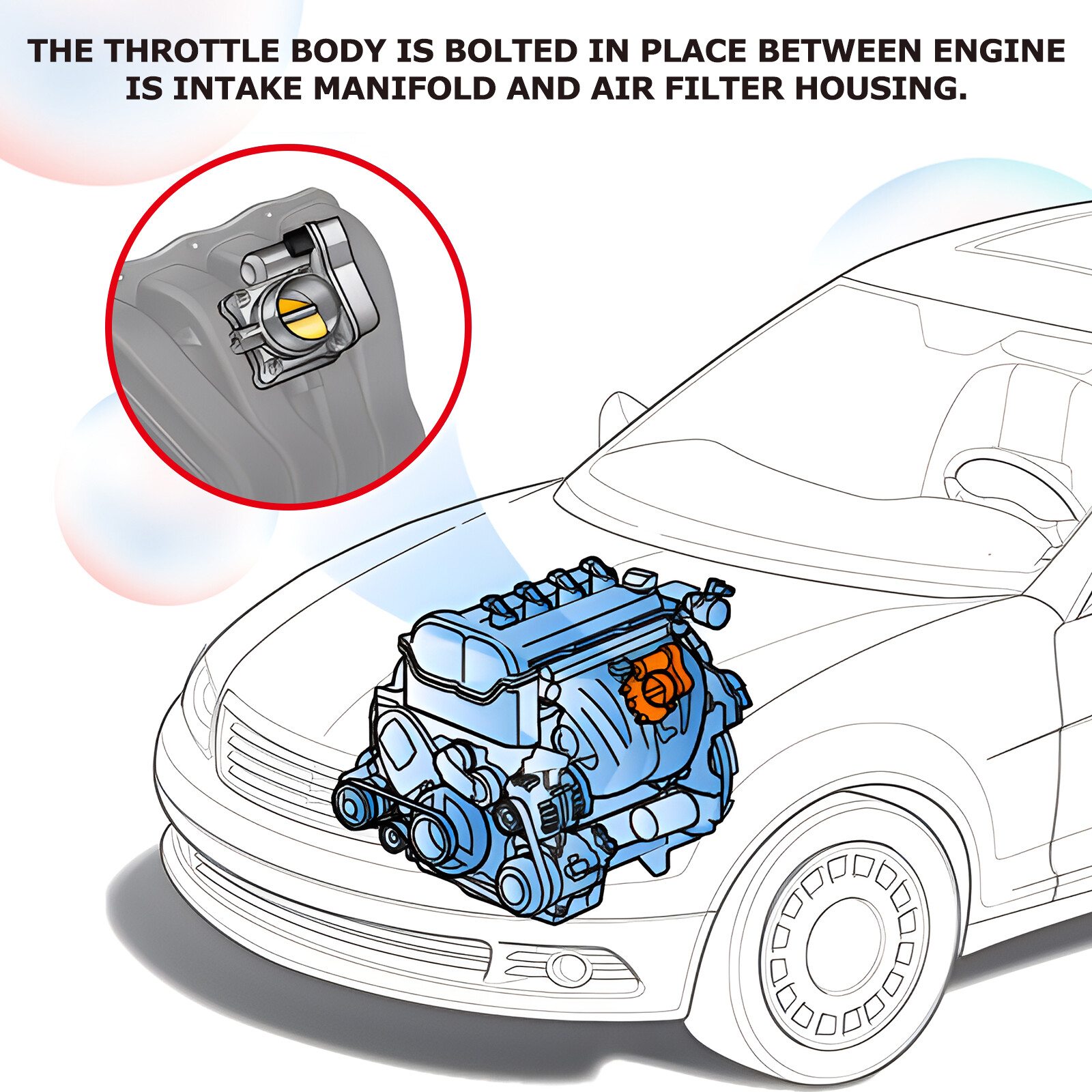

    • Throttle body is situated between the air cleaner and intake manifold

    • Throttle body is made from aluminum

    • In some older models, the throttle body is connected to the gas pedal by metal wire so you can identify it by pressing the gas pedal while the engine is shut off and see the moving part.

    • Once you find the throttle body, you have to be careful when dealing with it. This is because there are tubes and hoses and, in some cases, electrical connections attached to it.



    Is it safe to drive with a throttle body problem?

    Yes.  But, the vehicle may be limited in power or put into what is referred to as limp mode, in order to get the vehicle to a repair facility.  If the check engine light is on, or the electronic throttle control warning light is on, but there is no noticeable difference in engine performance, the car can be safely driven.  However, it is best to have it diagnosed and repaired at your earliest convenience to avoid unexpected breakdown or possible damage to the catalytic converter.



    Why would a throttle body go bad?

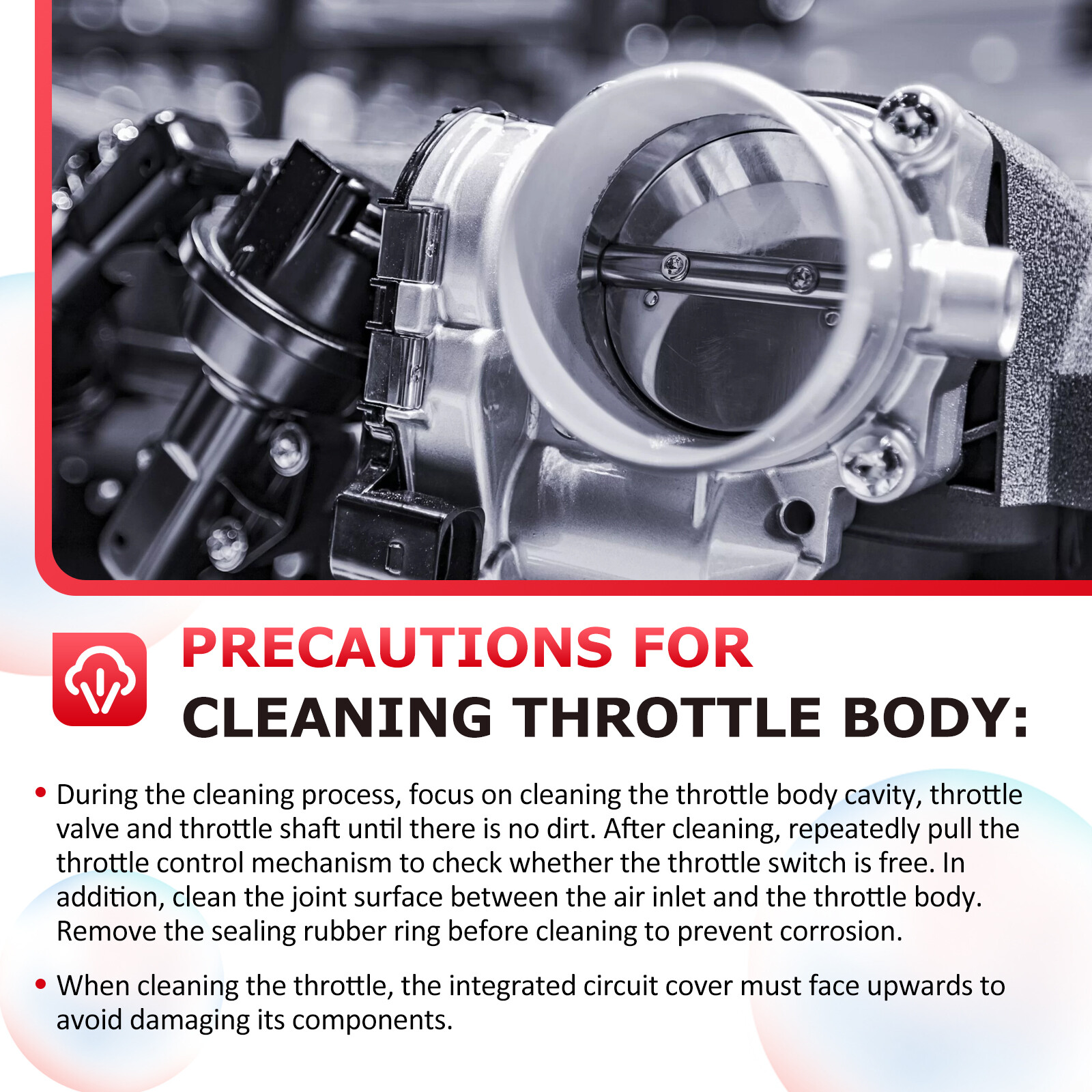

    One of the main causes of a malfunctioning throttle body is internal contamination. ... This causes 'false air' to be sucked in, so that the total amount of air sucked in does not correspond to the position of the throttle valve. An incorrectly adjusted throttle position sensor can also cause an engine to run badly.



    Does throttle body need to be replaced?

    The throttle body plays a large role in controlling the fuel and air mixture in your engine. The proper mixture needs to be achieved in order for your engine to run smoothly and properly. Once this part fails, it needs replacing rather than repairing.



    What happens if you don't replace a throttle body?

    When a throttle body is not functioning correctly, youCll usually notice a distinctly poor or very low idle. If the problem is really severe, you might even begin stalling when coming to a stop or when the throttle is quickly pressed.

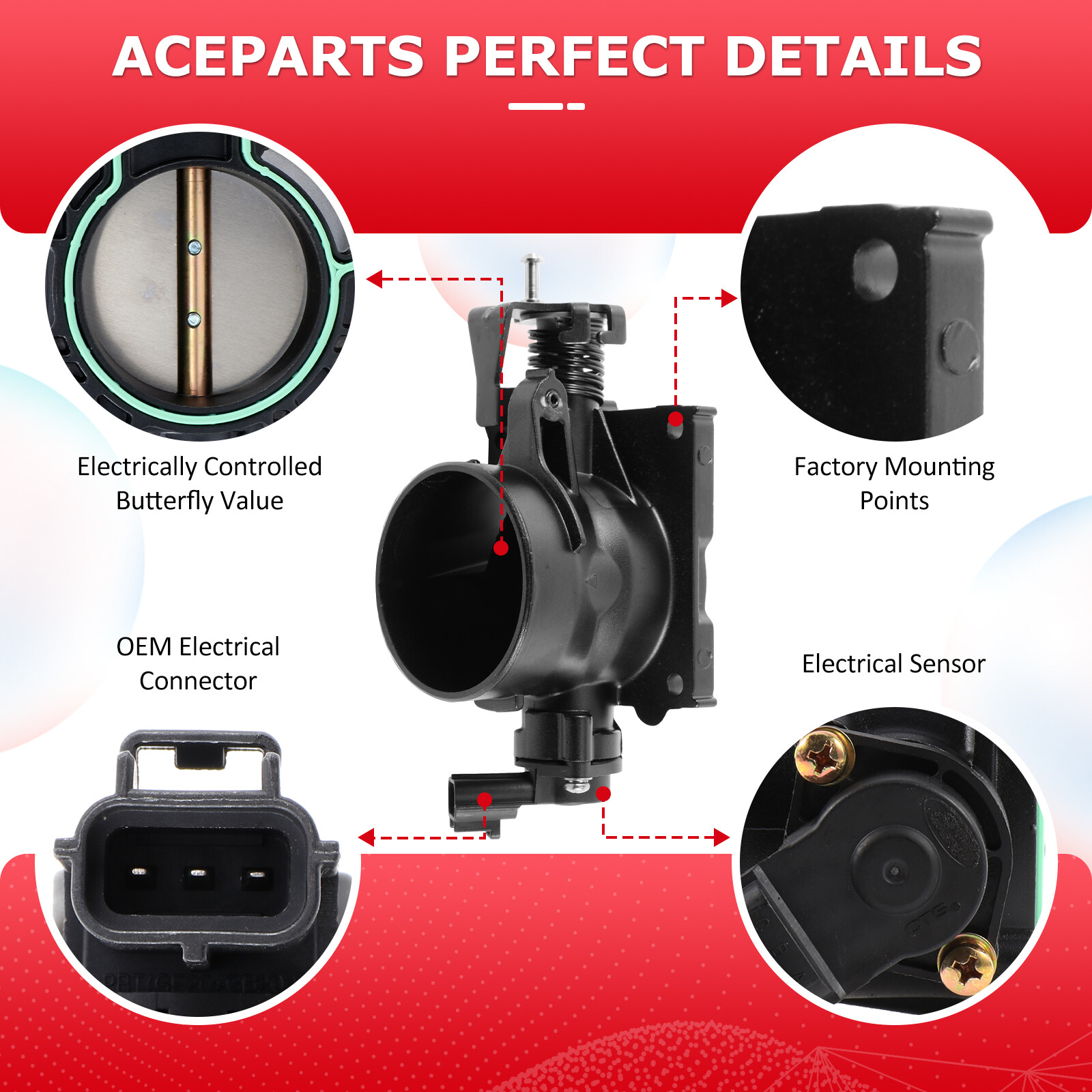

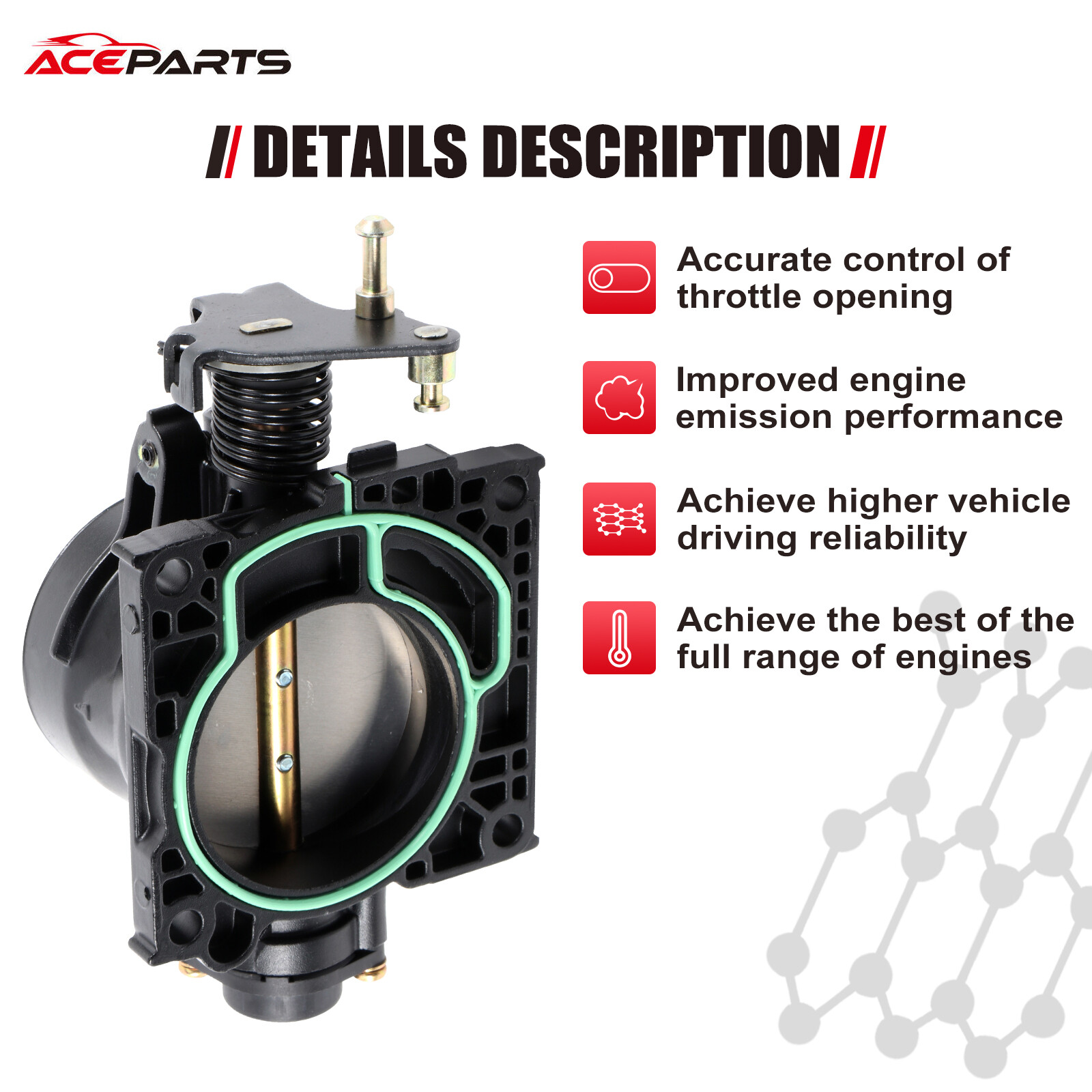

    Item Specifics
    Brand Aceparts
    Manufacturer Part Number ACE10398401S
    Fitment Type Direct Replacement
    Bore Diameter 63mm
    Housing Length (in) 7-5/16
    Housing Width (in) 3-7/8
    Main Port Inside Diameter(in) 2-15/16
    Air Intake Port Maximum Diameter (in) 2-9/16
    Mount Hole Quantity 4
    Connector Quantity 1
    Fuel System Type FI
    Throttle Plate Diameter (in) 2-1/2
    Terminal QTY 3
    Gaskets Included No
    Material Aluminum
    Throttle Body Actuation Type Electrical
    Items Included One Complete Throttle Body w/Sensor
    Packaging Type Box
    Modified Item No
    Custom Bundle No
    Placement on Vehicle Front
    Non-Domestic Product Yes
    Mounting Hardware Included No
    Manufacturer Warranty 1 Year
    Interchange Part Number TB1088,67-6005,S20141
    OE/OEM Part Number S4Z9E926AA,3S4Z9E926AB,3S4Z9E926AC
    Superseded Part Number Electrical Throttle Body Assembly with Sensor
    Weight 2 LB
    Type Throttle Body
