Aihasd 3.5 Inch TFT 480X320 English Nextion HMI USART UART Serial Touch LCD Module Display Panel for Arduino

$158.31

  • Arrives

  • Nextion is a seamless human machine interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or device. It is the best solution to replace the conventional LCD and LED Nixie tube. It is mainly used in the field of Internet of Things (IoT) or consumer electronics.
  • Nextion includes a hardware part (a set of TFT cards) and a software part (the Nextion Editor). The Nextion TFT board uses only one serial port for communication. It saves users the hassle of wiring. It is easy to adapt the Nextion family HMI to existing projects. Users only need to provide them with a UART.

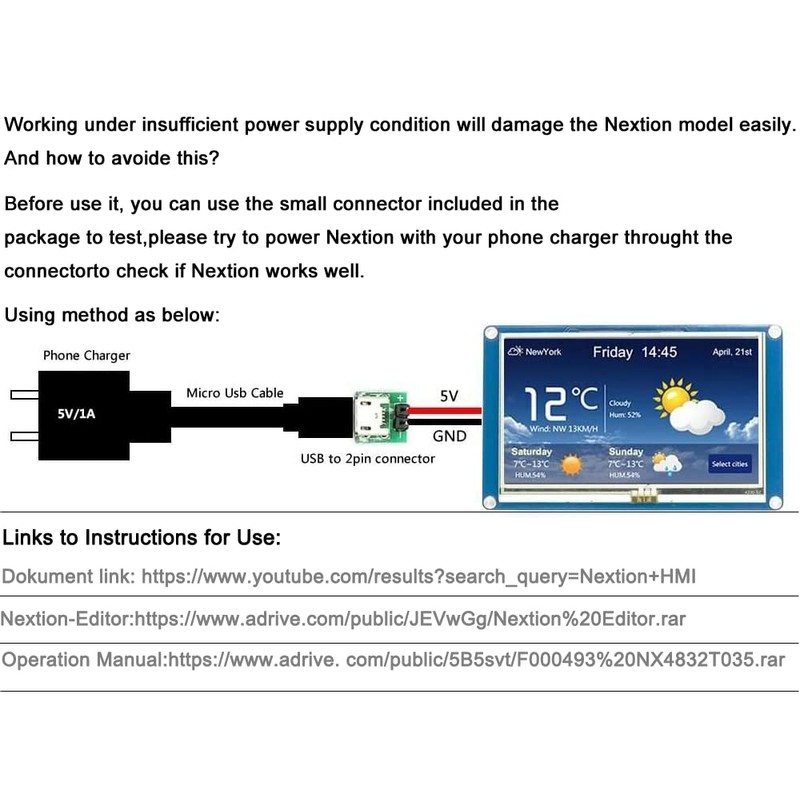

  • You can power nextion 3.5 via the 5V pin of the microcontroller, but this is not recommended. Working with insufficient power may damage the screen, so please use the power supply board supplied with nextion. See picture for use.
  • NX4832T035 is a powerful 3.5" HMI that belongs to the Nextion family. Features include: a 3.5 inch TFT 480 x 320 resistive touchscreen display, 16 MB flash, 2 KB RAM, 65,000 colours. Viewing range: 73.44 mm (L) x 48.96 mm (W); uploading a TFT file via an SD card is faster than a serial 4-pin port, the SD card is in FAT32 format and supports a maximum of 32 GB.
  • This is the English version; Download document link: "https://www.youtube.com/results?search_query=Nextion+HMI"; For more datasheet please click on "https://www.adrive.com/public/5B5svt/F000493%20NX4832T035.rar"; Nextion-Editor:" https://www.adrive.com/public/JEVwGg/Nextion%20Editor.rar"

Color:
3.5"
Manufacturer:
AX Electronic
Part Number:
N3YRKKK
Isin:
IDXKAVDG80CM

$158.31

  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Aihasd 3.5 Inch TFT 480X320 English Nextion HMI USART UART Serial Touch LCD Module Display Panel for Arduino

Aihasd 3.5 Inch TFT 480X320 English Nextion HMI USART UART Serial Touch LCD M...

$158.31

  • Nextion is a seamless human machine interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or device. It is the best solution to replace the conventional LCD and LED Nixie tube. It is mainly used in the field of Internet of Things (IoT) or consumer electronics.
  • Nextion includes a hardware part (a set of TFT cards) and a software part (the Nextion Editor). The Nextion TFT board uses only one serial port for communication. It saves users the hassle of wiring. It is easy to adapt the Nextion family HMI to existing projects. Users only need to provide them with a UART.
  • You can power nextion 3.5 via the 5V pin of the microcontroller, but this is not recommended. Working with insufficient power may damage the screen, so please use the power supply board supplied with nextion. See picture for use.
  • NX4832T035 is a powerful 3.5" HMI that belongs to the Nextion family. Features include: a 3.5 inch TFT 480 x 320 resistive touchscreen display, 16 MB flash, 2 KB RAM, 65,000 colours. Viewing range: 73.44 mm (L) x 48.96 mm (W); uploading a TFT file via an SD card is faster than a serial 4-pin port, the SD card is in FAT32 format and supports a maximum of 32 GB.
  • This is the English version; Download document link: "https://www.youtube.com/results?search_query=Nextion+HMI"; For more datasheet please click on "https://www.adrive.com/public/5B5svt/F000493%20NX4832T035.rar"; Nextion-Editor:" https://www.adrive.com/public/JEVwGg/Nextion%20Editor.rar"

Color:
3.5"
Manufacturer:
AX Electronic
Part Number:
N3YRKKK
Isin:
IDXKAVDG80CM

Description:
This solution includes a hardware part - a set of TFT cards and a software part - Nextion Editor. The Nextion TFT board uses only one serial port for communication. Let go of the wiring problems. In this situation, Nextion editor has mass components such as buttons, text, progress bar, sliders, instrument panel, etc. to enrich your interface design. And the drag-and-drop feature ensures you spend less time programming, reducing your development effort by 99%. With the help of this WYSIWYG editor, GUI design is a breeze.

2. It is easy to adapt the HMI of the Nextion family to existing projects, you just need to provide a UART.

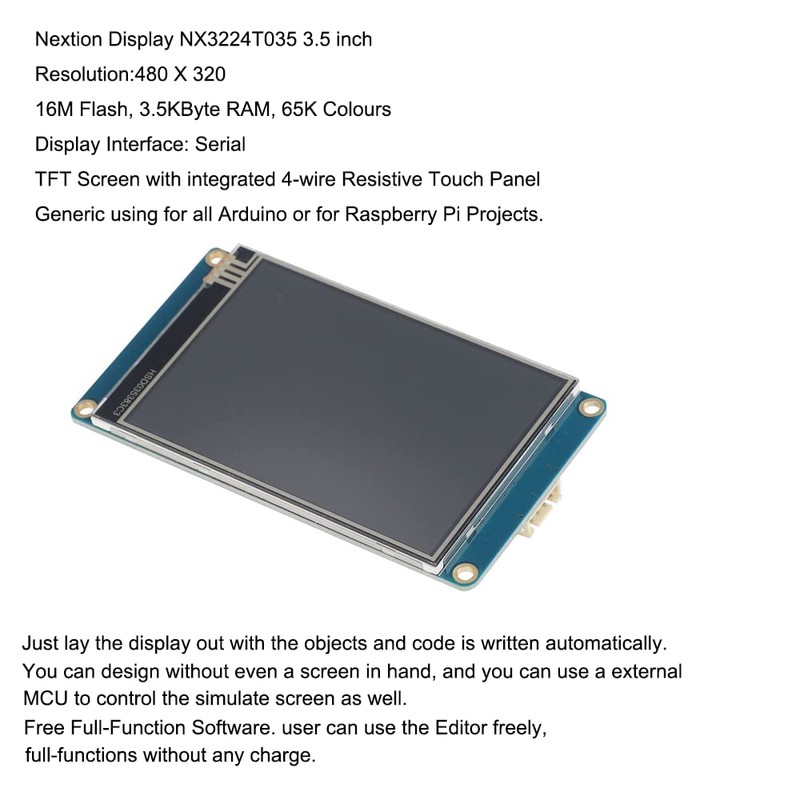

Functions:
480 x 320 resolution.
RGB 65K lifelike colours.
TFT screen with integrated resistive 4-wire touch panel

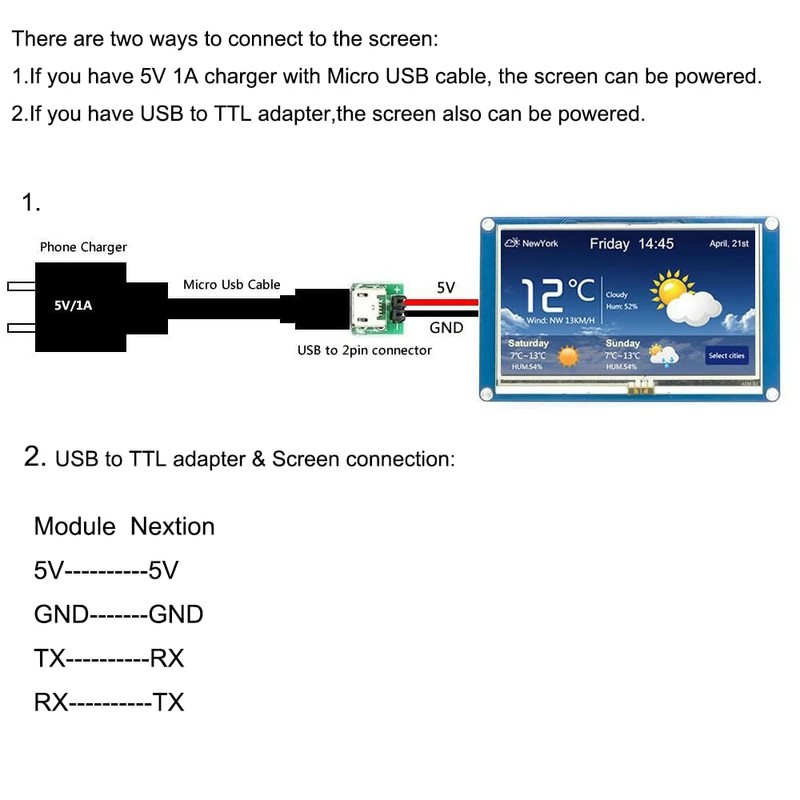

Simple 4 pin interface, can be connected to any TTL serial host
16M flash memory for user application code and data.
On-board micro SD card slot for firmware upgrade
Viewing area: 73.44 mm (L) × 48.96 mm (W).
Adjustable brightness: 0 ~ 180 nit, the adjustment interval is 1%.
5V 500mA DC recommended power supply
5 V 145 mA power consumption.

For more documents:

Document link:
https://www.youtube.com/results?search_query=Nextion+HMI

Please click on further data sheets:
https://www.adrive. com/public/5B5svt/F000493%20NX4832T035.rar

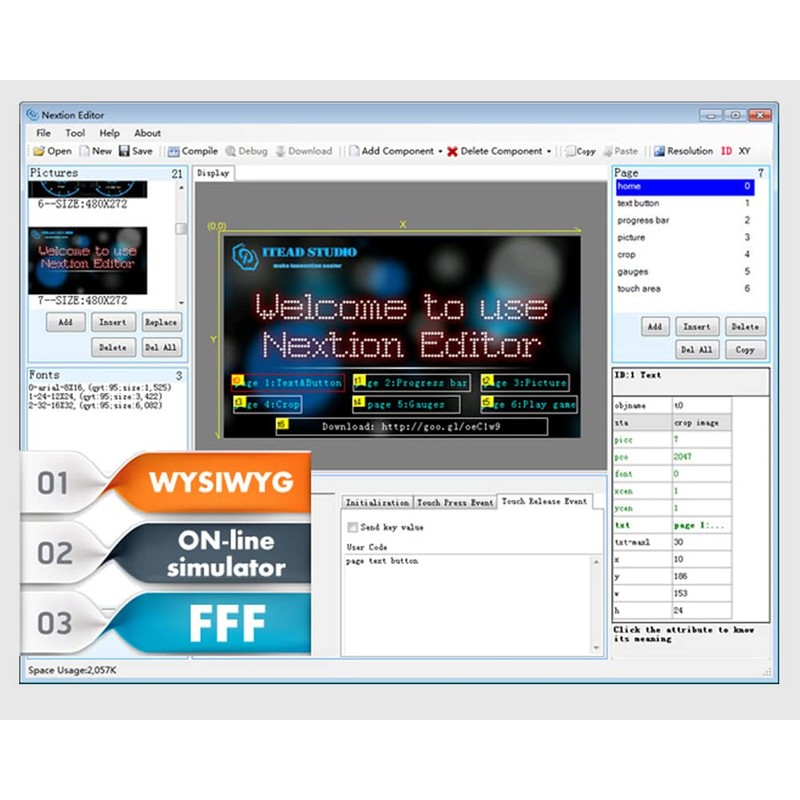

Nextion Editor:
https://www.adrive.com/public/JEVwGg/Nextion%20Editor.rar

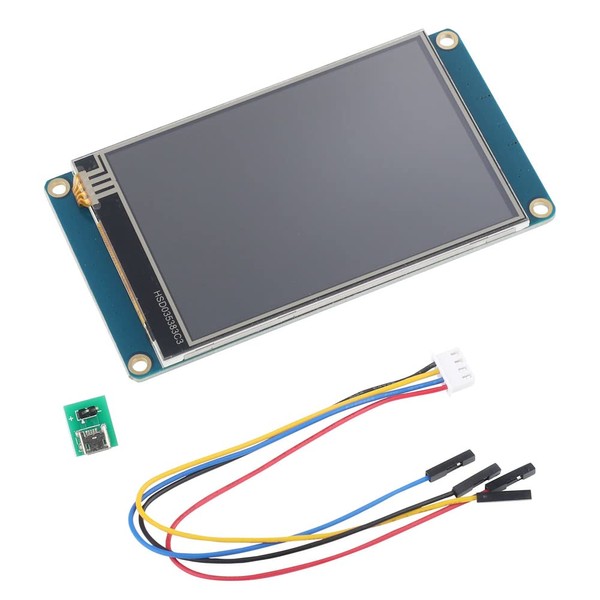

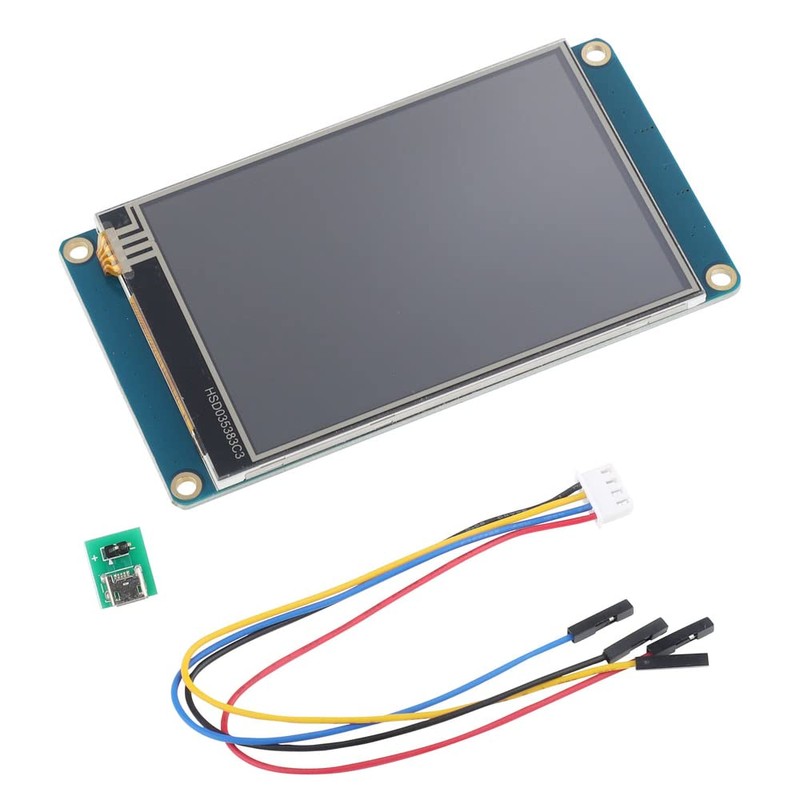

Box contents:
1 x 3.5 inch UART HMI touch LCD display module.
1 x 4P cable.
1 x USB to 2-pin plug
