Alaohu Flysky FS-iA6B Receiver 6-Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X Radio RC Transmitter Black
Alaohu Flysky FS-iA6B Receiver 6-Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X Radio RC Transmitter Black
Alaohu Flysky FS-iA6B Receiver 6-Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X Radio RC Transmitter Black
- External dual antenna, high resolution, suitable for fixed wing, medium to large multi rotor wing, as well as Car, Boat, engineering vehicles and other models with multi-channel quantity requirements.
- Better compatibility, compatible with FS-i4 FS-i6, FS-i6X, FS-i6S, FS-i10 and other transmitters compatible with the AFHDS 2A protocol reduce your worries.
- It is reliable and can be used in conjunction with Flysky 2.4GHz AFHDS 2A series transmitters, ensuring safety, stability, and strong anti-interference performance.
- AFHDS2A (Automatic Frequency Hopping Digital System Second Generation) resists interference while maintaining low power consumption and high reliable receiver sensitivity.
- Multiple ports, supporting PPM IBUS and SBUS outputs, with a single line connection to the flight controller module. Multiple sets of wires can also be connected in PWM mode.
| Brand: | Alaohu |
|---|---|
| Size: | One Size |
| Color: | Black |
| Manufacturer: | Alaohu |
| Part Number: | YCLTH1W |
| Material Type: | Plastic |
| Isin: | IINGRIVXUSGB |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
External dual antenna, high resolution, suitable for fixed wing, medium to large multi rotor wing, as well as Car, Boat, engineering vehicles and other models with multi-channel quantity requirements.
FS-iA6B receiver bidirectional transmission with PWM-6CH, PPM-8CH, i.bus/s.bus-10CH output port, select operating mode through transmitter.

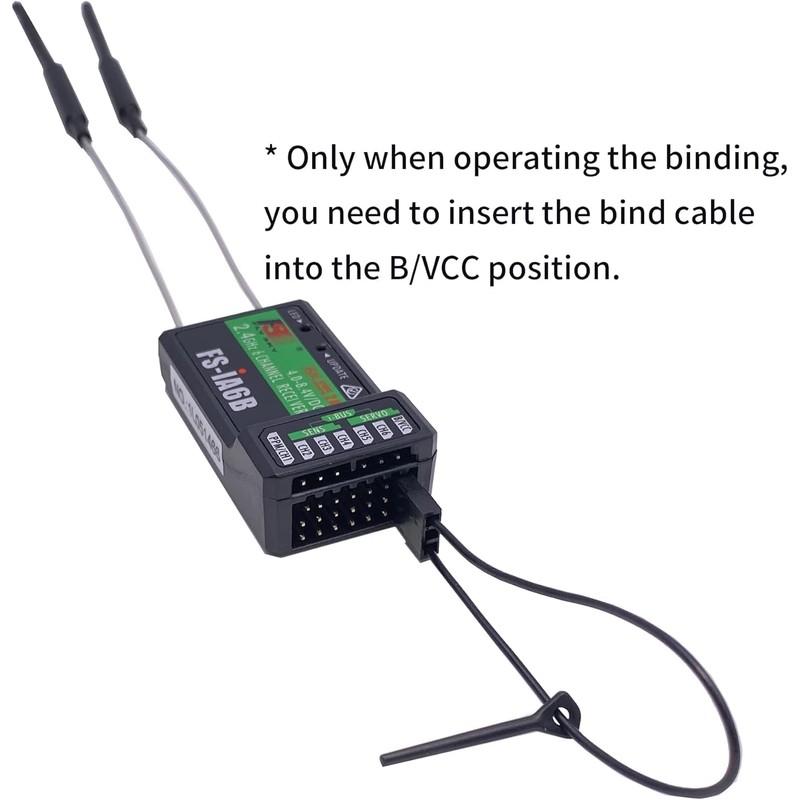

How to bind with FLYSKY transmitter(fs-i6,fs-i6x)?
1, Connect the supplied "Bind Cable" to the B/VCC port on the receiver.
2, Insert power into any other port.
[Positive and negative (+-) cannot be connected incorrectly, input 4.0V-8.4V DC]
3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode.
4, Remove the "Bind Cable" and plug the power cord back into the receiver.
5, Check the servos' operation.
If anything does not work as expected, restart this procedure from the beginning.

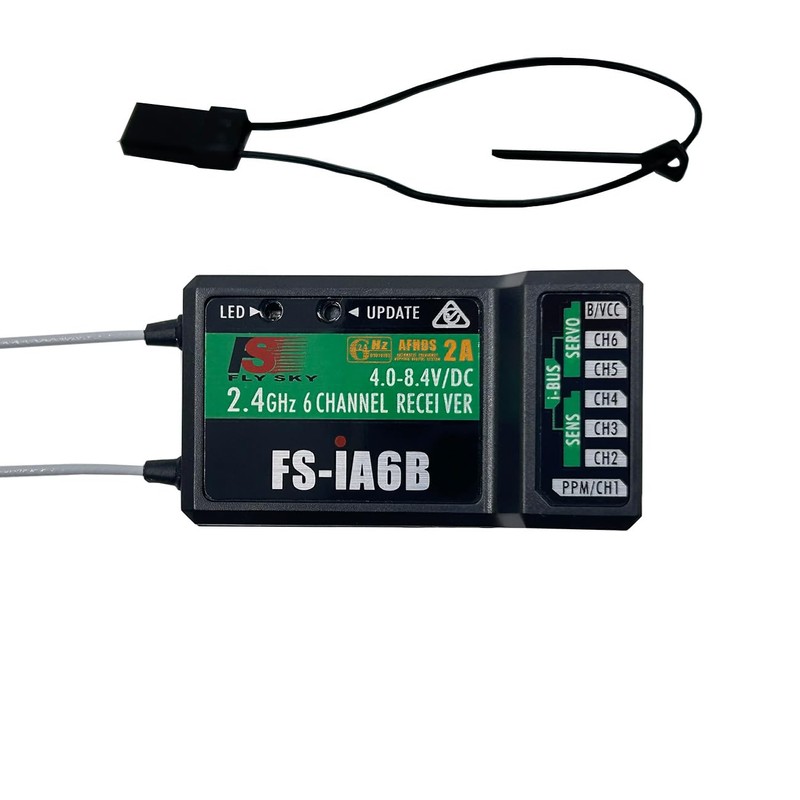

FS-IA6B Specification:
Item Name: FS-iA6B
Channel: 6
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 2A
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Range: 500 ~ 1000m (in the air)
Input Power: 4.0-8.4V DC
Dimension: 47 x 26.2 x 15mm,1.85*1.03*0.59inch
Weight: 14.9g,0.52 oz
Temperature range: -10 ℃ — + 60 ℃
Data port: PWM / PPM / i.bus / s.bus Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter/ Multirotor
Package Included:
1x FS-iA6B receiver
1x Bind Cable
