ALLOYWORKS ELECTRIC FAN+SHROUD+REL

Brand: ALLOYWORKS



PHOTO SHOW

ITEM DESCRIPTION

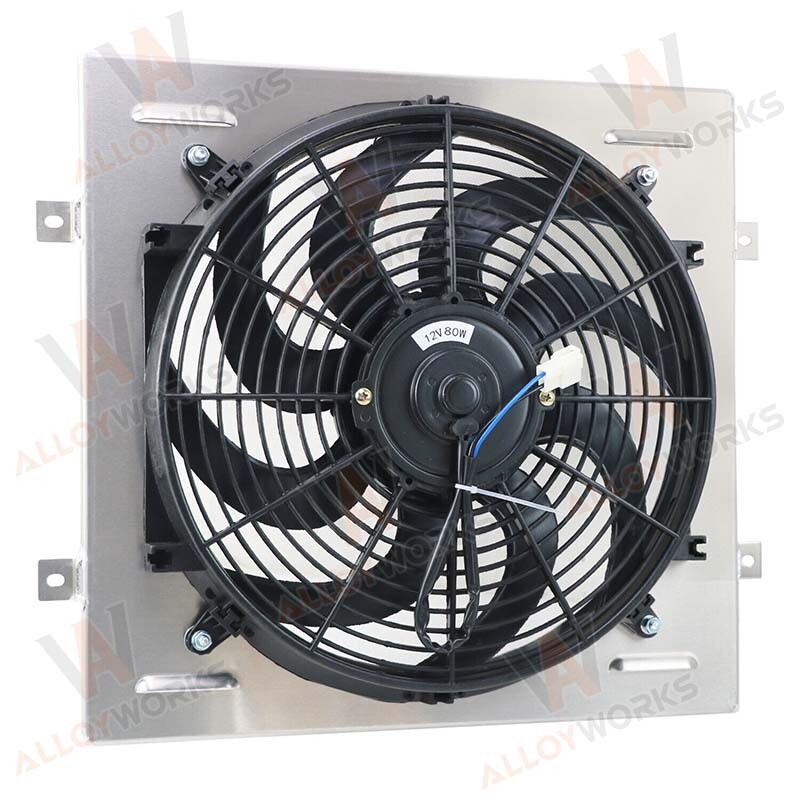

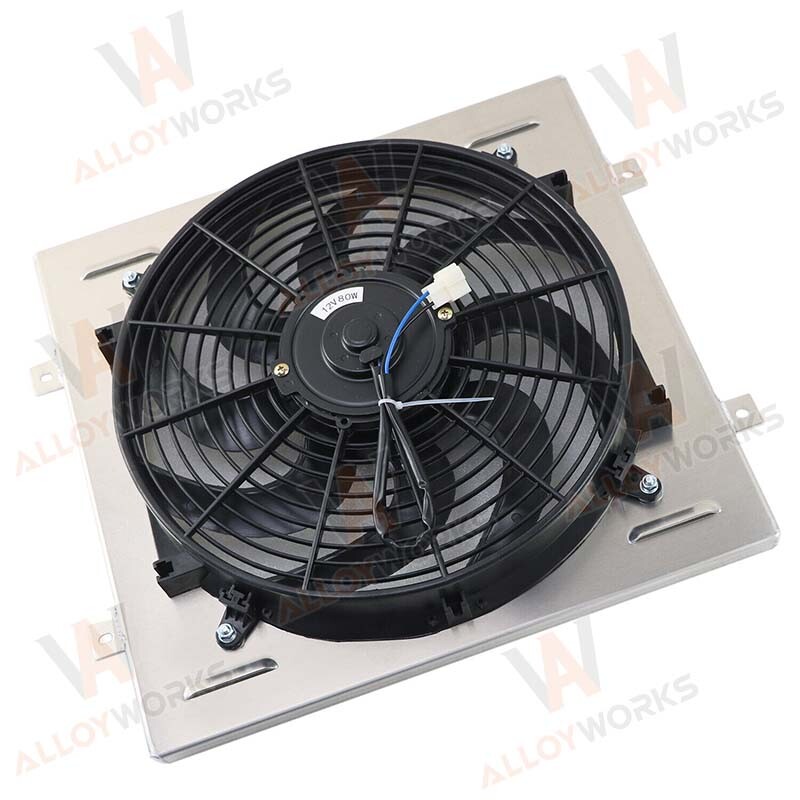

Package Includes:

1 X Aluminum Shroud

1 X 14" 90W Fan (Includes mounting kits)

1 X Thermostat Relay Kit


Vehicle Fitment:

For 1965  Ford  Falcon  Base/Futura   2.8L 3.3L 4.7L  L6 V8  GAS

For 1924  Ford  Model T  Base  2.9L  l4  GAS

For 1965 1966  Ford   Mustang   Base/Base Fastback 2-Door/Shelby GT-350/Shelby GT-350H

2.8L 3.3L 4.7L  L6 V8  GAS

For 1960-1965  Ford  Ranchero  Base   2.4L 2.8L 3.3L 4.7L  L6 V8  GAS

For 1964 1965  Mercury  Comet  Base  2.8L 3.3L 4.7L  L6 V8  GAS


The size of radiator which the shroud fan fits:

Core Size: 17.00" x 16.50"

Overall Size: 18.75" x 21.25"


14" Fan Size:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 14.050"

Thickness (in): 2.500"

Number of Blades: 8 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation


AA5052  Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.



1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed


Thermostat Relay Kit:

Universal fit for any automotive application.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe adapter included.

Probe typically threads into radiator, water outlet hose or manifold.

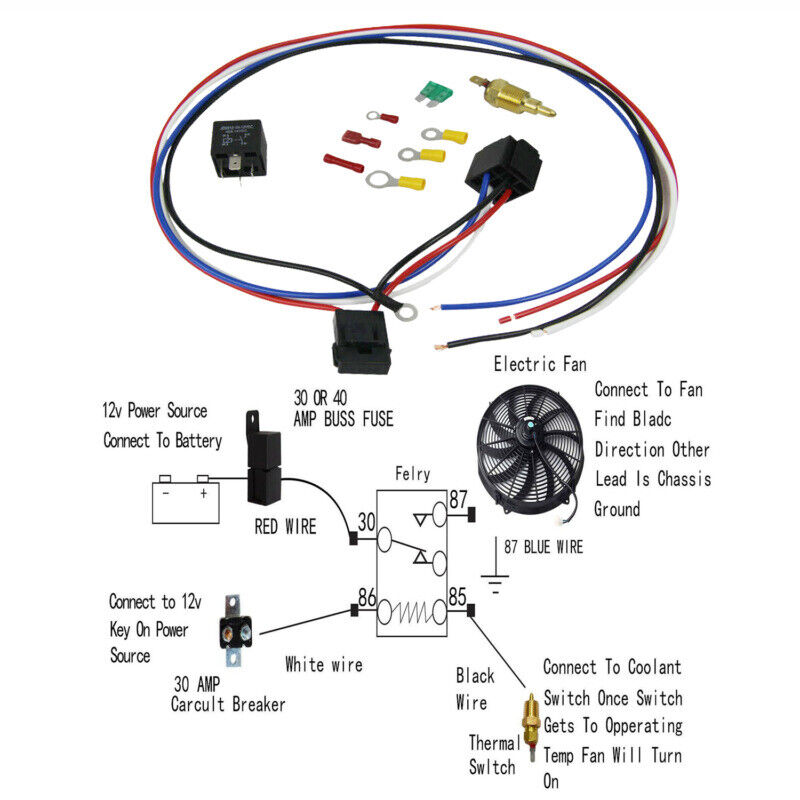

Thermostat Relay Kit Instructions:

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.
