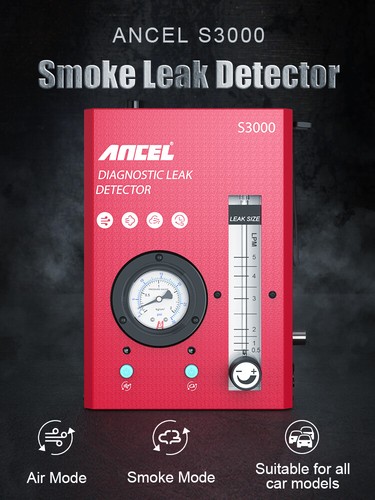

ANCEL S3000 Car Smoke Leak Detector is a universal and professional auto pipe leak detect tool, it will help us position cars motorcycles leakage on the pipe systems quickly and exactly. Supports Intake System Test, Exhaust Systems Test, Crankcase system test，Car Sealing Test, Fuel Tank System Test, Turbo System Test，Various Pipe Fittings Test. It can produce lots of smoke within 30s, help mechanic detect the leaks in pipe system.

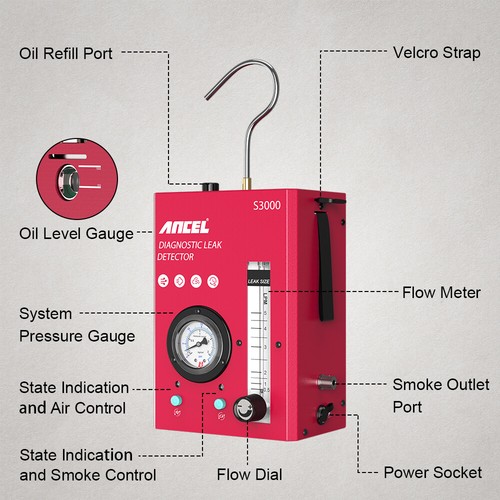

Pressure GaugeThe Automotive EVAP Smoke Machine equipped with a liquid filled pressure gauge. By observing the change of pressure gauge, the leakge situation is clear at a glance. | Adjustable Air Flow

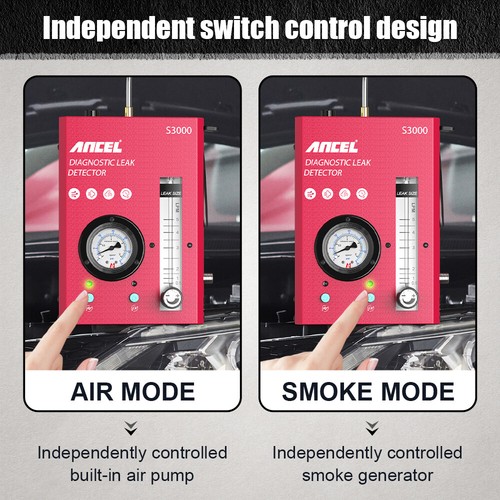

Air flow meter with adjustable button, easy to control the smoke effect. | Fast Smoke OutputThis machine built-in air compressor, with superior wick and heating element. It can produce smoke instantly by heating up USP mineral oil or baby oil. 4ft Smoke Outlet Pipe can help reach and connect perfectly. |

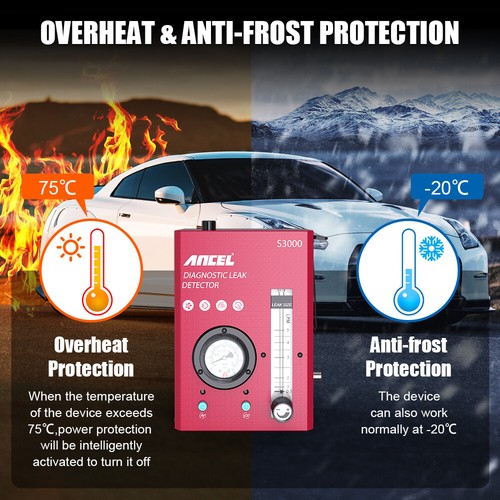

Overheat & Anti-frost ProtectionThis smoke detector is equipped with the latest intelligent protection device. When the temperature of the device exceeds 75 degrees Celsius, the power protection device will be intelligently activated to turn it off, to ensure the safety of the operator and the device. The device is also suitable for low temperature operation. | Easy to UseThe smoke leak detector with easy-use function and portable design, can help mechanic produce lots of smoke within 30s to detect the leaks in pipe system. Dramatically reducing diagnostic time. The hook allows you to hang it on your hood latch, the conical adapter will fit most intakes. | Wide Range of ApplicationsSuitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc. Using together with auto diagnostic tool, you can find the vehicle problem accurately and diagnose fault. |

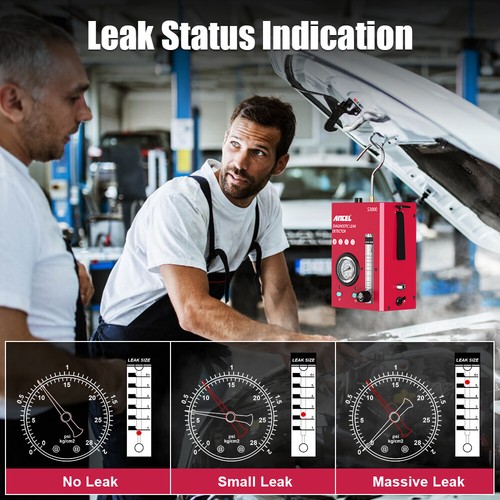

Leak Status Indication
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.
Specification
- Output Pressure: 7-12 PSI
- Output Flow: <6 L/Min
- Power Supply: 12V automobile Battery 6Amp
- Air Pressure Output: Built-in air pump
- Test Oil Capacity: 10-20ml
- Length of Power Cord: 2.5Meters
- Length of Smoke Hose: 2.5Meters
- Package Weight: 2.3kg/5 lb
- Main Unit Dimensions: 7.28*5.11*3.34 inch
- Package Dimensions: 12.2*9.44*4.52 inch

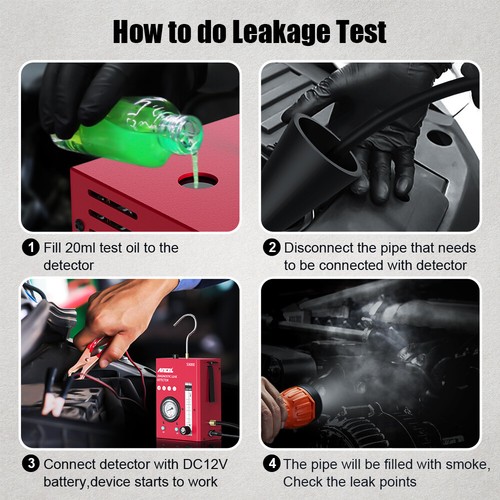

How to do leakage test?
1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF.
2. Dismantle the air filter and the throttle connections.
3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake Adapter into the opening.
4. Connect the Power Cord to 12V vehicle battery.
5. Now the Power LED would be ON, if else check the power supply.
6. Introduce the smoke nozzle into the system via the Adapter Cone.
7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter
8. Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle.
9. The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist.
10. After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air.
11. Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.

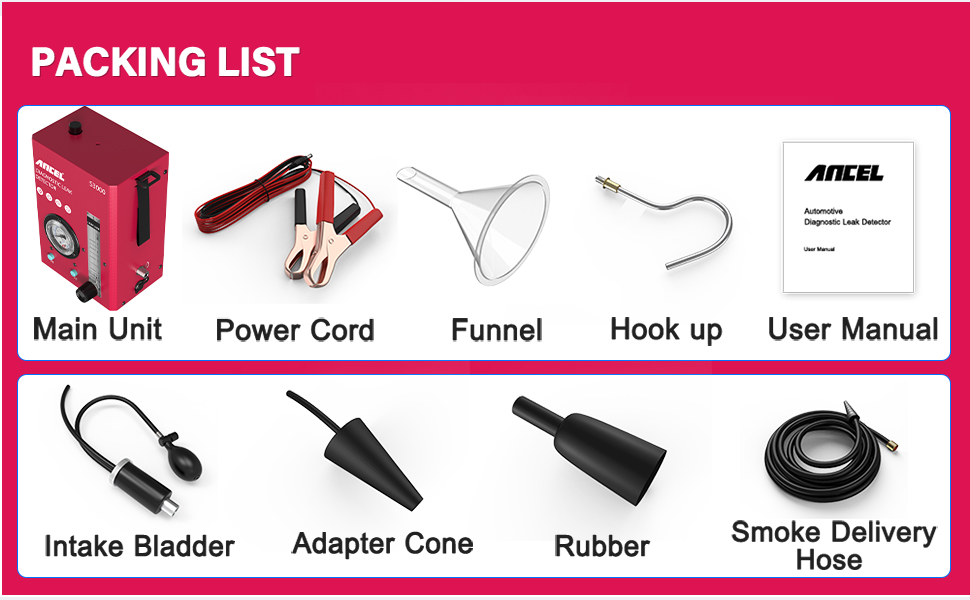

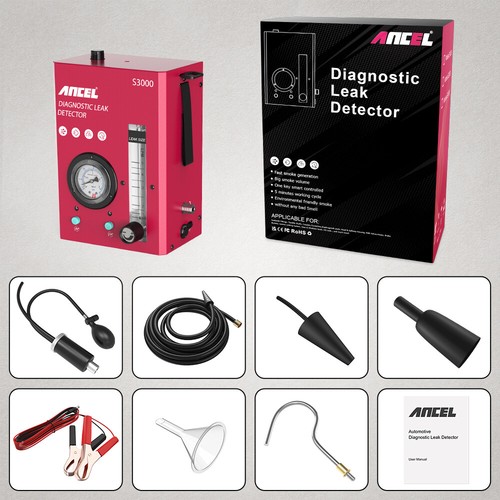

ANCEL S3000 Packing Lists
1xPower Cord: To offffer connection from the unit to the automobile battery, in order to drive the unit.
1xFunnel: Assistance method for smoke oil refifill, to prevent pour oil to the unit surface.
1xHook up: To hang the somke machine in the car
1xUser Manual: Detailed descriptions about how to use the smoke machine automotive.
1xIntake Bladder: To fifit the intake and exhaust, seal the system and introduce smoke into the system. Especially while the inlet position is not rounded-shape.
1xAdapter Cone: To fifit the intake and exhaust, seal the system and introduce smoke into the system. It may fall out at high pressure and need a second hand to push and hold at operation.
1xReplacement Rubber: The rubber on the Intake Bladder may be easily broken, if not operate it properly with caution.The rubber could be replaced with new one without replace the whole Intake Bladder.
1xSmoke Delivery Hose: For introduction of smoke from the unit to Adapter Cone / Universal Intake Bladder or to the vacuum pipe directly.
♦ We accept all common forms of payment such as Credit Cards,Debit Card,Google Pay ect.
♦ Payment should be made within 4 days after bidding ends.Otherwise a Unpaid Item case will be opened to you.
♦ Please contact us if you need to use another method to pay.We are not responsible for buyers’ local taxes.
♦ Please include your special requests in eBay note if there is any,or you can send ebay message to us.
♦ Shipping Methods: USPS First Class Mail Service /USPS Priority Mail Service/UPS Surepost Service/ UPS Ground Service.
♦ Processing Time:We will process your order within1 business day (excluding holiday and weekend)
♦ Shipping Time:Order will be shipped within 1 business day after payment confirmed(excluding holiday and weekend)
♦ Delivery Shipping: If you have any problems, you can contact us first or contact local USPS, UPS.
♦ Notice:For USA Buyer, We have warehouse in different places, parcel will be shipped from the nearest warehouse
♦ Buyer Guarantee
We assure you that we are a honest and super reliable seller on ebay, any problems can be solved in a satisfing way for you and any loss will not be brought to you as long as you will kindly contact us via ebay message or your private email.
♦ Return Policy
In case an item arrives faulty or not happy with your purchasing, please contact us in 30 days and keep it unused.We will instruct you on how to return and get refund or replacement,please email us first for return address and instructions.
♦ Kind Tips
Please do not hesitate to leave us your Positive Feedbackand good review,If you are satisfied with our products.
we work hard to make sure every customer 100% satisfied and resolve any problem for you. Thank you for your kindness.
♦ ANCEL TECHNOLOGY CO., LTD specializes in automotive intelligent diagnostics, detection and analysis systems, and automotive-related products for mechanics, repair shops, and DIYers.
♦ Ancel persists on technological innovation and has independent intellectual property rights, factory, and technical team. With the mission of providing customers with high-quality products, technologies and services in the automotive field.
♦ This year, our product line has made new breakthroughs, and successively released ANCEL AR500,DM500,DS300,DS600,DS700,HD8000,DP500,V6 HD,V5 HD,DP500. Next, we will continue to innovate and provide more quality products
♦ We support remote assistance by TeamViewer if you have any difficulty in software installation.
♦ Our customer-oriented service strives for buyers' 100% satisfaction.
♦ Please feel free to contact us via eBay message once you have any question before leaving neutral / negative feedback or open case. We will reply in 24 business hours.
♦ Business time: GMT8 (9:00-18:30) from Monday to Friday.
♦ Please leave us Positive Feedback and 5-stars★★★★★ selling ratings if you receive the product and are satisfied with it. as you know, every seller works hard for the positive feedback. We will do the same as soon as we can too.
| Brand: | ANCEL |
|---|---|
| Isin: | I7YZVO6FPQQK |
This product is not available in the selected country
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
ANCEL S3000 Car Smoke Leak Detector is a universal and professional auto pipe leak detect tool, it will help us position cars motorcycles leakage on the pipe systems quickly and exactly. Supports Intake System Test, Exhaust Systems Test, Crankcase system test，Car Sealing Test, Fuel Tank System Test, Turbo System Test，Various Pipe Fittings Test. It can produce lots of smoke within 30s, help mechanic detect the leaks in pipe system.
|
|
|
|---|---|---|
Pressure GaugeThe Automotive EVAP Smoke Machine equipped with a liquid filled pressure gauge. By observing the change of pressure gauge, the leakge situation is clear at a glance. | Adjustable Air Flow
Air flow meter with adjustable button, easy to control the smoke effect. | Fast Smoke OutputThis machine built-in air compressor, with superior wick and heating element. It can produce smoke instantly by heating up USP mineral oil or baby oil. 4ft Smoke Outlet Pipe can help reach and connect perfectly. |
|
|
|
|---|---|---|
Overheat & Anti-frost ProtectionThis smoke detector is equipped with the latest intelligent protection device. When the temperature of the device exceeds 75 degrees Celsius, the power protection device will be intelligently activated to turn it off, to ensure the safety of the operator and the device. The device is also suitable for low temperature operation. | Easy to UseThe smoke leak detector with easy-use function and portable design, can help mechanic produce lots of smoke within 30s to detect the leaks in pipe system. Dramatically reducing diagnostic time. The hook allows you to hang it on your hood latch, the conical adapter will fit most intakes. | Wide Range of ApplicationsSuitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc. Using together with auto diagnostic tool, you can find the vehicle problem accurately and diagnose fault. |
Leak Status Indication
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.
Specification
- Output Pressure: 7-12 PSI
- Output Flow: <6 L/Min
- Power Supply: 12V automobile Battery 6Amp
- Air Pressure Output: Built-in air pump
- Test Oil Capacity: 10-20ml
- Length of Power Cord: 2.5Meters
- Length of Smoke Hose: 2.5Meters
- Package Weight: 2.3kg/5 lb
- Main Unit Dimensions: 7.28*5.11*3.34 inch
- Package Dimensions: 12.2*9.44*4.52 inch
How to do leakage test?
1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF.
2. Dismantle the air filter and the throttle connections.
3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake Adapter into the opening.
4. Connect the Power Cord to 12V vehicle battery.
5. Now the Power LED would be ON, if else check the power supply.
6. Introduce the smoke nozzle into the system via the Adapter Cone.
7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter
8. Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle.
9. The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist.
10. After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air.
11. Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.
ANCEL S3000 Packing Lists
1xPower Cord: To offffer connection from the unit to the automobile battery, in order to drive the unit.
1xFunnel: Assistance method for smoke oil refifill, to prevent pour oil to the unit surface.
1xHook up: To hang the somke machine in the car
1xUser Manual: Detailed descriptions about how to use the smoke machine automotive.
1xIntake Bladder: To fifit the intake and exhaust, seal the system and introduce smoke into the system. Especially while the inlet position is not rounded-shape.
1xAdapter Cone: To fifit the intake and exhaust, seal the system and introduce smoke into the system. It may fall out at high pressure and need a second hand to push and hold at operation.
1xReplacement Rubber: The rubber on the Intake Bladder may be easily broken, if not operate it properly with caution.The rubber could be replaced with new one without replace the whole Intake Bladder.
1xSmoke Delivery Hose: For introduction of smoke from the unit to Adapter Cone / Universal Intake Bladder or to the vacuum pipe directly.
♦ We accept all common forms of payment such as Credit Cards,Debit Card,Google Pay ect.
♦ Payment should be made within 4 days after bidding ends.Otherwise a Unpaid Item case will be opened to you.
♦ Please contact us if you need to use another method to pay.We are not responsible for buyers’ local taxes.
♦ Please include your special requests in eBay note if there is any,or you can send ebay message to us.
♦ Shipping Methods: USPS First Class Mail Service /USPS Priority Mail Service/UPS Surepost Service/ UPS Ground Service.
♦ Processing Time:We will process your order within1 business day (excluding holiday and weekend)
♦ Shipping Time:Order will be shipped within 1 business day after payment confirmed(excluding holiday and weekend)
♦ Delivery Shipping: If you have any problems, you can contact us first or contact local USPS, UPS.
♦ Notice:For USA Buyer, We have warehouse in different places, parcel will be shipped from the nearest warehouse
♦ Buyer Guarantee
We assure you that we are a honest and super reliable seller on ebay, any problems can be solved in a satisfing way for you and any loss will not be brought to you as long as you will kindly contact us via ebay message or your private email.
♦ Return Policy
In case an item arrives faulty or not happy with your purchasing, please contact us in 30 days and keep it unused.We will instruct you on how to return and get refund or replacement,please email us first for return address and instructions.
♦ Kind Tips
Please do not hesitate to leave us your Positive Feedbackand good review,If you are satisfied with our products.
we work hard to make sure every customer 100% satisfied and resolve any problem for you. Thank you for your kindness.
♦ ANCEL TECHNOLOGY CO., LTD specializes in automotive intelligent diagnostics, detection and analysis systems, and automotive-related products for mechanics, repair shops, and DIYers.
♦ Ancel persists on technological innovation and has independent intellectual property rights, factory, and technical team. With the mission of providing customers with high-quality products, technologies and services in the automotive field.
♦ This year, our product line has made new breakthroughs, and successively released ANCEL AR500,DM500,DS300,DS600,DS700,HD8000,DP500,V6 HD,V5 HD,DP500. Next, we will continue to innovate and provide more quality products
♦ We support remote assistance by TeamViewer if you have any difficulty in software installation.
♦ Our customer-oriented service strives for buyers' 100% satisfaction.
♦ Please feel free to contact us via eBay message once you have any question before leaving neutral / negative feedback or open case. We will reply in 24 business hours.
♦ Business time: GMT8 (9:00-18:30) from Monday to Friday.
♦ Please leave us Positive Feedback and 5-stars★★★★★ selling ratings if you receive the product and are satisfied with it. as you know, every seller works hard for the positive feedback. We will do the same as soon as we can too.
- Brand: ANCEL
- Manufacturer Part Number: ANCEL S3000 Car Smoke Leak Detector
- Flow Control: YES
- Warranty: 3 Year
- Support: All vehicles , boat ,atv etc machine
- Length of Smoke Hose: 2.5 Meters
- Vehicle Type: ATV, Heavy Duty/Commercial, Motorcycle, Passenger Vehicle
- Output Pressure: 0.5-8 Bra
- Main Unit Dimensions: 185 x 130 x 85 mm
- Flow Indication: YES
- Power Supply: 12V automobile battery 6Amp
- Supported System: Support All of Car Models
- Flow Rate: <16L/min
- Type: EVAP Machine
- Length of Power Cord: 2.5 Meters
- Interchange Part Number: S3000
- Pressure Gauge: YES
- Features: Durable
- air pressure: 1-1.5 psi

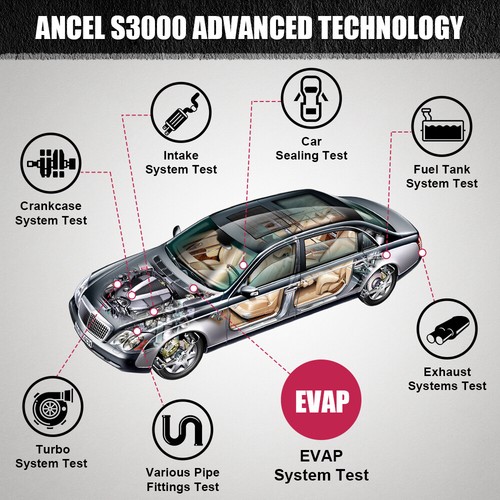

- Support 1: Crankcase System Test
