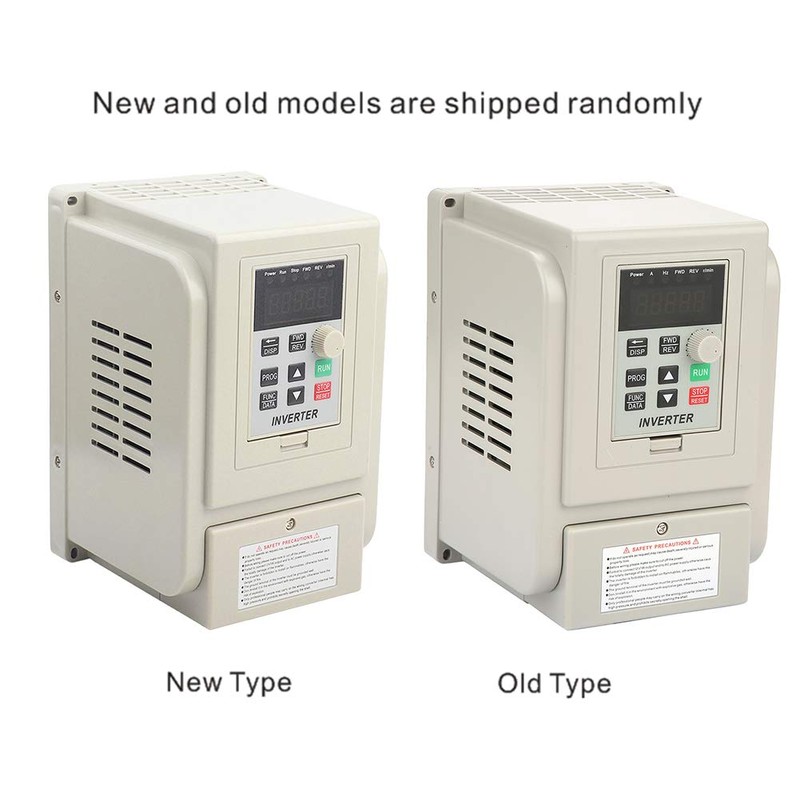

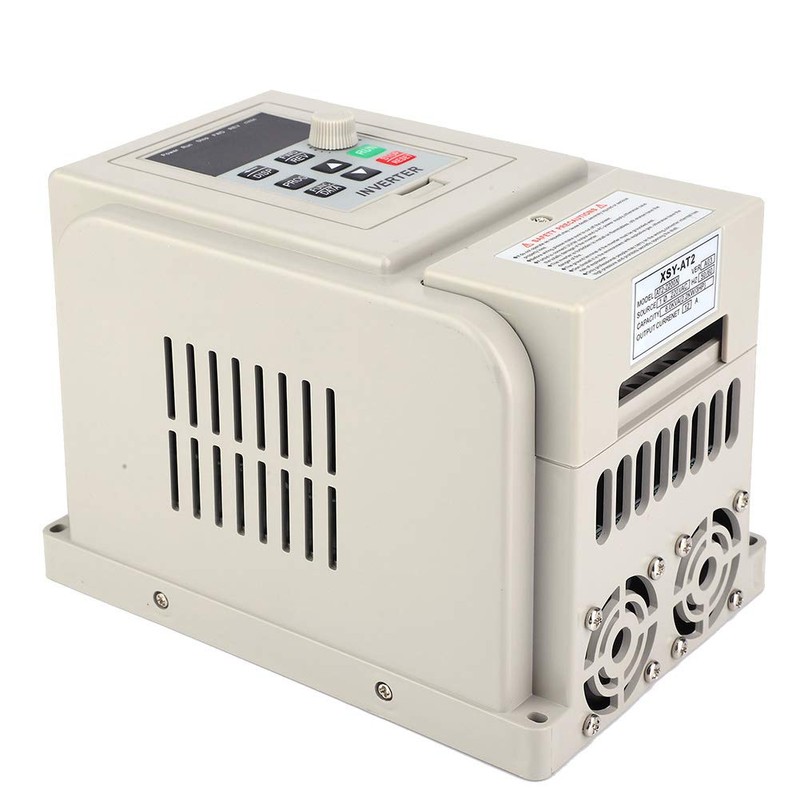

AT1-2200X Inverter, 220V, 2.2 kW, Single Phase Input, Three Phase Output, Three-Phase Motor Controller, Easy Operation, Small
AT1-2200X Inverter, 220V, 2.2 kW, Single Phase Input, Three Phase Output, Three-Phase Motor Controller, Easy Operation, Small
AT1-2200X Inverter, 220V, 2.2 kW, Single Phase Input, Three Phase Output, Three-Phase Motor Controller, Easy Operation, Small
- Adopts a unique control system for high torque, high accuracy, and wide speed driving performance
- It has high anti-trip performance and can be adapted to the interference of rough power, temperature, humidity, and dust, which greatly improves stability
- PWM control technology and optimized electromagnetic compatibility ensure low noise, low electromagnetic interference
- Adopts a large heatsink design for enhanced heat dissipation effect
- Easy operation, simple wiring and screw terminals make wiring more convenient
| Brand: | ViaGasaFamido |
|---|---|
| Manufacturer: | ViaGasaFamido |
| Part Number: | Y5536K1 |
| Isin: | IJZ7SPYOYV6I |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Power Phase: Single Phase
Rated Voltage: Single-phase / 3-phase AC 220V
Power supply voltage: low voltage
Suitable motor output: 2.2kW
Filter: Built-in filter
DC Power Type: Voltage Type
Control Method: V/F closed loop
Output voltage adjustment method: PWM control
Rated Current: 12A
Protection: Over Current, Over Voltage, Overheating, Low Voltage, Short Circuit Protection
Maximum output frequency: 400Hz
Size: 7.1 x 4.9 x 4.9 inches (18 x 12.5 x 12.5 cm).
Weight: Approx. 2.9 lbs (1.3
Terminal Instructions:
Details about device functions
15V/24V 15V/24V Power Input 200mA 15V/24V Power Output
X6 input terminal 6 (wire control CW/CCW switch) X6 connects to COM, input signal is effective
X5 input terminal 5 (wire control CCW) X5 connects to COM, input signal is effective
X4 input terminal 5 (wire control CW) X4 connects to COM, input signal is effective
X3 input terminal 3 (speed range 3) X3 connects to COM and input signal is effective
X2 input terminal 2 (speed range 2) X2 connects to COM and input signal is effective
X1 input terminal 3 (speed range 3) X1 connects to COM and input signal is effective
485 +/485- 485 communication port
Common COM Terminals
VI1 External Analog Voltage Input 0-5V/10V Analog Voltage Input
CI External Current Signal Input 4-20mA Current Signal Input
SP1 Open Collector Output 1
SP2 Open Collector Output 2
5V/10V
5V/10V 20mA power output
TC Relay Output: 250VAC 5A/30VDC 3A
TA TB is NC, TA TC is NO
TB Relay Output
TA relay output
Note:
When adjusting the parameter, VFD must stop working. Otherwise, parameter settings cannot be saved.
Description:

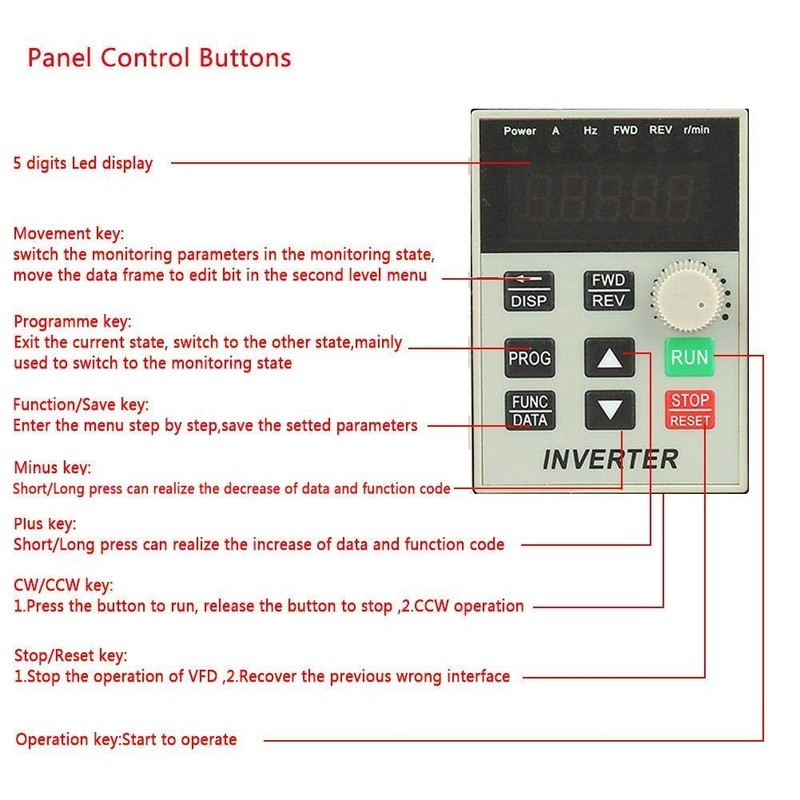

Panel Control Buttons
5-digit LED display
Movement key:
Switch the monitoring parameters in the monitoring state, move the data frame to edit the bits in the 2nd level menu.
Programme key:
Exit the current state and switch to another state. Mainly used to switch to monitoring state
Function/Save key:
Enter the menu gradually to save the parameters you set
Negative Skiing:
Short press / long press to reduce data and function code
Plus Key:
Short press / long press to increase data and function code
CW key:
1. Press the button to run and release the button to stop
2. CCW operation
Stop/Reset key:
1. Stop working VFD
2. Recovery the previous wrong interface
Operation key:
Operation started.
