It is necessary to first select the make of the vehicle, the region where the vehicle was manufactured (Europe and America, Japan)

Automatic identification: the VIN is scanned into the system to identify the vehicle, adding the model selection to confirm that it is the same as the original.The vehicle is identified automatically.

Manual selection: If the recognition is not normal, the customer can use the manual selection test.

Finding the VIN of a vehicle

I. It can be found in the relevant information.

The VIN number of the vehicle is identified in the relevant information of the vehicle, such as the driving licence, certificate of conformity, technical parameter sheet, invoice, certificate of imported goods and maintenance manual, owner's manual, etc.

2.find it directly on the body of the vehicle

The VIN number can be found on the bodywork and nameplate. The location of the VIN number varies from manufacturer to manufacturer and is generally as follows

The junction between the instrument and the lower left corner of the front air gear; on the front cross member of the engine; on the left front door side or column; on the engine, frame and other large parts; inside the left wheel cover; on the front air gear body; on the steering column; on the radiator support; on the processing mat at the front of the engine.

Finding the vehicle nameplate.

The nameplate is located inside the engine compartment. The vehicle nameplate is a placard indicating the basic characteristics of the vehicle, whose main contents include the make, vehicle model, engine model, engine displacement, rated engine power, vehicle identification code, total mass, load capacity or number of passengers, factory number, year and month of manufacture, country of manufacture and factory name, etc.

For the left driver's side, below the b-pillar of the door, where the front door and rear door meet the inside of the engine compartment is located on the right-hand shock-mounted drum

The 7360 car scanner supports the following vehicles:

1)7360 works on most after 1996 OBDII compliant US European and Asian vehicles

2)Compatible with most Toyota vehicles with OBD 16PIN interface 12V voltage.

Such as 86、4Runner、Agya、Allion、Alphard、Alphard HV、Altezza、Altezza Gita、Aqua、Aristo、Aurion、Auris、Auris HV、Avalon、Avalon HV、Avanza、Avensis、Avensis Verso、Aygo ,etc.

3)Compatible with most Lexus vehicles with OBD 16PIN interface 12V voltage.Such as CT200h、ES200、ES240、ES250、ES260、ES300 、ES300h、ES330、ES350、GSF、GS200t、GS250、GS300、GS300h 、GS350、GS400、GS430、GS450h,etc.

4) Compatible with most Scion vehicles with OBD 16PIN interface 12V voltage.

Such as FR-S、iA、iM、iQ、iQ EV、tC、xA、xB、xD,etc.

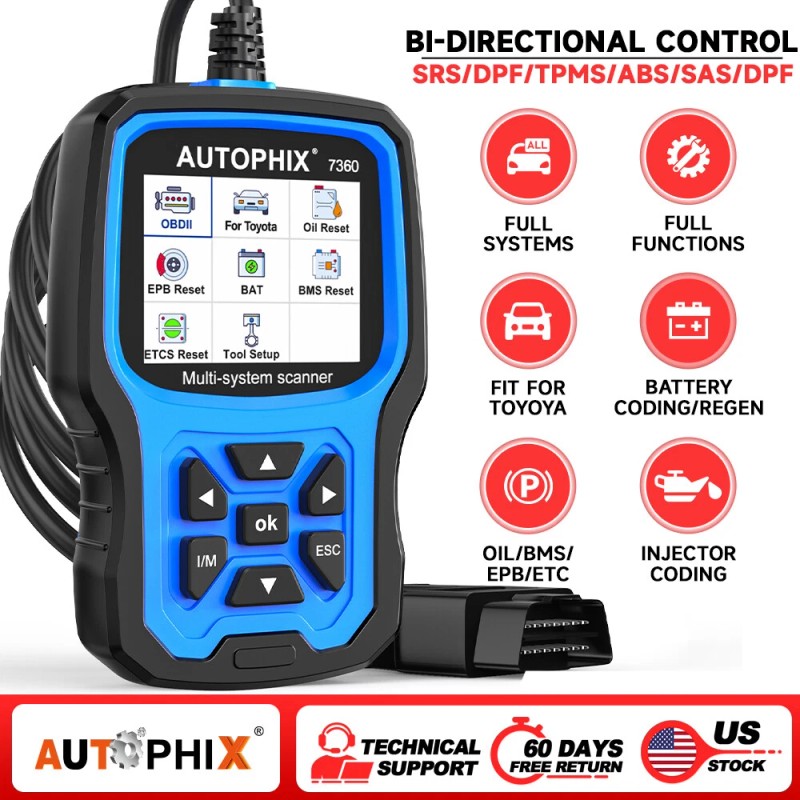

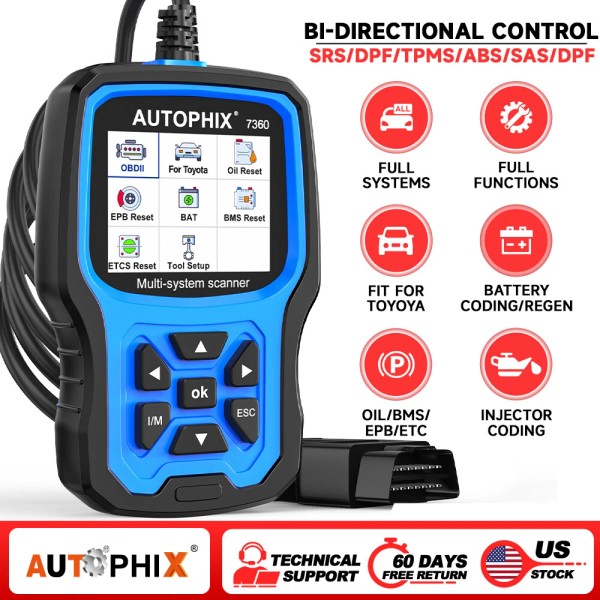

Why Choose the AUTOPHIX 7360 Full System Diagnostic Scanner compatible with Toyota?

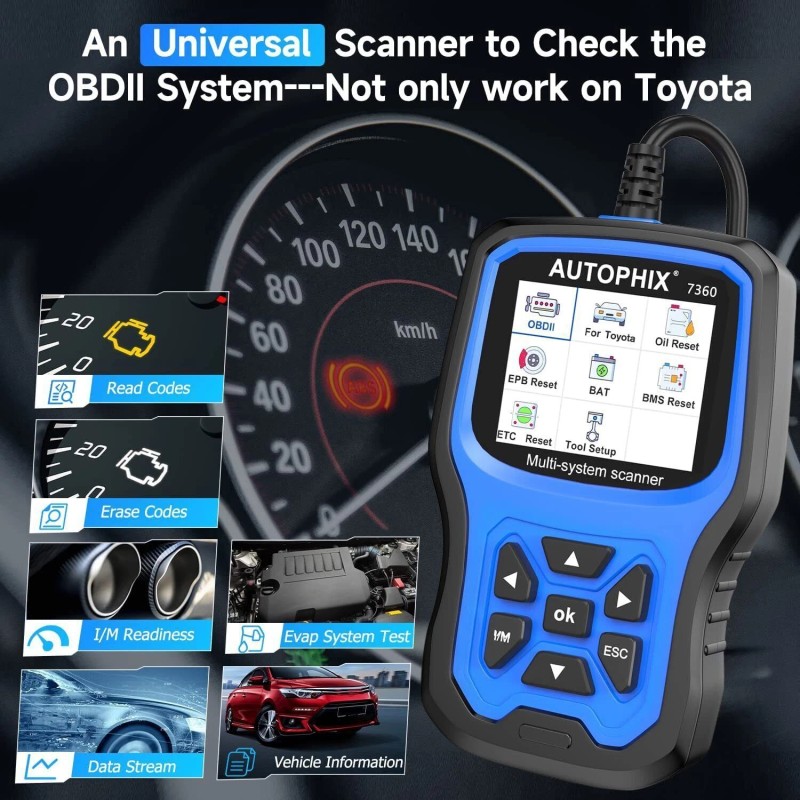

1.Full OBDII functions: Read Fault Codes,Erase Fault Codes,Read Datastream,Evap System Test,I/M Readiness,Vehicle Information.

2.AUTOPHIX 7360 Basic functions: Read Fault Codes,Erase Fault Codes,Read Datastream,Version Information

3.Engine System: Engine device that provides power for the automobile and the heart of the automobile.AUTOPHIX 7360 OBD2 scanner Support OBD2 cars from 1996 to now. It can support all modes OBDII functions & battery Voltage. Easily identify car problems and turn off the engine lights. Help you pass the exhaust test and keep your car in the best condition.

4.Transmission system: provides the user a detailed data, allowing fast, accurate and complete diagnosis of existing, or potential issues. Today’s automatic transmissions (A/T), like our engines have evolved into a complex system of mechanical, electrical

5.ABS Bleeding: ABS automatically control the braking force of the brake when the car is braking to ensure the maximum adhesion between wheels and ground. Whenever you change a part of the brake system, you will need to bleed the brake system afterward. 7360 Allows you to use the scanner temporarily to activate or control anti-lock brake system.

6.TPMS System: Allows you to check the tire sensor IDs from the vehicle and to perform TPMS programming and reset after tires sensors are replaced or rotated.

7.SRS System: SRS is a device that expands the airbag to protect the passenger before the second collision occurs called Supplemental Restraint System (SRS)

8.A/C (Air Conditioner) System: Supports routine maintenance of air condition modules, such as air conditioning system adaption reset, reset air conditioning compressor, run in air conditioning compressor, stepper motor initialization

9.Steering Angle Sensor (SAS) Calibration: AUTOPHIX 7360 Allows you to perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor. Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

10.Throttle Adaptation: In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

>>>>>> OE Level Diagnosis: AUTOPHIX 7360 OBD2 scanner can diagnose the car more complete and comprehensive, without the help of any other equipment or consulting the guidance of high-end technicians. Advanced and complete functions, quiet and simple operation process.

Most Powerful Diagnostic Functions of AUTOPHIX 7360 Car Diagnostic Scanner

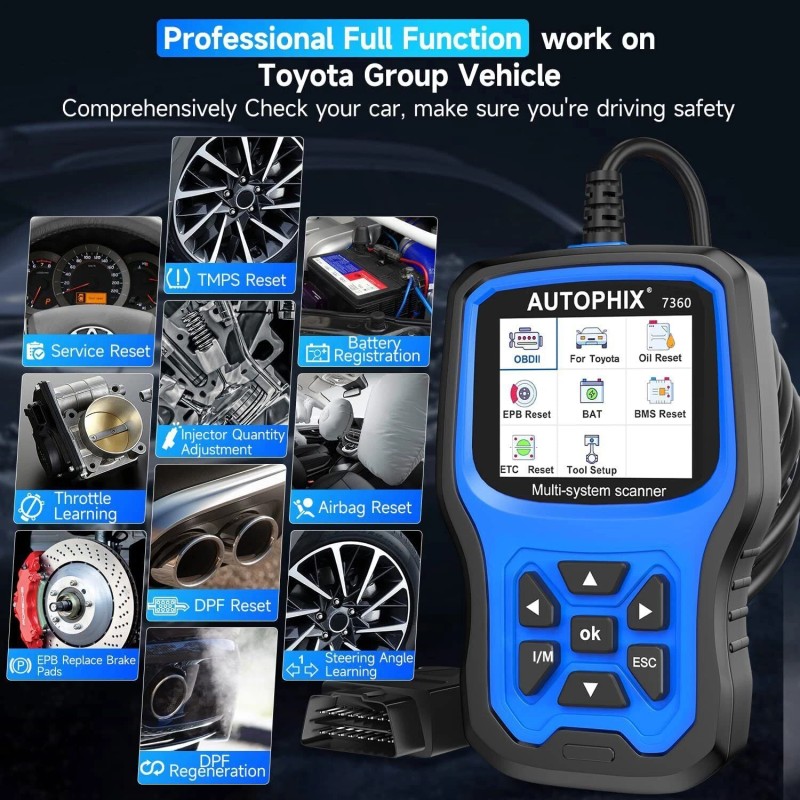

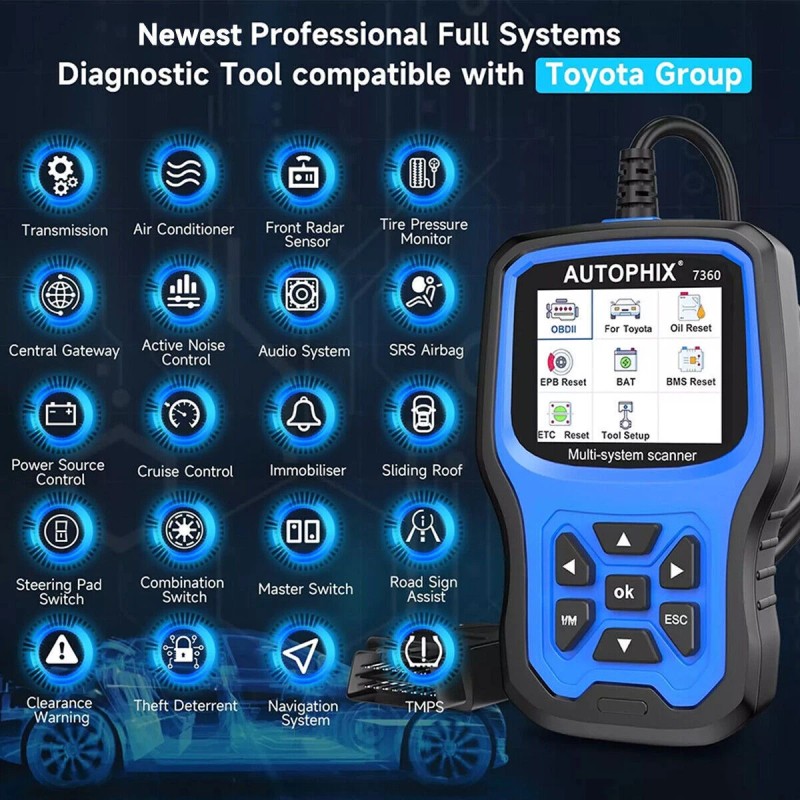

AUTOPHIX 7360 code reader is a unique automotive tool that provides professional diagnosis compatible with Toyota vehicle group and supports all car electronic control module. can save you thousands of dollars on car repair services every year.

>>>1. Powertrain Module: Engine System, Transmission System, Battery Energy System, Wheels System, Transfer case, Electrical Machine Electronics, Diesel Fuel Pump, Gear, and more...

>>>2. Suspension Module: Accumulator Management Electronics System, Steering System, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

>>>3. Body Module): SRS Airbag System, Camera, Audio Radio System, Gateway System, Charging Interface Module, Parking Assistance, Power Control Unit, Light, Battery Charging System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition, Electric Windows, and more...

>>>4. Electrical Module: Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system and more...

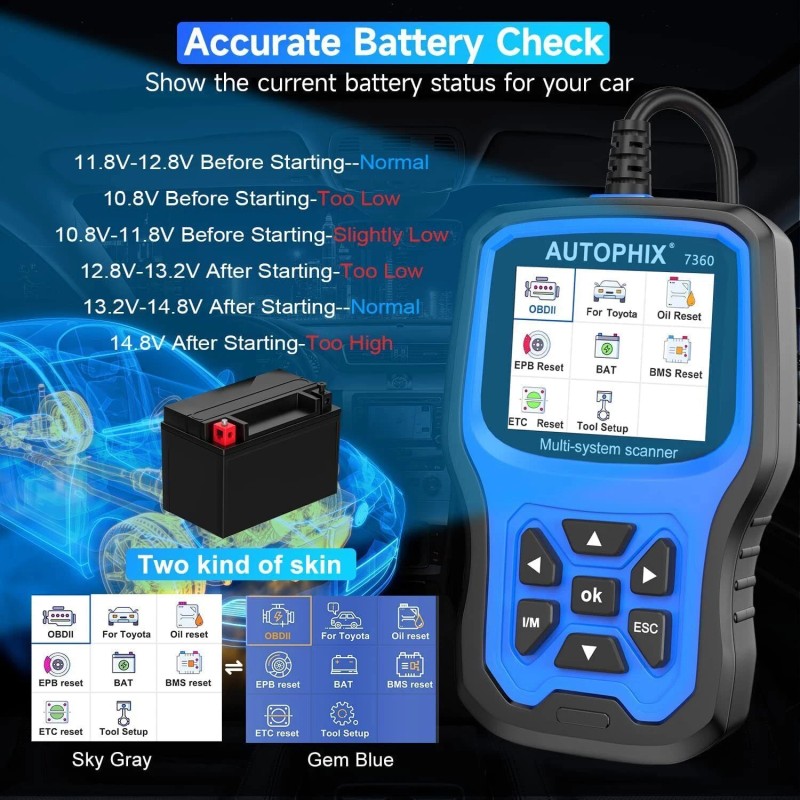

Battery Register & Battery Maintenance : Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.

D-P-F Regeneration: Specially works for Diesel P-articulate Filter system with D-P-F regeneration,D-P-F component replacement teach-in and D-P-F teach-in after replacing the engine control unit.

Tire Pressure Reset: Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

BMS Reset: Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.
