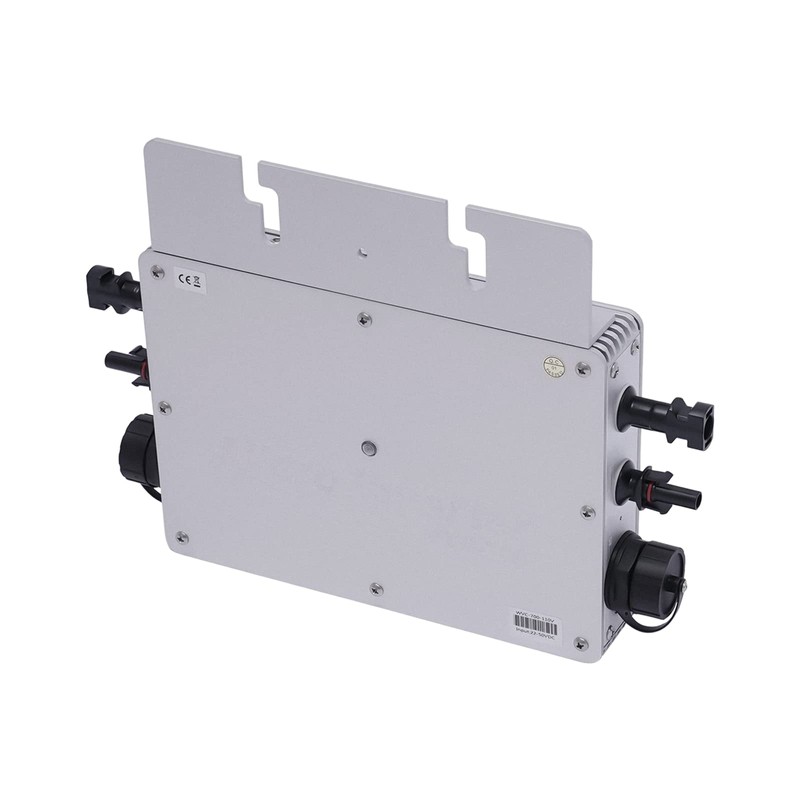

BANEBONE Solar Micro Inverter MPPT Waterproof Micro Solar Panel Smart 110V Automatic Identification Power Inverters Inversor IP65 for Power Stations, Schools,Home Grid Connections (WVC-700w-Silver)
BANEBONE Solar Micro Inverter MPPT Waterproof Micro Solar Panel Smart 110V Automatic Identification Power Inverters Inversor IP65 for Power Stations, Schools,Home Grid Connections (WVC-700w-Silver)
BANEBONE Solar Micro Inverter MPPT Waterproof Micro Solar Panel Smart 110V Automatic Identification Power Inverters Inversor IP65 for Power Stations, Schools,Home Grid Connections (WVC-700w-Silver)
- Premium Material: The inverter is made of aluminum alloy, which is durable, and not easy to rust. You can use it for a long time without frequent replacement. The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproof design can prevent rain from its surface, so you can use it with confidence
- High Efficiency: The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%. In addition, the efficient power reverse transmission technology can transmit the power that can not be used up to the grid in the reverse direction to other places for use, and the power transmission rate can reach 99.9%

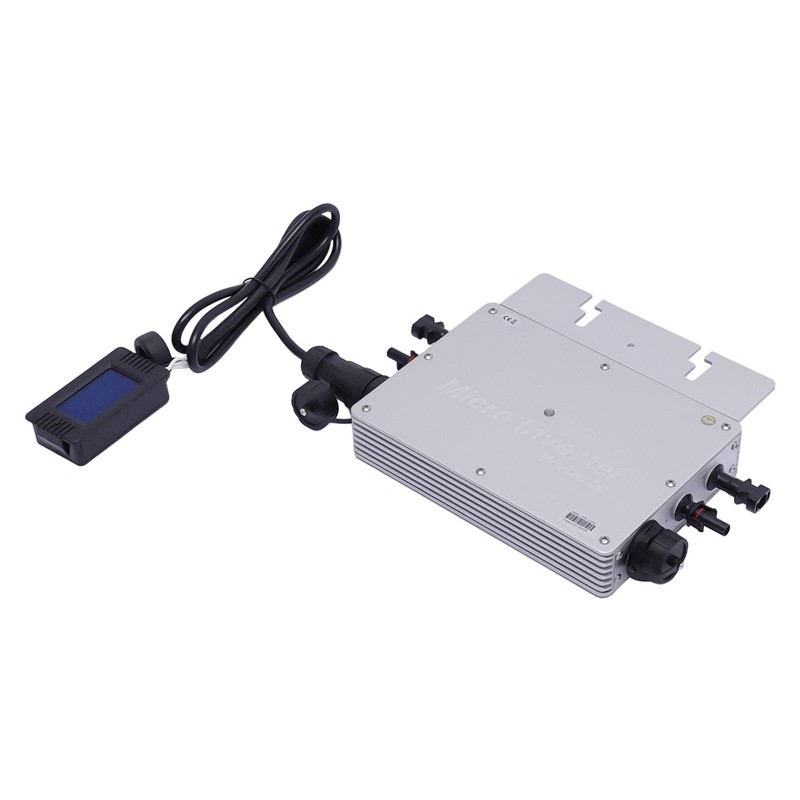

- LCD Display: The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation. After the installation of the power station, you don't need to do maintenance work. After a long period of use, you only need to remove the dust from the photovoltaic panel
- Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users. During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC
- Electrical Isolation: The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable. With a size of 8.39*2.28*9.84inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space
| Brand: | BANEBONE |
|---|---|
| Color: | Blue,Silver |
| Manufacturer: | Roustory |
| Part Number: | DCBGGPW |
| Isin: | IV9CH7SUIBUW |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Description
An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances.
Application
This product is applicable to 30V or 36V solar panels, 36V batteries.

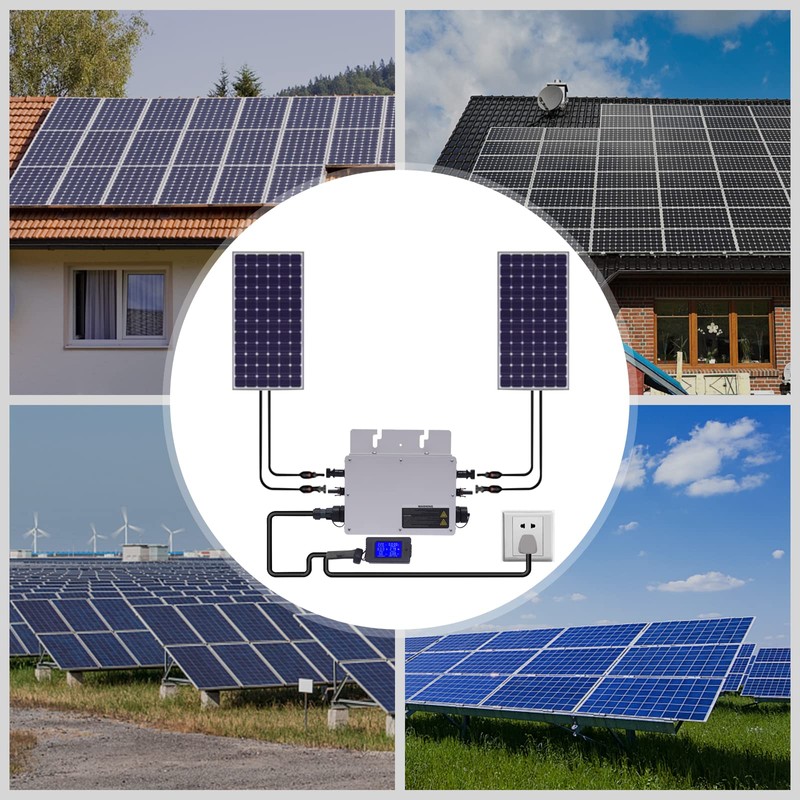

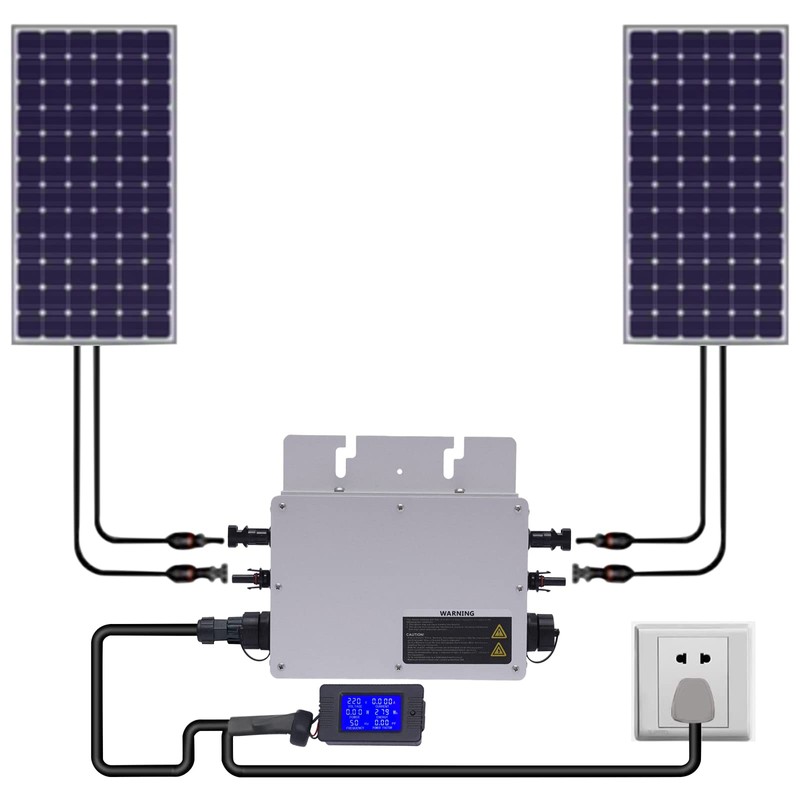

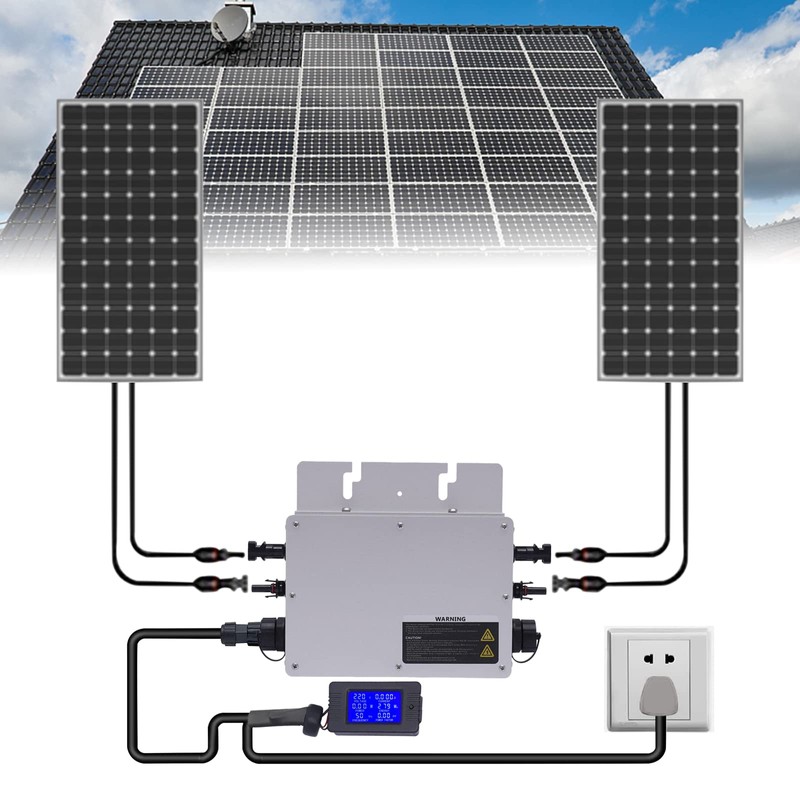

How to Use
Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.
Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.
Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.
Step 4: Connect the AC output cable to the AC main cable.
Step 5: Repeat steps 1 to 3 to install and connect all inverters.
Step 6: Connect the AC main cable to the public grid.
Specification
Model: WVC-700W
Color: Silver
Material: Aluminium Alloy
Power: 700W
Voltage: 110V
Plug Type: US Standard
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Min/Max Start-up Voltage: 22-50V
Maximum DC Short Circuit Current: 40A
Maximum Input Operating Current: 30A
Output Peak Power: 700watt
Rated Output Power: 650watt
Rated Output Current: 6.36A
Rated Voltage Range: 80-160VAC
Rated Frequency Range：57-62.5Hz
Power Factor: ＞99％
Number of Circuit Connections Per String: 6
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 91.2%
Night Time Power Loss: <1W
Total Flow Distortion: <5%
Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating: IP65
Cooling Method: Self-cooling
Communication Mode: Power Line Carrier
Power Transmission Mode: Reverse Transmission, Load Priority
Gross Weight: 2.48kg/5.47lbs
Net Weight: 1.63kg/3.59lbs

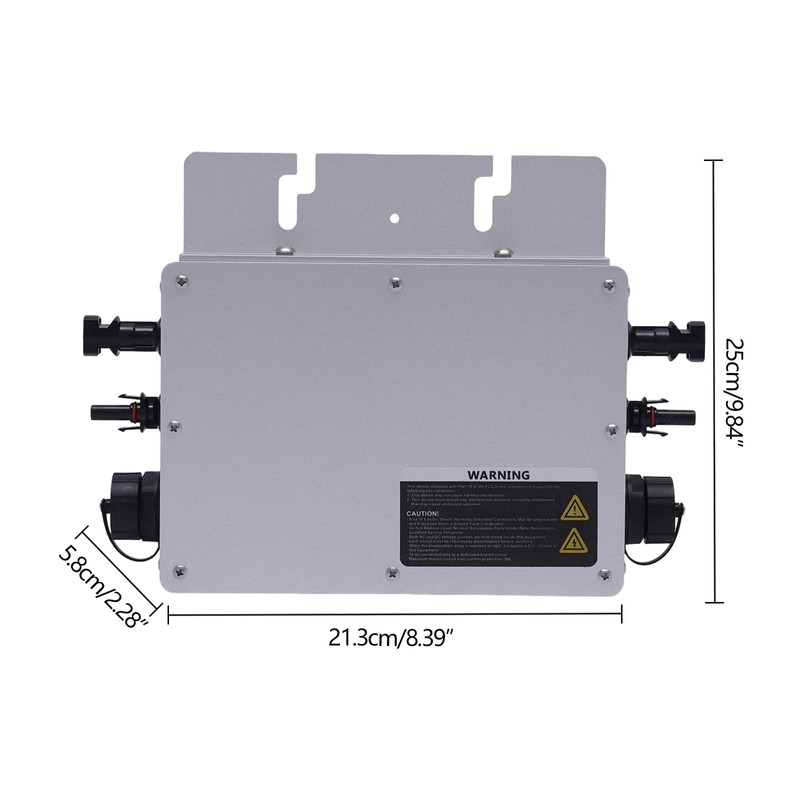

Product Size: 21.3*5.8*25cm/8.39*2.28*9.84inch
Package Size: 34*24*11.5cm/13.39*9.45*4.53inch
Package Included
1* Solar Grid Tie Micro Inverter
1* Power Cord
1* English Manual
Other Accessories for Installation
