BWA 5 BLACK 1.5" JEEP HUB CENTRIC ADAPTERS 5x4.5 to 5x5 WRANGLER JK RIMS ON TJ OR YJ
BWA 5 BLACK 1.5" JEEP HUB CENTRIC ADAPTERS 5x4.5 to 5x5 WRANGLER JK RIMS ON TJ OR YJ

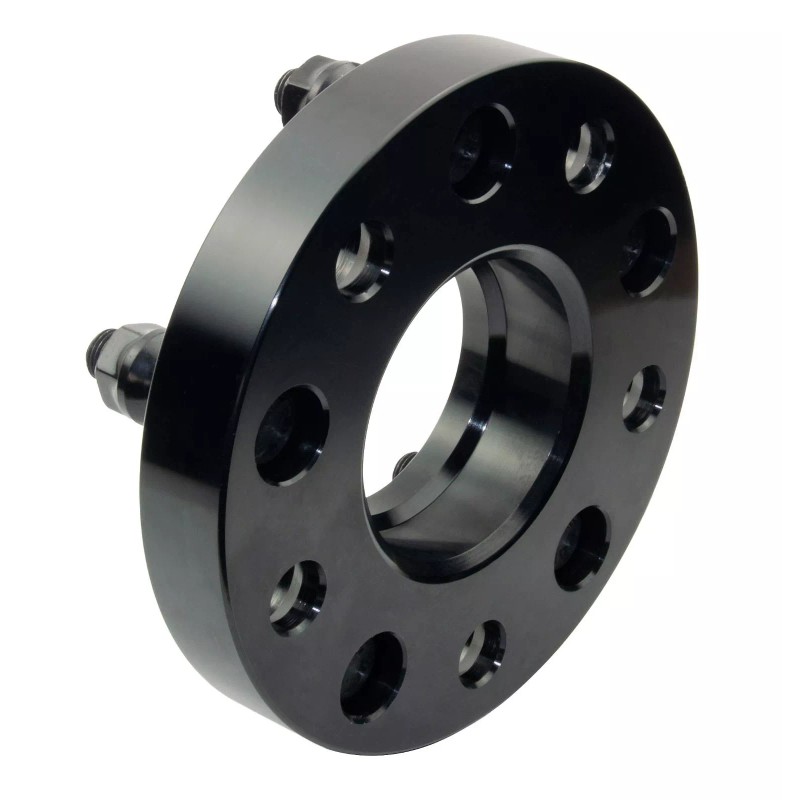

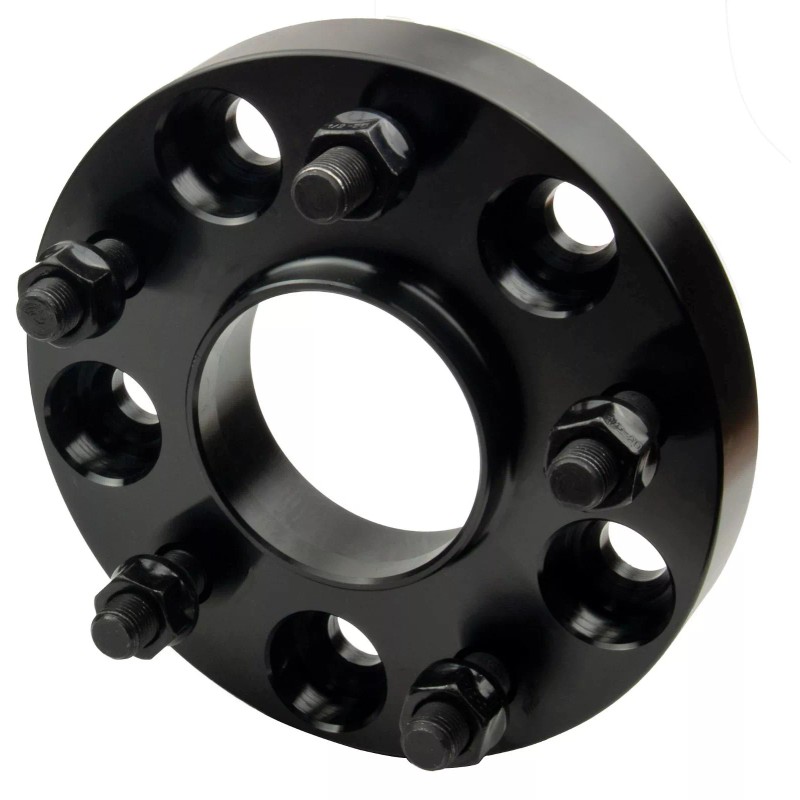

5 PCs 1.5" 5x4.5 to 5x5 HUB Centric Wheel Conversion Adapters
ALLOWS YOU TO PUT NEW MODEL JEEP WHEELS 5x5"
ON OLDER JEEP MODELS 5x4.5"
Fit JEEP: Cherokee, Comanche, Grand Cherokee, Wrangler
Item Description:
● Designed to fit your vehicle's hub and wheel with perfect alignment to keep the wheel balance in check.
● Improves your vehicle’s stance by adding 1.5" width on each side.
● Makes clearance space for brakes and other suspension components.
● CNC Machined, High-Quality and Heavy Duty
● Made from High Strength 6061-T6 cold-forged billet aluminum
Item Specific:
● Vehicle Bolt Pattern: 5x4.5 (5x114.3mm)
● Wheel Bolt Pattern: 5x5 (5x127mm)
● Center Bore Size: 71.5mm
● Outer Diameter: 176mm
● Studs Thread Pitch: 1/2"-20
● Lug Nuts: 25 Pcs 1/2"-20 open end conical seat lug nuts
● Construction: High strength 6061-T6 cold-forged billet aluminum
● Hardened CR-Steel Studs: Forged, heat-treated and hardened ISO/DIN 12.9 grade
Compatibility:
● Vehicle Bolt Pattern has to match 5x4.5 (5x114.3mm)
● Wheel Bolt Pattern has to match 5x5 (5x127mm)
● Vehicle Center Bore has to equal 71.5mm
● Specifically designed to fit:
Make | Model | Year Made | Generation | Stud Size |
Dodge | Challenger | 1970-1974 | E-Body | 1/2"-20 |
Dodge | D150 | 1961-1980 | AD I/AD II/AD III | 1/2"-20 |
Dodge | Dakota | 1987-1990 | DN I | 1/2"-20 |
Dodge | Nitro | 2007-2012 | KJ | 1/2"-20 |
Jeep | Cherokee | 1984-2013 | XJ/KJ/KK | 1/2"-20 |
Jeep | Comanche | 1986-1992 | MJ | 1/2"-20 |
Jeep | Grand Cherokee | 1992-1998 | ZJ | 1/2"-20 |
Jeep | Liberty | 2001-2013 | KK/KJ | 1/2"-20 |
Jeep | Wrangler | 1987-2006 | YJ/TJ | 1/2"-20 |
● Vehicle compatibility, if listed, is used to match the vehicle's bolt pattern with the adapter "vehicle bolt pattern" only
● The compatibility information is for reference and not limited.
Special Notes:

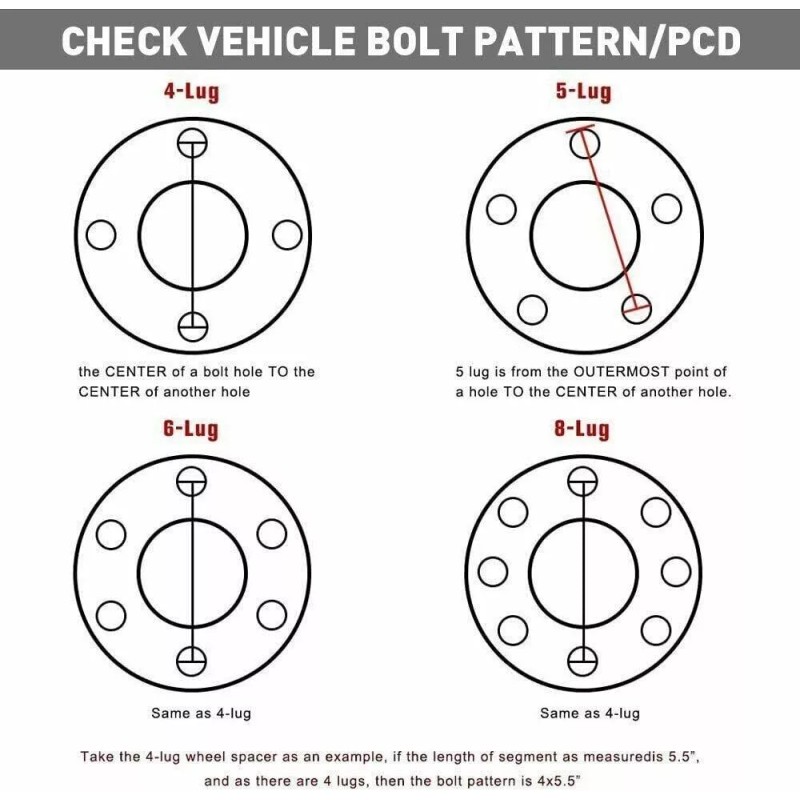

● Please double check bolt patterns of your vehicle and wheels to be installed before purchasing
● Installation should be performed by a qualified technician using proper tools.
● We make no promise or guarantee that this item is compatible with your vehicle or wheels. Please verify this is the correct application for your vehicle before ordering, we only guarantee you receive what is described above.
● Be aware that the studs on the vehicle cannot stick out past the face of the adapter, you may need to modify them by grinding/cutting/trimming.
● If there are clips or retaining rings on the vehicle's studs, they must be removed.
● It is recommended that you install the lug nuts manually, instead of with an impact gun or other electronic tool
● Your vehicle may have different thread pitch wheel studs than what is supplied with these wheel spacers. This means you need to purchase different lug nuts for proper installation.
● Reinstall and tighten all lug nuts after 50 miles and again after 1500 miles.
● No returns or exchanges once the product has been installed on the vehicle.
● Contact us if you have any questions about the product or installation.
Product image shown is used for description and reference only, actual item appearance may vary with bolt pattern and/or thickness.
Brand: | BWA |
---|---|
Isin: | I7ENTEHP1PXR |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
5 PCs 1.5" 5x4.5 to 5x5 HUB Centric Wheel Conversion Adapters
ALLOWS YOU TO PUT NEW MODEL JEEP WHEELS 5x5"
ON OLDER JEEP MODELS 5x4.5"
Fit JEEP: Cherokee, Comanche, Grand Cherokee, Wrangler
Item Description:
● Designed to fit your vehicle's hub and wheel with perfect alignment to keep the wheel balance in check.
● Improves your vehicle’s stance by adding 1.5" width on each side.
● Makes clearance space for brakes and other suspension components.
● CNC Machined, High-Quality and Heavy Duty
● Made from High Strength 6061-T6 cold-forged billet aluminum
Item Specific:
● Vehicle Bolt Pattern: 5x4.5 (5x114.3mm)
● Wheel Bolt Pattern: 5x5 (5x127mm)
● Center Bore Size: 71.5mm
● Outer Diameter: 176mm
● Studs Thread Pitch: 1/2"-20
● Lug Nuts: 25 Pcs 1/2"-20 open end conical seat lug nuts
● Construction: High strength 6061-T6 cold-forged billet aluminum
● Hardened CR-Steel Studs: Forged, heat-treated and hardened ISO/DIN 12.9 grade
Compatibility:
● Vehicle Bolt Pattern has to match 5x4.5 (5x114.3mm)
● Wheel Bolt Pattern has to match 5x5 (5x127mm)
● Vehicle Center Bore has to equal 71.5mm
● Specifically designed to fit:
Make | Model | Year Made | Generation | Stud Size |
Dodge | Challenger | 1970-1974 | E-Body | 1/2"-20 |
Dodge | D150 | 1961-1980 | AD I/AD II/AD III | 1/2"-20 |
Dodge | Dakota | 1987-1990 | DN I | 1/2"-20 |
Dodge | Nitro | 2007-2012 | KJ | 1/2"-20 |
Jeep | Cherokee | 1984-2013 | XJ/KJ/KK | 1/2"-20 |
Jeep | Comanche | 1986-1992 | MJ | 1/2"-20 |
Jeep | Grand Cherokee | 1992-1998 | ZJ | 1/2"-20 |
Jeep | Liberty | 2001-2013 | KK/KJ | 1/2"-20 |
Jeep | Wrangler | 1987-2006 | YJ/TJ | 1/2"-20 |
● Vehicle compatibility, if listed, is used to match the vehicle's bolt pattern with the adapter "vehicle bolt pattern" only
● The compatibility information is for reference and not limited.
Special Notes:
● Please double check bolt patterns of your vehicle and wheels to be installed before purchasing
● Installation should be performed by a qualified technician using proper tools.
● We make no promise or guarantee that this item is compatible with your vehicle or wheels. Please verify this is the correct application for your vehicle before ordering, we only guarantee you receive what is described above.
● Be aware that the studs on the vehicle cannot stick out past the face of the adapter, you may need to modify them by grinding/cutting/trimming.
● If there are clips or retaining rings on the vehicle's studs, they must be removed.
● It is recommended that you install the lug nuts manually, instead of with an impact gun or other electronic tool
● Your vehicle may have different thread pitch wheel studs than what is supplied with these wheel spacers. This means you need to purchase different lug nuts for proper installation.
● Reinstall and tighten all lug nuts after 50 miles and again after 1500 miles.
● No returns or exchanges once the product has been installed on the vehicle.
● Contact us if you have any questions about the product or installation.
Product image shown is used for description and reference only, actual item appearance may vary with bolt pattern and/or thickness.
- Size: 5x4.5 to 5x5, 1.5", CB 71.5MM
- Superseded Part Number: 5 LUG WHEEL SPACERS
- Country/Region of Manufacture: United States
- Material: Cold Forged 6061-T6 Billet Aluminum
- Number in Pack: 5
- Type: Wheel Adapters
- Features: Durable, Easy Installation
- Manufacturer Part Number: WSA4-HC5450-12-71.5
- Finish: Black Anodized
- Modified Item: No
- Custom Bundle: No
- Vehicle Bolt Pattern: 5x4.5 (5x114.3)
- Wheel Bolt Pattern: 5x5 (5x127)
- Adapter Stud Size: 12x1.5
- Thickness: 1.5", 38mm, 1.5 inch
- Adapter Center Bore: 71.5mm
- Outer Diameter: 150mm
- FITS CAR: Jeep 5x4.5
- Placement on Vehicle: Front, Left, Rear, Right
- Brand: BWA
- Manufacturer Warranty: 90 Day
- Other Part Number: 5x4.5 Hub Centric 1.5" 71.5MM
- Non-Domestic Product: No
- Items Included: open lug nuts
