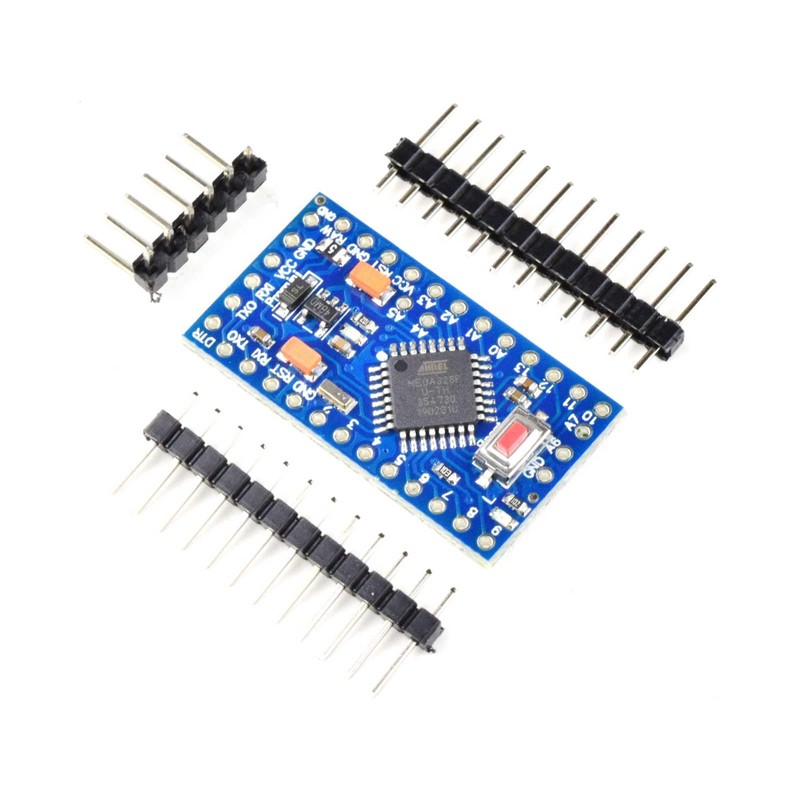

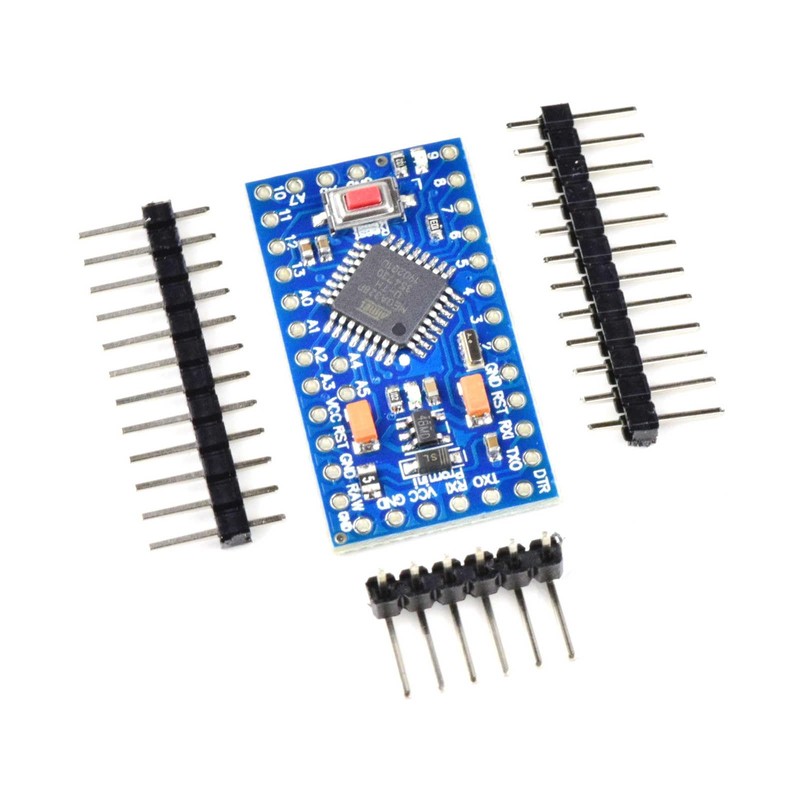

CANADUINO® 3 x Pro Mini ATmega328P Module 5V - 16MHz - 100% Compatible with Arduino

Brand: CANADUINO

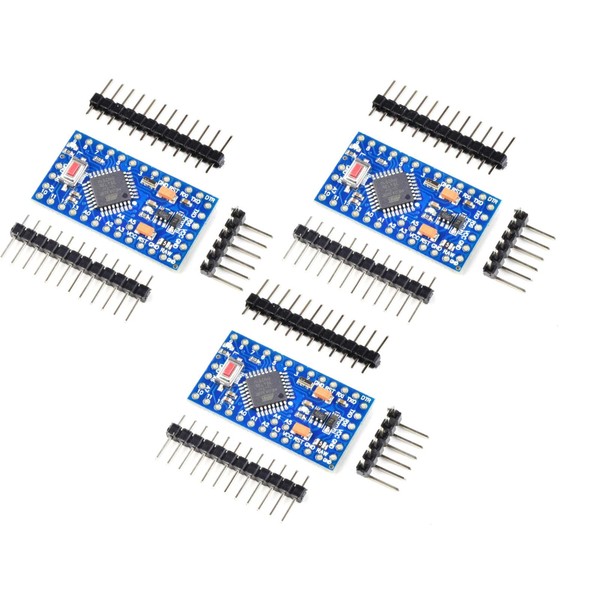

  • 3 x Pro Mini 16MHz Development Board 100% compatible with Arduino
  • ATmega328P Microcontroller runs on 5V
  • Pin header included (not assembled)
  • Arduino Bootloader installed
Brand: CANADUINO
Manufacturer: CANADUINO
Part Number: SDVFD9C
Isin: IJFUWY6NJUMU

$80.67

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 15-20 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
CANADUINO® 3 x Pro Mini ATmega328P Module 5V - 16MHz - 100% Compatible with Arduino

CANADUINO® 3 x Pro Mini ATmega328P Module 5V - 16MHz - 100% Compatible with A...

$80.67

The Pro Mini can be powered with an FTDI or CH340G cable or breakout board connected to its six-pin header, or with a regulated 5V supply on the Vcc pin. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin, not VCC.

The ATmega328 has 32 kB of flash memory for storing code (of which 0.5kB is used for the bootloader). It has 2 kB of SRAM and 1kBs of EEPROM (which can be read and written with the EEPROM library.

Each of the 14 digital pins on the Pro Mini can be used as an input or output, using pinMode, digitalWrite, and digitalRead functions. They operate at 5V. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms. In addition, some pins have specialized functions:

  • Serial: 0 (RX) and 1 (TX). Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the TX-0 and RX-1 pins of the six-pin header.
  • External Interrupts: 2 and 3. These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value. See the attachInterrupt function for details.
  • PWM: 3, 5, 6, 9, 10, and 11. Provide 8-bit PWM output with the analogWrite function.
  • SPI: 10 (SS), 11 (MOSI), 12 (MISO), 13 (SCK). These pins support SPI communication, which, although provided by the underlying hardware, is not currently included in the Arduino language.
  • LED: 13. There is a built-in LED connected to digital pin 13. When the pin is HIGH value, the LED is on, when the pin is LOW, it’s off.
  • I2C: A4 (SDA) and A5 (SCL). Support I2C (TWI) communication using the Wire library.
  • Reset: Bring this line LOW to reset the microcontroller. Typically used to add a reset button to shields which block the one on the board.
