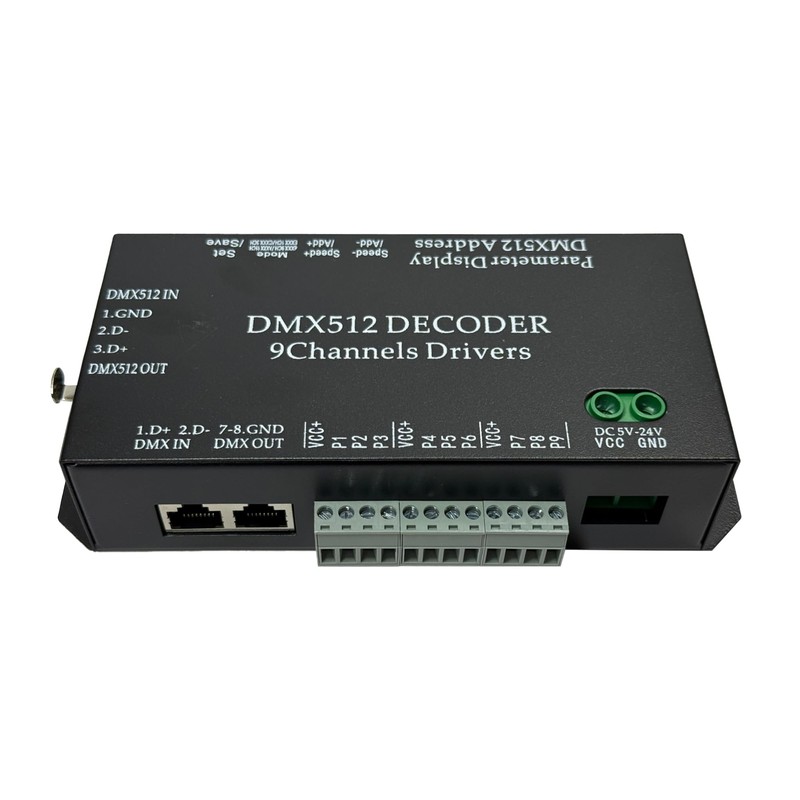

CANRIA 9-Channel DMX512 Decoder LED Controller,DC 5V-24V, for RGBRGB RGBW RGBWW RGBWWW LED Strip Light, 4-Digit Display
CANRIA 9-Channel DMX512 Decoder LED Controller,DC 5V-24V, for RGBRGB RGBW RGBWW RGBWWW LED Strip Light, 4-Digit Display
CANRIA 9-Channel DMX512 Decoder LED Controller,DC 5V-24V, for RGBRGB RGBW RGBWW RGBWWW LED Strip Light, 4-Digit Display

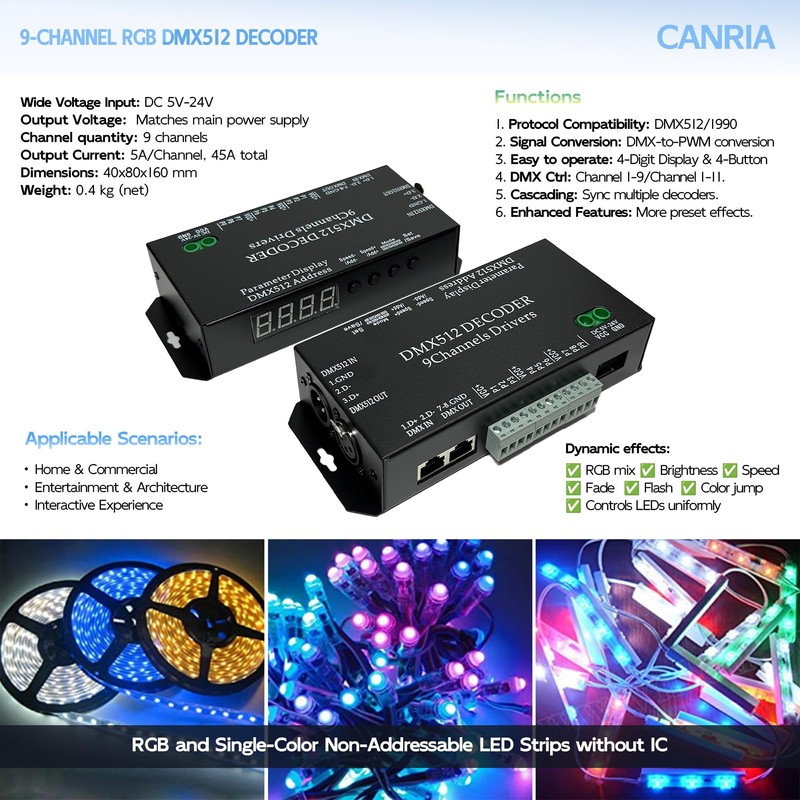

- 1.Input voltage: DC 5V-24V 2.Output voltage: Matches main power supply voltage 3.Channel quantity: 9 channels 4.Output current: 5A/Channel, 45A in total 5.Size: 40x80x160 mm 6.Weight: 0.4 kg
- 4 digit display screen. When connected to the DMX signal console, the decoder will display dXXX. XXX stands for three numbers and rang from 001 to 512. If not connected to DMX signal console, The decoder will display its built-in program. Display screen will show XXPX, The left XX shows speed. The right X shows the built-in program sequence. It has 7 built-in programs from P1-to P7. Its display speed rang from 01 to 99.
- The decoder can be set through 4 buttons. When it is connected to DMX console, press + or - button to adjust the DMX address. You can adjust what address you need, then press SET button to save address setting. It will automatically be your saved address when connected to DMX console next time.
- Without connecting the DMX console, the decoder will display its built-in programs. Through pressing + or - button, you can adjust display speed of programs. The program can be changed by pressing MODE button. Pressing SET can save programs and display speed. When you power on the decoder next time, it will automatically be your saved built-in programs and display speed.
- Decoder is designed to convert the universal standard DMX512/1990 signal into signal to control the RGB or RGBW or RGBWWW or RGB+RGB Flex Strips
- High power output, 6 output channels, 10A per channel
- DMX pass through and in/out connector for daisy chain configurations and RJ45 network port
| Brand: | CANRIA |
|---|---|
| Size: | 6-Channel DMX512 Decoder |
| Color: | Black |
| Manufacturer: | CANRIA |
| Part Number: | 8BGHDGY |
| Material Type: | Metal |
| Isin: | ISVWMABGBE5F |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
CANRIA T8K.NET ARTNET+DMX CONSOLE LED CONTROLLER INSTRUCTIONS 1.Voltage: AC110V-220V 2.Rated power: 4W 3.Ports number: 8 4.Max controller pixels Offline or connected DMX console: Ordinary single line lamps: 8192 pixels(1-1024 pixels per port), DMX512 lamps: 2048 pixels(1-256 pixels per port), Using with MADRIX: Ordinary single line lamps:8160 pixels(170-1020 pixels per port)(1-4 domains), DMX512 lamps: 1360 pixels(1-170 pixels per port). 5.Working temperature: -10℃~45℃ 6.Size: 300*150*45MM 7.Net weight: 1.2KG 8.SD card: 1GB, FAT or FAT32, *.led 9.Support multiple synchronization. 10.Can control 32-65536 grayscale, gamma software correcting processing. 11.Support all kinds of light source of point, line and surface. Fits for regular and irregular shape of lights project. 12.Application most of LED lights with single wire IC chips: UCS19**, UCS29**, TM18**, WS281*, SM1670*, GS8205, GS8206, 6812, TM1914, LPD1886, DMX512, UCS512, WS2822 etc. 13.When one port of the controller is connected with no more than 512 pixels, the playback speed can reach 30 frames/second. If more than 512 pixels, the frame rate will automatically decrease as the number of pixels increases. 14.The output of TTL, the controller must share the ground with the lamps. (that is, the ground wire output of the controller connect with the ground wire of the lamps). 15.If multiple controllers are synchronized offline, the SD card must be of the same specification. For example, if 1G card is used, each controller needs the same 1G card. The card reading speed of different SD cards may be different, which will affect the synchronization effect, and each SD card must be formatted into the same type (FAT or FAT32). 16.Before copying files to the SD card, format the SD card into "FAT" or "FAT32" format.
