Car Lift Parts Auto /Car Lift Power unit LIMIT SWITCH Stop Microswitch motor wire Benwil Rotary
Car Lift Parts Auto /Car Lift Power unit LIMIT SWITCH Stop Microswitch motor wire Benwil Rotary
NOT SURE IF THIS SWITCH WILL WORK FOR YOUR AUTO LIFT MOTOR OR NEED INFO ON THIS PRODUCT? CALL US @ 866-902-6060

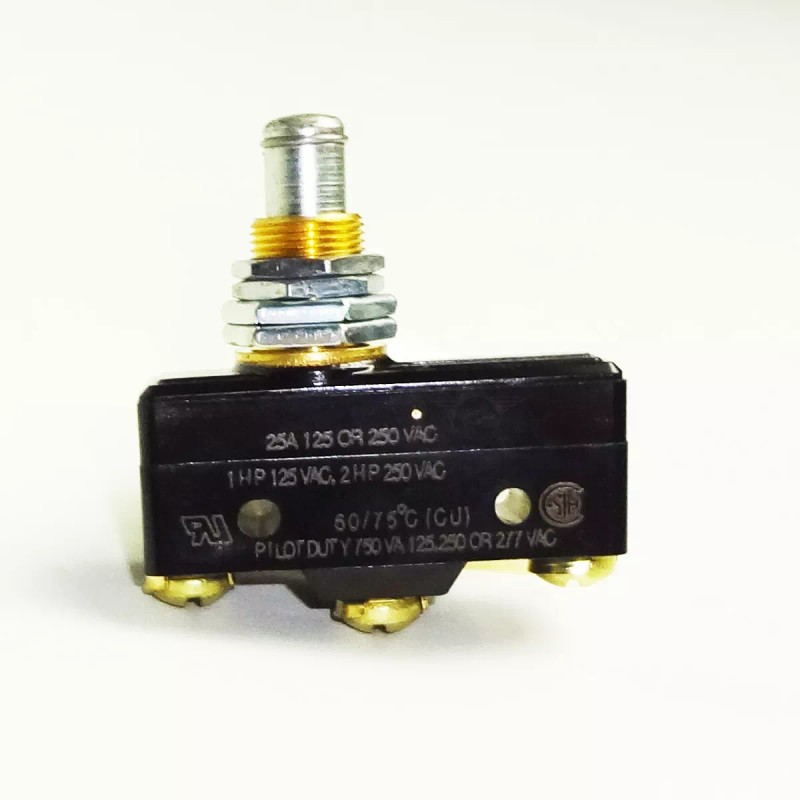

This is an aftermarket heavy duty electrical micro switch made for MANY brands of Automotive lift power units. It controls the hydraulic motor and is the Stop button for the limit switch bar or cable for many lifts.This switch prevents vehicles from running through the overhead beam on 2 post lifts and is crucial to prevent damage to the lift or vehicles. It came in many OEM application mounted inside motors housing or on the top of the lift in housing that hold the stop bar on Rotary lift, Forward Lift, Direct Lift, Hanmecson Lift, Challenger Lift, VBM Lift, Whip Lift, Western Lift Worth Lift & many more. It was used in conjunction with motors built by SPX, Fenner Stone, Monarch, Barnes, Doer, Emerson, and used in other brand motors as well. Please see below for OEM part # reference.
ALM -A00242
Ammco®*- 80282
Benwil-300282 , 290037
Challenger Lift- 1258-AA
Fenner -1288AA
Forward-991088 , 991226
Manitowac - c-723-20
Monarch- 0352
MTE- 69210023
Rotary Lift- P461-2, Fj7108-2,
SPX -1258-AA
SVI- bh-7004-19
Western- S707
Wheeltronics- 6-0916
This Switch is usually found on 208-230vac motors but can be used on 110v also

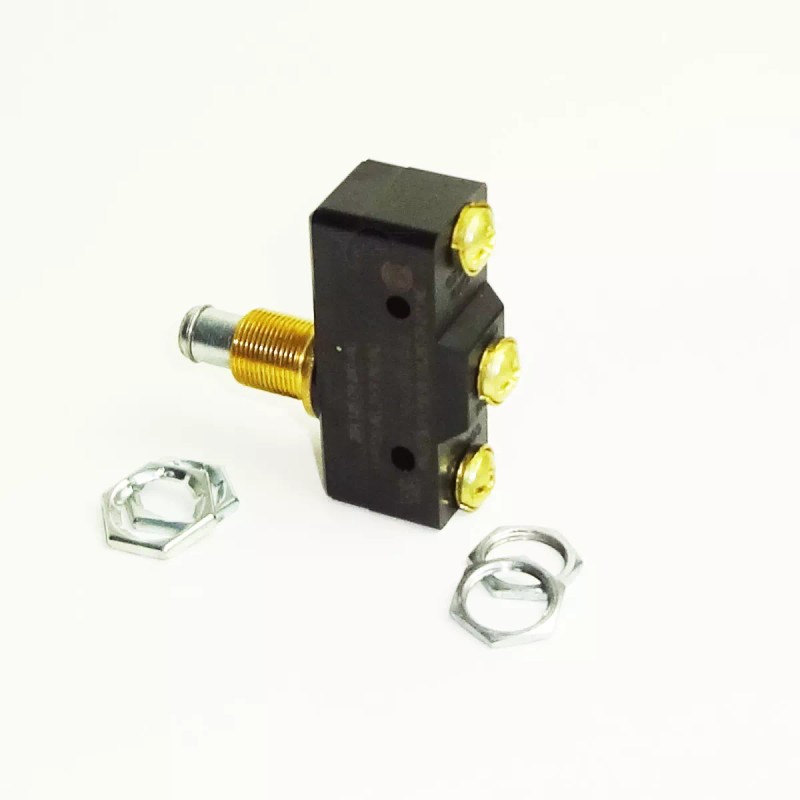

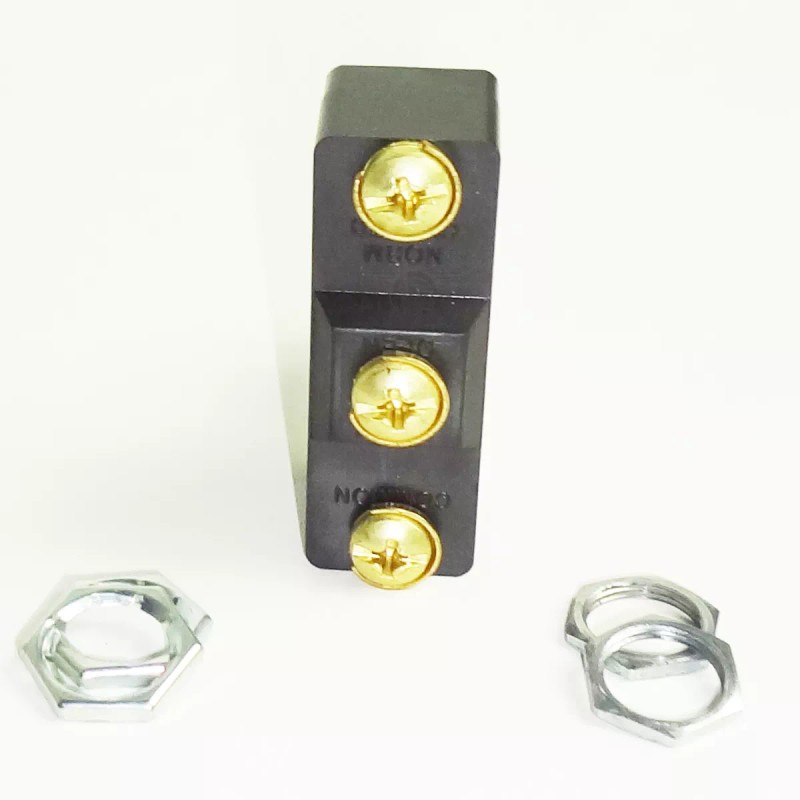

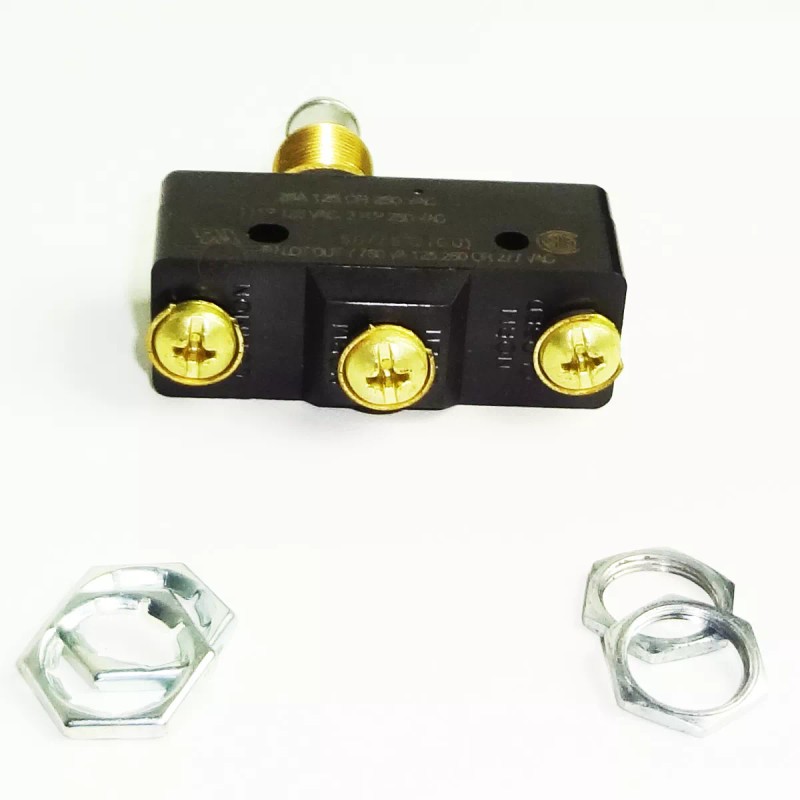

It has 3 screw terminals on the back/ bottom of the Micro switch where wires are connected (wires typically only connected to 2 out the 3 terminals). The terminals are usually marked "NO" "NC" "COMMON" or "COM" and the switch can be set up for normally open or normally closed operation.The front of the switch has a metal button/ plunger which is what actuates the switches operation. The plunger goes into a brass colored housing which has threads and nuts allowing the switch to be mounted to limit switch housings. These switches are high quality units meeting all electrical codes and requirements. All our switches have been 10,000 press tested to ensure long life. This switch will get you back up and running and put your lift back to work for you!
!!!Rush shipping available by calling 866-902-6060!!!!
Most of the time when these switches fail, they either burn out at the terminal or can stick on and continually run the motor. Your old switch can be tested with a simple continuity test to identify if the switch is the cause of your problems. This switch can be wired Normally open or Normally closed depending on what terminals are used.
CARLIFTPARTS has over 30 years experience in the auto equipment industry and will be glad to help you with all your auto equipment needs or questions !
CALL OUR CUSTOMER SERVICE LINE 866-902-6060
WE OFFER PARTS FOR ALL BRAND AUTO LIFTS, TIRE CHANGERS , BALANCERS , AC MACHINES , PIPE BENDERS ,OIL PUMPS ,& BRAKE LATHES
WE ACCEPT ALL MAJOR CREDIT CARDS AND PAYPAL
FLORIDA BUYERS WILL BE CHARGED SALES TAX.
Free shipping applies to 50 US states. Please use shipping price calculator if out of US
Brand: | Car Lift Parts |
---|---|
Isin: | I29ZCBKA4OKX |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
NOT SURE IF THIS SWITCH WILL WORK FOR YOUR AUTO LIFT MOTOR OR NEED INFO ON THIS PRODUCT? CALL US @ 866-902-6060
This is an aftermarket heavy duty electrical micro switch made for MANY brands of Automotive lift power units. It controls the hydraulic motor and is the Stop button for the limit switch bar or cable for many lifts.This switch prevents vehicles from running through the overhead beam on 2 post lifts and is crucial to prevent damage to the lift or vehicles. It came in many OEM application mounted inside motors housing or on the top of the lift in housing that hold the stop bar on Rotary lift, Forward Lift, Direct Lift, Hanmecson Lift, Challenger Lift, VBM Lift, Whip Lift, Western Lift Worth Lift & many more. It was used in conjunction with motors built by SPX, Fenner Stone, Monarch, Barnes, Doer, Emerson, and used in other brand motors as well. Please see below for OEM part # reference.
ALM -A00242
Ammco®*- 80282
Benwil-300282 , 290037
Challenger Lift- 1258-AA
Fenner -1288AA
Forward-991088 , 991226
Manitowac - c-723-20
Monarch- 0352
MTE- 69210023
Rotary Lift- P461-2, Fj7108-2,
SPX -1258-AA
SVI- bh-7004-19
Western- S707
Wheeltronics- 6-0916
This Switch is usually found on 208-230vac motors but can be used on 110v also
It has 3 screw terminals on the back/ bottom of the Micro switch where wires are connected (wires typically only connected to 2 out the 3 terminals). The terminals are usually marked "NO" "NC" "COMMON" or "COM" and the switch can be set up for normally open or normally closed operation.The front of the switch has a metal button/ plunger which is what actuates the switches operation. The plunger goes into a brass colored housing which has threads and nuts allowing the switch to be mounted to limit switch housings. These switches are high quality units meeting all electrical codes and requirements. All our switches have been 10,000 press tested to ensure long life. This switch will get you back up and running and put your lift back to work for you!
!!!Rush shipping available by calling 866-902-6060!!!!
Most of the time when these switches fail, they either burn out at the terminal or can stick on and continually run the motor. Your old switch can be tested with a simple continuity test to identify if the switch is the cause of your problems. This switch can be wired Normally open or Normally closed depending on what terminals are used.
CARLIFTPARTS has over 30 years experience in the auto equipment industry and will be glad to help you with all your auto equipment needs or questions !
CALL OUR CUSTOMER SERVICE LINE 866-902-6060
WE OFFER PARTS FOR ALL BRAND AUTO LIFTS, TIRE CHANGERS , BALANCERS , AC MACHINES , PIPE BENDERS ,OIL PUMPS ,& BRAKE LATHES
WE ACCEPT ALL MAJOR CREDIT CARDS AND PAYPAL
FLORIDA BUYERS WILL BE CHARGED SALES TAX.
Free shipping applies to 50 US states. Please use shipping price calculator if out of US
- Brand: Car Lift Parts
- Manufacturer Part Number: 1258-aa, P461-2, Fj7108-2 bh-7004-19 991088 99122
- Model: fenner stone spx barnes doer emerson
- Application: auto Lift Power unit motor
- Power Source: 208-230vac
- Type: Hydraulic power unit motor switch
- UPC: Does not apply
