CHICIRIS Digital Timer, LCD Display, Weekly Programmable Electronic Relay Time, 16 On and Off Timer, DIN Rail, for Household, Industry (220 V)
CHICIRIS Digital Timer, LCD Display, Weekly Programmable Electronic Relay Time, 16 On and Off Timer, DIN Rail, for Household, Industry (220 V)
CHICIRIS Digital Timer, LCD Display, Weekly Programmable Electronic Relay Time, 16 On and Off Timer, DIN Rail, for Household, Industry (220 V)

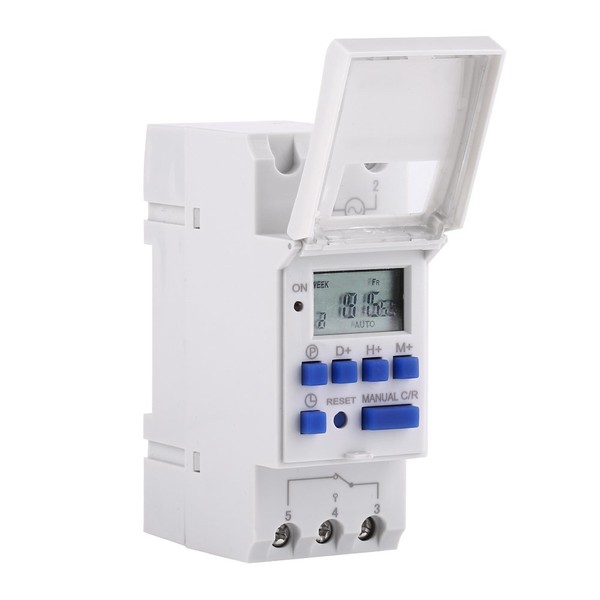

- Control: LCD display, 7 rubber control buttons (P 16 program, D+ week selection, H+ hour setting, M+ minute setting, current time setting, reset timer reset, manual manual mode: continuous, permanent or automatic (AU). You can switch from manual mode to automatic mode at any time with the "ON/AUTO/OFF" button.
- Function: 16 adjustable switching programs that can be combined with manual on/off and different days of the week. The different days of the week are displayed in English abbreviations on the LCD display. You can choose the day of the week or one of 7 other combinations such as Monday-Saturday or Monday-Mednesday and Friday etc.
- 【Package Content】1 x Digital Weekly Timer.
- Features: The timer has 16 programmable switching times (16 times on and off, 16 times off), suitable for one-day or multi-day combinations. The minimum switching interval is 1 minute and the maximum is 168 hours.

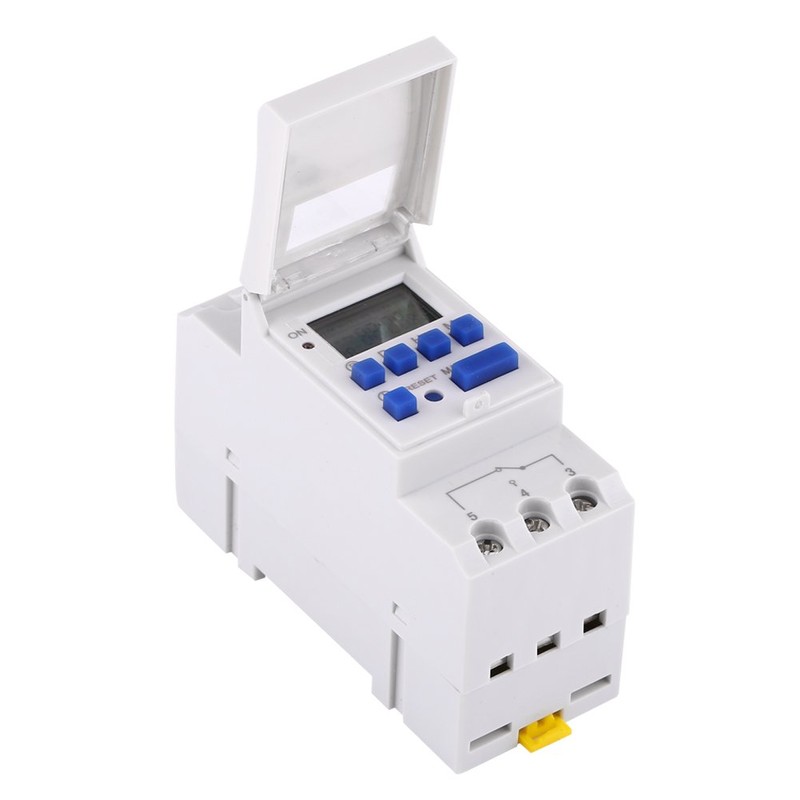

- 【Model】Programmable clock and digital timer, installed in the distribution cabinet, distribution box or 35 mm DIN rail power box, easy to assemble and can be programmed accordingly 168 hours per day or one hour for a whole week. Ideal for switches such as stairs and garages or driveways.
| Brand: | CHICIRIS |
|---|---|
| Size: | 220V |
| Manufacturer: | CHICIRIS |
| Part Number: | 5XYW8TY |
| Isin: | IG0IHS3YYHBH |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Specifications:
Product Type: Digital Timer
Input voltage: AC/DC12V, AC/DC24V, AC220V (optional).
Current: 15 A.
Power: 3000 W.
Nominal contact voltage: AC 220 V (50/60 Hz).
Switching capacity: resistive 16A.
On/Off operation: 16 on/off modes (manual/automatic)
Display: LCD.
Power: <4 W.
Error: ≤2s/day.
Mounting method: DIN rail (not included).
Hardback: 1 minute to 168 hours
Operating temperature: -10°C to 55°C.
Size: 86 x 36 x 65 mm / 3.38 x 1.41 x 2.56 inches.
Battery: 1.2V 40mAh NiMH battery (built-in)

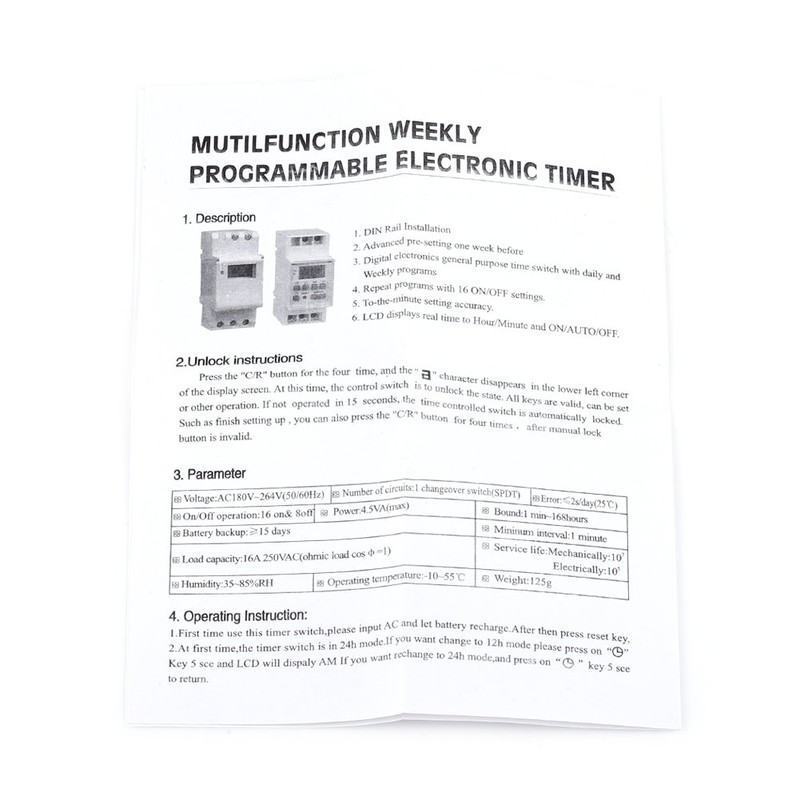

Instructions:
1. When you use the timer for the first time, please connect the AC, charge the built-in battery, and then press the reset button.
2. The timer is in 24-hour mode by default. Press and hold the "Time" button (bottom left of "Reset") for 5 seconds until "AM" is displayed to switch to 12 hour mode. Press and hold the "Time" button again for 5 seconds to return to 24-hour mode.
programming
1: Press P and set the "1 ON" time (display 1).
2: Press D+, select the days of the week (if you want the same set for each day, you don't need to press this button).
3: Press H+/M+, set hours and minutes.
4: Press P and set the time "1 OFF" (display 1 off).
5: Press P, select the days and week (if you want the same set for each day, you don't need to press this button).
6: Press H+/M+, set hours and minutes.
7: Repeat steps 2 to 6 and set a different on/off time.
8: Press time (bottom left, next to reset), end.
Package includes:
1 x timer switch.
