CoCud Thread Milling Tap Metric M11 x 1.25 Screw Machine 4 Straight Flute Left Hand Screw Threading for Drilling Machine Tapping
CoCud Thread Milling Tap Metric M11 x 1.25 Screw Machine 4 Straight Flute Left Hand Screw Threading for Drilling Machine Tapping
CoCud Thread Milling Tap Metric M11 x 1.25 Screw Machine 4 Straight Flute Left Hand Screw Threading for Drilling Machine Tapping
- ★ Screw Tap Size --- Screw Size: M11 x 1.25 (Left Hand); Corner Shank Width: 7 mm; Thread Length: 31 mm; Overall Length: 88 mm; Accuracy: H2; Flute Quantity: 4 flutes.
- ★ WIDE APPLICATION --- For threading through holes and shallow stop holes. 4 straight groove design, rapid downward shavings disbursement New creation of stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, plastic female threads or rescrew damaged female threads
- ★ MACHINE TAP --- Machine tap is used in tapping machines, vertical drilling machines, and milling machines. Micro taps of M1 to M3.5 are mainly used for watches with low hardness of wood and soft metals. Drill holes with a twist drill before tapping
- ★ HISS STEEL --- High speed steel tools have high hardness, high strength, good toughness, wear resistance and heat resistance. It is suitable for a wide range of applications with only a base board without additional coating
- ★ CONVENIENT TIPS --- Control the speed based on the hardness of the material. Adding appropriate tapping oil will improve the quality of the female thread and increase the durability of the tap. Tapping depth should not exceed 1.5 times of the diameter (e.g. diameter = 6 mm (M6), maximum tapping depth = 9 mm). Tapping angle must be 90 degrees vertically and stable
Brand: | CoCud |
---|---|
Size: | M11 x 1.25 |
Manufacturer: | CoCud |
Part Number: | NKQPHPB |
Isin: | IQSIBRSQ4HUV |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Attribute:

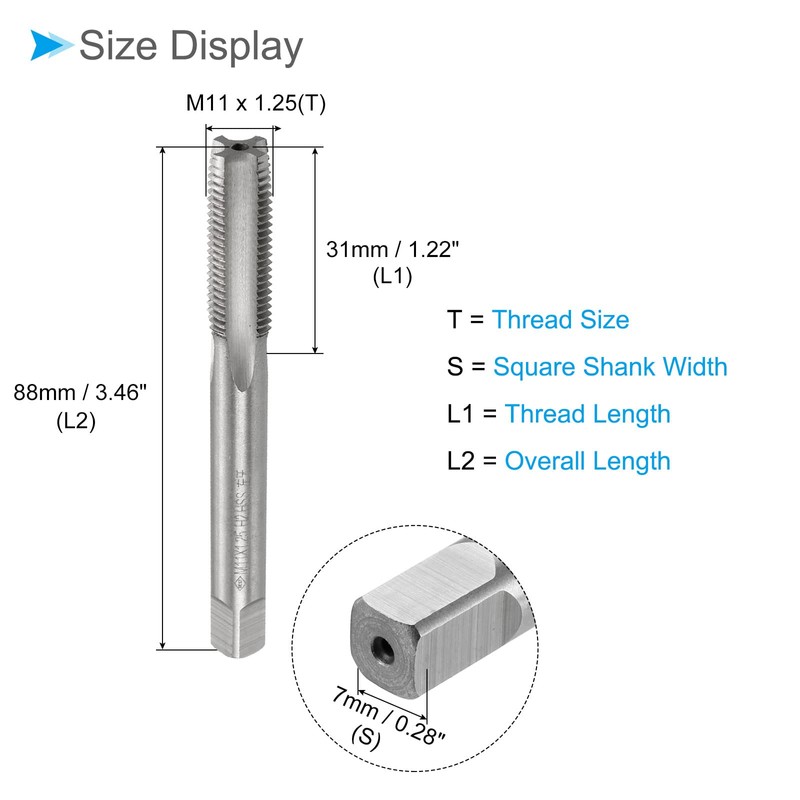

* Screw Size: M11 x 1.25 (Left Hand)
* Square Shank Width: 7mm
* Thread Length: 31mm
* Overall Length: 88mm
* Accuracy: H2
* Material: High Speed Steel (HSS)
*Flutes Quantity: 4 flutes

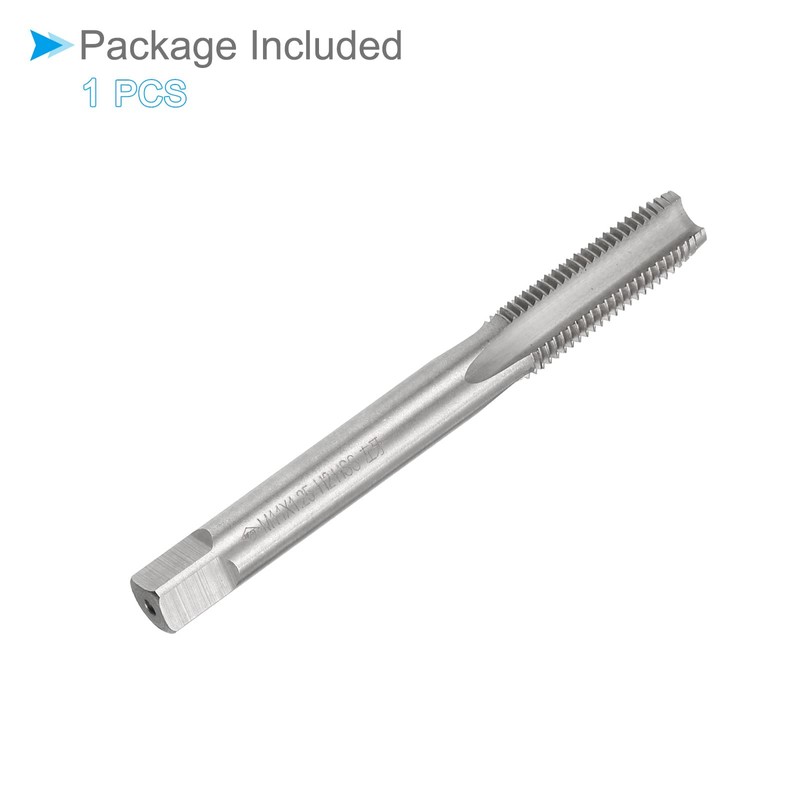

Package Includes:
* 1 x Screw Milling Tap
Application Features:
--- Suitable for threading through and shallow holes. 4 straight flute design, downward shavings discharge quickly. Create new female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel and hard plastic or re-screw damaged female threads. Machine taps are used in tapping machines, vertical drilling machines, and milling machines. The M1-M3.5 micro taps have a low hardness of wood and soft metals and are primarily used for watches.
--- High speed steel tools have high hardness, high strength, good toughness, wear resistance and heat resistance. It is suitable for a wide range of applications with only a base board without additional coating. Tapping depth should not exceed 1.5 times of the diameter (e.g. diameter = 6 mm (M6), maximum tapping depth = 9 mm). Drill holes with a twist drill before tapping Tapping angle must be 90 degrees vertically and stable. Adding the right tapping oil will improve the quality of the female thread and increase the durability of the tap.
Useful Tips:
--- Control the speed based on the hardness of the material. Feed speed (recommended): Normal steel (copper aluminum alloy): 6-15m/min; Hard steel: 5-10m/min; Stainless steel: 2-7m/min; Cast iron: 8-10m/min; The harder the slower the speed. High speed and low torque Low speed and high torque When tapping plastic, add lubricating coolant Motor oil is commonly used in steel and vegetable oil is used in high requirements. For stainless steel motor oil, please use No. 30.
