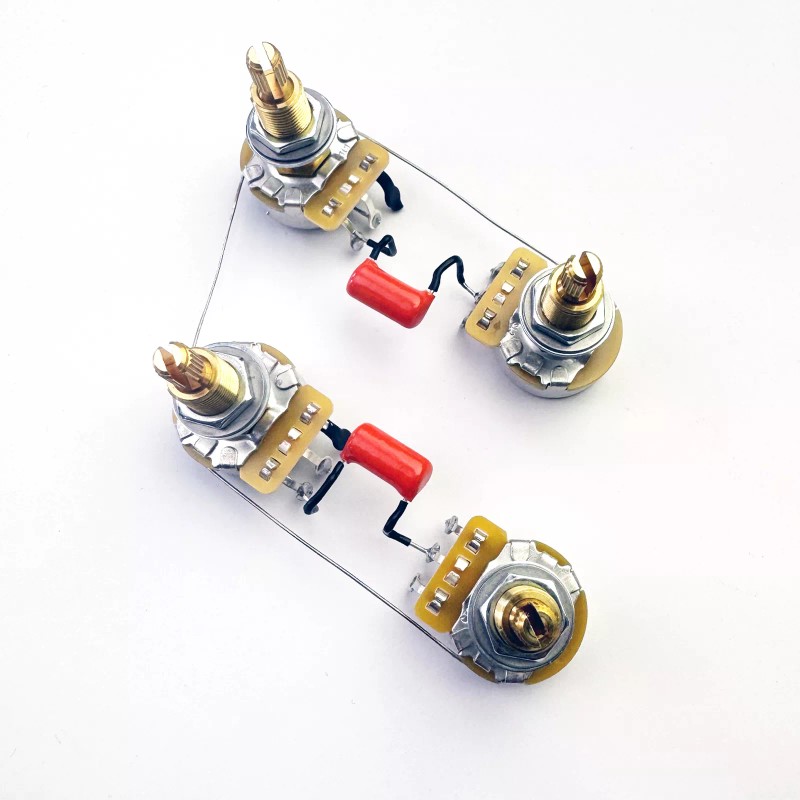

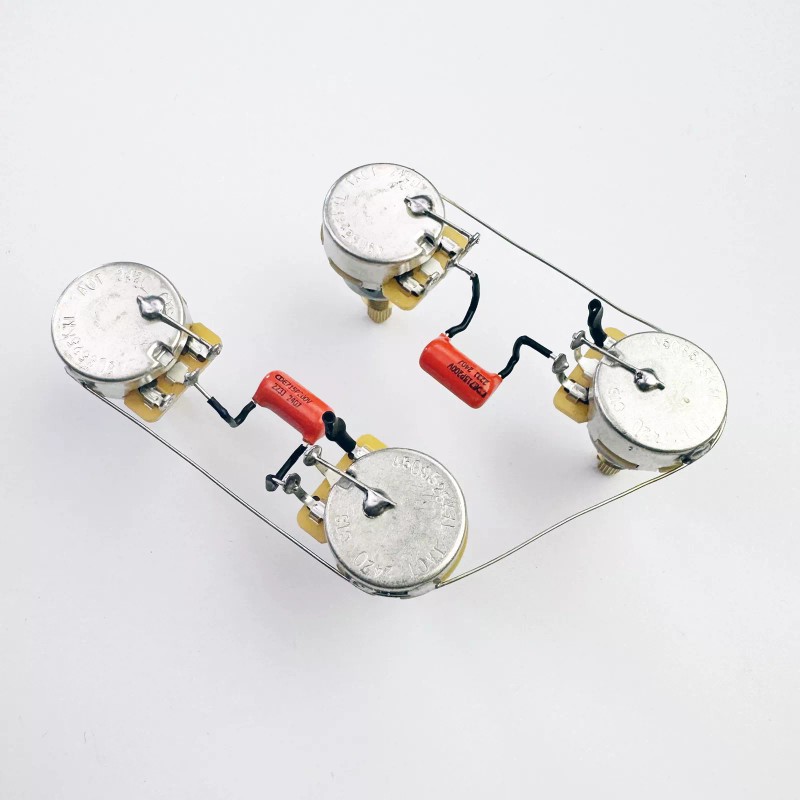

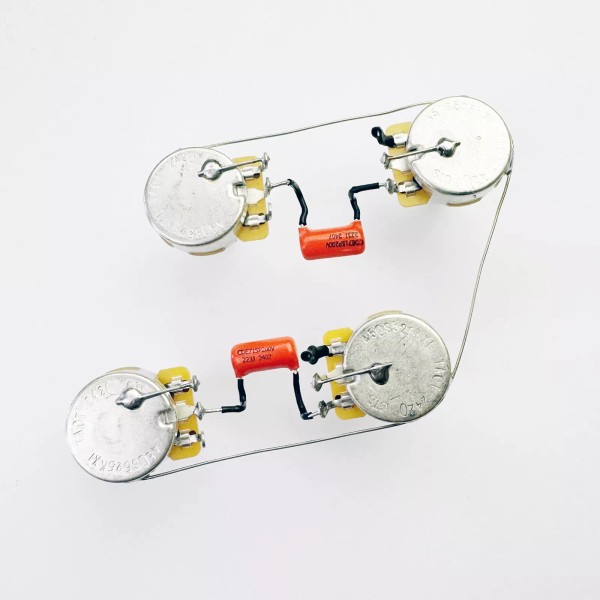

Elevate Your Gibson Les Paul's Tone with a Premium Gibson Les Paul 50's Wiring Harness - 022 Orange Drop - No Ground Plate/Wire Only.
Transform the tone of your Gibson Les Paul with this high-quality wiring harness. Crafted to preserve the vintage sound you love, the 50's wiring style ensures that your guitar maintains its classic response and feel using a slightly modified wiring diagram. Equipped with premium components, this harness delivers a smooth, clear sound that brings out the best in your instrument.
50's wiring gives you great response and maintains clarity as you roll off the volume knob. As you adjust tone knobs, they will have a slight impact on overall volume. This is the classic LP tone and sound.
We offer this harness in 50's, 60's Modern and 60's Modern with Treble Bleed (the most articulate and flexible.) If you would prefer a specific version, there is no difference in cost. Simple send us a note or contact us. We can build this harness using a variety of capacitor types and values, so if you would prefer a different set-up, please contact us. We offer range of capacitors. (PIO, Wax, Ceramics, Orange Drops, Chicklets, Next Gens and more.)
Fit's Gibson, Epiphone, and other LP style guitars - including Import Versions.
This harness uses high end components like CTS brass bushing potentiometers. Many other brands use alpha or other components and they say they use them because they don't 'fail'. Well it's not that simple. We use CTS brass pots not only because they don't fail BUT because they feel way better than alpha and other lower-end pots. (Alpha makes a quality products but we want the knobs to turn and feel great - so we use CTS Brass Pots. They have the correct weight and feel and last forever!)
This LP wiring harness is available with and without ground plates - available in Aluminum, Brass, Copper or Wire-only (no plate.) Plates are not required with our products, however; they can improve the ground conductivity and provide shielding to reduce interfereance and improve overall sound quality. Choose the harness with or without grounding plates that best suits your needs and preference! This is the no ground plate, wire only version.
Key Features:
- Vintage Tone Preservation: 50's wiring style maintains the original, classic Les Paul response.
- Superior Sound Quality: Orange drop .022uF caps provide a smooth, clear tone.
- Perfect Fit: Designed to fit the standard Les Paul layout, ensuring easy installation with no modifications required.
- Durable Components: High-quality materials ensure reliable performance and a long lifespan.
What's Included:
- 1 Legend Tone Ground/Shield Plate: Reduces electrical interference and noise for a cleaner tone.
- 4 CTS 450G 500K Long Shaft Potentiometers: Ideal for humbucker pickups.
- 2 Orange Drop .022uF Capacitors: Provides vintage tone.
- Fully Assembled and Quality-Tested: Ensures assured performance.

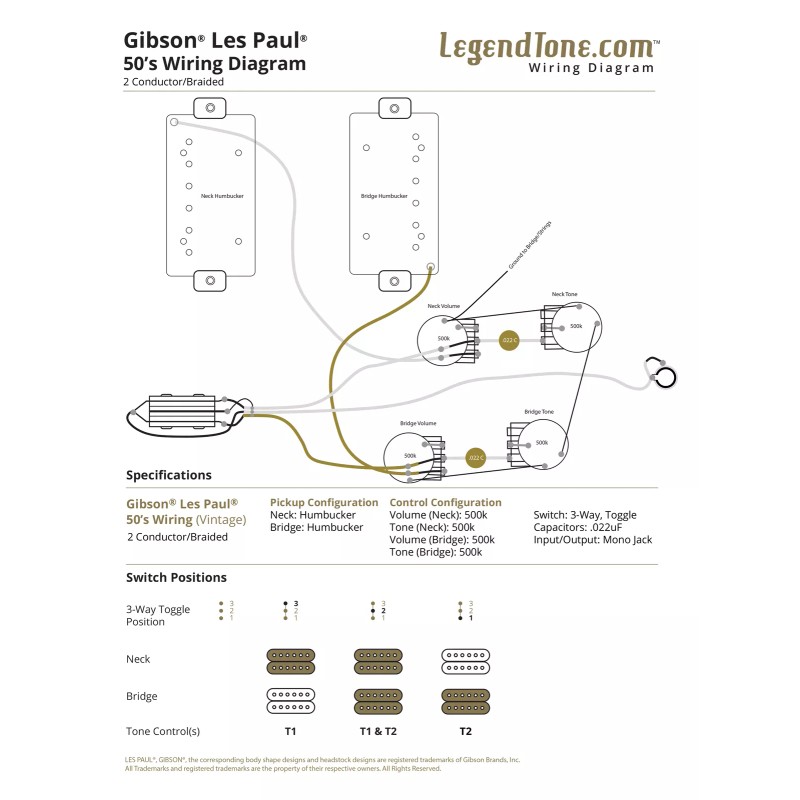

- Detailed Installation and Wiring Instructions/Diagrams: Makes installation straightforward.
Ideal for All Musicians
Whether you're a professional musician or a dedicated hobbyist, this wiring harness is the perfect upgrade to take your Gibson, Epiphone or other Les Paul model guitars to the next level. Enjoy enhanced sound quality and reliable performance for years to come.
Easy Installation
No need for complicated modifications - this harness is designed for a seamless fit into your Les Paul's standard layout, making the upgrade process straightforward and hassle-free.
Why Choose Our Wiring Harness?
- Reliable Performance: Built to last with high-quality components.
- Enhanced Sound: Experience a noticeable improvement in tone and clarity.
- Hassle-Free Upgrade: Easy to install, perfect for all skill levels.
Upgrade your LP/Les Paul today with our premium wiring harness and enjoy superior sound quality and performance - Order now and experience the difference!
