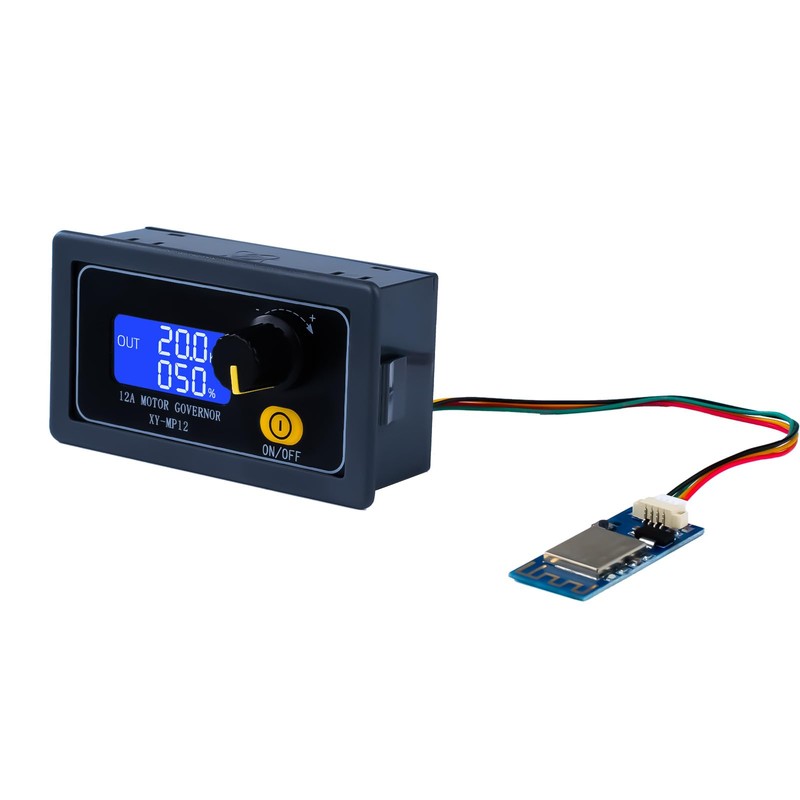

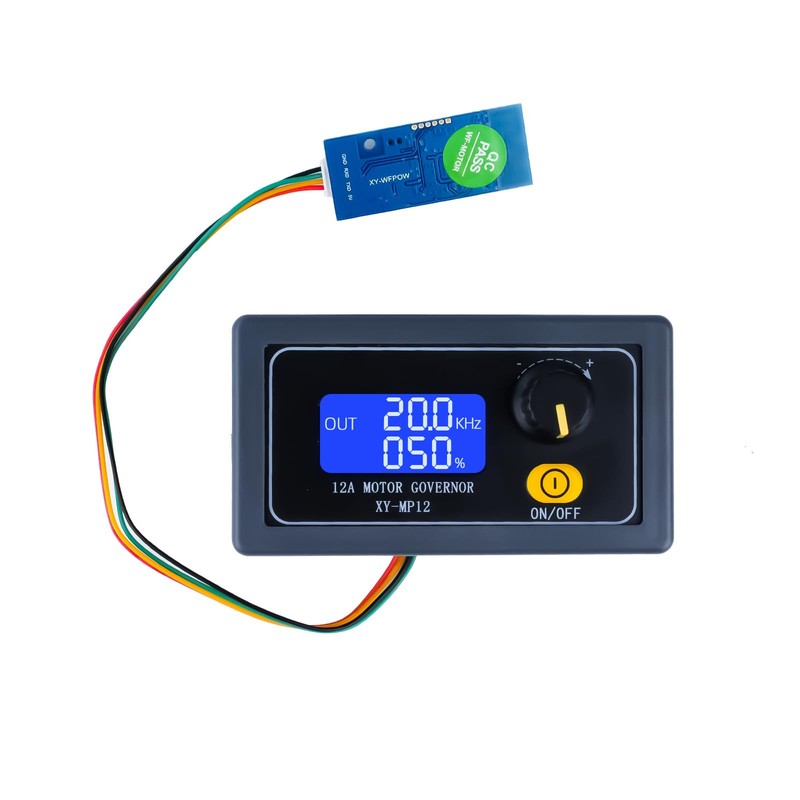

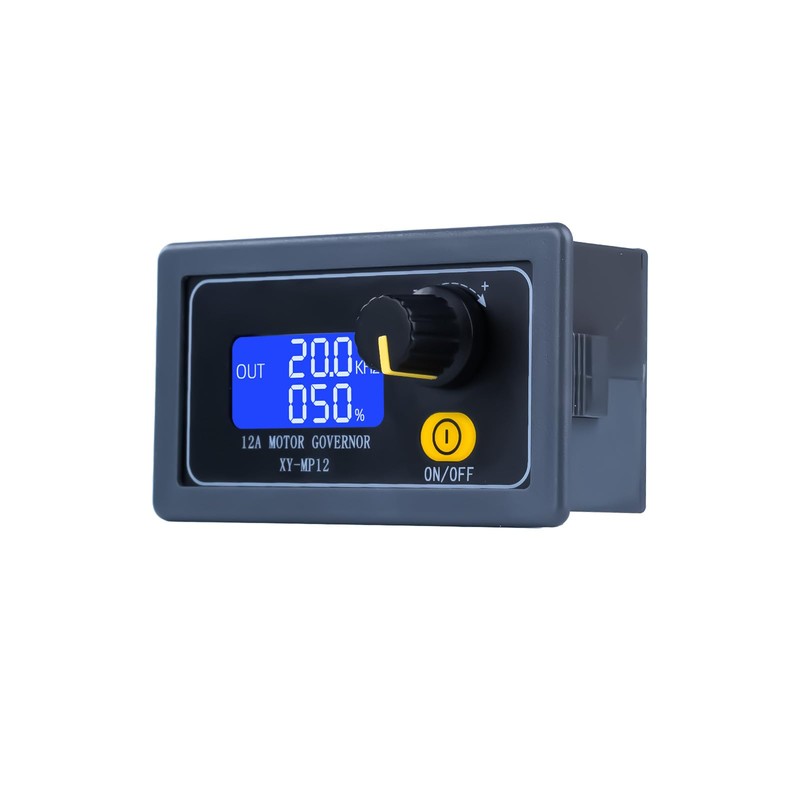

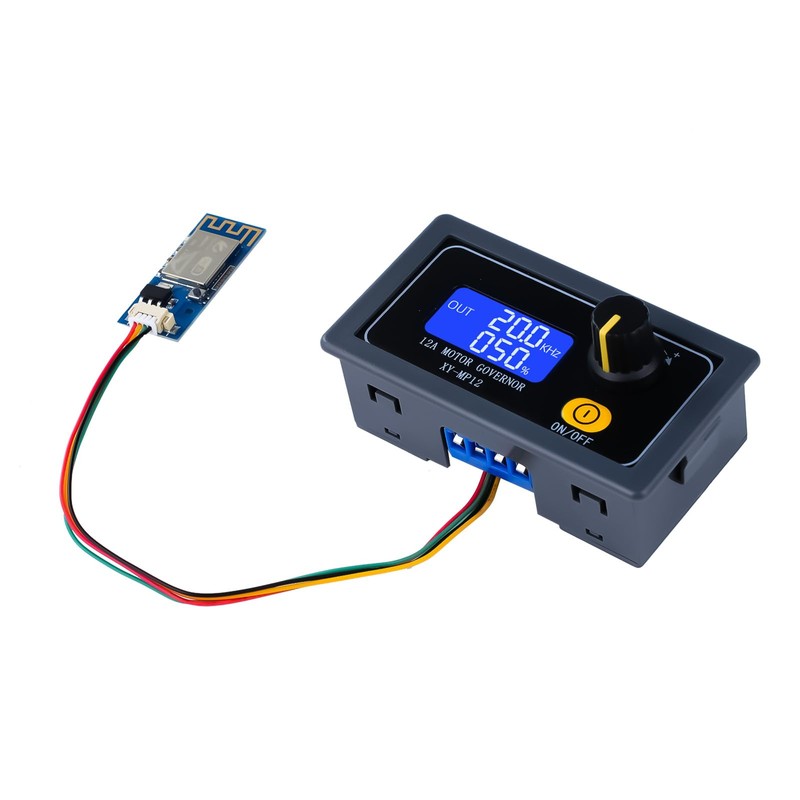

DewinLVD PWM Motor Speed Controller, WiFi Electric Motor Speed Controller with LED Display, Adjustable Stepless Regulator, DC 6-30 V, 12 A, 360 W
DewinLVD PWM Motor Speed Controller, WiFi Electric Motor Speed Controller with LED Display, Adjustable Stepless Regulator, DC 6-30 V, 12 A, 360 W
DewinLVD PWM Motor Speed Controller, WiFi Electric Motor Speed Controller with LED Display, Adjustable Stepless Regulator, DC 6-30 V, 12 A, 360 W

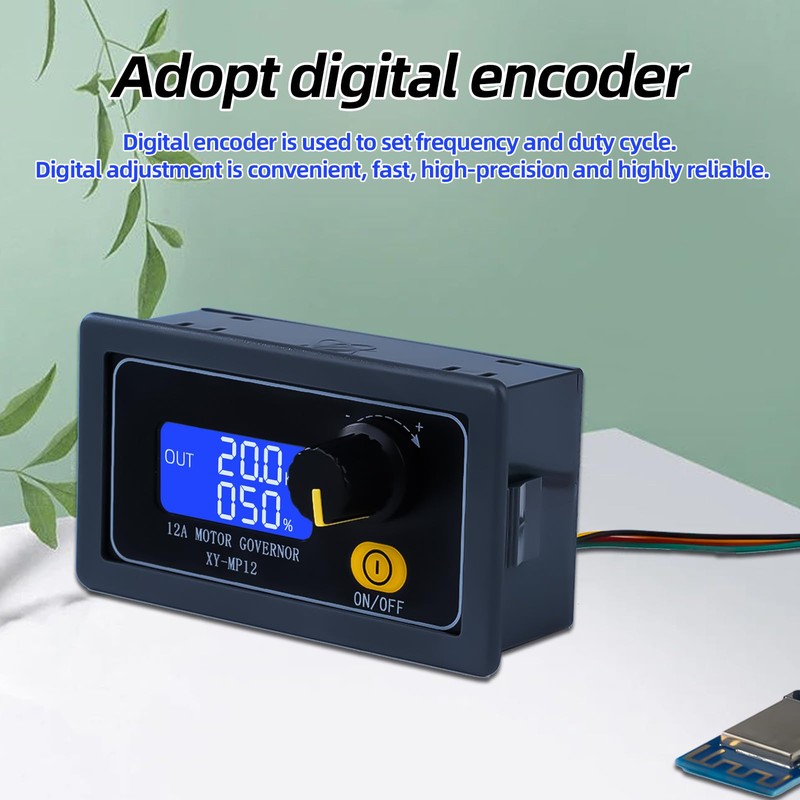

- Stable performance: the PWM motor speed controller uses two original low-resistance MOSFETs and highly efficient front-end drive technology to effectively improve current carrying capacity and high frequency response speed. The digital encoder allows precise frequency and duty cycle adjustment to meet your fine motor control requirements.
- Dual mode flexible control: motor controller with HD LCD screen, real-time display of frequency and duty cycle. Normal mode: 1Hz-150kHz frequency, 1%-100% duty cycle (accuracy 1%); fine mode: 1Hz-15kHz frequency, 0.1%-100% duty cycle (accuracy 0.1%)
- Intelligent protection: you can adjust the upper and lower limit of the working frequency and time to avoid damage caused by too high speed and too high brightness. The speed controller with soft start/soft stop, time-adjustable (0.0-99.9 seconds), effectively reduces the inrush current and protects the motor. Ensure stable operation and extend the life of the device.

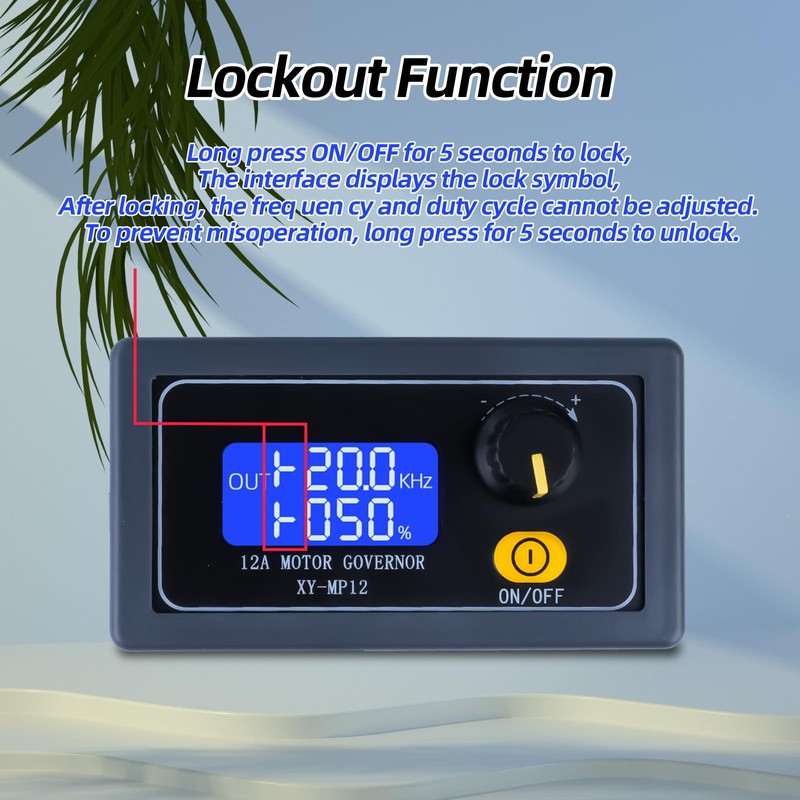

- Key lock function: after the key of the motor control is locked, the frequency and duty cycle can no longer be changed with the key, which improves safety when using. At the same time, it supports 0-10V analog signal duty cycle control, which is compatible with a variety of control systems and can be flexibly adapted to different application scenarios.
- WiFi remote control: the stepless speed controller supports A1 and A2 level outputs, which are highly expandable, and after connecting to our WiFi module, you can remotely control the forward, reverse and brake functions of the motor via a smartphone app.
| Brand: | DewinLVD |
|---|---|
| Manufacturer: | DewinLVD |
| Part Number: | RFVH8BV |
| Isin: | I0ORSBQLEURV |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Features:
The motor speed controller uses two original MOSFET front-end drivers with low resistance to support high current and high frequency operation, and the digital encoder precisely regulates the frequency and duty cycle.
The stepless controller is equipped with a keyboard lock to prevent misoperation, and also supports analogue control to adapt to a wide range of application scenarios.
The voltage regulator has an integrated WiFi module, supports the A1/A2 level output, remote control of the forward/reverse rotation and braking of the motor via a mobile phone app and can adjust the frequency and duty cycle range to ensure that the motor works in a safe and efficient range.
Specification:
Material: PC.
Operating voltage: DC 6-30V (not upside down or connect to AC power).
Rated current: 12 A.
Maximum power: 360 W.
Operating frequency: normal mode: 1Hz to 150kHz, fine mode: 1Hz to 15kHz.
Precision of duty cycle: normal mode: 1% to 100% (precision 1%), fine mode: 0.1% to 100% (precision 0.1%)
Soft start time: 00.0 to 99.9 seconds.
Soft stop time: 00.0 to 99.9 seconds.
Maximum output time: 00.0 to 999 minutes
Analogue control: DC 0 to 10 V.
Operating temperature: -10°C to 40°C.
Package contents:
1 x speed controller (including WiFi module).
