Digital Oscilloscope DSO3D12 3 in 1 120M 250MSa / S 3.2 in Screen Display Dual Channel Digital Oscilloscope Bandwidth and Multimeter and Generator

Brand: Eujgoov

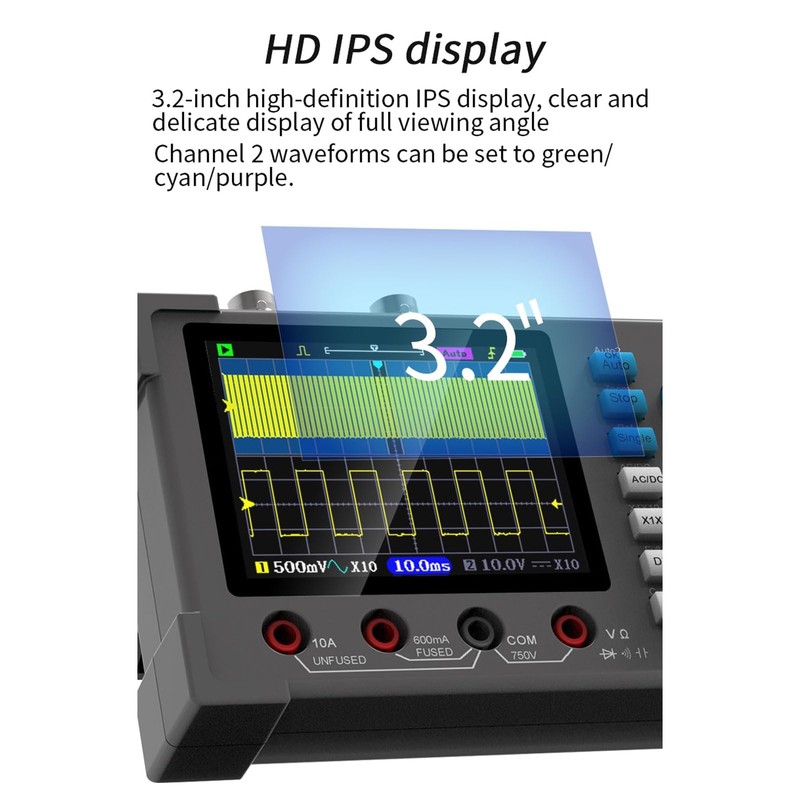

  • 3 in 1 design with IPS screen: This product integrates digital oscilloscope, multimeter and generator in one device. 3.2 inch clear IPS screen, highly sensitive full view display, channel 2 waveform can be adjusted to green, cyan, purple.
  • Sensitivity and time base: the oscilloscope automatically detects this and adjusts the range. Supports manual adjustment of waveforms in both vertical and horizontal directions. The vertical sensitivity represents the voltage in the vertical direction, which is adjusted with the mV and V buttons to adapt to different voltages. The time base represents the time in horizontal direction. The S and NS buttons allow adjustments

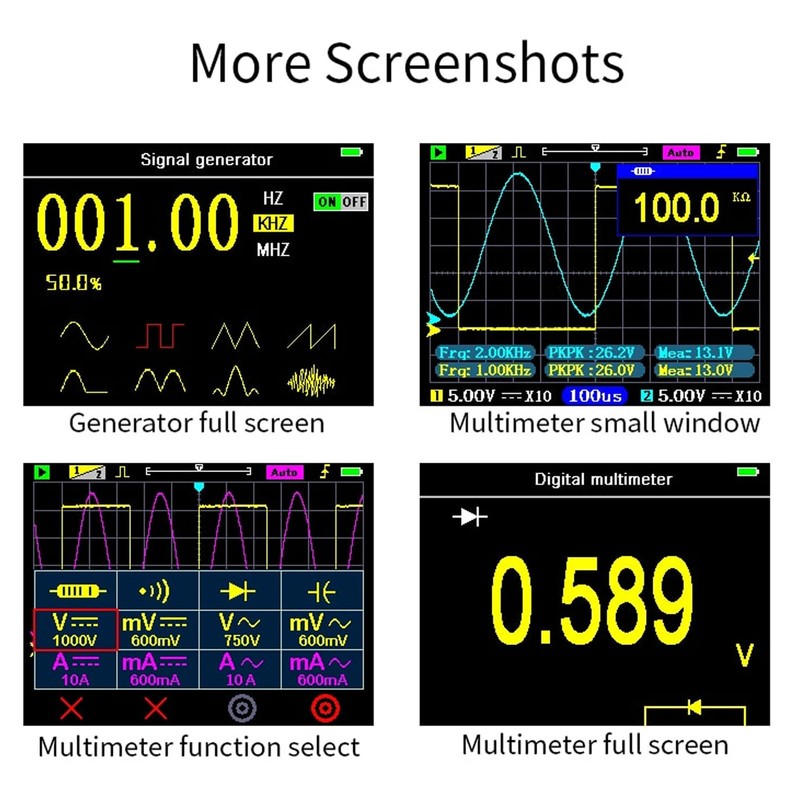

  • HIGH PRECISION MULTIMETER:Built in real RMS multimeter that supports fast software calibration. Can test DC AC voltage, DC AC current, resistance, capacitance, diode and on-off. When measuring low voltage, resistance and continuity, the oscilloscope and multimeter functions can be used simultaneously.
  • Digital Oscilloscope: Dual channel oscilloscope with a bandwidth of 120 MHz and a dual channel mode bandwidth halved to 60 MHz. The sampling rate is 250MSa/s. With perfect trigger function of automatic, single shot, normal. Supports sensitivity and time base adjustment, automatic mode adjustment, two-channel waveform analysis, cursor measurement, reference waveform, FFT spectrum, reference waveform, saving and displaying waveforms. Equipped with a
  • Signal Generator:Built-in waveform signal generator, which can output sine waves, square waves, triangle waves, etc. The voltage amplitude is 2.5V, the frequency is adjustable between 0 and 2 MHz and the square wave duty cycle is adjustable between 1%. and 99%.
Brand: Eujgoov
Color: Gray
Manufacturer: Eujgoov
Part Number: GWJ7WTY
Isin: IFZR1LLXDWIA

$433.56

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Digital Oscilloscope DSO3D12 3 in 1 120M 250MSa / S 3.2 in Screen Display Dual Channel Digital Oscilloscope Bandwidth and Multimeter and Generator

Digital Oscilloscope DSO3D12 3 in 1 120M 250MSa / S 3.2 in Screen Display Dua...

$433.56

Specification:
Item Type: Digital Oscilloscope
Model: DSO3D12
Channel: 2

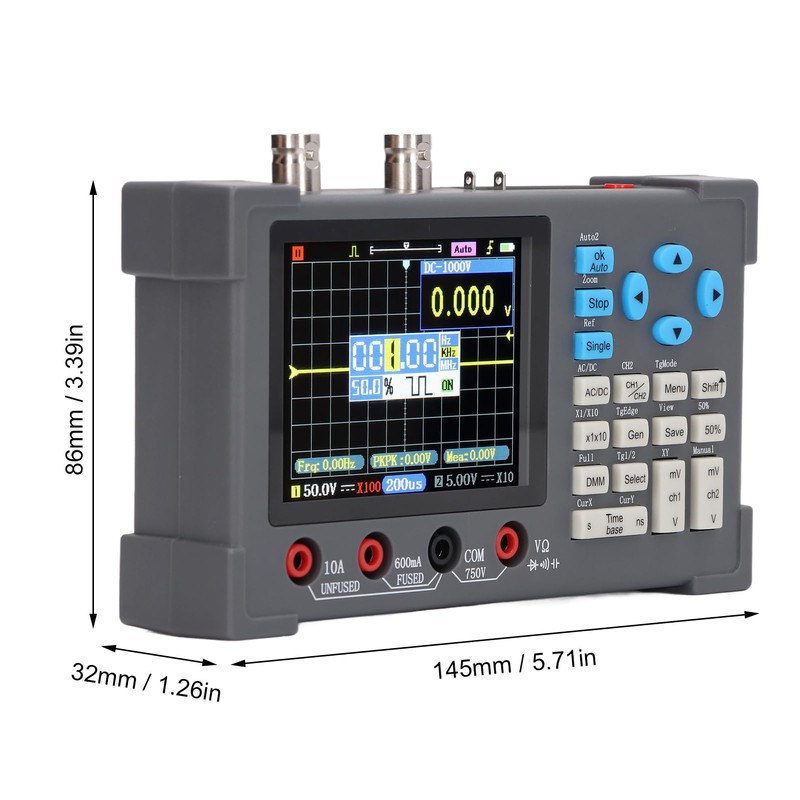

Screen size: 3.2 inches.
Sampling rate: 250MSa/s
Bandwidth: 120 MHz
Equivalent scanning: 500 m.
Rise Time: Memory Depth: 128K
Impedance: 1M Ω
Time base: 5ns-10s
Sensitivity: 10mV/Div - 10V/Div
Maximum voltage: ± 40 V (x1), ± 400 V (x10).
Trigger mode: Auto,Normal,Single
Trigger type: rise, fall
Display mode: YT, Roll
Duration: None, 1s, ∞
Pairing: AC, DC.
Automatic: Supportive
Measurement: 14 types.
DC test: ± 2%
XY mode: supported.
Screenshot: Support
Frequency: ± 0.01%.
Single Frequency: Supported
FFT: Supported
Output waveform amplifier: 2.5 V ± 0.05
Waveform output frequency: 5MHz for sin, 1MHz for others.
Language: CN, EN.
Charger: Type C 5 V.
Charging current: 700 mA.
Battery Type: 1 x 2500mAh Rechargeable Lithium Battery Comes with built-in battery.
Multimeter:
DC Voltage: 600mV, 6.00V, 60.0V, 600V, 750V, ±(0.5% + 3)
AC Voltage: 600mV, 6.00V, 60.0V, 600V, ±(1%+3)
DC Current: 600mA 10A ±(2%+5)
AC: 600mA 10A ±(3%+5)
Current Description: 600mA hole with 1A fuse, 10A hole without fuse.
Resistance: 600.0 Ω ± (1.5% + 3), 6,000 kΩ, 60.00 kΩ, 600.0 kΩ ± (1% + 3), 6,000 Ω ± (1.5% + 5), 60.00 Ω ± (3% +3 ).
Capacity: 60.00nF, 600.0nF, 6,000μF ± (5% + 5), 60.00μF, 600.0μF ± (10% + 5).
Diode: 0.0V ~ 3.3V, Display OL over 3.3V
Continuity: sound at 50Ω and below

Package list:
1 x digital oscilloscope.
2 x test leads.
2 x high voltage test leads.
11 x accessories.
1 x USB cable.
2 x user
