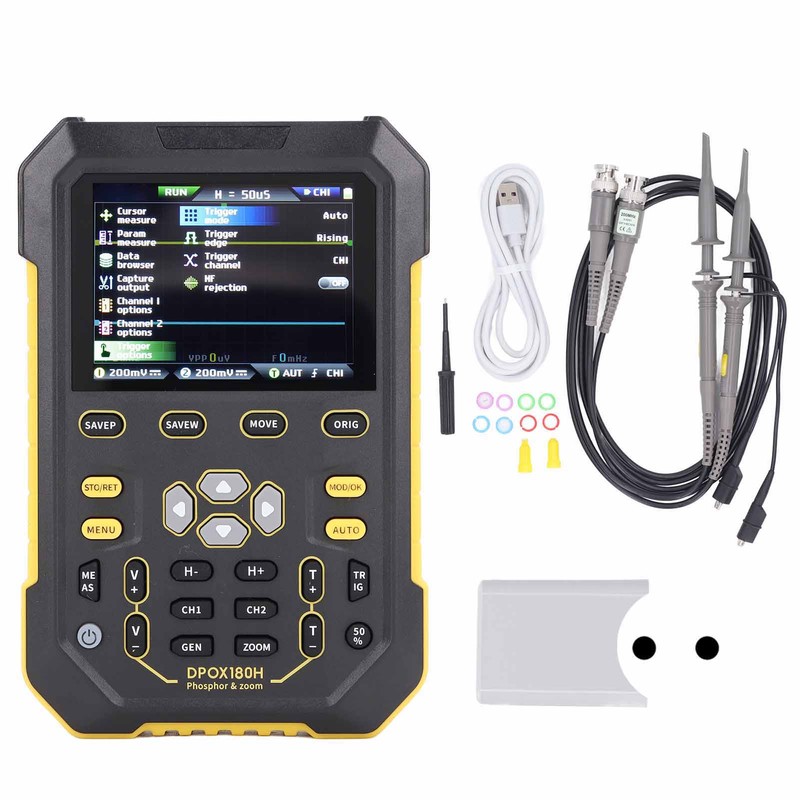

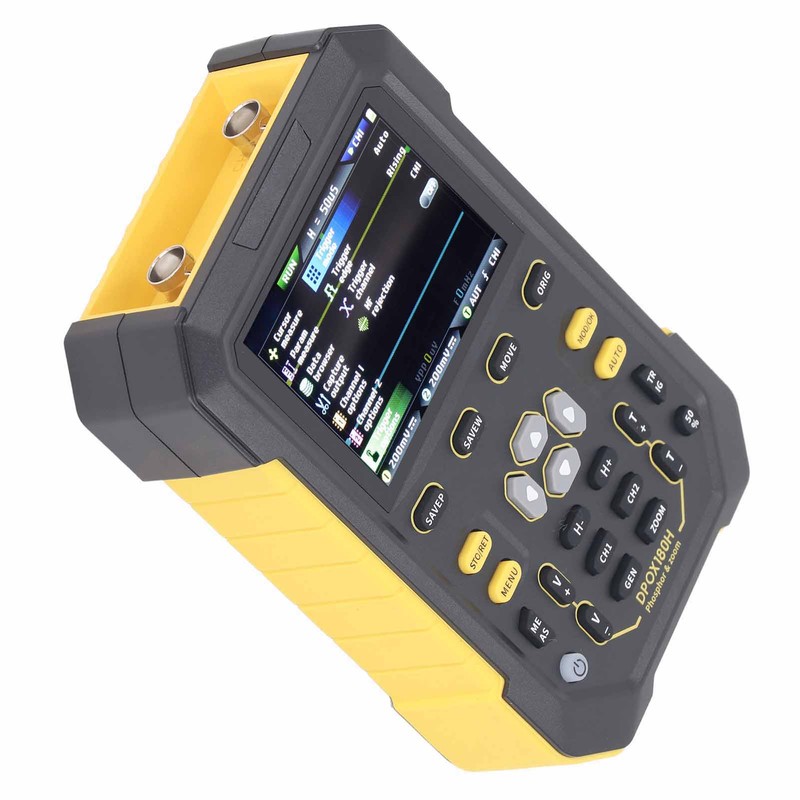

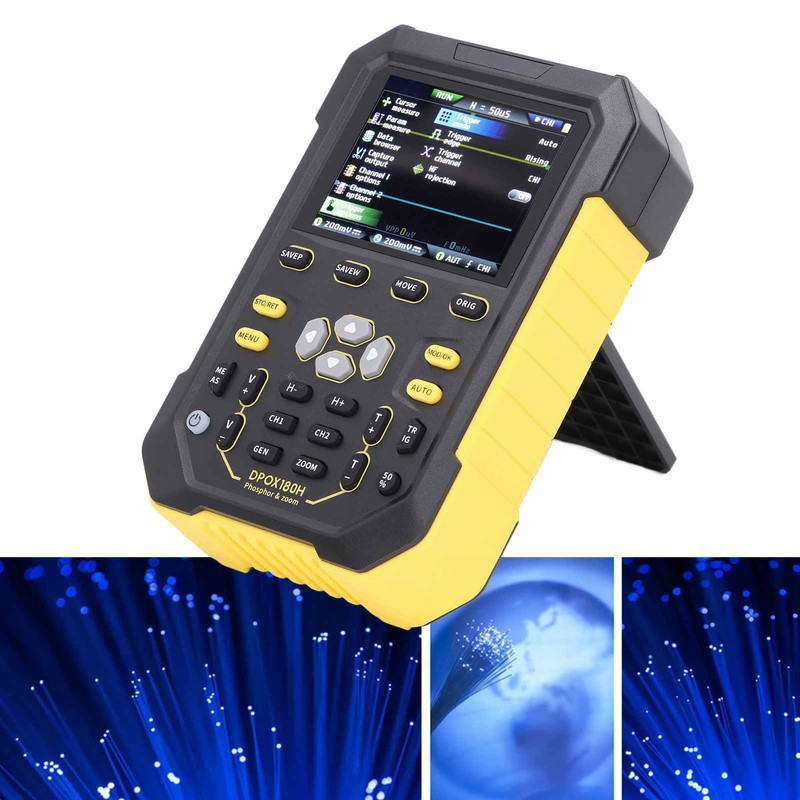

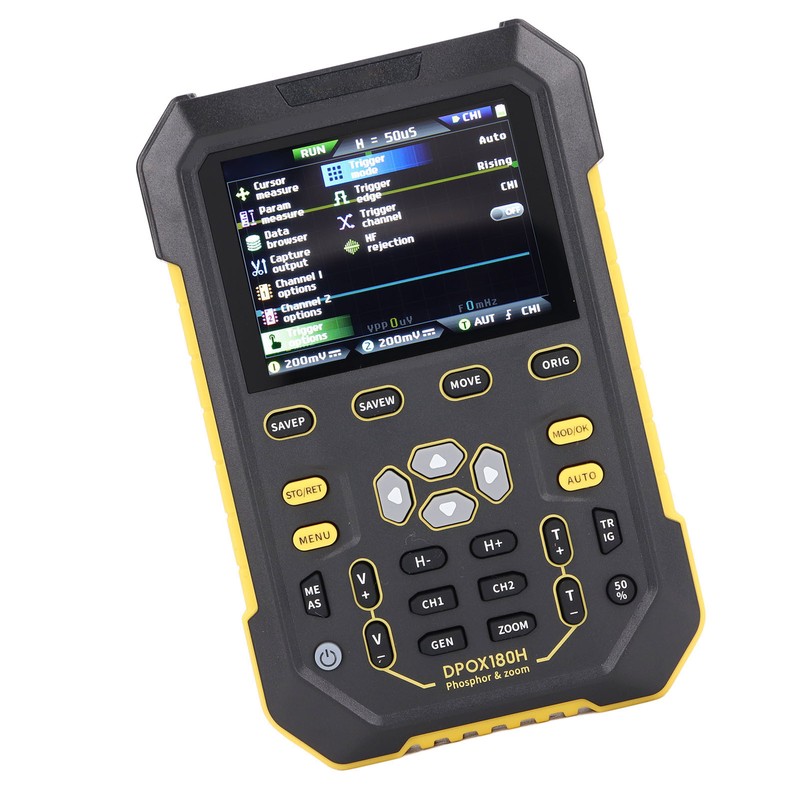

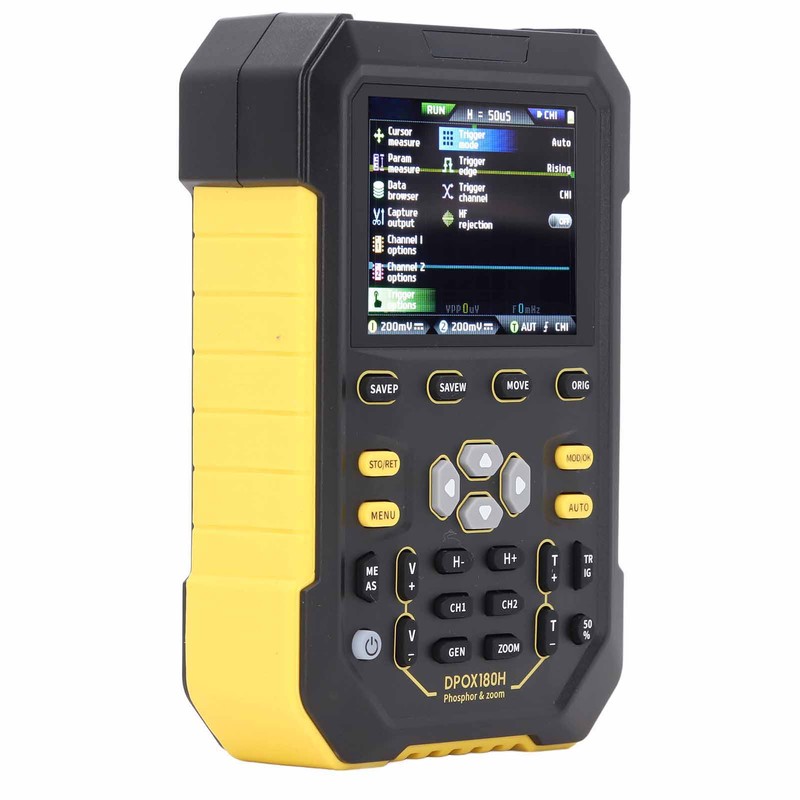

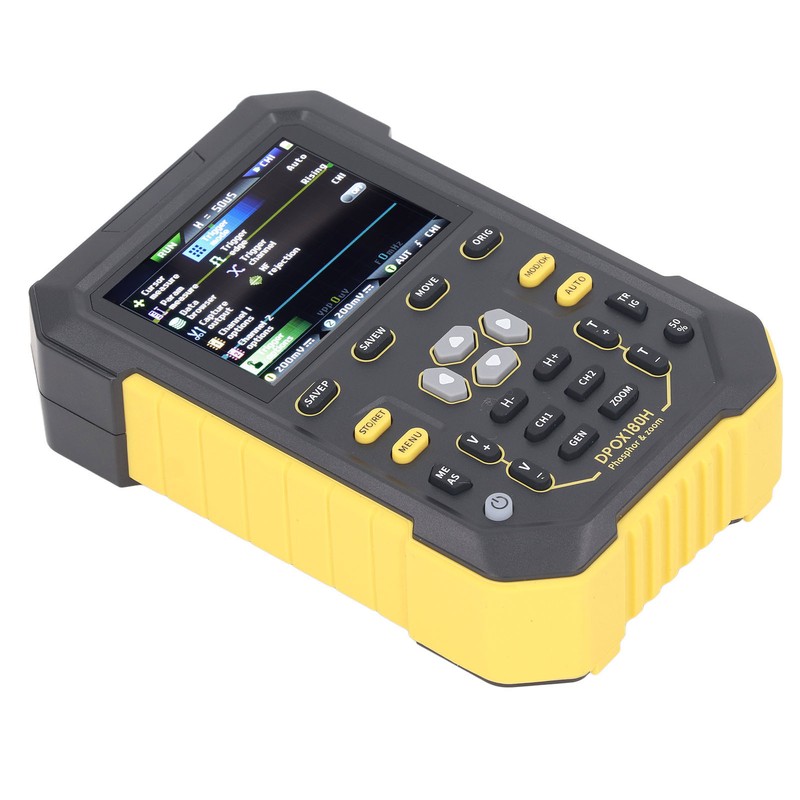

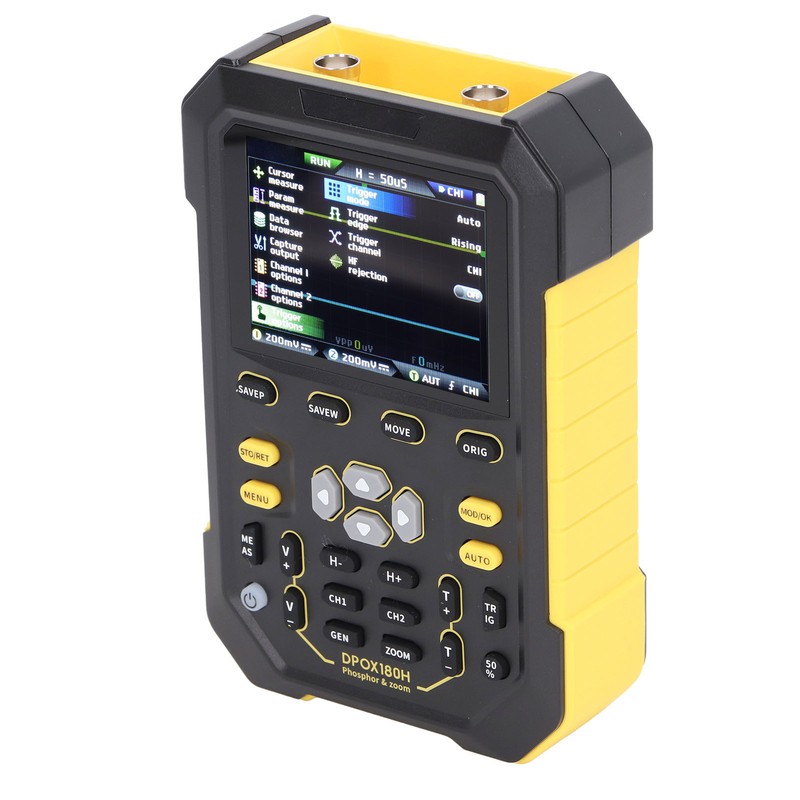

Digital Phospher Oscilloscope 2 Channels 180MHz Bandwidth Handheld Oscilloscope with Signal Generator
Digital Phospher Oscilloscope 2 Channels 180MHz Bandwidth Handheld Oscilloscope with Signal Generator
Digital Phospher Oscilloscope 2 Channels 180MHz Bandwidth Handheld Oscilloscope with Signal Generator
1、[High Bandwidth] The 2CH oscilloscope with a bandwidth up to 180MHz is easy to handle measurement and testing in various fields, such as microcontroller debugging, car and home appliance maintenance, DIY, electronic competition, power supply debugging, inverter, etc., can also be used as a portable tool for on site debugging. 2、[FFT Spectrum and Cursor Measurement] A professional portable oscilloscope with FFT display function that can analyze the spectral characteristics of signals. Cursor measurement function, convenient for manual measurement of cycle, frequency, and voltage. 3、[3 Triggering Modes and One Key Automatic] The DIY oscilloscope kit is configured with 3 triggering modes, automatic, normal, single trigger. Support waveform parameter settings, such as time base, amplitude, triggering slope, etc. Supports waveform one key auto adaptation to the screen, without the need to adjust parameters, measurement is convenient and accurate. 4、[Signal Generator] The bottom can output various 2.5V amplitude waveforms such as sine wave, square wave, triangular wave, half wave, etc. The frequency adjustment range of sine wave is 0 to 10MHz, the frequency range of other waveforms is 0 to 2MHz, with an accuracy of up to 0.1Hz. 5、[14 Measurement Options] Frequency, P shape to pixel, duty cycle, amplitude, RMS, average, period, + pulse width, ‑ pulse width, maximum, minimum, top, base. 6、[Built in ARM+ FPGA] This handheld oscilloscope uses ARM and FPGA chips to provide high speed signal acquisition and data processing, giving you a smoother user experience and rich functions.
Isin: | ISIBP7IW4QBN |
---|

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1、[High Bandwidth] The 2CH oscilloscope with a bandwidth up to 180MHz is easy to handle measurement and testing in various fields, such as microcontroller debugging, car and home appliance maintenance, DIY, electronic competition, power supply debugging, inverter, etc., can also be used as a portable tool for on site debugging. 2、[FFT Spectrum and Cursor Measurement] A professional portable oscilloscope with FFT display function that can analyze the spectral characteristics of signals. Cursor measurement function, convenient for manual measurement of cycle, frequency, and voltage. 3、[3 Triggering Modes and One Key Automatic] The DIY oscilloscope kit is configured with 3 triggering modes, automatic, normal, single trigger. Support waveform parameter settings, such as time base, amplitude, triggering slope, etc. Supports waveform one key auto adaptation to the screen, without the need to adjust parameters, measurement is convenient and accurate. 4、[Signal Generator] The bottom can output various 2.5V amplitude waveforms such as sine wave, square wave, triangular wave, half wave, etc. The frequency adjustment range of sine wave is 0 to 10MHz, the frequency range of other waveforms is 0 to 2MHz, with an accuracy of up to 0.1Hz. 5、[14 Measurement Options] Frequency, P shape to pixel, duty cycle, amplitude, RMS, average, period, + pulse width, ‑ pulse width, maximum, minimum, top, base. 6、[Built in ARM+ FPGA] This handheld oscilloscope uses ARM and FPGA chips to provide high speed signal acquisition and data processing, giving you a smoother user experience and rich functions.
More Information
Item Type: Digital Oscilloscope Signal Generator
Material: ABS

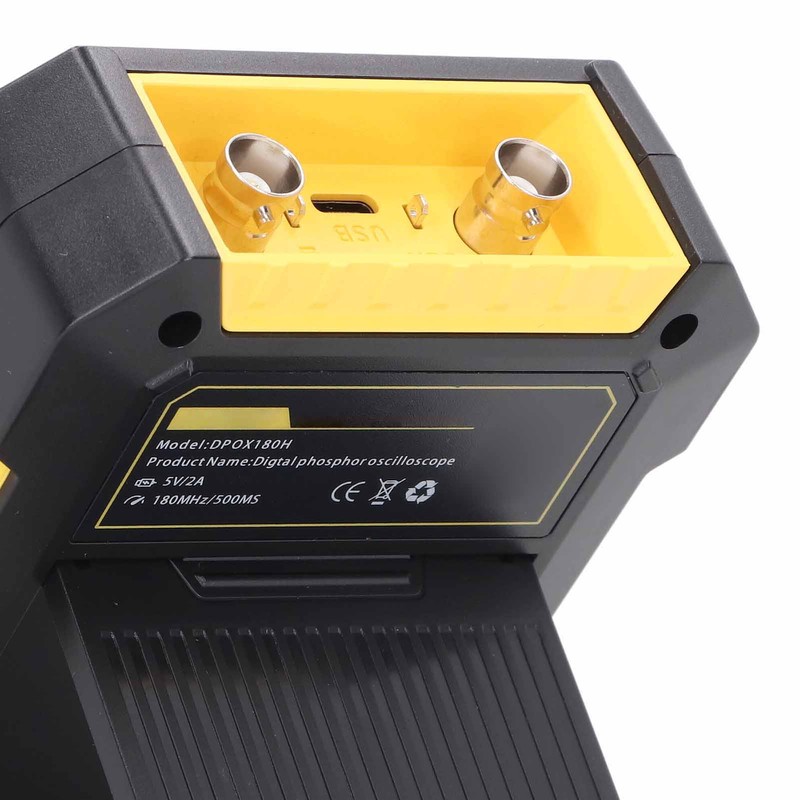

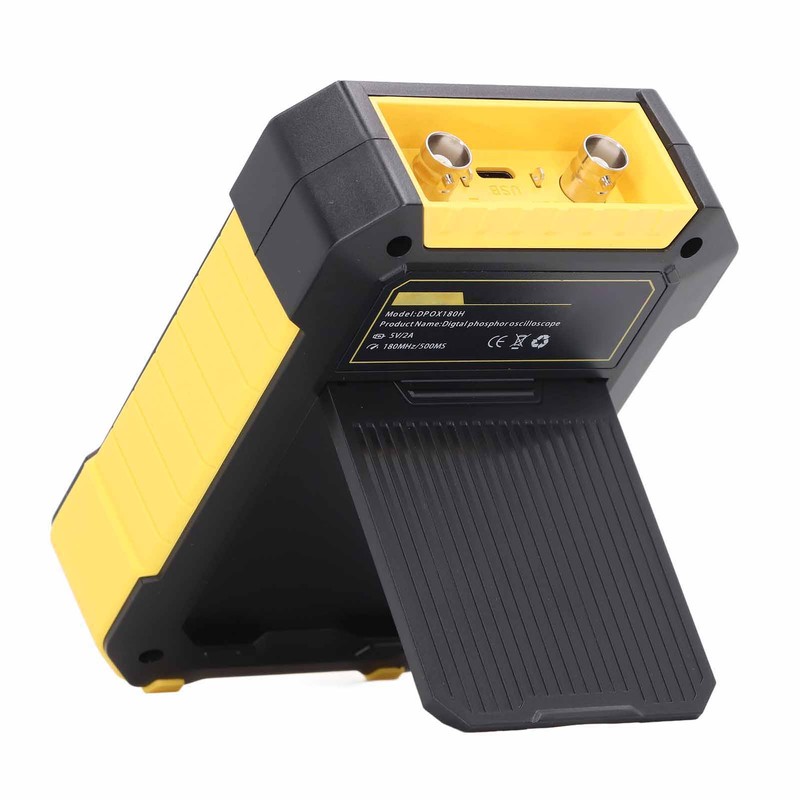

Model: DPOX180H
Number of Channels: 2
Analog Bandwidth: 180MHZ
Maximum Sampling Rate: 500MSPS
Rise Time: 2.5nS
Storage Depth: 120Kpts
Vertical Sensitivity: 5mV to 10V (1X)
Time Base Range: 5nS to 50S
DC accuracy: ±2%
Time Accuracy: ±0.01%
Triggering Detection: Digital triggering
Triggering Mode: Automatic, single time, regular
Triggering Edge: Rising, falling
Cursor Measurement: Frequency, period, amplitude
Screenshot Storage: 90 sheets
Waveform Storage: 250 sets
Chopped Signal: 500
Parameter Measurement: 12 types
Signal Generator: 14 standard function signals
Digital Fluorescence Technology: Support

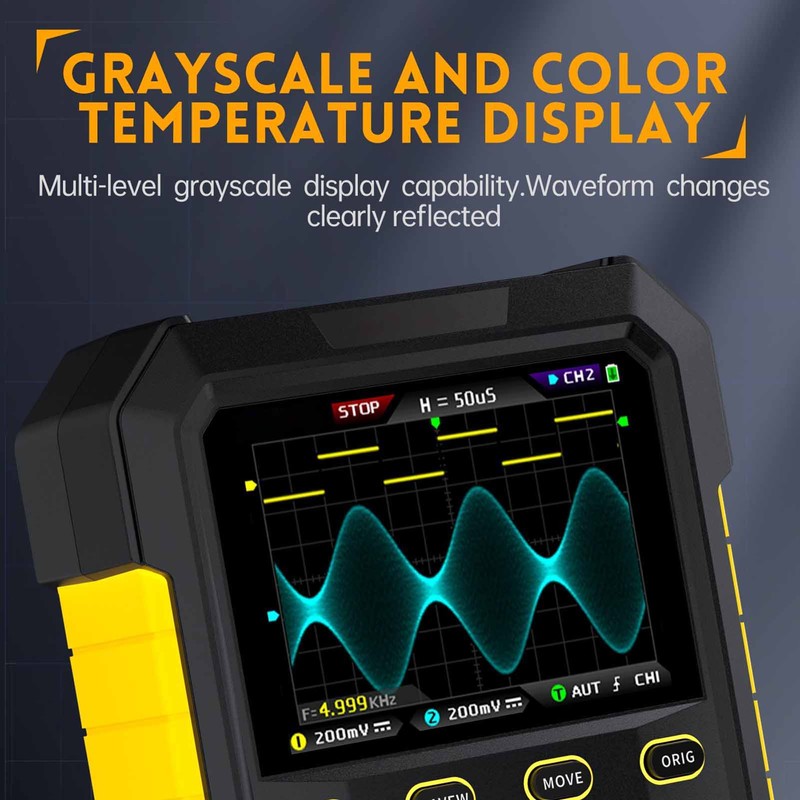

Color Temperature Display Technology: Support
Scroll Mode: Support
X Y Mode: Support

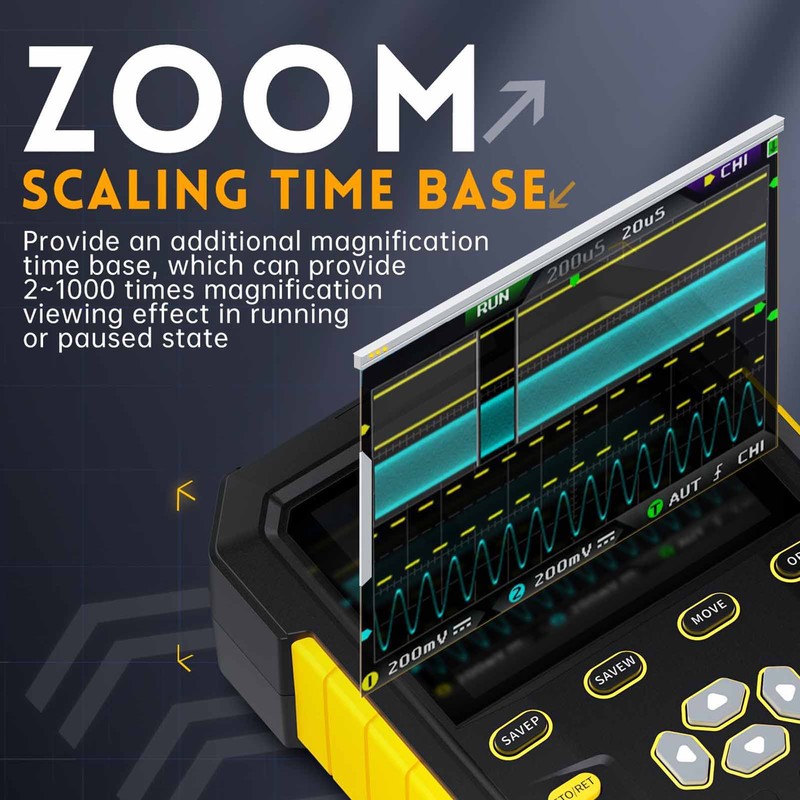

Zoom Time Base: Support
20M Hardware Bandwidth Limit: Support
Adjustable Automatic Bandwidth Limitation: Support
Automatic Adjustment: Support
Waveform Manager: Support
Chopper Extractor: Support
High Pressure Anti Burning: Support
Screen Resolution: 320 x 240
Display Process: IPS full view
Expansion Interface: USB transmission interface
Automatic Shutdown: 5 minutes to 2 hours
Firmware Upgrade: Supports for iOS image upgrade
Charging Requirement: 5V 2A
Power Supply: 1 x 3000mAh rechargeable lithium battery (built in)
