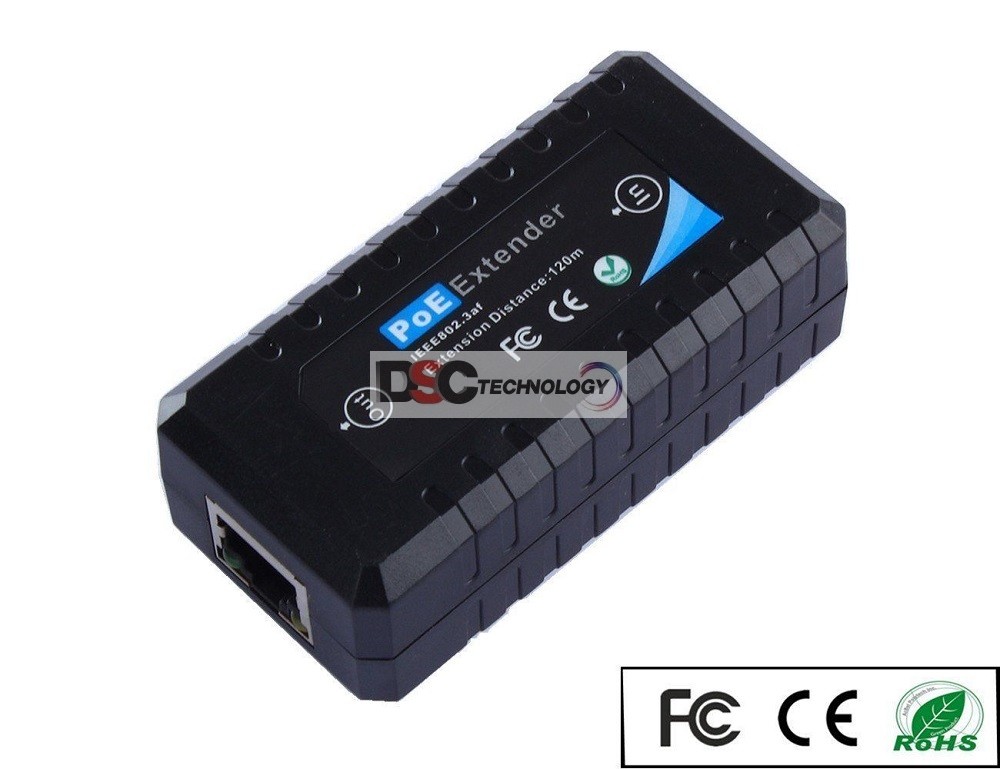

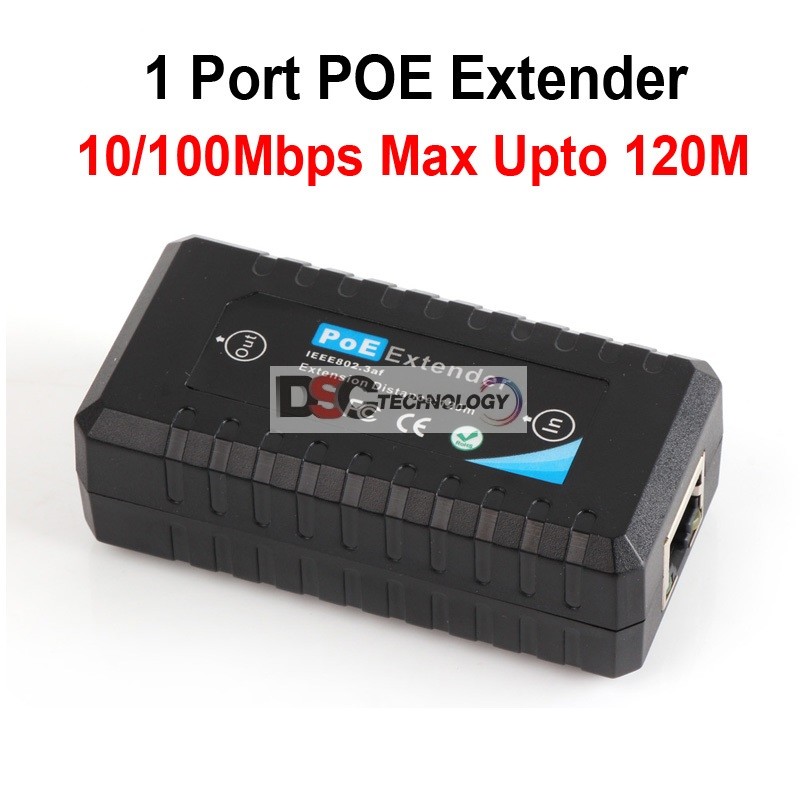

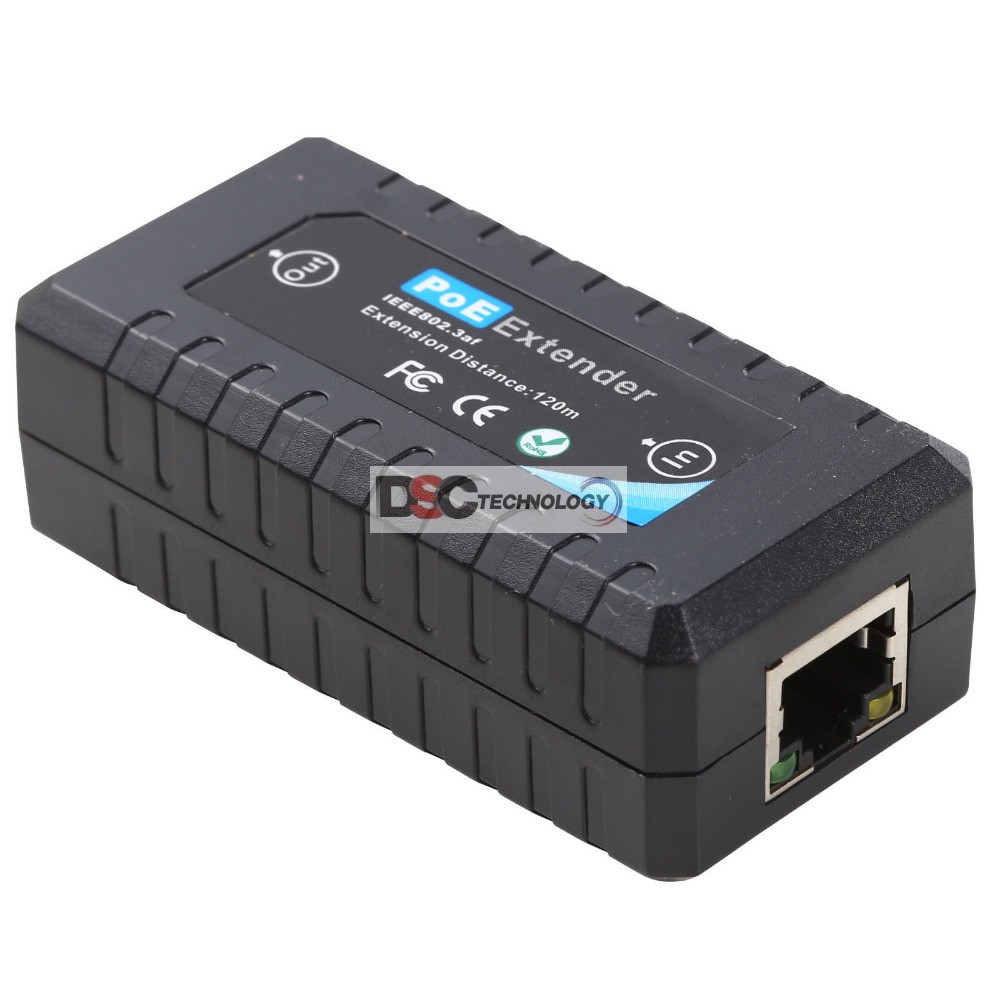

Item: DSC-PoE-E1
13W Max IEEE802.3af In/Out,1-Port PoE Extender/Repeater IEEE802.3af 1Ch Output Support IP Camera
Product overview:
- 1-Port PoE extender has 2 10/100M LAN ports, among them, one for power input , the other for power output.
- Comply with 10/100 BASE-TX, IEEE802.3af (PoE). Power input for single port is 13W. Power output for single port is 12.2W.

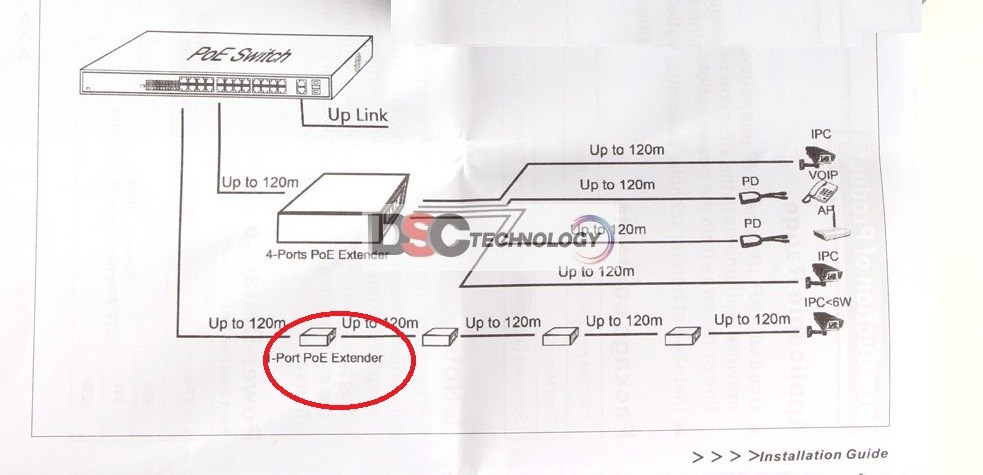

- PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cable.
- It offers you great flexibility to extend the distance of PoE.
Features
- Comply with IEEE 802.3af Power over Ethernet.
- 10/100m Supported.
- Extend the range of PoE an additional 120 meters.
- Automatically detects and protects PoE equipments from being damaged by incorrect installation.
- Plug and Play no configuration required.

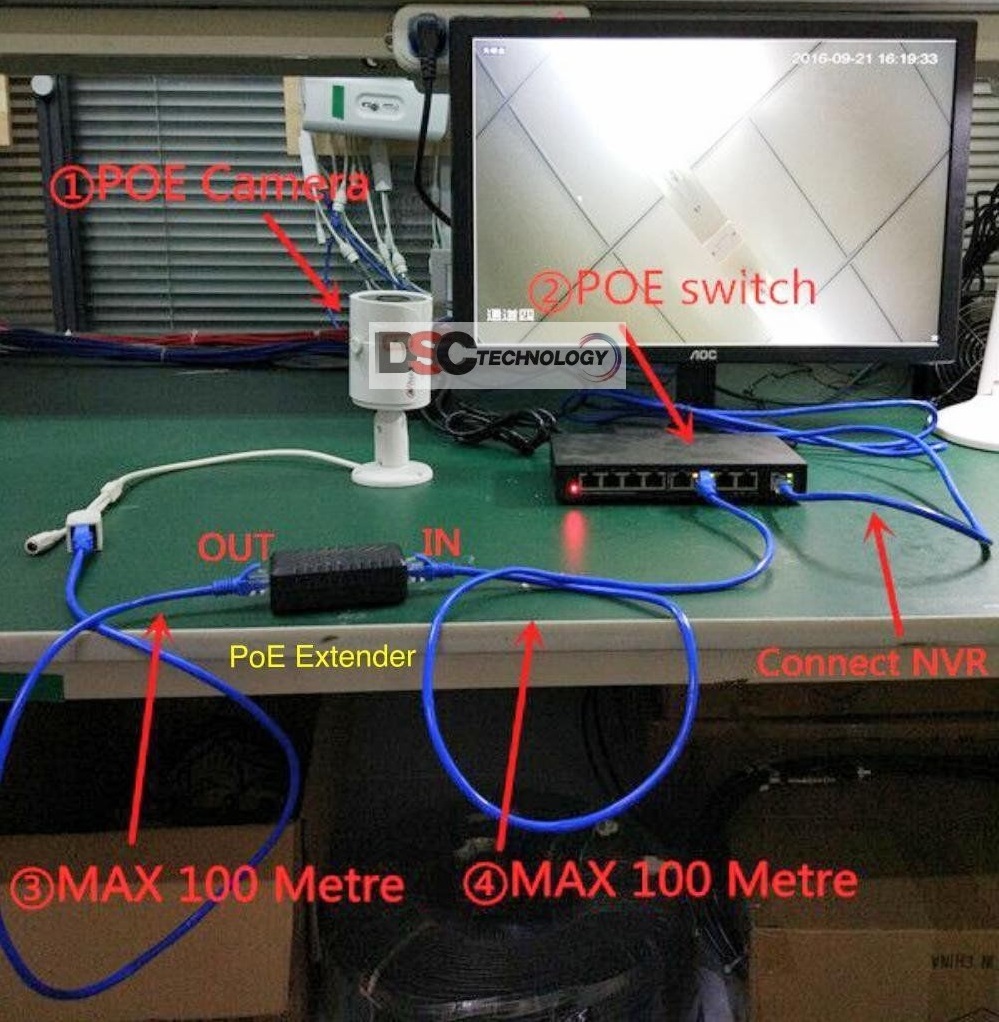

- 1port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 UtP cable.
Specifications:
|
Product Name |
1-Port 10/100M PoE Extender |
|
Port Description |
POE Input: 1 RJ45 Port |
|
Network Medium |
Cat5 or better UTP cables(≤120m) |
|
Repeater Mode |
Store and forward |
|
MAC Address Table |
2K |
|
Packet Buffer Memory |
48Byte |
|
Switching Capacity |
400Mbps |
|
PoE Standard |
IEEE802.3af |
|
PoE Port Power |
Input Power: 13 Watts; |
|
LED Display |
PoE working status, Ethernet |
|
PoE power Supply Type |
1/2(+), 3/6(-),Mode A, End-Span |
|
Network Protocol |
IEEE 802.3i: 10BASE-T |
|
Regulation Compliance |
FCC Part 15B |
|
Working Environment |
Working Temperature:0~40 |
|
Storage Environment |
Storage Temperature:-30~70 |
|

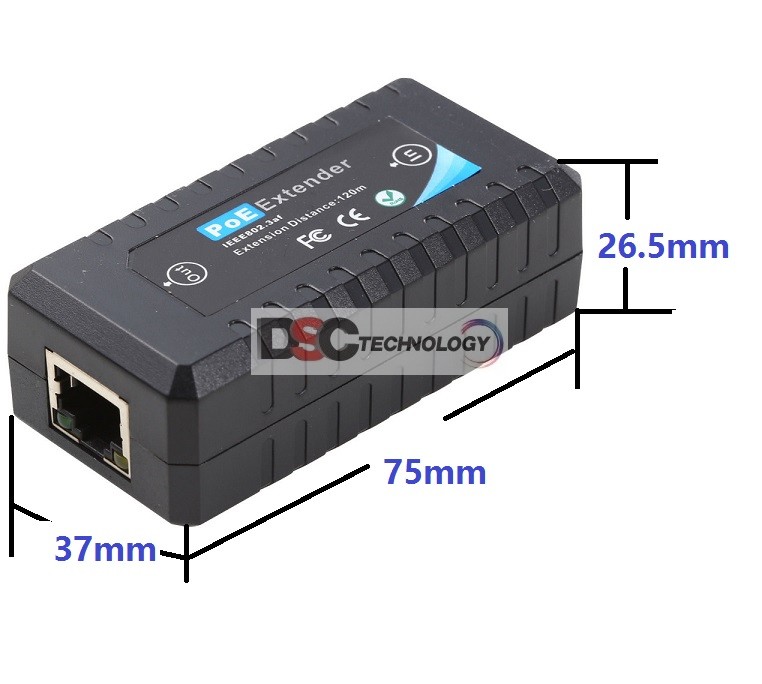

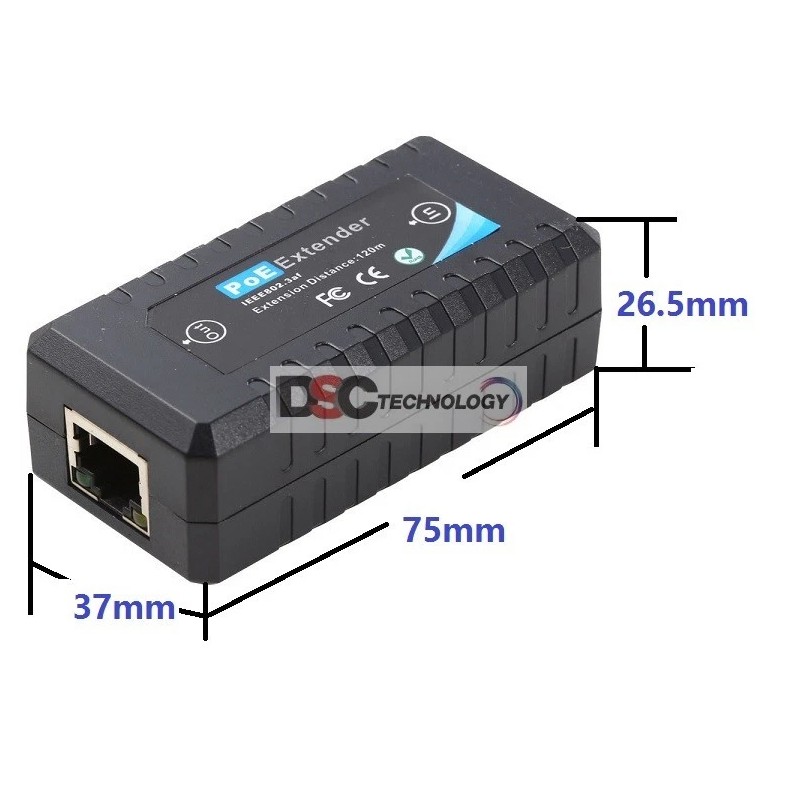

Dimension |
75x37x26.5mm |
Note: Product design and specifications are subject to change without notice.
Package included:
- 1x 1-Port PoE Extender
- 1x User Manual
Note:
- Please don't place any heavy thing on the PoE extender;
- To prevent the water seeping into the extender, please keep PoE extender away wet environment;
- Suggest to use PoE extender indoors. When installing the extender in outdoor, please install it in a waterproof place.
