EC Buying STM32F407VET6 Core Board STM32 STM32F407 Development Board FSMC LCD SWD Serial Port for Display

Brand: EC Buying
  • Effortlessly drive displays using the SPI LCD interface, perfectly suited for the STM32F407 Development Board. Benefit from user-friendly features like a reset button, user LED, and multiple IO ports for versatile connectivity options
  • Unlock the full potential of your projects with the STM32 Core Board's convenient TypeC interface, directly linking to the STM32's USB pins. With a wide operating temperature range (-40~85℃) and RTC crystal oscillator, it ensures reliable performance in diverse environments
  • Experience seamless development with the high-performance STM32F407VET6 Core Board, featuring a robust 168MHz main frequency and generous 512K Flash/192K SRAM for efficient processing. Ideal for FSMC LCD applications and SWD Serial Port integration
  • Seamlessly integrate peripherals and expand functionality using the FSMC LCD interface with 16-bit support, FPC 34P, and 0.5mm pitch. The Core Board comes equipped with gold-plated pin headers and RTC battery pad for enhanced usability and flexibility
  • Power your innovations effortlessly with the STM32F407VET6 Development Board, designed to simplify development processes and enhance user experience. Ideal for FSMC LCD and SWD Serial Port for Display applications, it offers unmatched performance and versatility
Brand: EC Buying
Manufacturer: EC Buying
Part Number: 28L7TGT
Isin: IUKMNKVVPUS0

$37.87

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

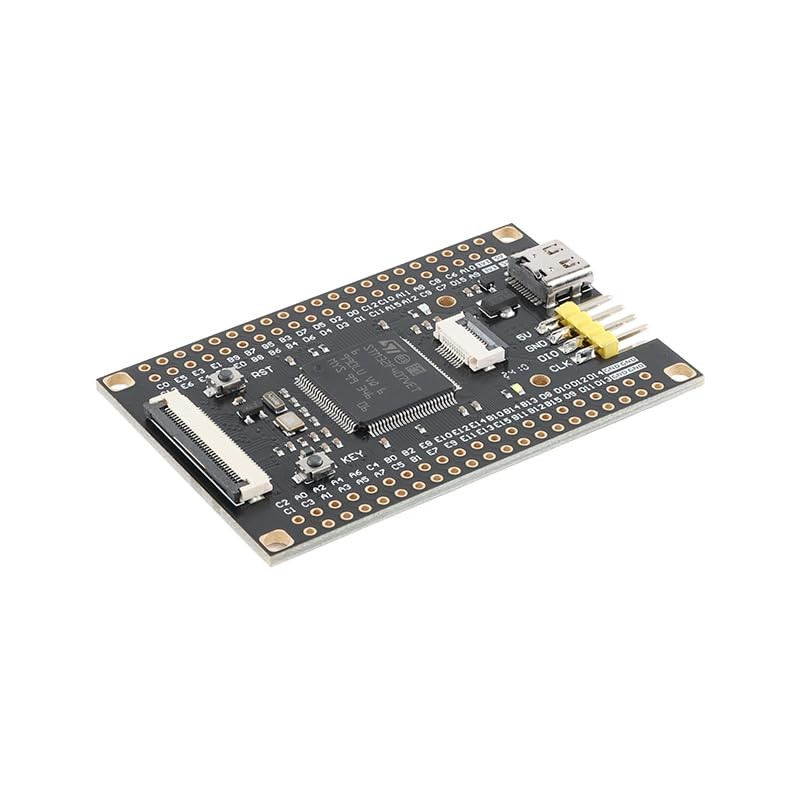

EC Buying STM32F407VET6 Core Board STM32 STM32F407 Development Board FSMC LCD SWD Serial Port for Display

EC Buying STM32F407VET6 Core Board STM32 STM32F407 Development Board FSMC LCD...

$37.87

Main frequency 168MHz
512K Flash in the film
192K SRAM
1 SPI LCD interface
1 FSMC LCD interface
1 reset button, 1 user button
1 user LED
Lead out SWD and serial port through pin arrangement
Introduce 76 IO ports
Working environment temperature -40~85 ℃

LCD interface, SPI driver, equipped with multiple modules
FPC10P 0.5mm spacing
Introduce SWD and serial port
TypeC interface, directly connected to the USB pin of STM32
Main clock crystal oscillator: 8MHz
RTC crystal oscillator 32.768KHz
FSMC LCD interface, using 16 bit FSMC driver, FPC 34P, 0.5mm pitch
Equipped with gold-plated pins, 2 * 21P, with a spacing of 2.54mm
Reserved RTC battery holder solder pad, model: CR1220
Using SPI LCD interface driver, directly connected to FPC ribbon cable
Recommend using 5V or USB to power the core board
