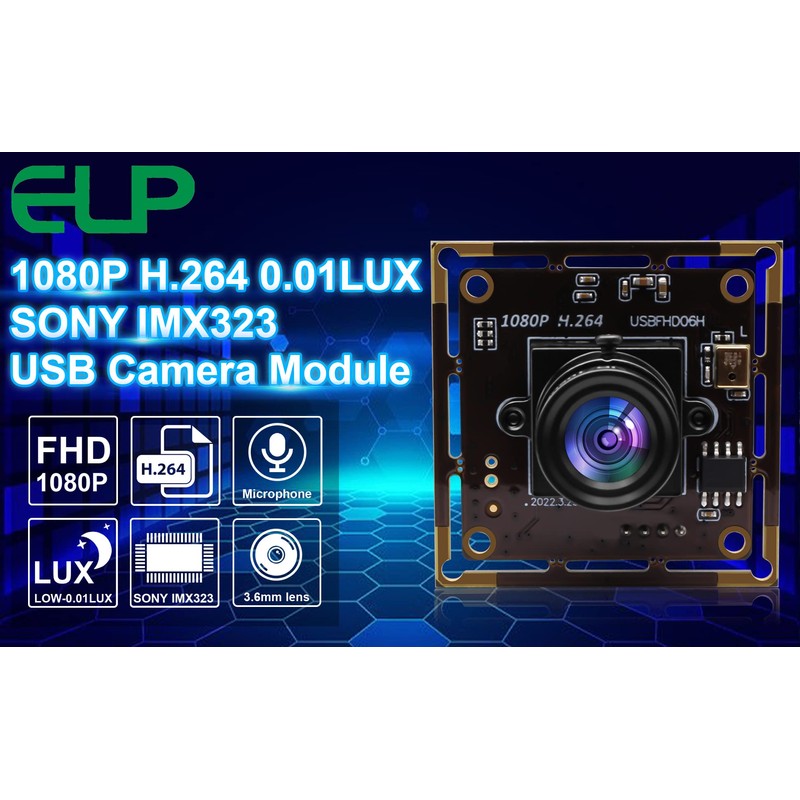

ELP Sony IMX323 Sensor Mini USB Camera Module HD 1080P 0.01Lux Low Light USB Camera with Microphone,3.6mm Lens H.264 USB Computer Embedded Webcam Board,UVC USB2.0 Camera for Laptop,with 3.3ft/1M Cable

Brand: ELP
  • 1080P HD high definition,Max Resolution:1920(H)*1080(V),can drive 1080P@30fps.
  • 1/2.9” Sony IMX322 sensor for high quality image,Built-in microphone for audio recording.
  • 0.01Lux low illumination for dark clear vision,ideal for any lighting condition,It comes with sharp clear image in dark place.
  • H.264/MJPEG/YUY2 dual video format optional,higher coding efficiency. Support Windows, Linux,Mac,Raspberry Pi, Android system with UVC.

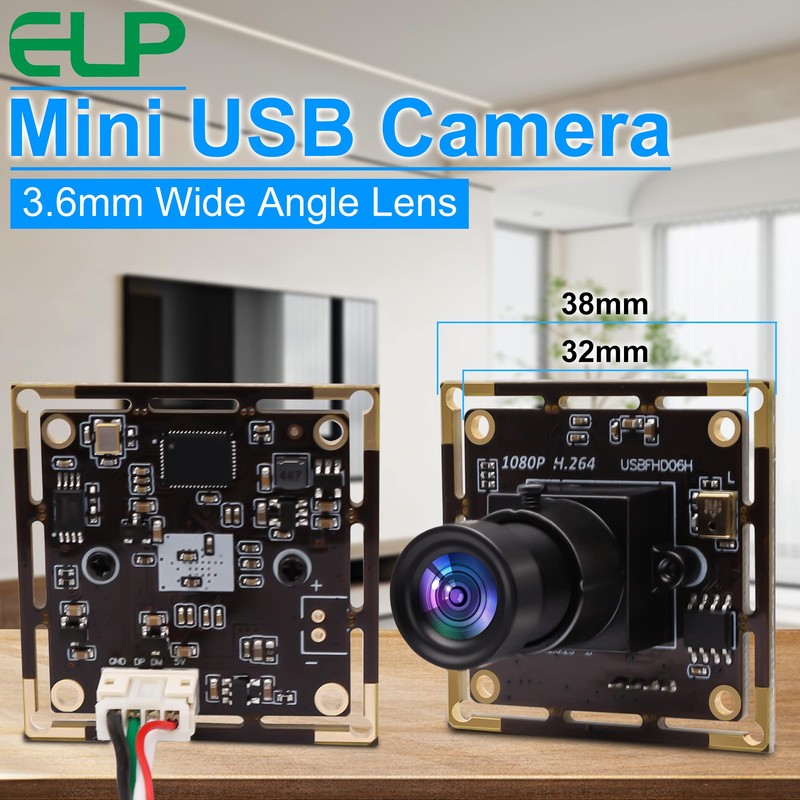

  • 3.6mm M12 lens,wider viewing range.Mini size 38*38mm/32*32mm,small outline and thin profile for embedded applications,widely used for scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc
Brand: ELP
Size: mini size
Color: Black
Manufacturer: Ailipu Technology Co., Ltd
Part Number: 1RBFYH6
Isin: IAYHVAL0COSG

$97.56

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
ELP Sony IMX323 Sensor Mini USB Camera Module HD 1080P 0.01Lux Low Light USB Camera with Microphone,3.6mm Lens H.264 USB Computer Embedded Webcam Board,UVC USB2.0 Camera for Laptop,with 3.3ft/1M Cable

ELP Sony IMX323 Sensor Mini USB Camera Module HD 1080P 0.01Lux Low Light USB ...

$97.56

Model :ELP-USBFHD06H serial
Sensor:IMX322/IMX323
Lens Size:1/2.9 inch
Pixel Size:12.8X11.6 mm
Image area:2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution 1080P
Compression format
H264 /MJPEG / YUV2(YUYV) Resolution & frame
H264:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio:42dB
Dynamic Range:86dB
Sensitivity:5.0V/lux-sec@550nm
Mini illumination:0. 01 lux
Shutter Type:Electronic rolling shutter / Frame exposure
Connecting Port type:USB2.0 High Speed
Free Drive Protocol:USB Video Class(UVC)
Support OTG Protocol:USB2.0 OTG
AEC:Support
AEB:Support
AGC:Support

Adjustable parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Standard FOV(D)100 Degree , optional 2.1/2.8/3.7/6mm/FOV(D)170 /180 Degree

Digital audio High quality digital MIC, support single, dual channel
LED board power connector:Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Power supply:DC5V
Operating Voltage:140mA~190mA
Working current -10~70℃
Working temperature:-20~85℃

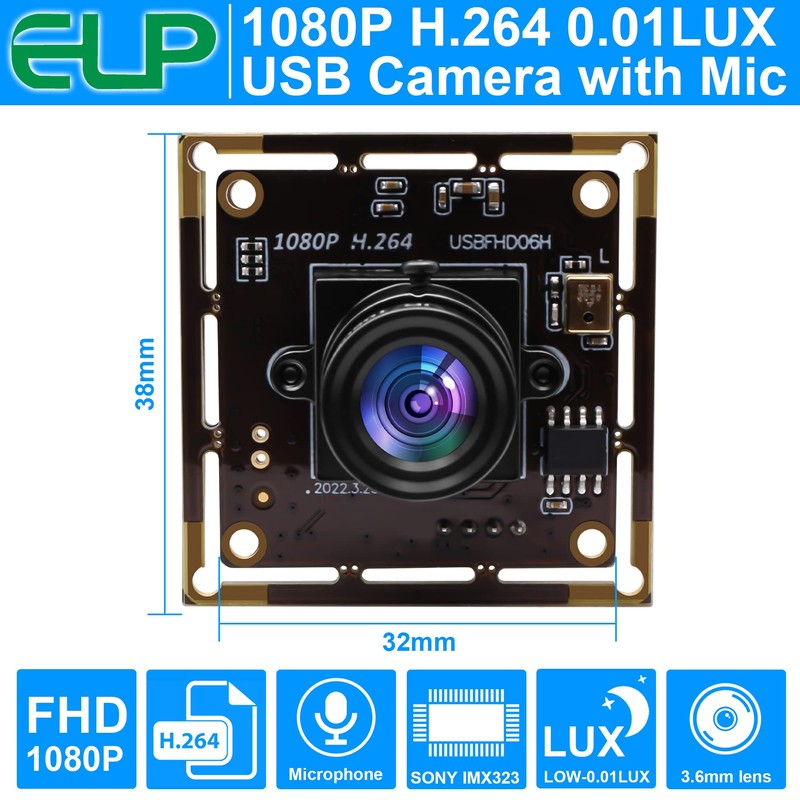

Board size /Weight:38X38mm(Compatible 32X32mm)/ about 30g
Cable Standard:1M / optional 2M,3M,5M
Operating system request:Win7,Win8,Linux 2.6 or above,Android 4.0 or above
