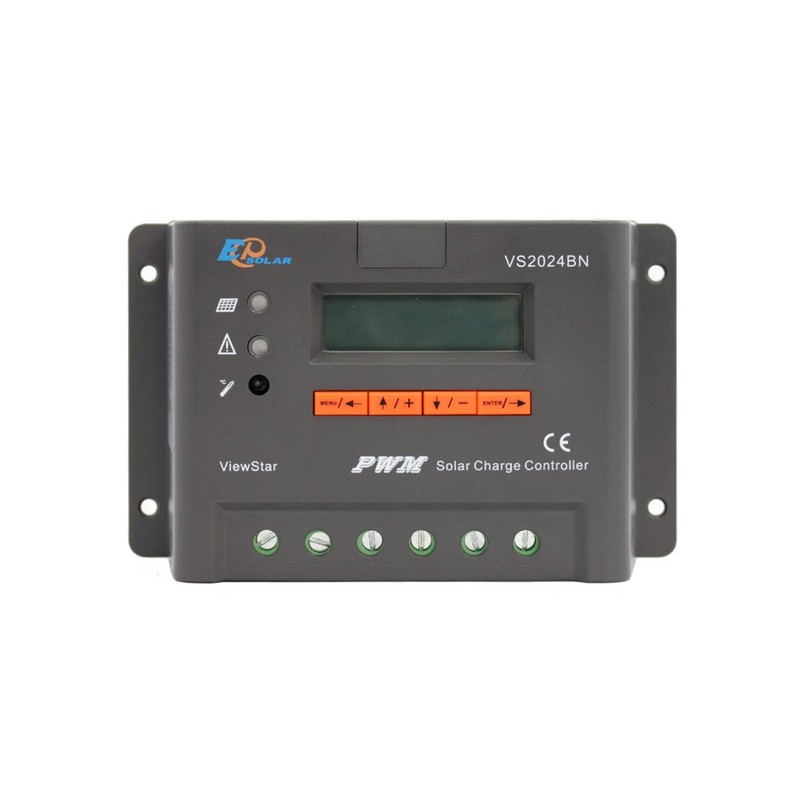

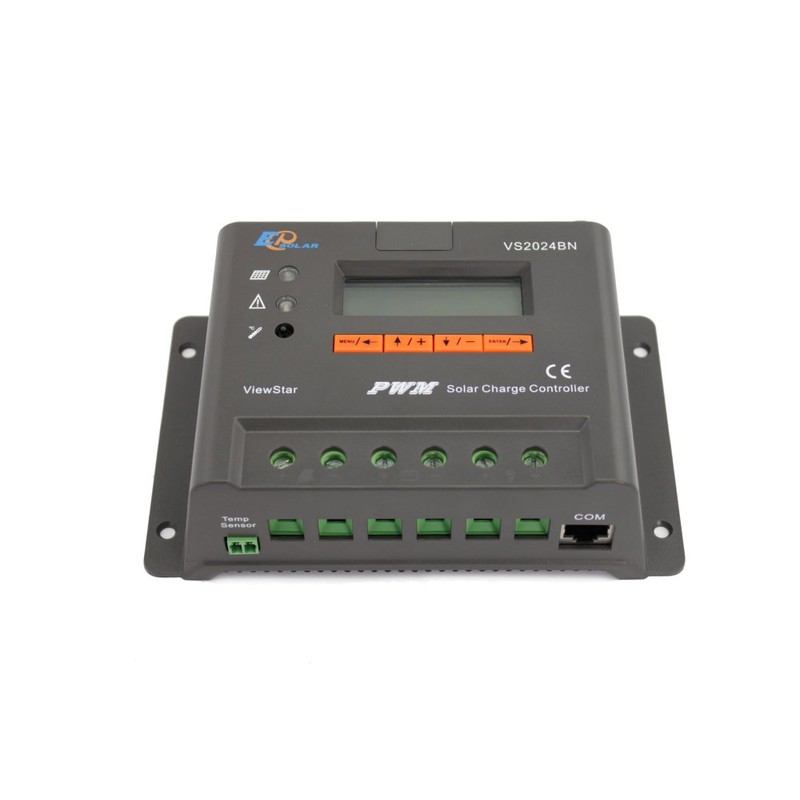

EPEVER 20a Charge Controller 12V/24V Auto Work, ViewStart Series PWM Solar Panel Solar Charge Controller, Common Negative Grounding VS2024BN
EPEVER 20a Charge Controller 12V/24V Auto Work, ViewStart Series PWM Solar Panel Solar Charge Controller, Common Negative Grounding VS2024BN
EPEVER 20a Charge Controller 12V/24V Auto Work, ViewStart Series PWM Solar Panel Solar Charge Controller, Common Negative Grounding VS2024BN
- ★Epsolar Solar Panel Regulator Charge Controller 12/24V Auto Work High Efficient Series PWM Charging.
- ★Three battery type options: Sealed, Gel, and Flooded.
- ★Overload, Short Circuit, and Reverse Polarity Protected.
- ★High efficient Series PWM charging: balanced voltage, boost voltage, float charge
- ★Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation.
| Brand: | EPEVER |
|---|---|
| Color: | VS2024BN |
| Manufacturer: | EPEVER |
| Part Number: | MPBGZQY |
| Isin: | INE0USFTJ8CM |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
New ViewStar series solar controller is designed for off-grid solar system, such as street light, solar home system or small power station etc.
It has LCD display, reliable battery charging , full electronic protection, and programmable parameters.
feature:
Excellent EMC design
Setting and modification of complete field control parameters
Use MOSFET as electronic switch < br>Intelligent lighting and timer control for solar lighting system
12 bit A/D high-precision sampling to ensure accuracy
Full control parameters setting and modification, diversified load control mode
Humanized design of browser interface, undertake every operating conveniently
Temperature compensation
RS485 ports with MODBUS communication protocol
Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
Product specifications:
Model: VS2024BN 20A, 12V/24V Auto Work
Maximum allowable voltage of the battery:32V
Rated charging / discharging current: 20A
Maximum open circuit voltage: 50V
Low voltage disconnection recovery voltage: Sealed / Gel/ Flooded: 12.6V Custom: 9-17V
Low Voltage Disconnect Voltage:Sealed/Gel/Flooded: 11.1V Custom: 9-17V
Self-consumption: ≤15mA (12V): ≤24mA (24V)
Grounding type: negative ground
Temperature compensation: -3mV / °C / 2V
Working temperature:-25°C ~+55°C
Terminals:8AWG(10mm2)
Weight :0.4kg
Size:162x100x50mm
Electronic protections:
PV short circuit protection
PV polarity reverse connection protection
Battery over discharge protection
Battery over-pressure protection
Battery polarity reverse connection protection
load overload protection
load short circuit protection
Over temperature protection
Packing :
1 x VS2024BN solar charge controller
1 x Manual(English)
