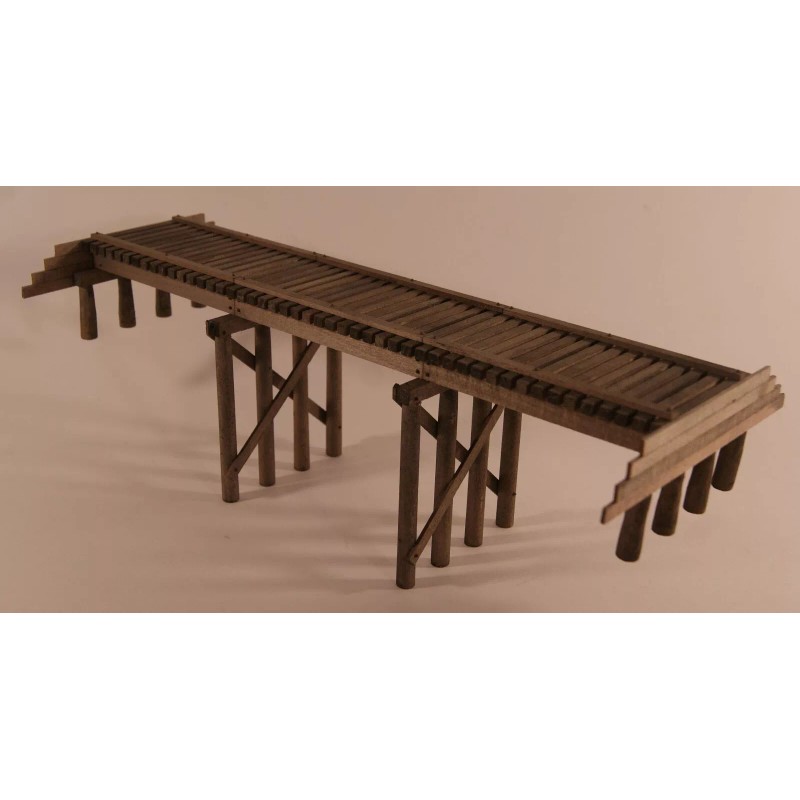

Evergreen Hill designs EH5021 Pile NG Trestle Wood Kit - 48' 1 Bay Bent 4 Leg - On3/On30 Scale NIB
Evergreen Hill designs EH5021 Pile NG Trestle Wood Kit - 48' 1 Bay Bent 4 Leg - On3/On30 Scale NIB
Evergreen Hill designs EH5021 Pile NG Trestle Wood Kit - 48' 1 Bay Bent 4 Leg - On3/On30 Scale NIB
EVERGREEN HILL DESIGNS
....PLEASE SUPPORT YOUR LOCAL HOBBY SHOP....
However, if you do not have a local hobby shop or they do not carry the item in stock and they cannot get it in time to support your needs, feel free to purchase the items directly through us.
The Kit is new stock and you are buying directly from us, the manufacturer.
The design is closely based on the Denver & Rio Grande Railroad Co. Standard Pile Trestle Plans for Narrow Gauge Lines (Adopted Feb. 1907). A trestle is an important part of any railroad and is used by virtually every line in the world. This 48’ long Pile Trestle will work in a wide variety of applications, either on a layout or as part of a diorama, whenever you need your trains to step gracefully over small ravines, hills or whatever depression you may want to cross. This Pile Trestle can be added to an existing layout by simply adding a small gully or ravine, thus providing some additional items for your visitors to look at. The actual dimensions are 48 ft long x 10.0 ft wide. The height will depend on which Bent you decide to use. Bent Templates are provided to achieve a 7 ft, 10 ft or 14 ft tall trestle (as measured from the ground to the top of the ties). This allows the builder to semi-custom build the trestle bents to their unique location.
NOTE: Although this is for Narrow Gauge Lines, if the line saw large and heavy Narrow-Gauge engines like K37’s (engine weights of 92 tons), they would build the Standard Gauge version of the Trestle.
Kit Dimensions (approximate): On3/30 Scale: 12.0” long.
The kit features precision-cut basswood scale dimensional lumber by Kappler Mill & Lumber Company, detailed Build Instructions and Templates for assembling/weathering the Trestle. The Kit includes Templates and material to build a complete Trestle with ties (including two Abutments and two Bents). The Trestle Ties are 10’ long and the kit includes many Nut/Bolt/Washer castings.

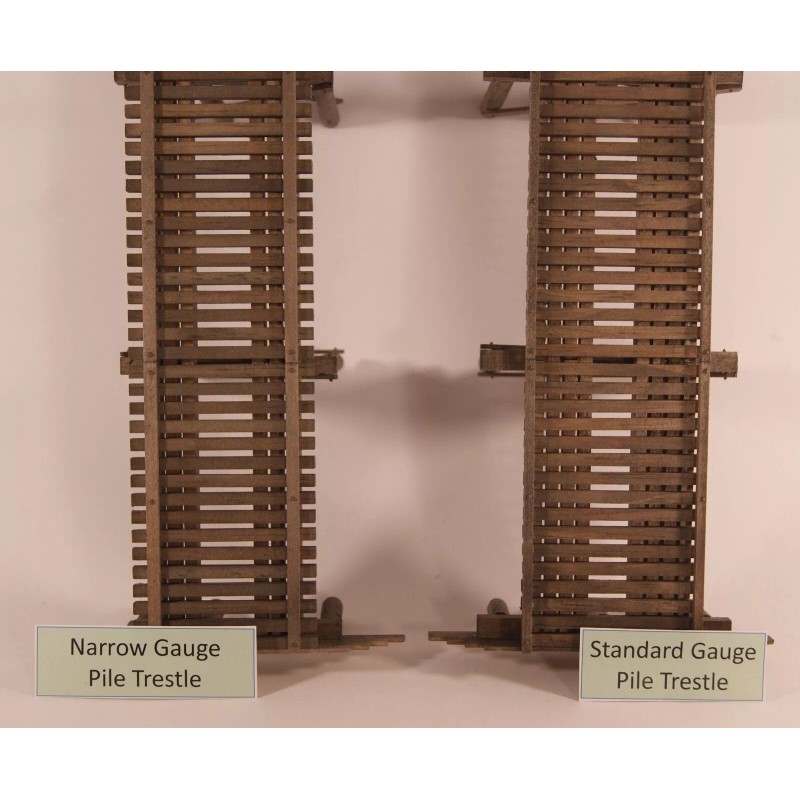

Primary Differences between Narrow Gauge (NG) and Standard Gauge (SG) Pile Trestles
1) Cap Beam dimensions: 12"
x 12" (NG) and 14" x 12" (SG)
2) Length of Cap Beam: 12'
(NG) and 14'6" (SG)
3) Number of Piles per
Bent: Four Piles (NG) and Five Piles (SG)
4) An additional 3" x
10" Dump (Abutment) Plank making the Plank Wall 50" tall (SG) from
40" tall (NG).
5) Number of Tie Beam
Stringers: Six Stringers (NG) and Eight Stringers (SG)
We hope you enjoy building the kit!
Evergreen Hill designs, LLC
Colorado 80107 USA
Our intent is to provide a fun-to-build craftsman-level kit, using the highest quality components available.
