EXENWING DC 24V Switching Power Supply SMPS AC 110V/220V to DC 24Volt 720W 30Amp Universal Regulated Converter Transformer Adapter for LED Driver Strip Light 3D Printer CCTV Camera System Amplifier…
EXENWING DC 24V Switching Power Supply SMPS AC 110V/220V to DC 24Volt 720W 30Amp Universal Regulated Converter Transformer Adapter for LED Driver Strip Light 3D Printer CCTV Camera System Amplifier…
EXENWING DC 24V Switching Power Supply SMPS AC 110V/220V to DC 24Volt 720W 30Amp Universal Regulated Converter Transformer Adapter for LED Driver Strip Light 3D Printer CCTV Camera System Amplifier…
- 【AC To DC Conveter 24V 720W Switching Power Supply】-This switching mode power supply(smps) converts the AC 110V/220V to DC 24V. Input: AC 110/220V 50 / 60Hz; Output: Default DC 24V,adjustable range: ±10%,form 21.6V-26.4V, which greatly expand its application range; Maximum 30A 720watt power,the actual current is depended on the load; Three sets of output channels available,it can power more devices. Net weight: 2.86 lbs; Dimension: 24.5*12.5*6.5CM(9.64 X 4.92 X 2.56 inch
- 【Universal AC TO DC Transformer】-There is a voltage switch located on the side of the convetert,our factory setting for US customers is 110V. If you want to use AC 220V,please don't forget to adjust the switch to the 230V(220V) side before use to avoid damaging.AC 110V/220V is just according to your local voltage.

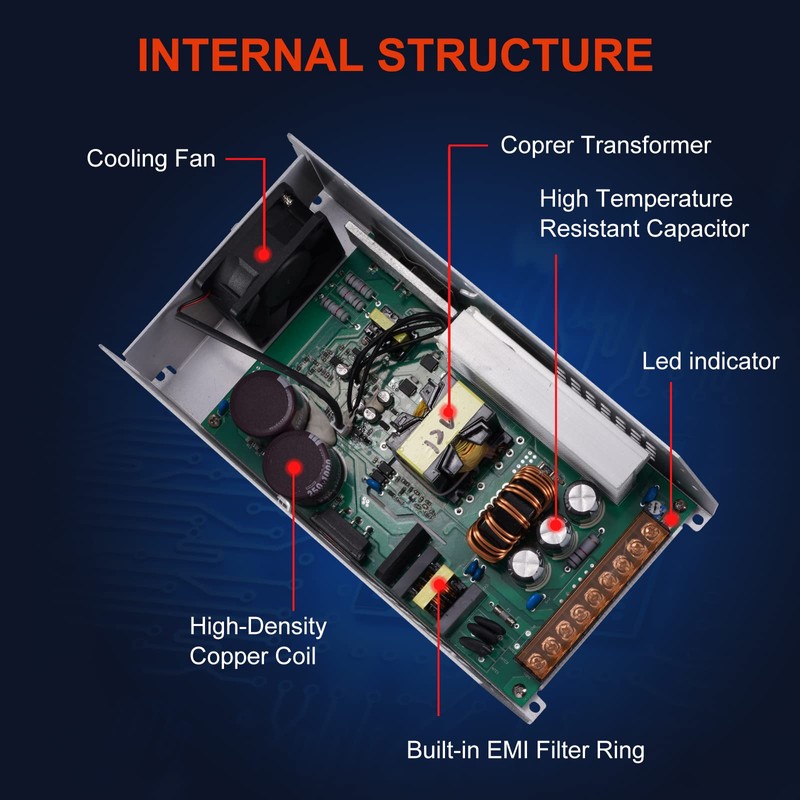

- 【Good Heat Dissipation】-This low voltage power supply transformer is made of metal material with many holes,which makes heat dissipation more effictive and ensures stability. Built-in cooling fan to protect the converter against overheating;This switching transformer working temperature range : 14℉-140℉. 🔺Non-waterproof, In-Door Use Only!
- 【Safety Performance】-Our power supply pass aging test before leaving the factory to ensure the stability. With smart chip provide automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection. There is no voltage fluctuations at power on, during transmit, receive, or at power off.100% full load burn-in Tested,guaranteed security.
- 【Wide Range of Uses】-This buck power supply unit(PSU) widely used in most DC 24V devices, such as led strip lights, Industrial automation,3D Printer, ham radio transceiver, CCTV camera system, audio amplifier, wireless router, computer Project , home appliance and other 24V devices .We promise 30 days worry-free return, 1 year replacement assurance, lifetime after-sale service support.
| Brand: | EXENWING |
|---|---|
| Size: | 24.5*12.5*6.5CM(9.64 X 4.92 X 2.56 inch) |
| Color: | 24V 30A 720W |
| Manufacturer: | EXENWING |
| Part Number: | YCXZ153 |
| Material Type: | Metal |
| Product Dimensions: | 3.66 x 6.46 x 11.38 inches; 2.62 pounds |
| Isin: | IZ4FLNMRQIZI |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Technical Parameter:
Input: AC110V/220V 50/60Hz
Output Voltage : DC 24V (Number+V x 3, -V x 3)
Output Current: 30A max
Output Wattage: 720W max
Net weight: 2.86 lbs
Dimension: 24.5*12.5*6.5CM(9.64 X 4.92 X 2.56 inch)
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working Storage temperature: -15 to 55degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic Parts,Rugged heavy duty enclosure
Safety Compliance: CCC/FCC/CE/RoHS

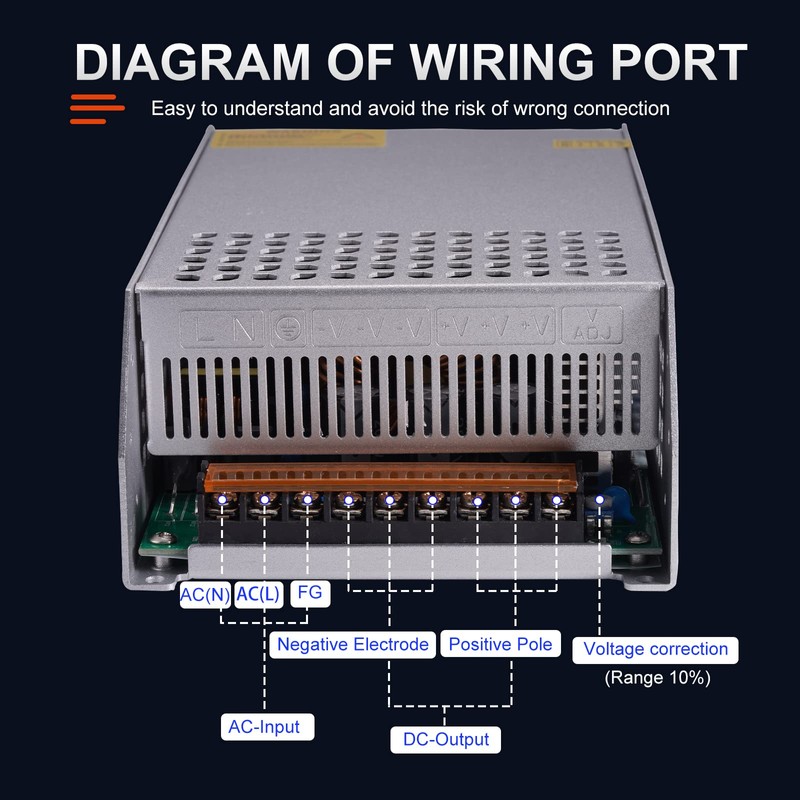

Connection instruction：
L/N: AC power input
+V: DC power output “+”
-V: DC power output “-“
+V ADJ: Adjust the output voltage (10%)
Packge included:
1* 24V 30A 720W Power Supply(power cord is not included)
Note:
1.110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA.
2.This unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads.
3.Do not power the unit before wire connection and voltage adjustment, DO NOT let the unit work long hours over rated current! Work under 80% of rated currency.
4. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary.
5.Please leave children, kids far away from power source.
6. IN-DOOR USE ONLY! This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
7. High voltage inside, do not remove the cover. Dust the switcher out every 3 months if necessary.
