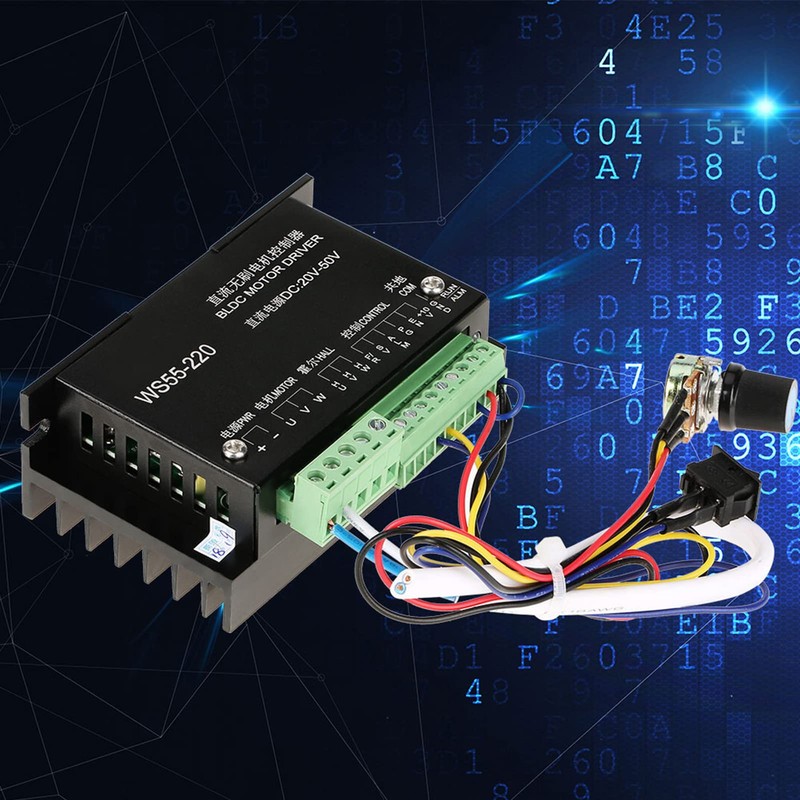

Fayelume Brushless Motor Controller, WS55-220 BLDC Motor, DC 48V 500W CNC Controller, for CNC Machine, Jade Grinding, Vibrating Motor

Brand: Fayelume
  • PRODUCT PARAMETERS: Model WS55-220 handles 20-50VDC at 12A (15A limit), This brushless DC motor controller measures 9.5×6×3.5cm (3.74×2.36×1.38in) weighing 258g with 20,000RPM max speed at 0-45℃
  • DRIVE CHARACTERISTICS: Drives 3-phase BLDC motors with/without Hall sensors, The DC motor controller features smooth work with current safeguards and reversible rotation
  • SPEED CONTROL: Accepts external potentiometer or voltage input (single mode), This DC motor speed controller outputs 5V PG pulses and ALM signals for monitoring
  • SAFETY FEATURES: Includes phase-loss and short-circuit safeguards, The motor driver provides >100MΩ insulation and withstands 0.5KV/1min testing
  • APPLICABLE EQUIPMENT: For small CNC machines and power tools, This controller works with polishing equipment and ventilation systems
Brand: Fayelume
Manufacturer: Fayelume
Part Number: 5BHCX58
Isin: IVMICTYX56BZ

$83.91

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Fayelume Brushless Motor Controller, WS55-220 BLDC Motor, DC 48V 500W CNC Controller, for CNC Machine, Jade Grinding, Vibrating Motor

Fayelume Brushless Motor Controller, WS55-220 BLDC Motor, DC 48V 500W CNC Con...

$83.91

Specifications:
Rated voltage: 20 to 50 VDC
Rated current: 12A
Current limiting: 15A
Maximum speed: 20000RPM( the specific speed depends on the motor itself and load)
Storage temperature: -20℃~+65℃
Usage environment: Avoid direct touch with dust, fumes and corrosive gases
Temperature: 0-45℃
Humidity: < 80%, no frost
Shock: 5.9m/S2 Maximum
Storage humidity: 0~95%RH
Size: Approx. 9.5 x 6 x 3.5cm / 3.74 x 2.36 x 1.38inch
Weight: 258g

Detail:
1.Two modes of speed regulation:
External potentiometer: through this potentiometer speed regulation;
Note: The two speed regulation can not be used simultaneously
2. Speed output PG signal: There is a 5v-revolution pulse output between the port and the ground.
The output frequency is set to P (Hz), the motor class logarithm is N, and the speed is F (RPM), then the output speed frequency is P=F*N/60.
3. Alarm output ALM signal:There is an 5V alarm pulse output between the port and the ground.
4. Positive inversion function:
F/R:Fiddle the toggle switch on the corresponding side, the motor steering direction can be changed. For the toggle switch, the white part is up and down, then twang it up and down. For the toggle switch, the white part is horizontal, and the twang horizontally.
5. Start-stop (two control modes):
1. External switch EN: Transfer through switch.
2. Side toggle switch EN: for the toggle switch, the white part is up and down, then down for the start; for the toggle switch, the white part is horizontal, then dial to start
Note: You can only turn one control at the same time, one of the switches is closed, and the other one is valid.

Package included:
1 x Motor Driver Controller with cable
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
