FX-AUDIO - DAC-X6J+W [Black] High Performance Headphone Amplifier & Preamplifier, Bluetooth Compatible, High-Resolution DAC, Optical, Coaxial, Digital, USB, Up to 24 Bit, 192kHz
FX-AUDIO - DAC-X6J+W [Black] High Performance Headphone Amplifier & Preamplifier, Bluetooth Compatible, High-Resolution DAC, Optical, Coaxial, Digital, USB, Up to 24 Bit, 192kHz
FX-AUDIO - DAC-X6J+W [Black] High Performance Headphone Amplifier & Preamplifier, Bluetooth Compatible, High-Resolution DAC, Optical, Coaxial, Digital, USB, Up to 24 Bit, 192kHz
- Uses ES9018K2M for the D/A conversion part IC, and LM4562 opire amplifier is adopted for the single end conversion part
- USB input supports high resolution 24 bit/192 kHz, supports Bluetooth wireless connection
- Equipped with a high performance headphone amplifier function using an amplifier IC for headphones and 4 digital input switching function
- Generously adopts high-quality components and equipped with a sampling rate indicator
- AC adapter required (sold separately) DC 12V/1A or above DC jack 5.5mm x 2.1mm (center plus)
Brand: | FX-AUDIO- |
---|---|
Manufacturer: | North Flat Japan |
Part Number: | GWW566G |
Isin: | IWVSRSVN3VEV |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
We have developed a completely new design that inherits only the concept of the previous "DAC-X" series, and renewed the integral IC, circuit board, design and operability.
Focusing on high performance and high sound quality DAC IC, the design that maximizes its characteristics and performance and has been refined to the sound quality and greatly improved in functionality and operability.
The new generation of IC, sophisticated design and operability, with new features such as wireless connection, and the DAC-X Series is released as the top model.
Naming is DAC-X6J+W, but it is completely different from the "DAC-X6J" and "DAC-X6J+".
Not just Bluetooth wireless function!
DAC IC is a new generation high-performance model.
Parts selected to match the DAC IC.
USB receiver supports 24 bit/192 kHz.
Preamp function & digital volume (RCA output volume control)
Introducing a sample rate indicator for the first X series.
The sample rate indicator will display the volume level indicator immediately after the volume is operated.
RCA output stop (exclusive-output control) when connected the headphone.
Mute function implemented.
[Precautions]
Product warranty period is 6 months from date of purchase.
This product is sold separately. A separate AC adapter is required for use.
The replacement of the opire amp is not covered under the warranty.
Product Specifications:
Brand:FX-AUDIO-
Product Model Number: DAC-X6J+W
Color: Black.
Product warranty period: 6 months from date of purchase

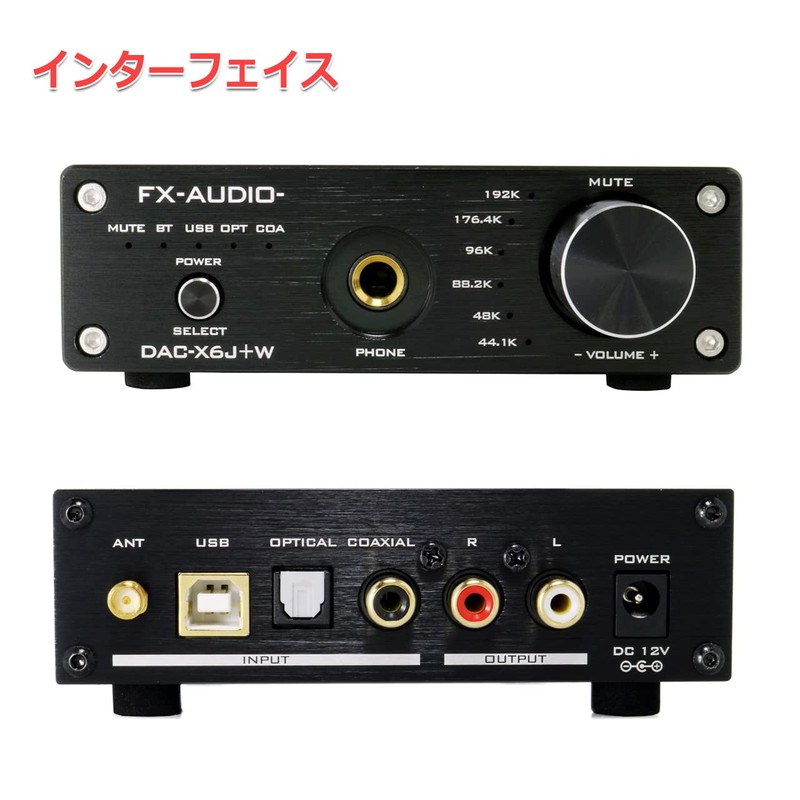

Digital input: [4 types]
Bluetooth
USB Type B USB 1.1/2.0 Compatible
Optical digital audio input (square)
Coaxial Digital Audio Input
Input format: PCM 2 ch stereo up to 24 bit 192 kHz
Bluetooth version: 5.0
Bluetooth Codec: SBC/AAC/apt-X/aptX-LL.
Analog output: Stereo RCA terminal
Headphone output: 6.3mm TRS stereo phone jack

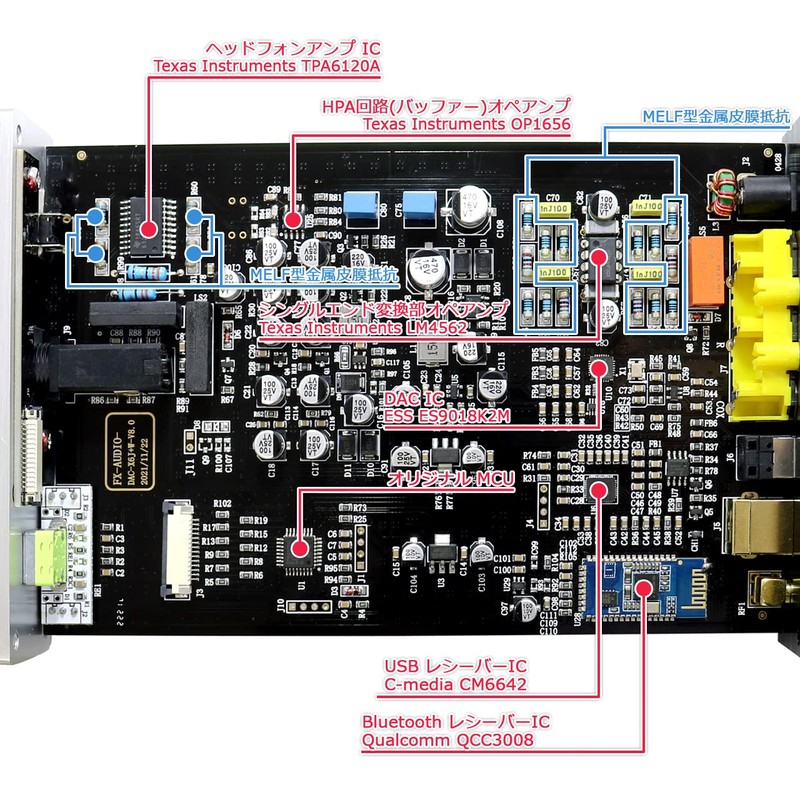

DAC IC: ES9018K2M by ESS Technology
USB Receiver IC: C-media CM6642
Bluetooth Receiver IC: Qualcomm QCC3008
Headphone Amplifier IC: Texas Instruments TPA6120A
Headphone Circuit Opamp: Texas Instruments OP1656
Single End Conversion Opamp : Texas Instruments LM4562
Function: Bluetooth wireless connection
Input switching
mute
RCA output and headphone output volume adjustment (*both vary depending on volume)
RCA output and headphone output exclusion control (stop RCA output when headphone is connected)
Power source: DC 12 V / Power supply capacity 1 A or more (AC adapter sold separately)
Power connector: outer diameter 0.2 inch (5.5 mm), inner diameter 0.08 inch (2.1 mm) (Center Plus specification)
Accessories: Bluetooth antenna, instruction manual (English language not guaranteed).
Size (W x D x H): 4.6 x 7.1 x 1.4 inches (116 x 180 x 35 mm) (excluding
Weight: 15.7 oz (450
Operating OS (USB connection).
USBAudioClass 1.0 Supported: Windows 10/8 (8.1) & 7/Vista/XP/2000/MacOSX/9.1 or later
Works with standard OS drivers.
USBAudioClass 2.0 Supported: Windows 10 CreatorsUpdate Version 1703 Build 15063 or later MacOSX10.6.4 or later
Specifications and design may change without prior notice due to improvements.
