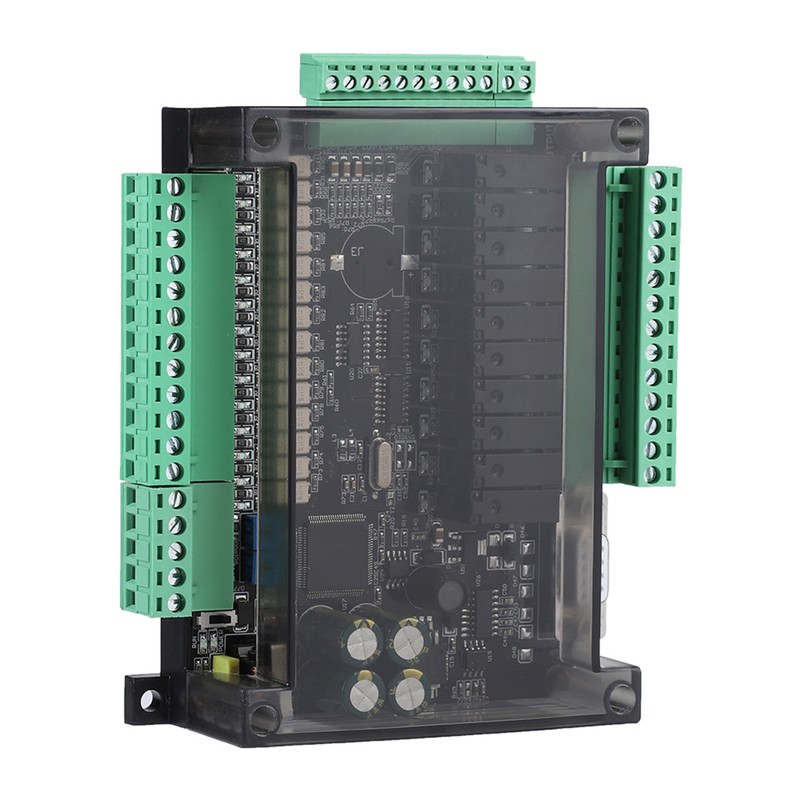

FX3U‑24MR Industrial Control Board PLC Programmable Logic Controller Relay Output
FX3U‑24MR Industrial Control Board PLC Programmable Logic Controller Relay Output
1、This programmable logic controller uses industrial‑grade 32‑bit MCU with strong anti‑interference and faster speed. 2、Program is written in ladder logic programming language, supports for GX‑Developer, GX‑work2, supports HMI connection. 3、Support ladder logic programming language programming, downloading and monitoring. 4、Programming port is the port for program upload, download and HMI communication. 5、Comes with a cable for convenient connection.
| Isin: | IFRMUPUNPEEO |
|---|
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1、This programmable logic controller uses industrial‑grade 32‑bit MCU with strong anti‑interference and faster speed. 2、Program is written in ladder logic programming language, supports for GX‑Developer, GX‑work2, supports HMI connection. 3、Support ladder logic programming language programming, downloading and monitoring. 4、Programming port is the port for program upload, download and HMI communication. 5、Comes with a cable for convenient connection.
More Information
Features:

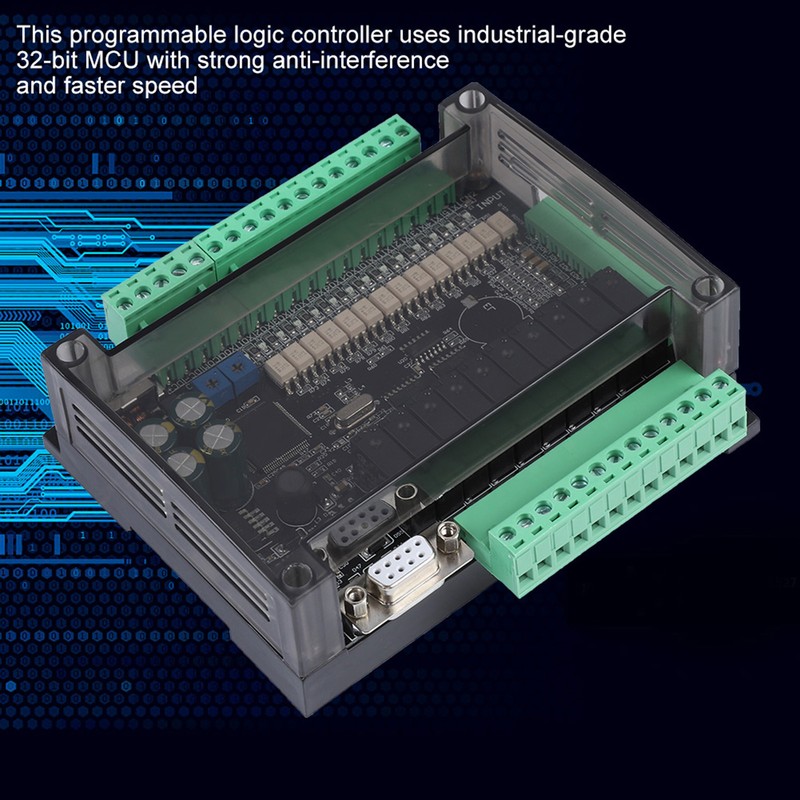

- This programmable logic controller uses industrial-grade 32-bit MCU with strong anti-interference and faster speed.
- Program is written in ladder logic programming language, supports for GX-Developer, GX-work2, supports HMI connection.
-
Support ladder logic programming language programming, downloading and monitoring.
- Programming port is the port for program upload, download and HMI communication.
- Comes with a cable for convenient connection.
Specification:
|
Model |
FX3U-24MR |
|
DC24V |
|
|
Program Steps |
8000 steps:2 communication port:one RS232 (DB9 serial communication port is FX3u, one RS485 (485 choose match) (communication protocol can be set D8120) |
|
Input Point X Component |
X0-X15, DC24 input, low level effectively.X0-5 high-speed counting input port (default is 12 KHZ). |
|
Output Point Y component |
Y0-Y11 is relay output. Relay output current 5AY0-2 for high-speed output (Max. 26k) |
|
Analog Input |
|
|
Analog Output |
|
|
Intermediate Relay M |
M0-M3071, power-off save range can be set |
|
Stepping Point S |
S0-1023, power-off save range can be set S0-S1023 |
|
100Ms Timer |
T0-T199, accumulative power-off save T184-T199 |
|
10Ms Timer |
T20-T249, accumulative power-off save T246-T249 |
|
1Ms Timer |
T250-T383, T250-255 is accumulated type |
|
16-bit Counter |
C0-C199, power-off save C100-199 |
|
32-bit Counter |
C200-C219, power-off save C220-C234 |
|
32-bit High-speed Counter |
C235-255; C235-240 is single-phase counter, no frequency multiplication; C241-240 is single-phase counter, 2 frequency multiplication; C247-249 is double-phase counter, no frequency multiplication; C250-252 is double-phase counter, 2 frequency multiplication; C253-255 is double-phase counter, 4 frequency multiplication. |
|
Register D |
D0-D7999, power-off save range can be set D0-7999 |
|
Indirect Addressing Pointer |
V0-7,Z0-7 |
|
P Subroutine Jump |
P0-63 |
|
I Interrupt |
X0-5 external interrupt.Timer Interrupt (1ms is unit). Counter interrupt. |
|
Special M Component |
M8000 is normally closed during operation, M8002 power-on pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse, M8013 is 1s pulse, M8014 is minute pulse. |
|

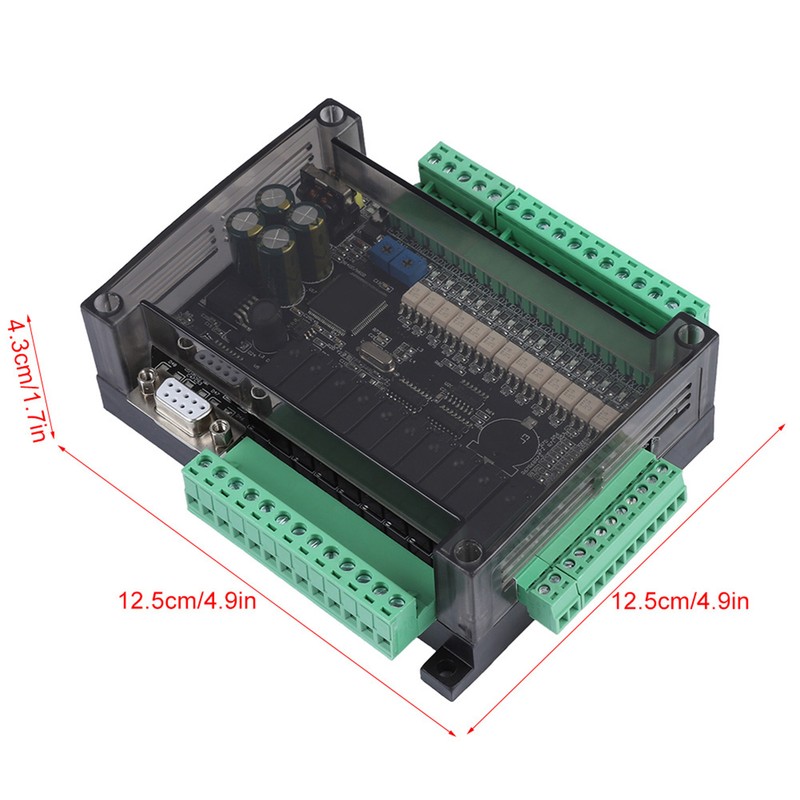

Size |
Approx. 12.5*12.5*4.3cm/4.9*4.9*1.7in |
|
Weight |
Approx.358g/12.6oz |
Package list:
1 x PLC Controller
1 x Cable
