GODIAG GT100 Automotive Tools OBD II Breakout Box ECU Connector with OBD Main Line & Multi-Function Jumper for Check Engine, Support LED Indicator and Lookup
GODIAG GT100 Automotive Tools OBD II Breakout Box ECU Connector with OBD Main Line & Multi-Function Jumper for Check Engine, Support LED Indicator and Lookup
GODIAG GT100 Automotive Tools OBD II Breakout Box ECU Connector with OBD Main Line & Multi-Function Jumper for Check Engine, Support LED Indicator and Lookup
- 【𝗟𝗶𝘁 𝗨𝗽 𝗗𝗮𝘀𝗵𝗯𝗼𝗮𝗿𝗱】Sometimes, we always worry about the lost car keys. Use the GT100 to short-circuit banana plug connector to lit up the dashboard. In addition, you can also connect with some test platform (e.g. : CASA) to pragram keys.
- 【𝗘𝗖𝗨 𝗕𝗲𝗻𝗰𝗵 𝗧𝗼𝗼𝗹】 GT100 allows you to power an ECU on the bench; you can easily do diagnostics, vehicle immobilizer, and key programming, whether it is on the bench with the included power adapter, or in the vehicle with the OBDII port supplied power.

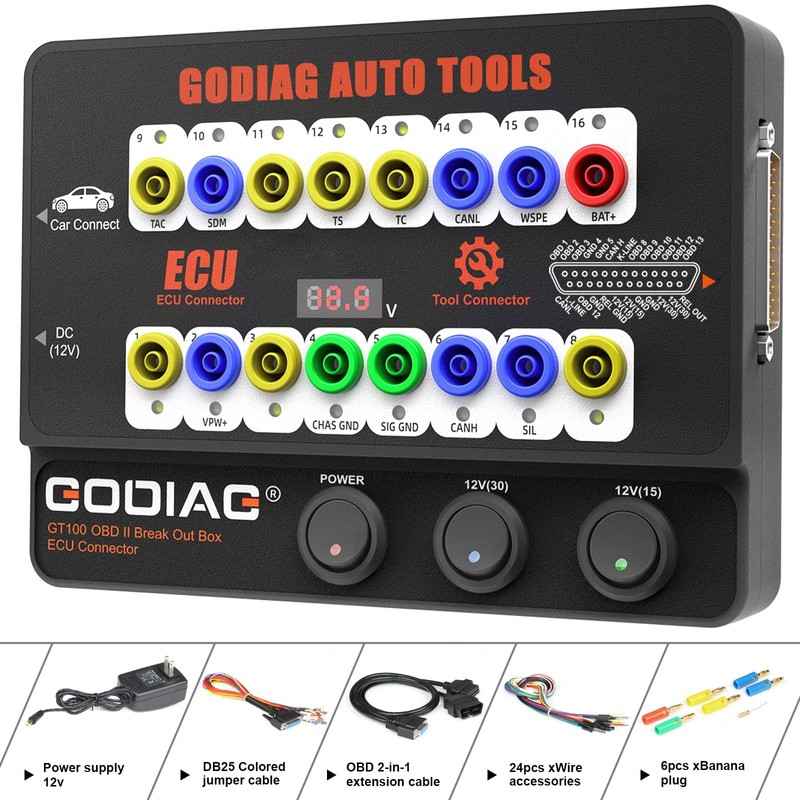

- 【𝟭𝟲 𝗣𝗶𝗻𝘀 𝗗𝗲𝘀𝗶𝗴𝗻 & 𝟭.𝟮𝗺 𝗘𝘅𝘁𝗲𝗻𝘀𝗶𝗼𝗻 𝗖𝗮𝗯𝗹𝗲】The input jack layout of OBD2 protocol detector fully simulates the 16-pin layout of the OBDII interface,allowing more tests to be performed quickly and intuitively. When the OBD2 scanner communicates with vehicles, all 16 pins of OBDII breakout box can be easily connected. OBD2 breakout box has female connector and male connector with a 1.2m extension cable.

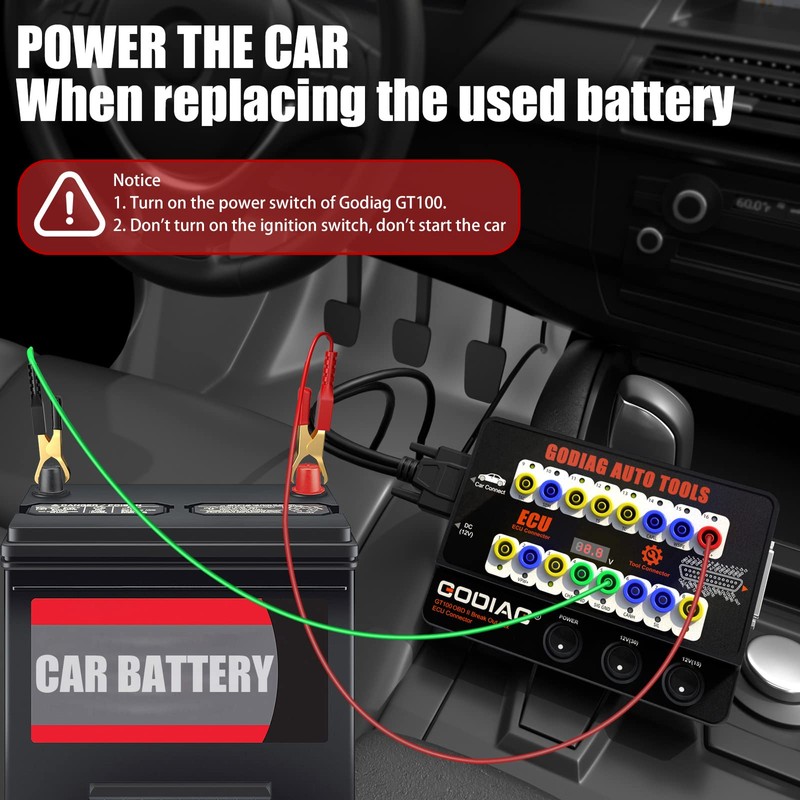

- 【𝗣𝗼𝘄𝗲𝗿 𝘁𝗵𝗲 𝗘𝗖𝗨 】Through GT100+ OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

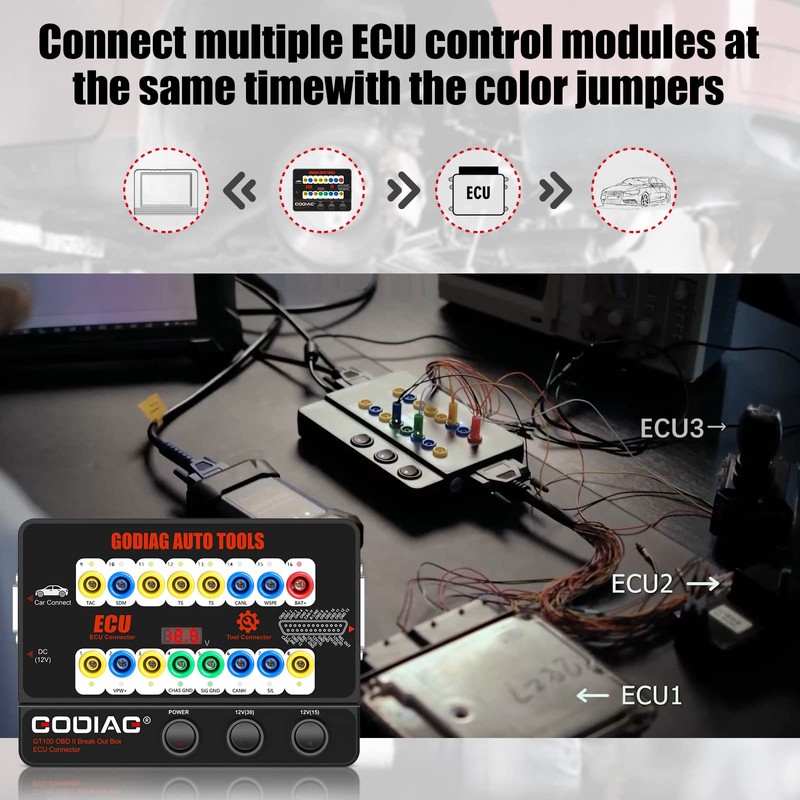

- 【𝗠𝘂𝗹𝘁𝗶𝗽𝗹𝗲 𝗘𝗖𝗨 𝗠𝗼𝗱𝘂𝗹𝗲𝘀】The GODIAG GT100 can not only be connected to a single ECU module for single-module diagnosis and programming, but is also capable of connecting multiple ECU control modules at the same time. You can connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
- 【𝗖𝗼𝗻𝘃𝗲𝗿𝘁 𝗢𝗕𝗗𝟮 𝗜𝗻𝘁𝗲𝗿𝗳𝗮𝗰𝗲】It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.
| Brand: | GODIAG |
|---|---|
| Size: | GT100 |
| Color: | Black |
| Manufacturer: | GODIAG |
| Part Number: | J43529R |
| Isin: | IIWXMLPIKAW3 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

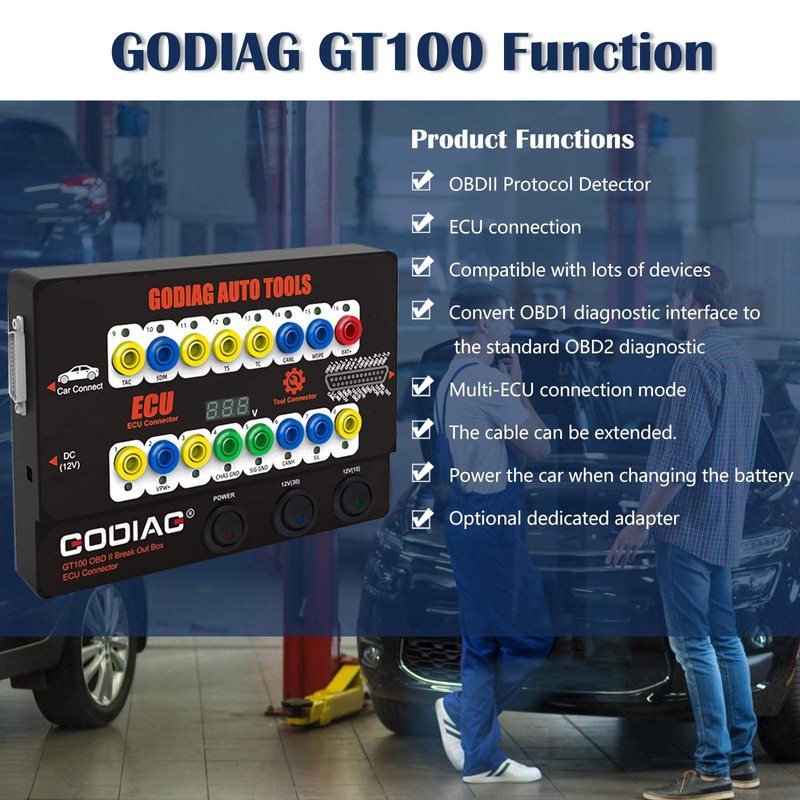

GODIAG GT100 function and operation guide
-Connect the vehicle and the diagnostic tool through OBDII, the LED of Godiag GT100 will indicate whether the communication between the OBDII diagnostic interface and the vehicle is good.
-Monitor the voltage of the vehicle's OBDII interface and display it in real time. If it is lower than 11V, please stop the diagnosis and programming so that it cannot start/data loss/module lock.
1. OBD2 protocol detector and communication detection
Connect GODIAG GT100 to the OBDII diagnostic port of the car.
When the device displays the voltage, turn on the power switch of GODIAG GT100.
Then connect to the diagnostic tool. When the tool communicates with the car, the LED indicator of the corresponding protocol will light up or flash. (If the CAN protocol is detected, it has the maximum brightness. After the communication is successful, the corresponding CAN-H and CAN-L will become weak or flicker)
2. ECU connection: single module connection
GODIAG GT100 connected to a single ECU module is convenient for users to perform single-module diagnosis and programming.
Connect the ECU to the color jumper. (If the ECU is CAN protocol, please check if you need to connect a 120 ohm resistor.)
The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of the car or through an AC power adapter.
Diagnose and program each ECU by connecting the diagnostic tool or ECU programmer.
3. Banana plug extension connection:
Extend the OBD216pin interface of the car to tell you whether the OBDII interface is connected correctly, which is convenient for testing the OBDII interface voltage waveform.
4. Convert OBD1 diagnostic interface to standard OBD2
According to the diagnostic interface communication protocol, use the connector to convert the OBD1 interface to the obd2 interface.
5. Simultaneously connect multiple ECU cont
