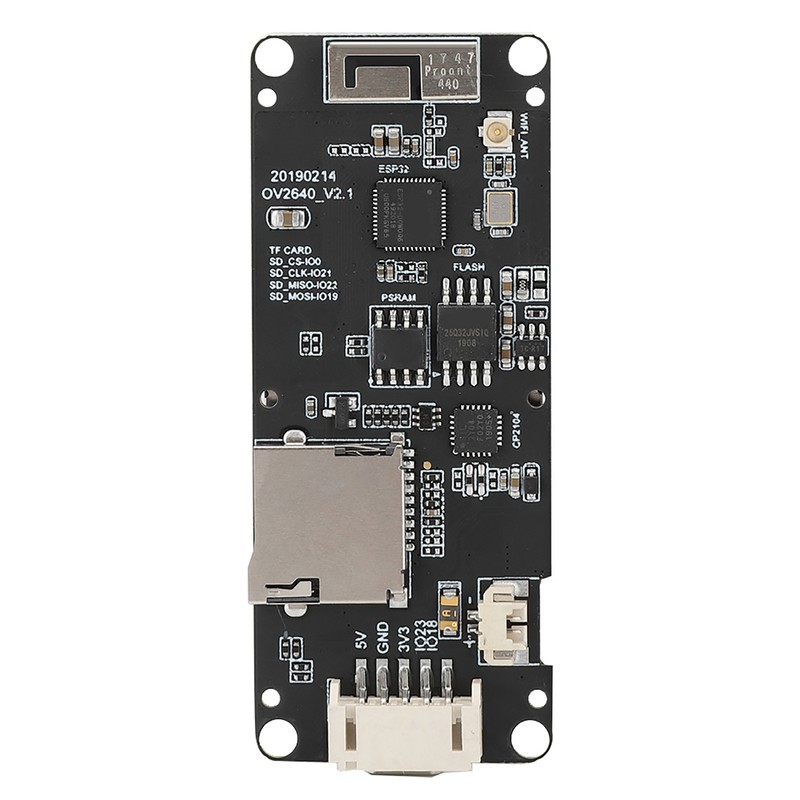

H298 ESP32 2Megapixel Camera Module with Lithium Battery Support Bluetooth WiFi for DIY Camera
H298 ESP32 2Megapixel Camera Module with Lithium Battery Support Bluetooth WiFi for DIY Camera
1、Complies with the Bluetooth v4.2BR / EDR and BLE standards protocol. 2、Equipped with RF NZIF receiver Class-1, Class-2 and Class-3 transmitter AFH with -98dBm sensitivity. 3、Support audio for CVSD and for SBC Audio, providing ultra clear HD sound. 4、Support integrated external memory card slot. 5、Support Buletooth and WiFi functions with outstanding performance.
| Isin: | IJ0ANXBFHSRH |
|---|
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1、Complies with the Bluetooth v4.2BR / EDR and BLE standards protocol. 2、Equipped with RF NZIF receiver Class-1, Class-2 and Class-3 transmitter AFH with -98dBm sensitivity. 3、Support audio for CVSD and for SBC Audio, providing ultra clear HD sound. 4、Support integrated external memory card slot. 5、Support Buletooth and WiFi functions with outstanding performance.
More Information
- Complies with the Bluetooth v4.2BR / EDR and BLE standards protocol.
- Equipped with RF NZIF receiver Class-1, Class-2 and Class-3 transmitter AFH with -98dBm sensitivity.

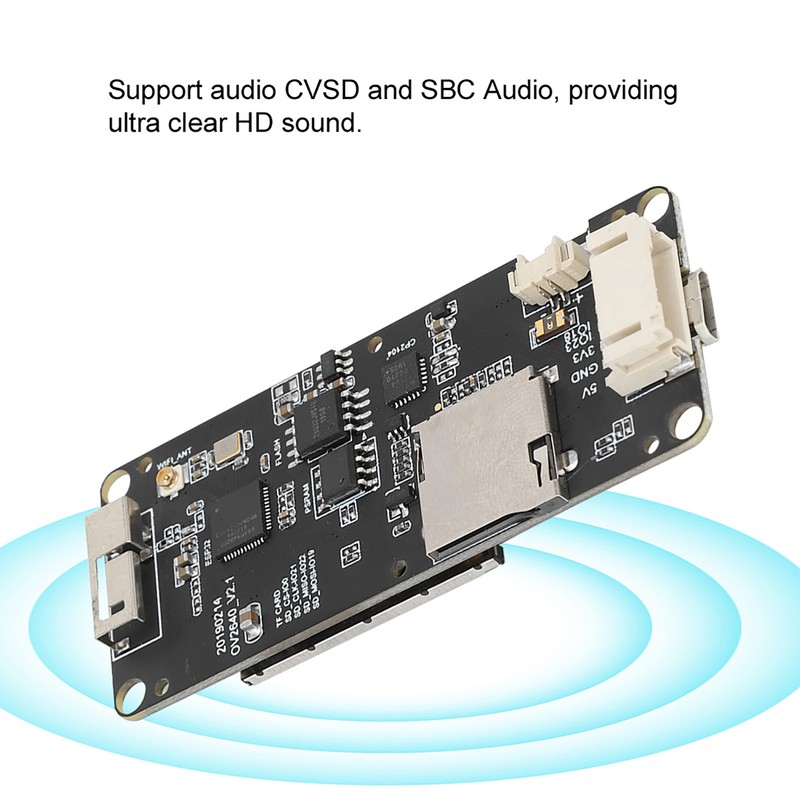

- Support audio for CVSD and for SBC Audio, providing ultra clear HD sound.
- Support integrated external memory card slot.
- Support Buletooth and WiFi functions with outstanding performance.
Specifications:

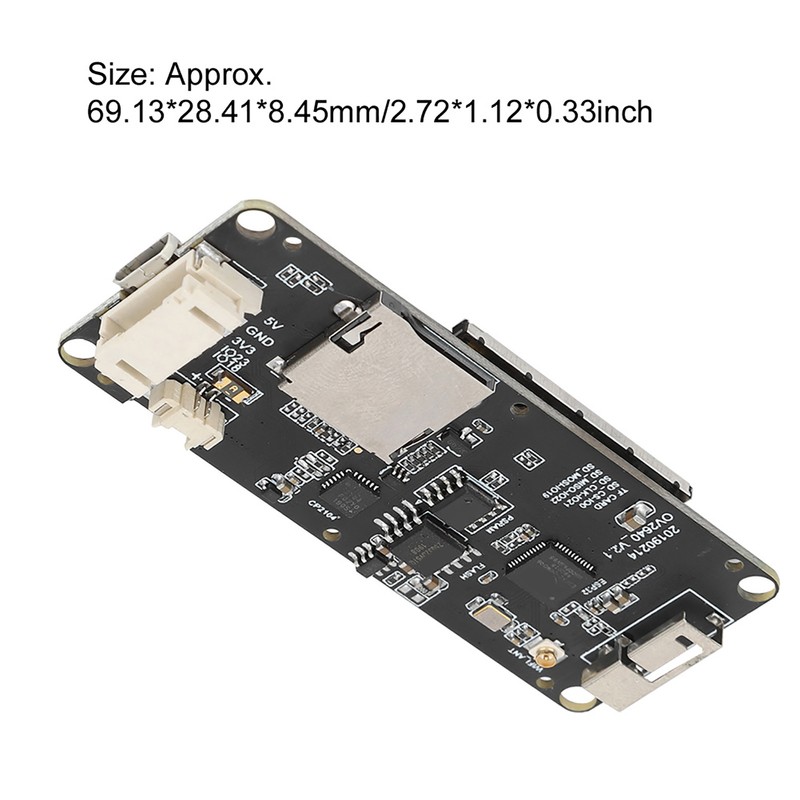

Size: Approx. 69.13*28.41*8.45mm/2.72*1.12*0.33inch
<
| Hardware Specifications | |
| Chipset | ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash/for SRAM, up to 4 x 16 MB |
| for SRAM | 520 kB for SRAM + 8MBytes External for SPRAM |
| KEY | reset |

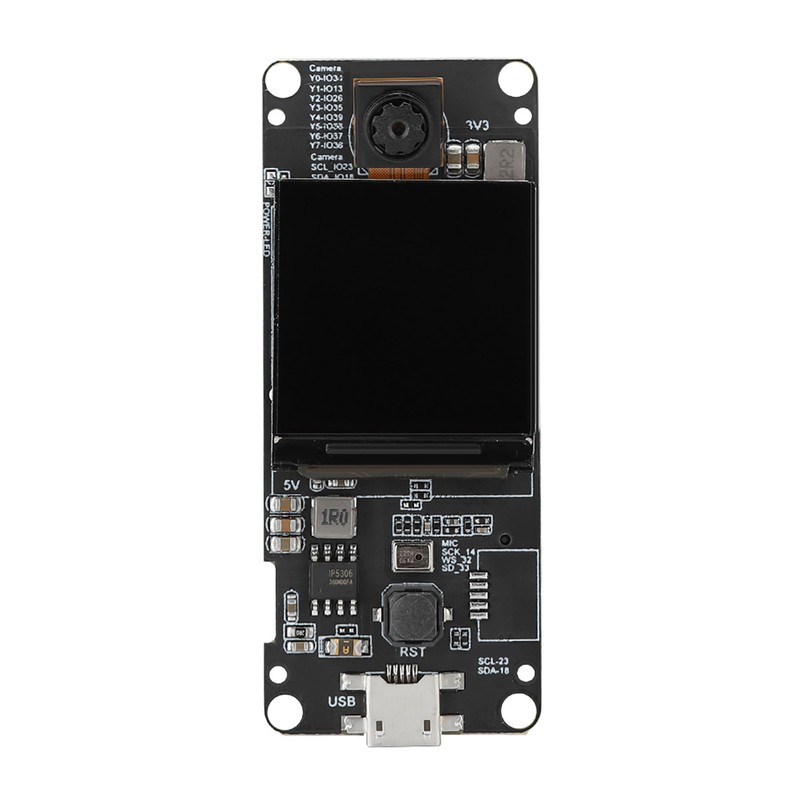

| dispaly | IPS Panel ST7789/1.3 Inch |
| Power indicator lamp | red |
| USB to TTL | CP2104 |
| Camera | OV2640 2Megapixel |
| on-board clock | 40MHz crystal oscillator |
| working voltage | 2.3V-3.6V |
| working current | about 160mA |
| working temperature range | -40℃ ~ +85℃ |
| size | 69.13*28.41*8.45mm |
| Mic | MSM261S4030H0 |
| Memory Card | Integrated external Memory card slot |
|
|
|
| Power management Chip | IP5306 |
| Power Supply | USB 5V/1A |
| charging current | 1A |
| battery | 3.7V lithium battery |
| WIFI Description | |
| Standard | for FCC/CE/TELEC/KCC/SRRC/NCC |
| protocol | 802.11 b/g/n/e/i (802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| communication distance | 300m |
| Bluetooth Description | |
| protocol | meet bluetooth v4.2BR/EDR and BLE standard |
| radio frequency | with -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| audio frequency | CVSD&for SBC audio frequency |
| Software specification Description | |
| wifi Mode | Station/SoftAP/SoftAP+Station/P2P |
| security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | for AES/RSA/ECC/SHA |
| firmware upgrade | for UART download/OTA(Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| networking protocol | for IPv4, for IPv6, for SSL, for TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, for android/iOS app |
| OS | for FreeRT OS |
Package List:
1 * Camera Module
1 * Power Cable
