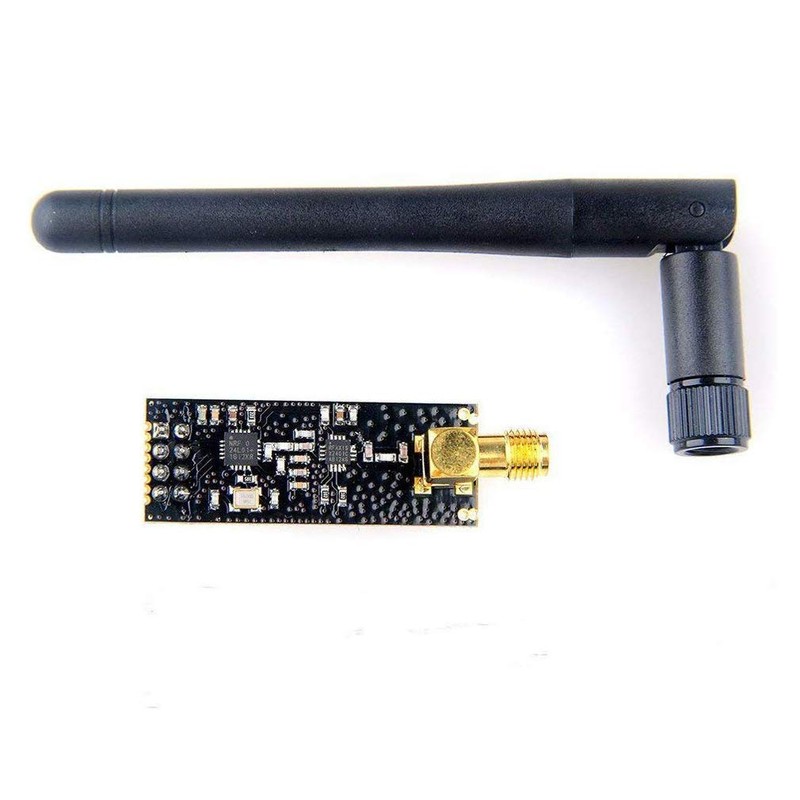

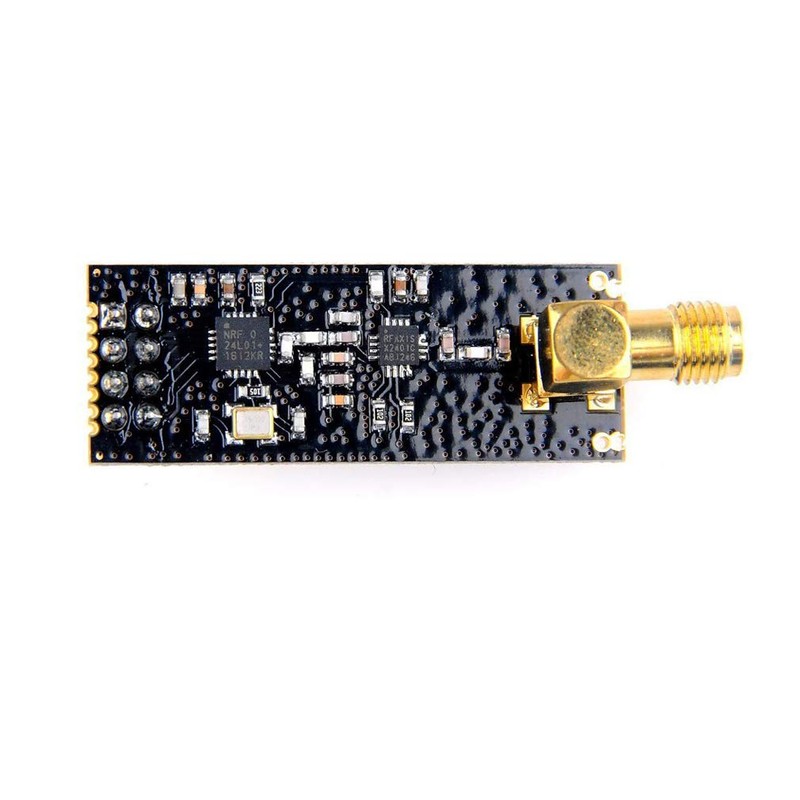

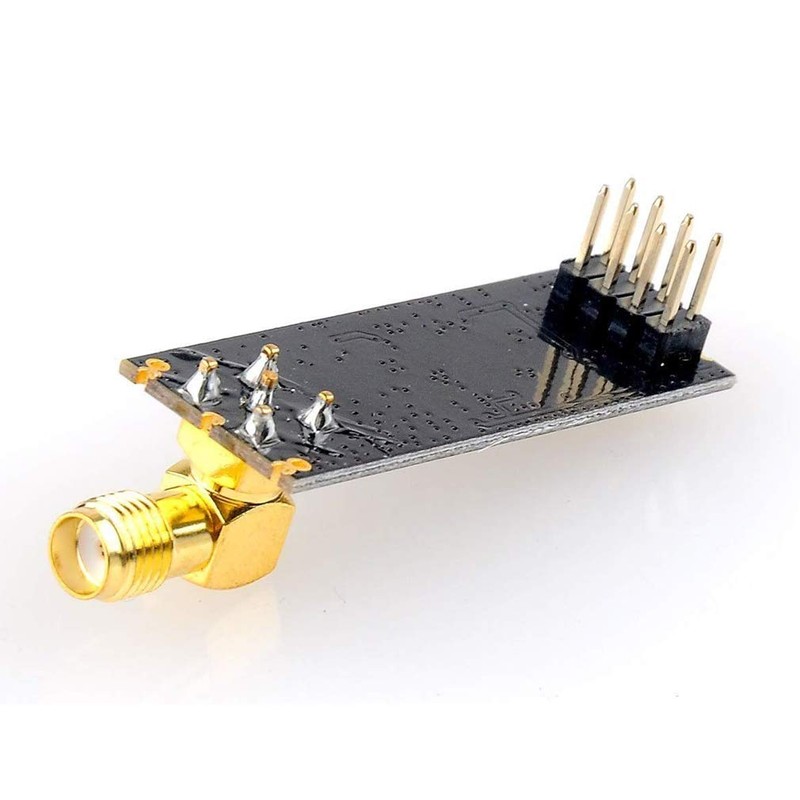

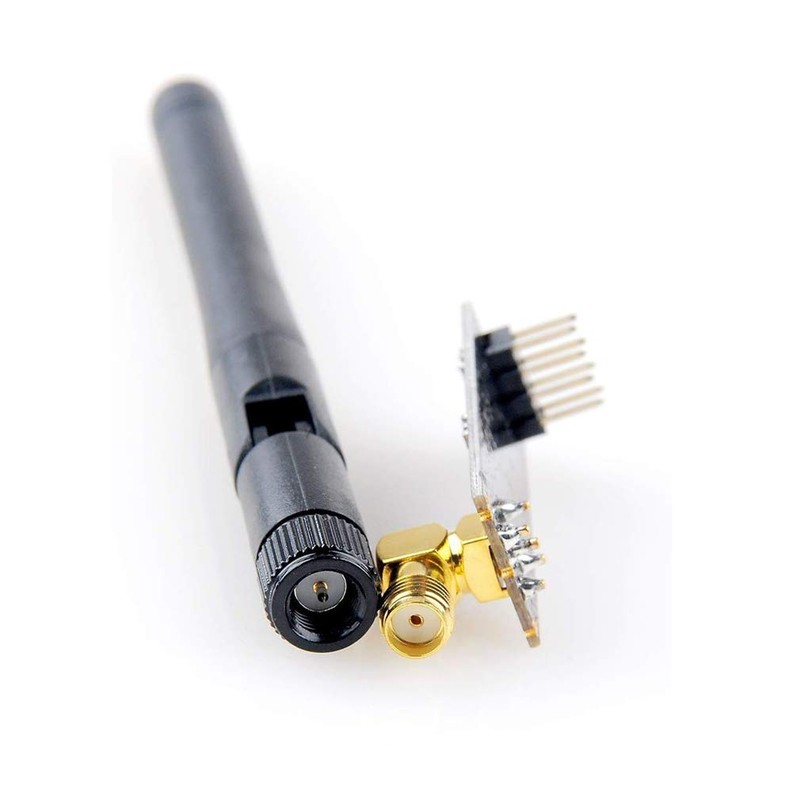

HiLetgo NRF24L01+PA+LNA transceptor inalámbrico RF módulo transceptor con antena SMA 2.4G 1100m
HiLetgo NRF24L01+PA+LNA transceptor inalámbrico RF módulo transceptor con antena SMA 2.4G 1100m
- Chip de transmisión de datos inalámbrico de alto rendimiento NRF24L01+, un aumento de chips PA y LNA de alta potencia, interruptores RF, filtros de paso de banda y otros amplificadores de potencia RF bidireccional completo profesional, haciendo que la distancia de comunicación efectiva se ha ampliado considerablemente.
- El módulo inalámbrico NRF24L01P + PA + LNA funciona en la banda ISM 2.4G sin licencia, puede ser aplicaciones punto a punto también puede formar una red estrella.
- En la parte RF de un gran número de depuración optimizada de emparejamiento, haciendo la más alta eficiencia de transmisión, el más pequeño armónico, haciendo NRF24L01P + PA + LNA módulo inalámbrico para equipos de radio externos para lograr la interferencia de frecuencia más baja, pero también no susceptible a interferencias de otros dispositivos, extremadamente grande, mejora la estabilidad del trabajo.
- El módulo inalámbrico NRF24L01P + PA + LNA está altamente integrado, el tamaño de sólo 41 mm x 15,5 mm, fácil de incrustar en cualquier producto espacial.

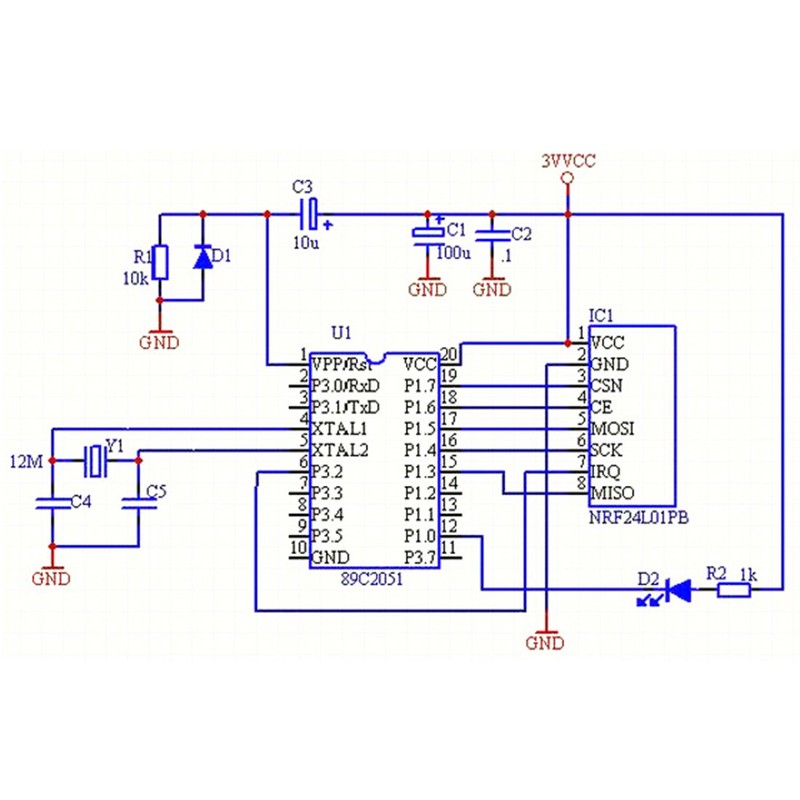

- Los clientes solo necesitan añadir un MCU para controlar NRF24L01P + PA + LNA a través del puerto SPI, módulo inalámbrico para completar el diseño de sistema de transmisión de datos inalámbrico de largo alcance. No hay necesidad de preocuparse por R y D de la parte RF, reduce drásticamente los gastos de R y D y acorta el ciclo de R y D.
| Brand: | HiLetgo |
|---|---|
| Size: | Pequeño |
| Color: | Negro |
| Manufacturer: | HiLetgo |
| Part Number: | WG9HO6Q |
| Isin: | IH8SCNQFNBGX |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
El Addicore nRF24L01 es un transceptor de banda ISM de 2,4 GHz. El transceptor consiste en un sintetizador de frecuencia totalmente integrado, un amplificador de potencia, un oscilador de cristal, un demodulador, modulador y motor de protocolo ShockBurst mejorado.
Un microcontrolador host puede comunicar y configurar el nRF24L01+ a través de una interfaz periférica serie (SPI) de 4 pines. Los registros de configuración son accesibles a través de la conexión SPI.
Los parámetros configurables incluyen canal de frecuencia (125 canales seleccionables), potencia de salida y velocidad de datos (tarifas de datos: 250kbps, 1Mbps y 2Mbps). El módulo tiene entradas tolerantes de 5V que permite la conexión directa de pines SPI.
El filtrado interno da como resultado altos márgenes de cumplir con los estándares regulatorios de RF. La radio del módulo utiliza la modulación Gaussian Frequency-Shift Keying (GFSK) así como el rápido Control Automático de Ganancia (AGC).
Especificaciones:
Frecuencia: 2,4 GHz ~ 2,5 GHz.
Voltaje de funcionamiento: 3 ~ 3.6V Max
Corriente: 115 mA.
Frecuencia múltiple: frecuencia 125
Soporta hasta seis canales de recepción de datos
El paquete incluye:

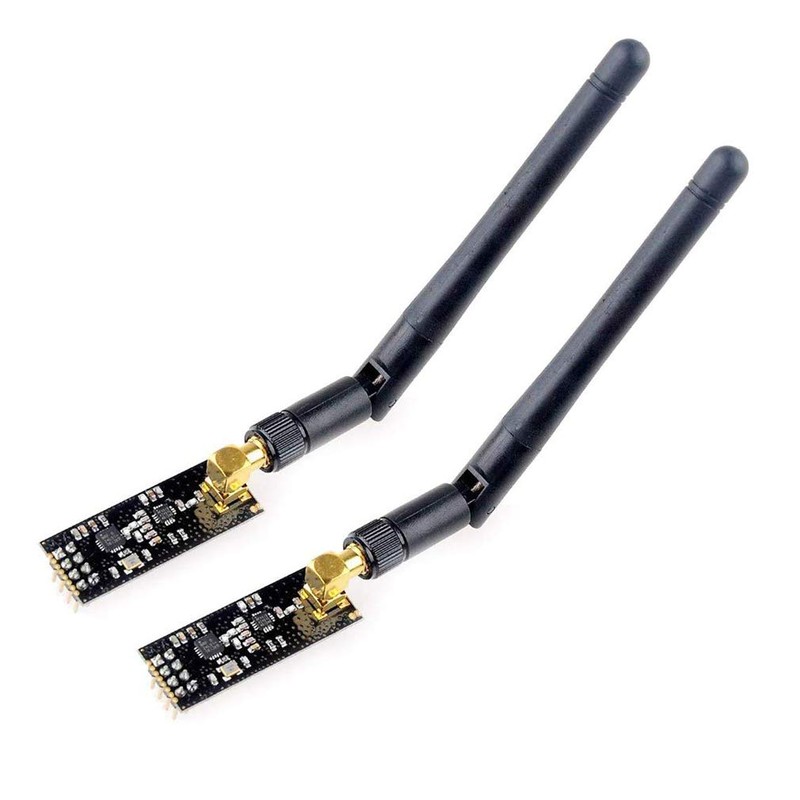

2* NRF24L01+PA+LNA transceptor inalámbrico RF módulo
2* Antena SMA
