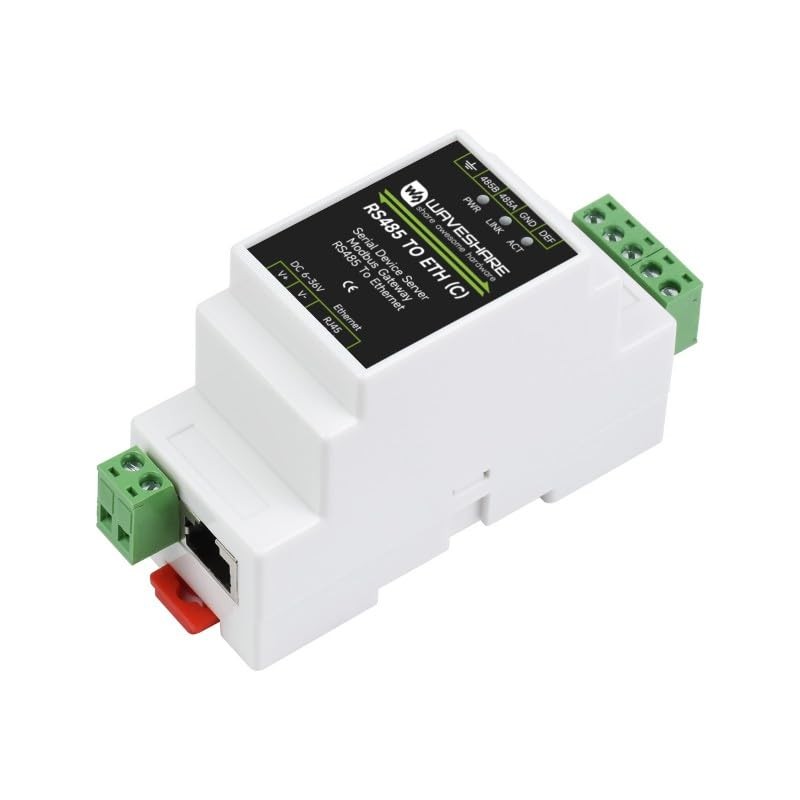

Industrial RS485 to RJ45 Ethernet Serial Server Rail-Mount RS485 to Ethernet Module, TCP/IP to RS485 Converter, Modbus Gateway, MQTT Gateway, IoT Data Acquisitor, Supports TCP/UDP, Multi Host Polling

Brand: coolwell
  • RS485 to Ethernet Conversion - This RS485 serial server enables seamless bi-directional data transmission between RS485 and Ethernet, supporting TCP/IP protocol for industrial IoT applications.
  • Rail-Mount Design & Easy Installation - The compact, rail-mount RS485 to Ethernet module ensures a hassle-free installation, allowing multiple serial servers to be combined for flexible industrial deployment.
  • Modbus Gateway & IoT Support - Functions as a Modbus gateway, MQTT gateway, and RS485 to JSON converter, making it ideal for Modbus gridding upgrades, IoT data acquisition, and industrial automation.
  • Multiple Communication Modes - Supports TCP Server, TCP Client, UDP mode, and UDP multicast, ensuring reliable and efficient data exchange across various industrial network environments.
  • Advanced Network Features – Equipped with user-defined heartbeat and registration packets for cloud communication, NTP protocol support for time synchronization, and Web browser configuration with DHCP and DNS support.
Brand: coolwell
Manufacturer: Coolwell
Part Number: WX68FX3
Isin: IWKZYKFCX4CN

$87.96

$87.98
0% off
  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Industrial RS485 to RJ45 Ethernet Serial Server Rail-Mount RS485 to Ethernet Module, TCP/IP to RS485 Converter, Modbus Gateway, MQTT Gateway, IoT Data Acquisitor, Supports TCP/UDP, Multi Host Polling

Industrial RS485 to RJ45 Ethernet Serial Server Rail-Mount RS485 to Ethernet ...

$87.96 $87.98 (0% off)

Overview

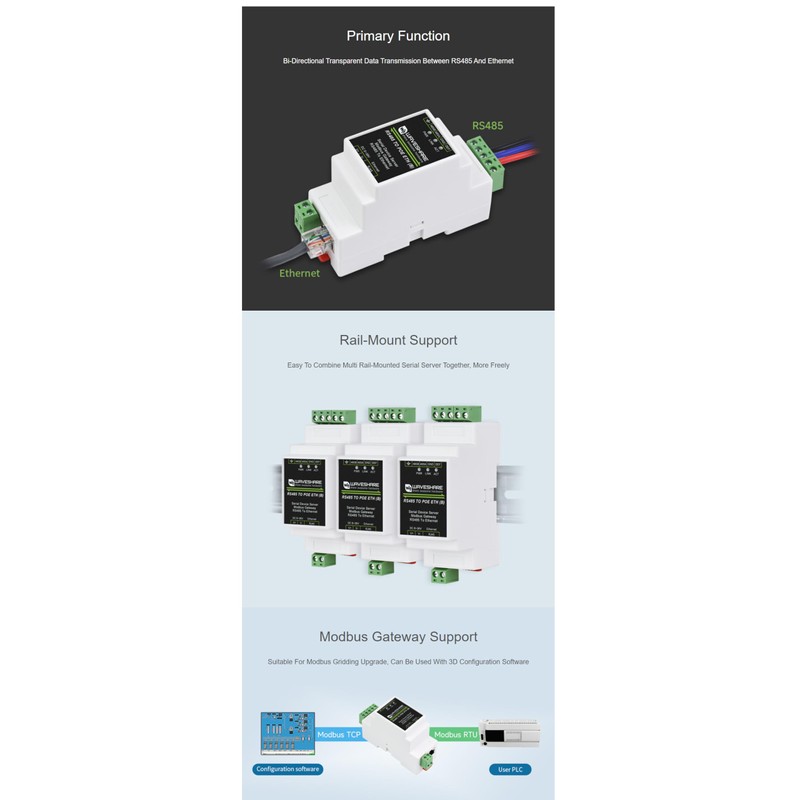

The RS485 to RJ45 Ethernet Serial Server is an industrial-grade RS485 to Ethernet module designed for seamless bi-directional transparent data transmission
between RS485 and Ethernet. This rail-mount RS485 serial server combines multiple functions, including Modbus gateway, MQTT gateway, RS485 to JSON
conversion, and more, making it a powerful tool for industrial IoT applications.

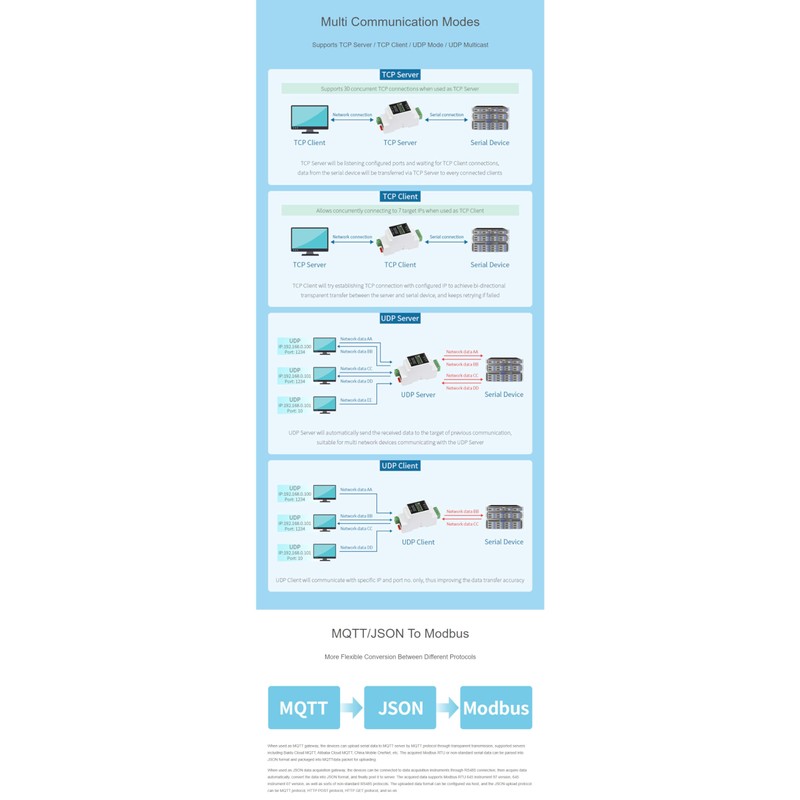

With support for TCP Server, TCP Client, UDP mode, and UDP multicast, this module ensures stable and efficient communication across various industrial network
setups. The multi-host polling feature allows different network devices to be identified and responded to separately, preventing crosstalk issues in multi-device
environments.

Designed for industrial environments, this RS485 to Ethernet converter features a compact, rail-mount enclosure, making it easy to install and integrate multiple
serial servers together. The POE function (optional) further enhances flexibility by allowing power to be supplied through the Ethernet port.

For advanced networking, the module supports NTP protocol for accurate time synchronization, user-defined heartbeat/registration packets for cloud communication,
and multiple configuration methods, including Web browser setup, DHCP for dynamic IP allocation, and DNS support for domain server connections.

This industrial RS485 to Ethernet gateway is perfect for applications such as IoT data acquisition, intelligent instrument monitoring, security IoT, and industrial automation,
offering a reliable and efficient solution for modern networking needs.


Package includes:

Note: The power supply of this product is not included, it is recommended to use with a 12V Industrial DIN-Rail Power Supply.

1. RS485 TO ETH (C) x1
