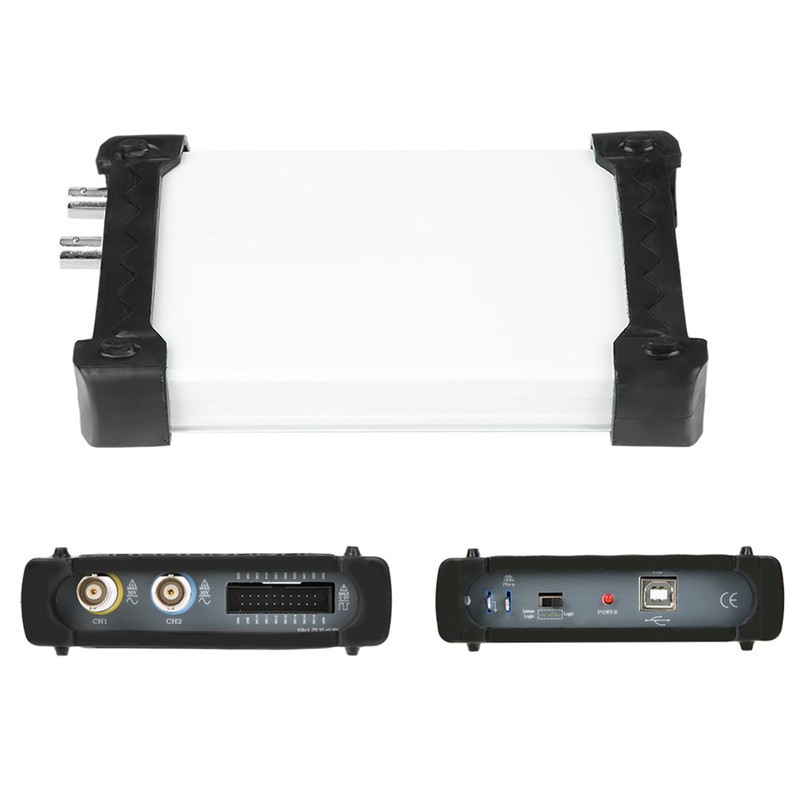

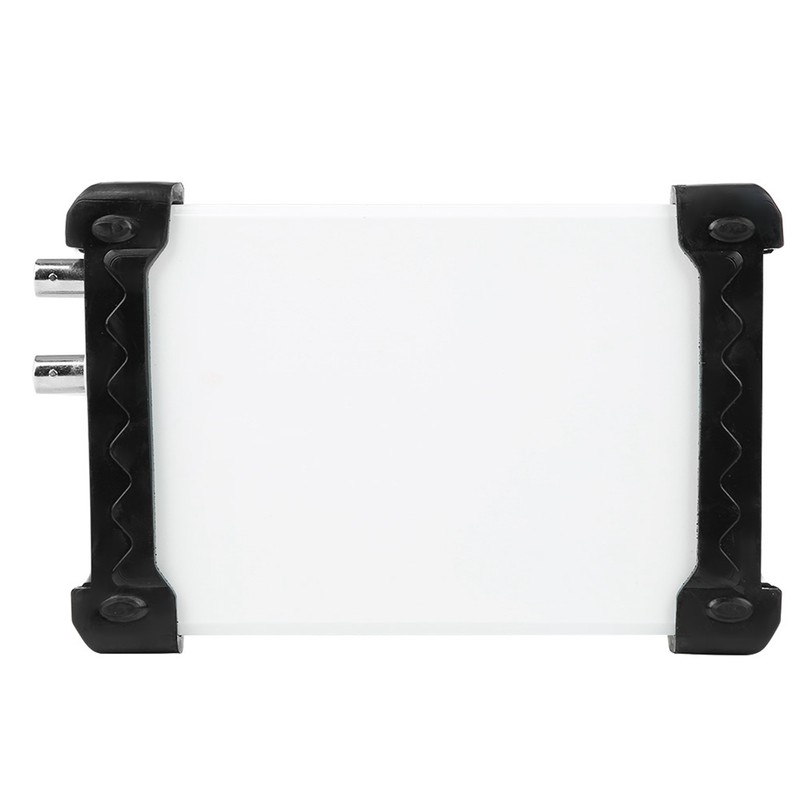

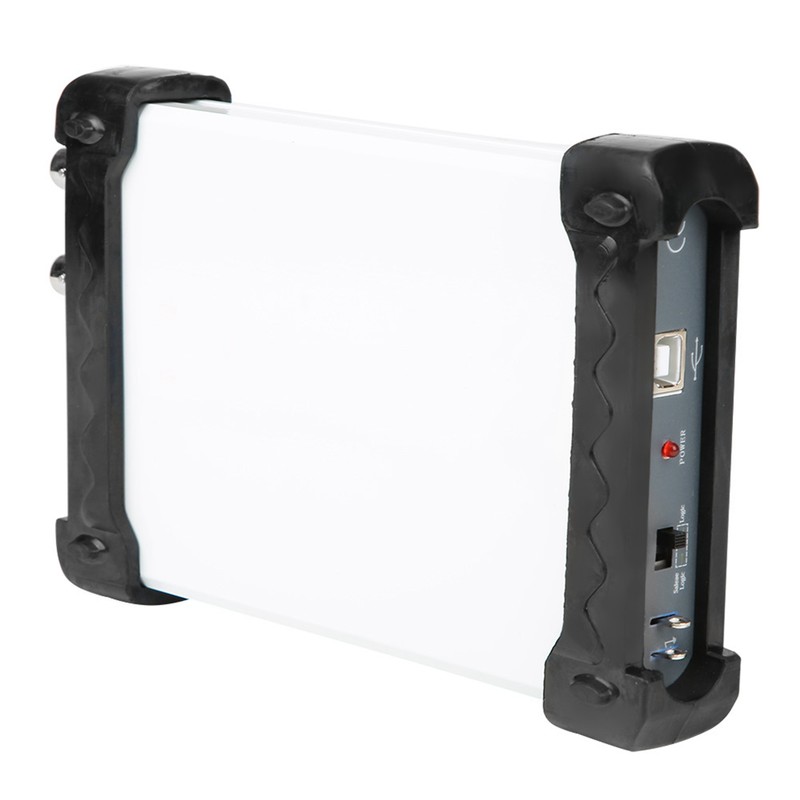

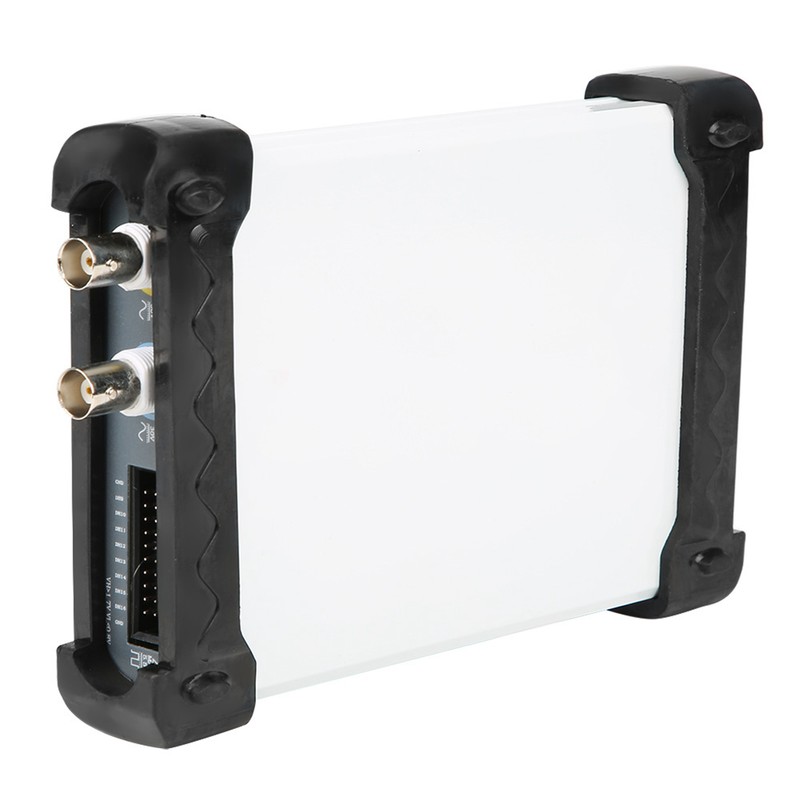

INSTRUSTAR ISDS205C 20M 48Mss USB Oscilloscope   Logic Analyzer   Spectrum Analyzer   Data Record

INSTRUSTAR ISDS205C 20M 48Mss USB Oscilloscope Logic Analyzer Spectrum An...

$115.85

1、ISDS205C dual-channel digital oscilloscope, well-designed bandwidth of 60M, 200M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope,spectrum analyzer, data recorder and logic analyzer 2、The logic analyzer supports Serial Peripheral Interface, IIC, UART and other 16 protocol analysis. 3、The device communicates with PC via high-speed USB2.0. 4、4 in 1, multifunctional, with the functions of digital oscilloscope, spectrum analyzer, data recorder and logic analyzer 5、Super small size, easy to carry, can be put directly into the computer bag, easy to travel and teaching

More Information

Features:

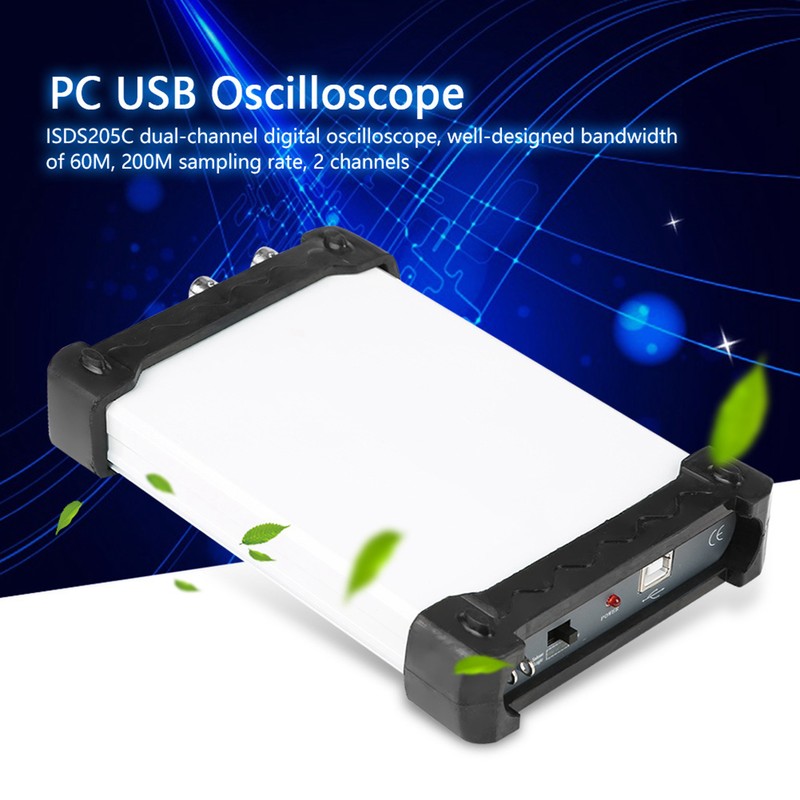

  • ISDS205C dual-channel digital oscilloscope, well-designed bandwidth of 60M, 200M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope,spectrum analyzer, data recorder and logic analyzer
  • The logic analyzer supports Serial Peripheral Interface, IIC, UART and other 16 protocol analysis.

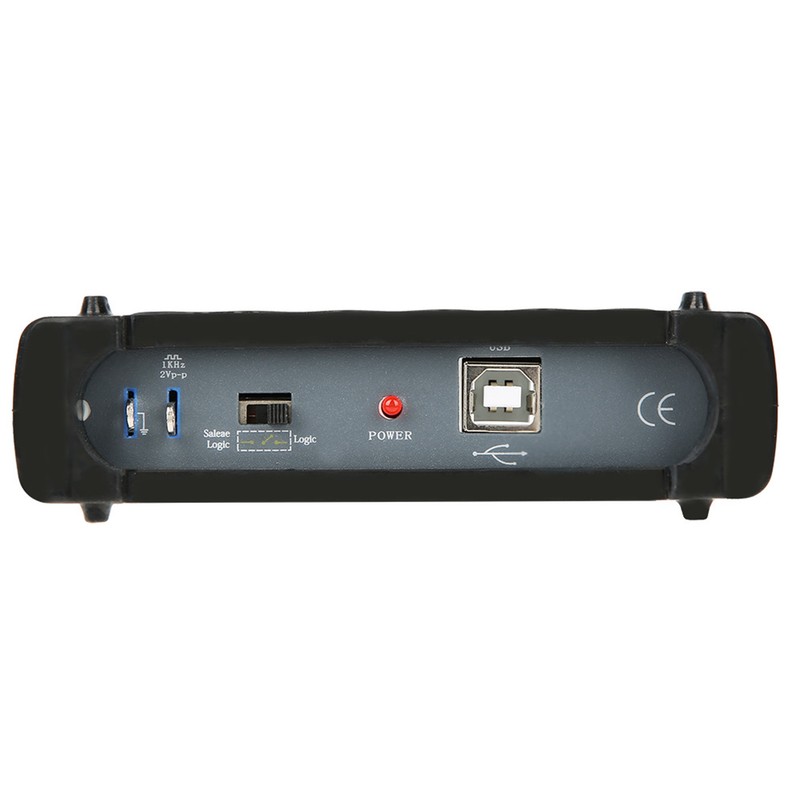

  • The device communicates with PC via high-speed USB2.0.
  • 4 in 1, multifunctional, with the functions of digital oscilloscope, spectrum analyzer, data recorder and logic analyzer
  • Super small size, easy to carry, can be put directly into the computer bag, easy to travel and teaching


Specification:

Digital Oscilloscope ISDS205C
Brand
INSTRUSTAR

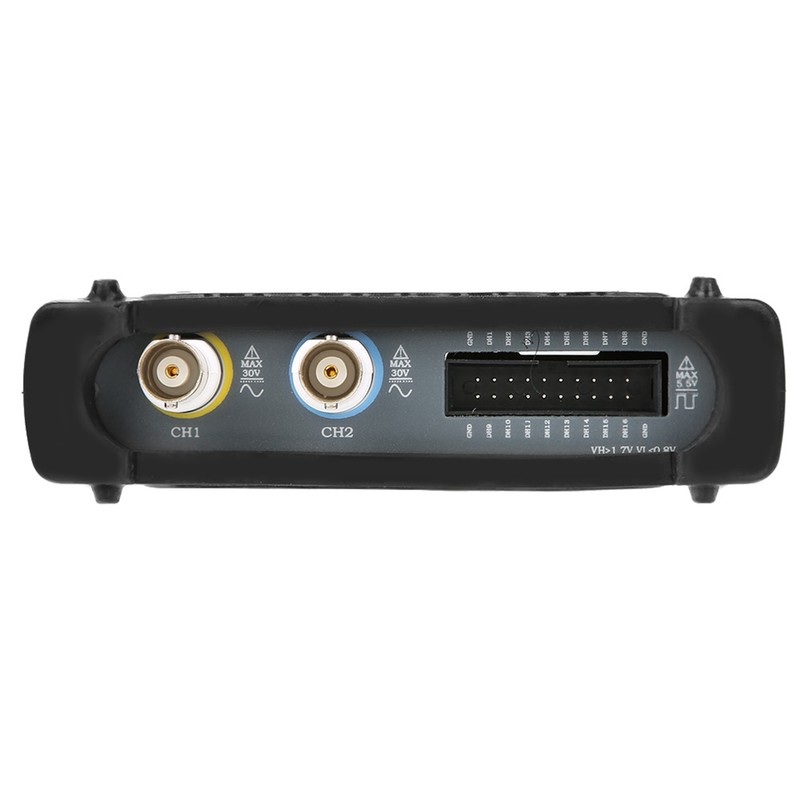

Channels 2
Impedance 1MΩ 25pF
Coupling AC/DC
Vertical resolution 8Bit
Gain range -6V ~ 6V(probe X1)
-60V ~ 60V(probe X10)
Vertical accuracy ±3%
Timebase range 1ns-20s
Input Protection Diode,50Vpk
Autoset Yes(10Hz to 20MHz)
Trigger Mode Auto,Normal and Signal
Trigger Type No,Rising edge,Falling edge,
Rising edge or Falling edge
Trigger level Yes
Trigger Source CH1, CH2
Buffer Size 1MB/CH
Bandwidth 20MHz
Max sample 48MS/s
Vertical mode CH1, CH2, ADD, SUB, MUL
Display Mode X,Y-T and X-Y
Measurements Yes
Wave save Osc(Private),Excel and Bmp
Spectrum Analyzers
Channels 2
Bandwidth 20MHz
Algorithm FFT(18 windows),Correlation
FFT points 8-1048576/CHN
FFT measure Harmonic(1-7),SNR,SINAD,ENOB,THD,SFDR
Filter processing

FIR filter supports arbitrary range of frequency sampling method ,

and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning,

 hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman,

Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design.
    IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II",

"Elliptic" type of filter design.

Data Recorder
Channel  2
Impedance 1MΩ 25pF
Coupling AC/DC
Vertical resolution 8Bit
Gain range -6V ~ 6V(probe X1)
-60V ~ 60V(probe X10)
Sample 1 channel : 1K~24M Hz
2 channel : 1K~16M Hz
Save File The maximum 4G, recording time associated with the sampling rate
Logic Analyzer

Channel
16

Sample


8 channel: 250K~24M Hz

16 channel: 250K~16M Hz

Sample points

1M-2GB

  Logic Analyzer



Channel

8

Sample

25K~24M Hz

Protocol Analyzer

Atmel SWI, BiSS C, Serial Peripheral Interface, I2C, CAN, UART, I2S/PCM, DMX-512, JTAG, LIN, Manchester, 1-WIRE, UNI/O, Simple Parallel, MDIO, USB1.1, PS/2 Keyboard/Mouse

Sample points

1MB~10TB

Size

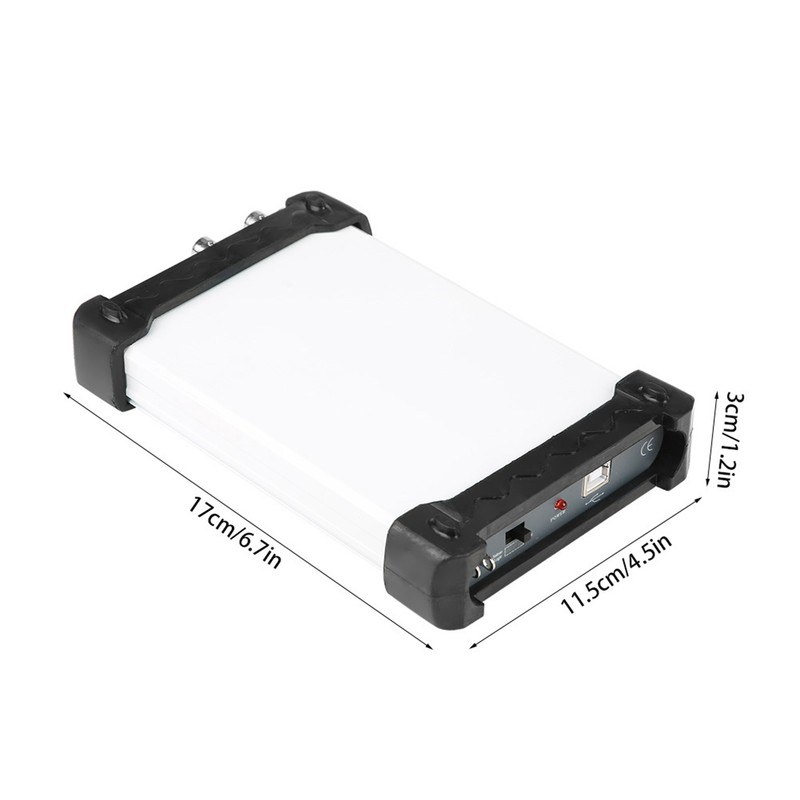

17*11.5*3cm/6.7*4.5*1.2in
Weight
 Approx.688g/24.3oz

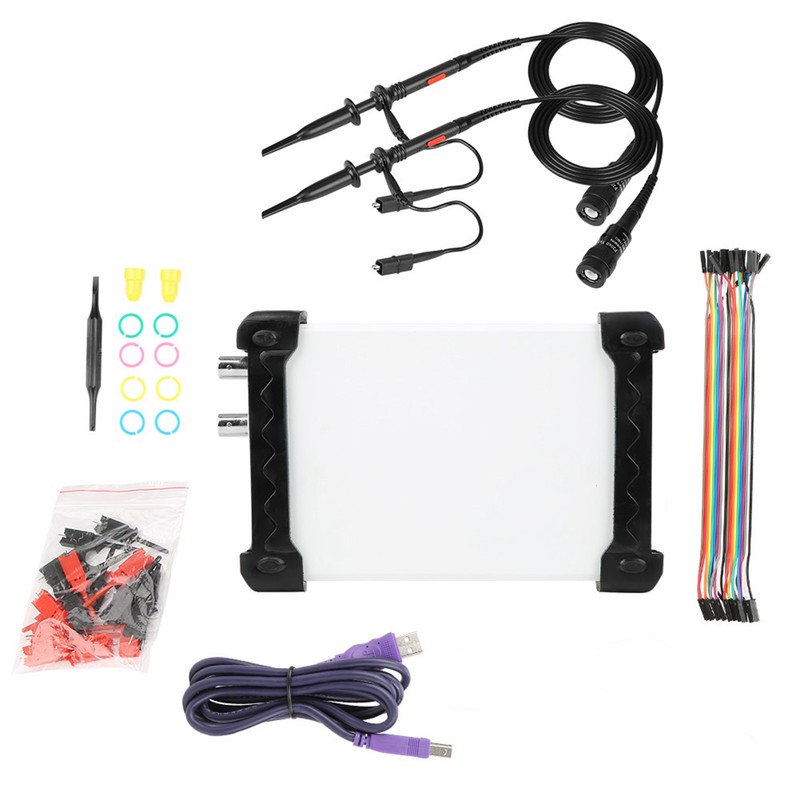

Package list:

1* virtual oscilloscope
1 * Ribbon cable

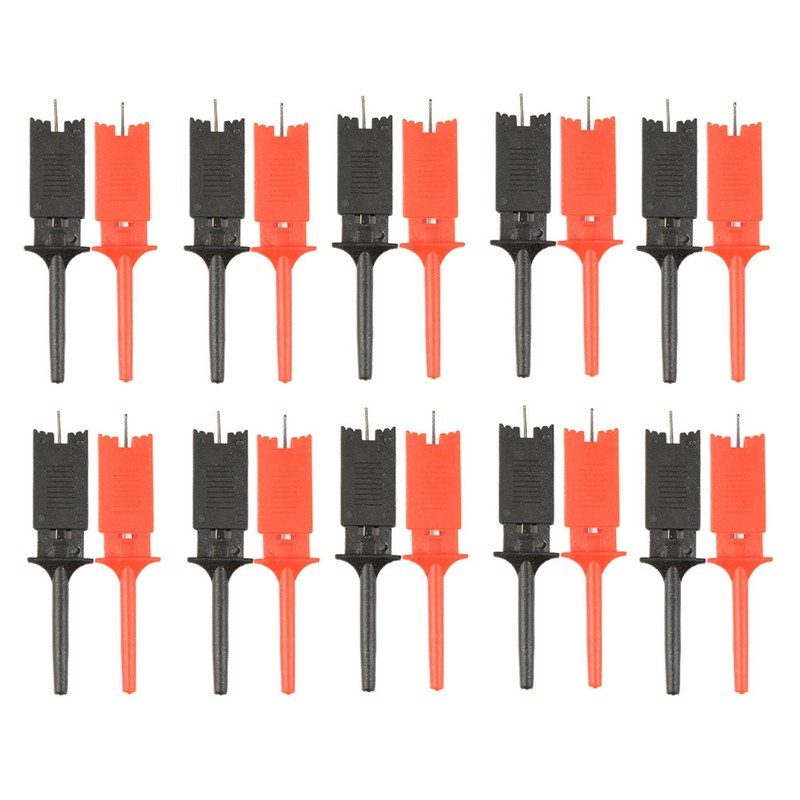

20 * test hook

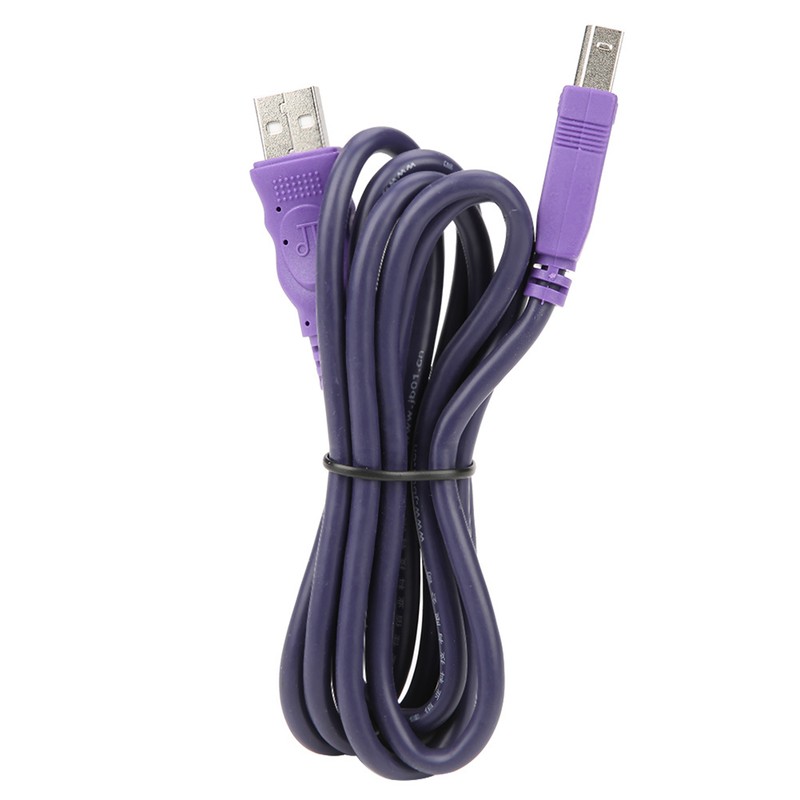

1 * USB cable

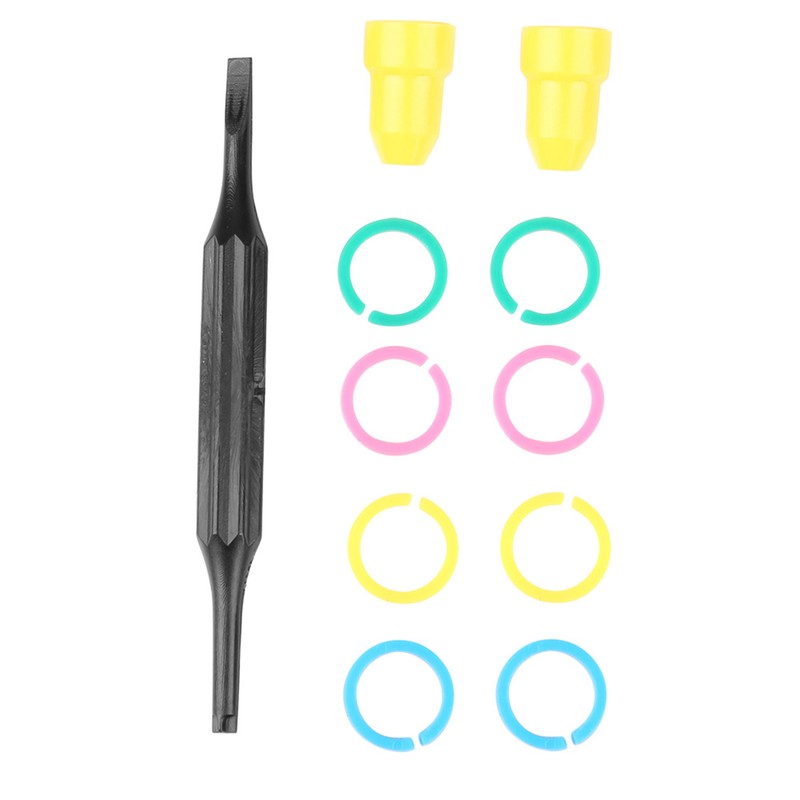

1 * adjust tool
2 * protection sleeve
8 * id ring
1 * CD
