IOTA 20W Constant Power High Voltage Emergency LED Driver ILBHI CP20 HE SD HV A

Brand: IOTA

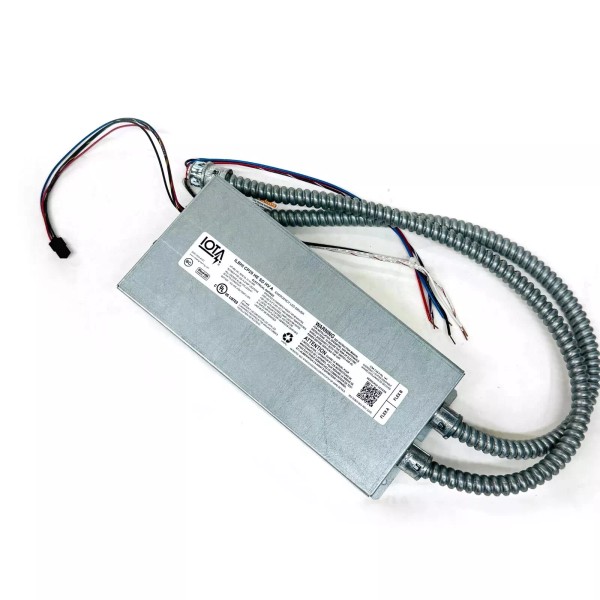

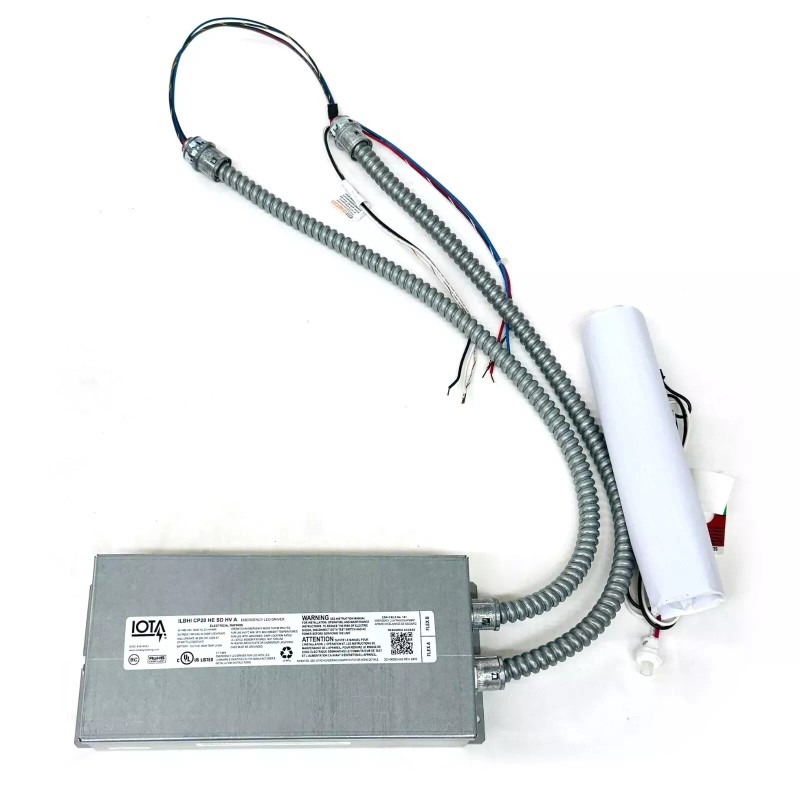

IOTA 20W Constant Power High Voltage Emergency LED Driver ILBHI CP20 HE SD HV A
ILBHI-CP20-HE-SD-HV-A
UPC: 194994628217
ILBHI CP20 HE SD HV Emergency LED Driver
20 Watt Emergency LED Driver for 347-480 VAC Luminaires with 55-200 VDC Non-Class 2 LED Loads
Description
The IOTA ILBHI CP20 HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBHI CP20 HE SD HV switches from the existing AC driver to operate the fixture from the battery supply for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 20 Watts Constant Power
  • 55-200 VDC Nominal Output
Product Advantages
  • 347 to 480V Input
  • Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
  • Auto-Sensing Non-Class 2 Output
  • Auto-adjusting 55-200 VDC output range accommodates a wide range of Non-Class 2 forward voltage designs
  • Constant Power Performance
  • Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Self-Diagnostic / Self-Testing
  • Monthly and annual self-test feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
  • High Output for Increased Illumination
  • 20W Emergency output is ideal for elevated mounting heights and high-bay fixtures
Understanding Your IOTA Driver Model:
  • ILBHI = IOTA Emergency LED Driver with High-Voltage Input
  • CP** = Constant Power Performance at the rated wattage
  • HE = High efficiency charging control for CA Title 20 requirements
  • SD = Self-diagnostic capability
  • HV = High voltage output for non-class 2 LED loads
  • A = Dual Flex
Specifications
  • Product Type Emergency LED Driver
  • Voltage Rating 347-480
  • Frequency 50/60HZ
  • Load Voltage Rating 55-200 VDC
  • Output Power 20 Watts
  • Max. Operating Temp. 55
  • Min. Operating Temp. 0
  • Battery Run Time 90 min
  • Battery Chemistry Type Lithium Iron Phosphate
  • Battery Recharge Time 24 hours
  • Battery Activation AC Activate
  • Life Safety Testing Self Diagnostics, Self Test
  • Regulatory Listing C-UL-US
  • Compliance Listing CA Title 20, ROHS
  • Series ILBHI
Brand: IOTA
Isin: IBDXOTNIQLHC

$182.04

$182.60
0% off
  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
IOTA 20W Constant Power High Voltage Emergency LED Driver ILBHI CP20 HE SD HV A

IOTA 20W Constant Power High Voltage Emergency LED Driver ILBHI CP20 HE SD HV A

$182.04 $182.60 (0% off)

IOTA 20W Constant Power High Voltage Emergency LED Driver ILBHI CP20 HE SD HV A


ILBHI-CP20-HE-SD-HV-A

UPC: 194994628217

ILBHI CP20 HE SD HV Emergency LED Driver

20 Watt Emergency LED Driver for 347-480 VAC Luminaires with 55-200 VDC Non-Class 2 LED Loads


Description

The IOTA ILBHI CP20 HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBHI CP20 HE SD HV switches from the existing AC driver to operate the fixture from the battery supply for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.


LED Operation
  • 20 Watts Constant Power
  • 55-200 VDC Nominal Output

Product Advantages
  • 347 to 480V Input
  • Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
  • Auto-Sensing Non-Class 2 Output
  • Auto-adjusting 55-200 VDC output range accommodates a wide range of Non-Class 2 forward voltage designs
  • Constant Power Performance
  • Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Self-Diagnostic / Self-Testing
  • Monthly and annual self-test feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
  • High Output for Increased Illumination
  • 20W Emergency output is ideal for elevated mounting heights and high-bay fixtures

Understanding Your IOTA Driver Model:
  • ILBHI = IOTA Emergency LED Driver with High-Voltage Input
  • CP** = Constant Power Performance at the rated wattage
  • HE = High efficiency charging control for CA Title 20 requirements
  • SD = Self-diagnostic capability
  • HV = High voltage output for non-class 2 LED loads
  • A = Dual Flex

Specifications
  • Product Type Emergency LED Driver
  • Voltage Rating 347-480
  • Frequency 50/60HZ
  • Load Voltage Rating 55-200 VDC
  • Output Power 20 Watts
  • Max. Operating Temp. 55
  • Min. Operating Temp. 0
  • Battery Run Time 90 min
  • Battery Chemistry Type Lithium Iron Phosphate
  • Battery Recharge Time 24 hours
  • Battery Activation AC Activate
  • Life Safety Testing Self Diagnostics, Self Test
  • Regulatory Listing C-UL-US
  • Compliance Listing CA Title 20, ROHS
  • Series ILBHI
  • Brand: IOTA
  • Type: LED Emergency Driver
  • Output Power: 20 W
  • MPN: ILBHI-CP20-HE-SD-HV-A
  • Input Voltage: 347-480 V AC
  • Output Voltage: 55-200 V DC
  • UPC: 194994628217
