IR Remote Range Extender Over Cat5 5e Cat6 Cable Max Transmission 300m 960FT
IR Remote Range Extender Over Cat5 5e Cat6 Cable Max Transmission 300m 960FT
IR Remote Range Extender Over Cat5 5e Cat6 Cable Max Transmission 300m 960FT

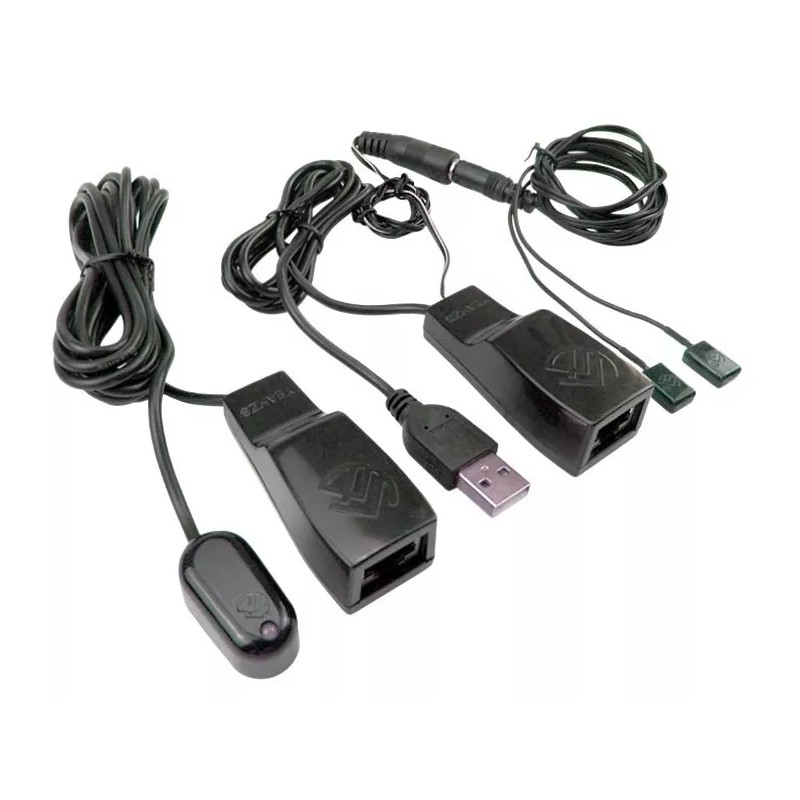

IR Remote Over Cat5 Cat6 Extender Kit With 2 IR Blasters
This IR remote control over CAT5 CAT6 extender kit provides an easy solution for extending IR remotecontrol to greater distance up to 300m or 960 feet over the flexible CAT5 or CAT6 cable.
Using inexpensive CAT5/6cable.Users can use the original devices' remote controllers to manage and control multipleIR-controlled devices at remote site and local site regardless of the barriers withno IR signal loss at all.
Its IR transmitter unit has a dual-head IR blaster allowing users can manage 2 video source equipments at the same time.
Its design allows users to conceal and controlelectronic equipment such as DVD player, cable box, Hi-Fi system or anyremote-controlled device located behind closed doors, cabinet, closet or inother rooms/building.
Easy Setup
It is all just cabling hookup. The IR transmitter/repeater near users will pick up the IR remote signaland transmit the IR remote signal through the cat5/6 cable to reach the receiver end.
And the IR receiver emits the remote control signal throughits IR blaster wires to command the devices.
Long IR Remote Control Range With Solid Quality
Solid IR remote control signal will be maintained all the way compared with those wireless type IR extenderkits with unstable performance.

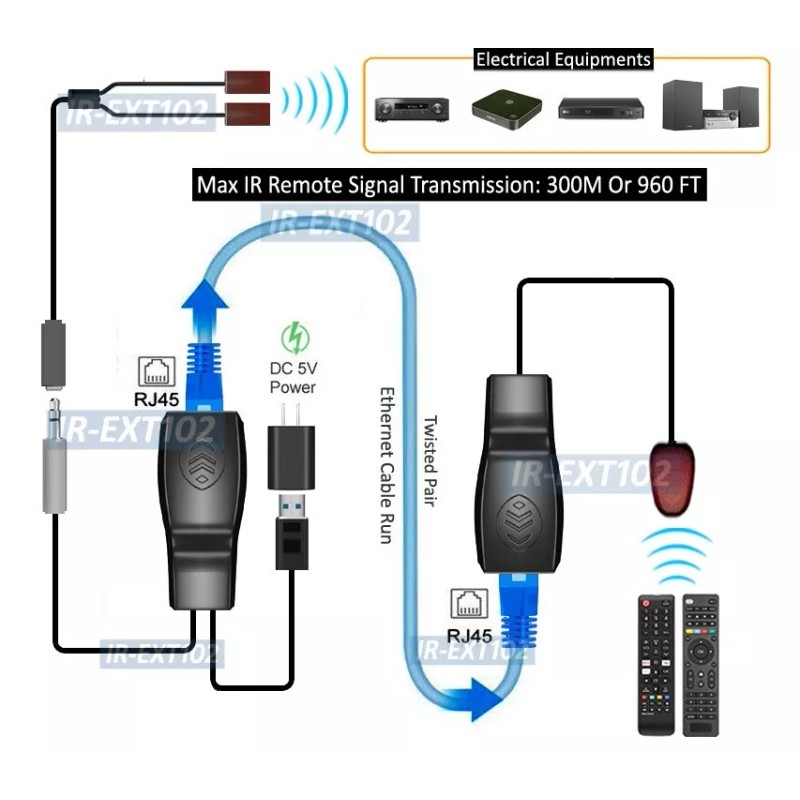

And the maximum transmission range that the IR remote control signalcan be extended as far as 960 feet or 300 meters.
Very suitable for home theater, multimedia center, A/V control rooms, conference rooms, tradeshow Expo, auditorium, etc.
Maximum Flexibility
CAT5, CAT5e and CAT-6 twisted pair cables are more flexible than regular coax and RCA cables. They are easier to hide away in offices, buildings and behind walls for ultimate flexibility. Nice and neat setup is also a must for all professional installers.
Easy Power Supply
Both the IR TX (transmitter/repeater) unit and RX (receiver/extender) unit share single one power supply.
And both transmitter and receiver units will get the power supply needed transmitted through the Ethernet Cat5 Cat6 cable connected.
- Great IR over Cat5/6 transmitter solution for extending IR remote control operation to greater distance by sending the infrared remote control signals over CAT5 or CAT6 cable.
- Low-cost solution for extending IR remotecontrol to greater distance up to 300m or 960 feet over the flexible CAT5 or CAT6 cable.
- Its design allows users to conceal and control electronic equipment such as DVD player, cable box, Hi-Fi system or anyremote-controlled device located behind closed doors, cabinet, closet or in other rooms/building.
- The IR transmitter unit has a dual-head IR blaster allowing users can manage 2 video source equipments at the same time
- Solid IR remote control signal guaranteed all the way compared with the wireless models.
- Wide-range product applications for home theater/entertainment setup, conference room, multimedia center, classroom, trade show, business presentation and other commercial A/V installations.
- Fully compliant with standard modulated IR and the latest IRDA.
- 5-feet long IR remote sensor wire and IR blaster/emitter wires included.

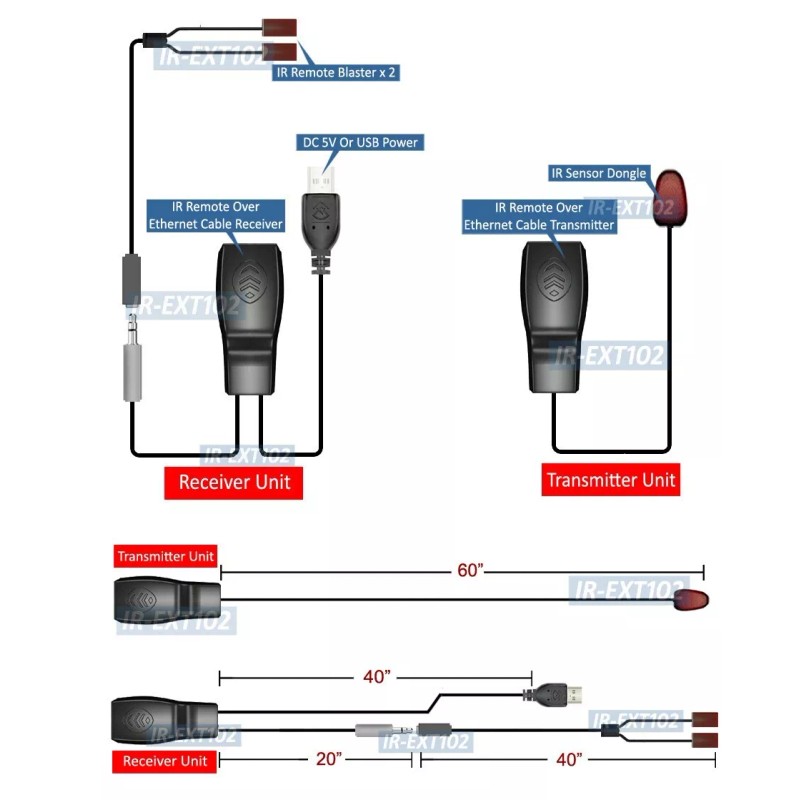

- IR Remote Transmitter Unit:
- Input: IR Sensor Port x1
- Output: Ethernet Port x1 + IR Blaster Port x2
- IR Remote Receiver Unit:
- Input: Ethernet Port x 1
- Output: IR Blaster Port x 2
- IR Receiver Frequency Range: 30 ~ 60 Khz
- Power Supply: 110V to 240V AC input with 5V/1A DC through USB wall charger
- IR Transmitter (Repeater) unit x 1
- IR Receiver (Extender) unit x 1
- Dual-head IR blaster wire x 1
- User manual
| Brand: | Unbranded |
|---|---|
| Isin: | I8OGZRJHVTFR |
