Jadeshay Current Meter Switch AC240V 0.2-30A Adjustable AC Current Detection Switch Current Sensor Switch Current Detection Alarm Module SZC23-NO-AL-CH Normally Open Current Meter Switch
Jadeshay Current Meter Switch AC240V 0.2-30A Adjustable AC Current Detection Switch Current Sensor Switch Current Detection Alarm Module SZC23-NO-AL-CH Normally Open Current Meter Switch
Jadeshay Current Meter Switch AC240V 0.2-30A Adjustable AC Current Detection Switch Current Sensor Switch Current Detection Alarm Module SZC23-NO-AL-CH Normally Open Current Meter Switch
- Current meter switch opener: a normally open current meter switch specially designed to solve the problem of AC monitoring. It uses the principle of mutual inductance to detect AC current, isolate AC current and output normally open or normally closed switching signals.
- 【UTILISATION】: Self-powered current meter switch AC, no external power supply required, AC detection switch has high accuracy, sensitive and fast response, operating current is 0.2 to 30A AC, stable operation, adjustable with potentiometer to meet the needs of different devices.
- 【INTELLIGENCE】: High-performance MOS tube non-contact electronic switch that can directly control various industrial automated devices, such as flashing lights, buzzers, relays, single-chip microcomputers or other electrical load devices.
- 【Parameters】: Accuracy: 1%, offset: ≤1%, response time: ≤200ms, with LED display, the current meter switch can easily and intuitively display the working status of the feedback current meter switch and make adjustments in time. .
- 【APPLICATION】: With strong practicality, this current meter switch is widely used in substations, frequency conversion speed control devices, inverter devices, electrolytic coating, electric locomotives, street lighting monitoring, coal mines and other automation industries that require power monitoring.
| Brand: | Jadeshay |
|---|---|
| Size: | 0.2-30A |
| Manufacturer: | Jadeshay |
| Part Number: | PYRC82Z |
| Material Type: | Acrylonitrile Butadiene Styrene |
| Isin: | IAYZTUO5CEQW |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

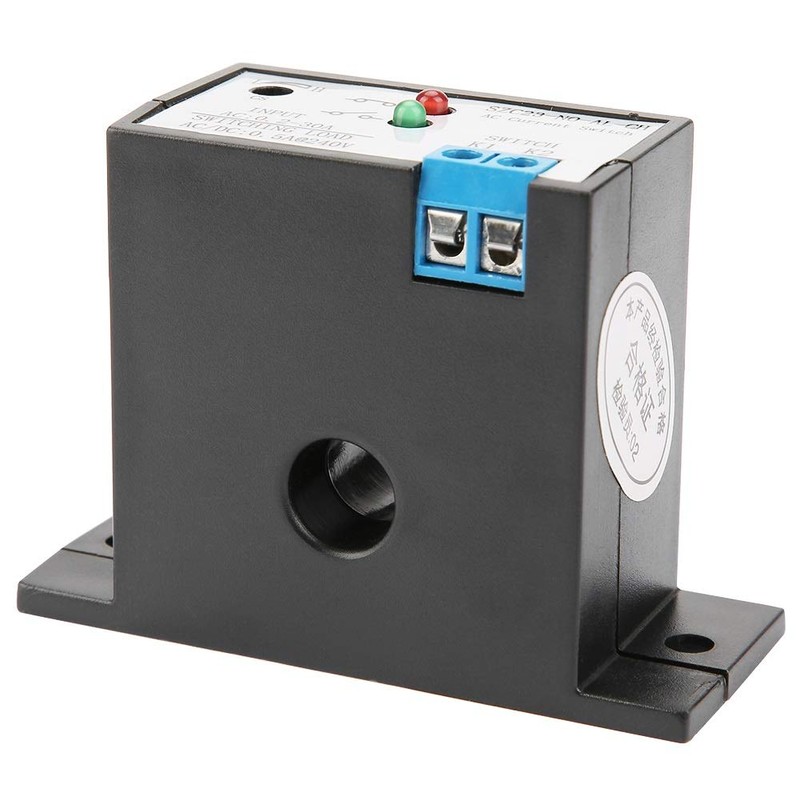

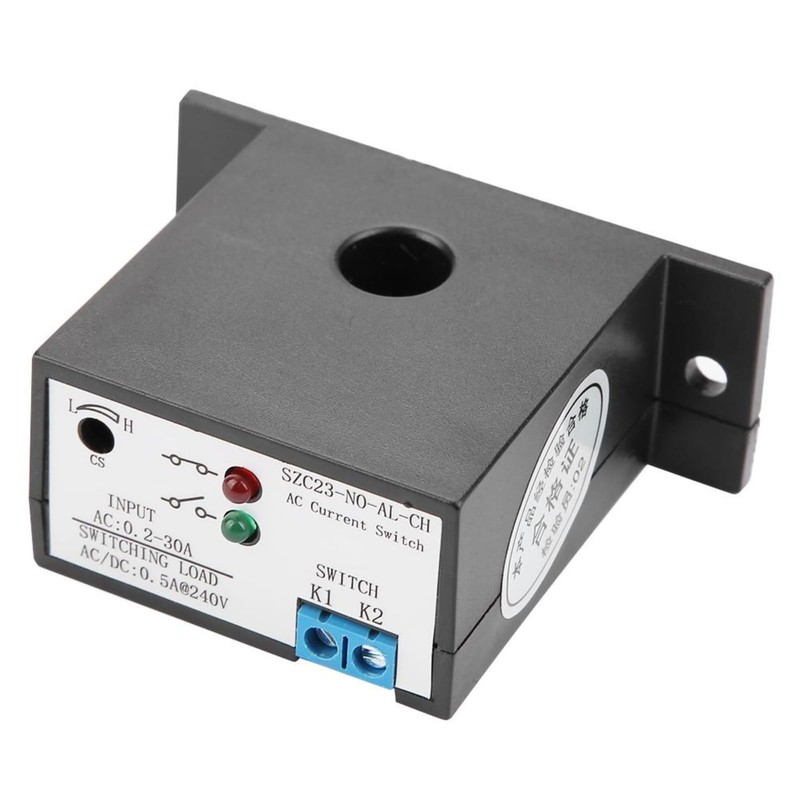

The SZC23 series AC meter switch is designed and manufactured for AC current monitoring. It uses the principle of mutual inductance to detect AC current, isolate AC current and output a normally open or normally closed switching signal to various industrial automation devices, such as flash light, buzzer, relay, single chip or other power consumers, directly control. Compared to conventional mutual inductors, thermal protection devices and other devices, this device can not only achieve more accurate and timely control, but it can also greatly simplify the design and reduce costs.
Features:
1. Self-powered, no external power required.
2. Operating current 0.2-30A AC, adjustable with a potentiometer.
3. The LED indicator can conveniently and intuitively display the operating status of the switch.
4. Contactless electronic switch with high performance MOS tube
5. The switch has no limit on the number of opening and closing operations and the response speed reaches the ms level.
6. Linear design, insulation up to 2000V.
7. The hysteresis is less than 1% and can be used under strong magnetic conditions.
8. The outer casing is made of self-extinguishing ABS.

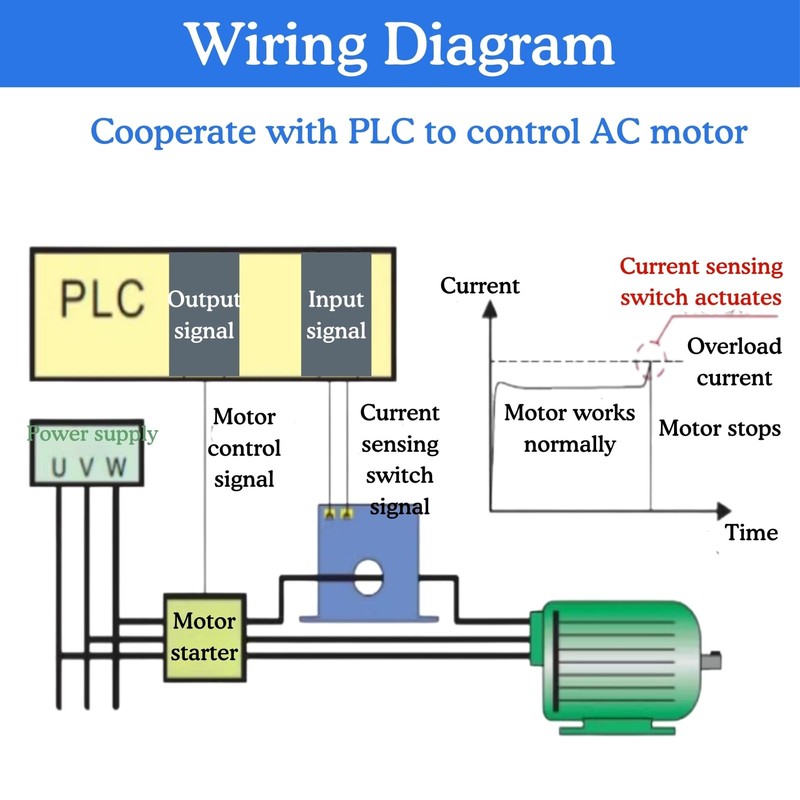

9. Suitable for measuring and monitoring AC current, overload protection of AC motors, electronic switch of automatic control system, etc.

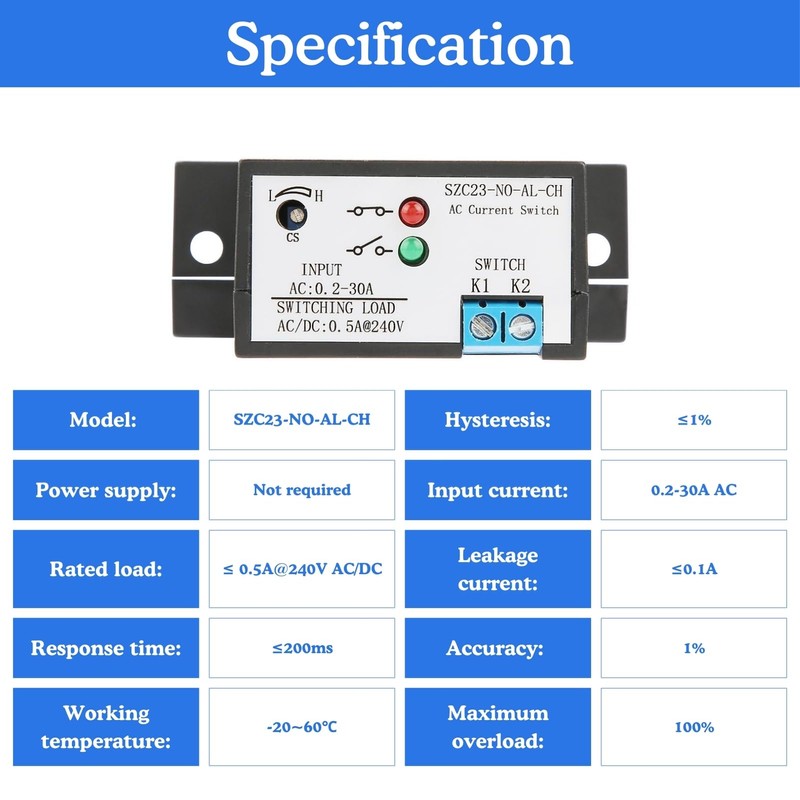

Specification:
Model: SZC23-NO-AL-CH
Power supply: not required.
Rated load: ≤ 0.5 A @ 240 V AC/DC.
Input Current: 0.2-30A AC
Minimum inrush current: 0.5±0.2A
Maximum overload: 100%.
Leakage current: ≤ 0.1 A.
Accuracy: 1%
