Honda CBR600RR   2007-2025

Complete Performance 525 Conversion Chain & Sprockets Kit

16t/42t Exact OEM

       -or-   15t/43t (-1t/+1t) Quick Acceleration (DEFAULT SETUP FOR THIS KIT)

              -or-   16t/43t (OEM/+1t) MINOR Quicker Acceleration

Included in this kit unless otherwise specified: 15t/43t (-1t/+1t) QUICK ACCELERATION gearing sizes will be sent as follows..

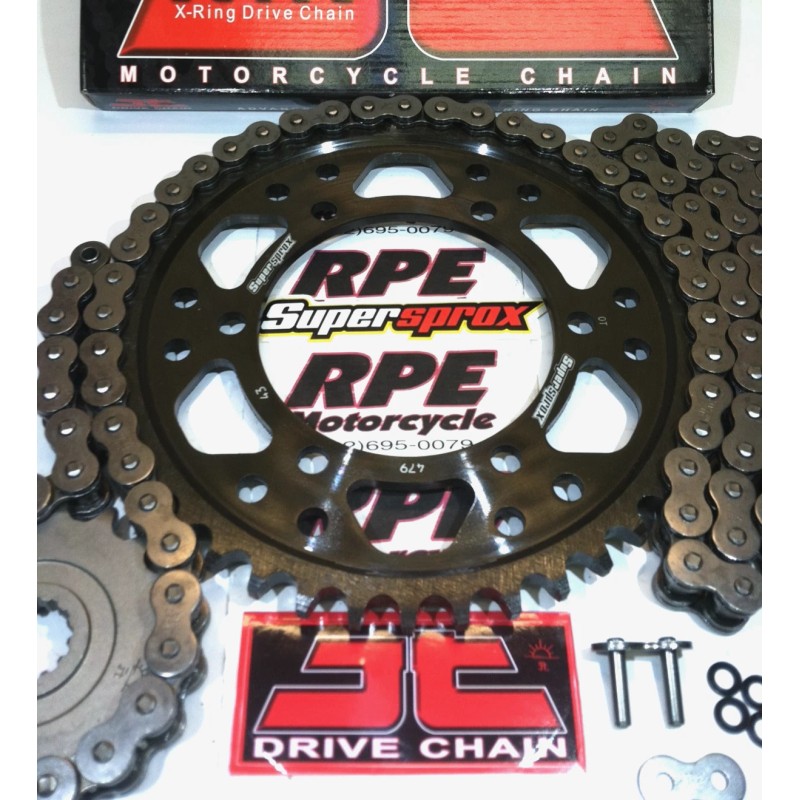

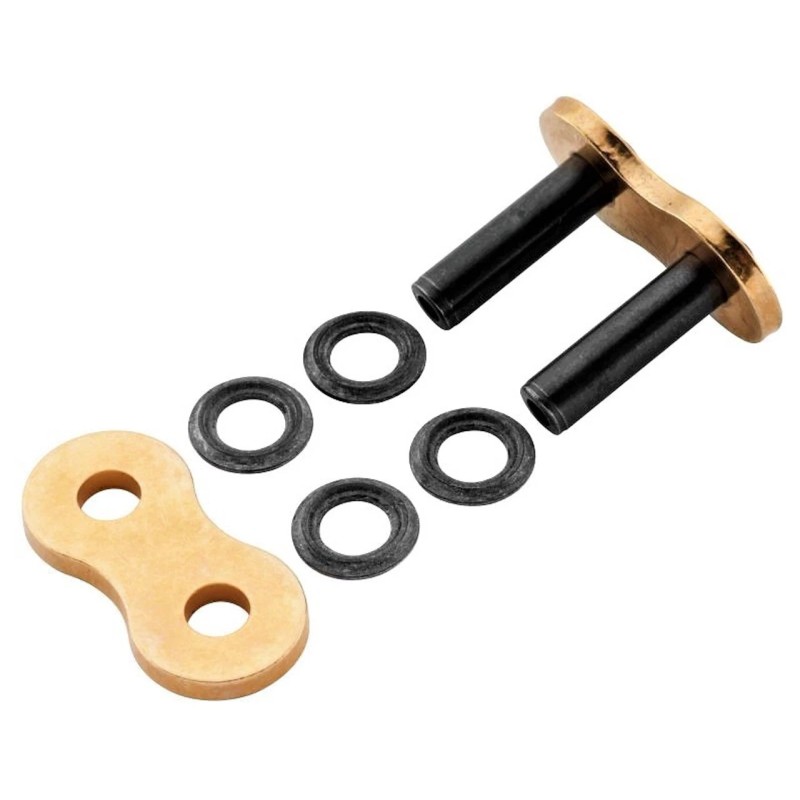

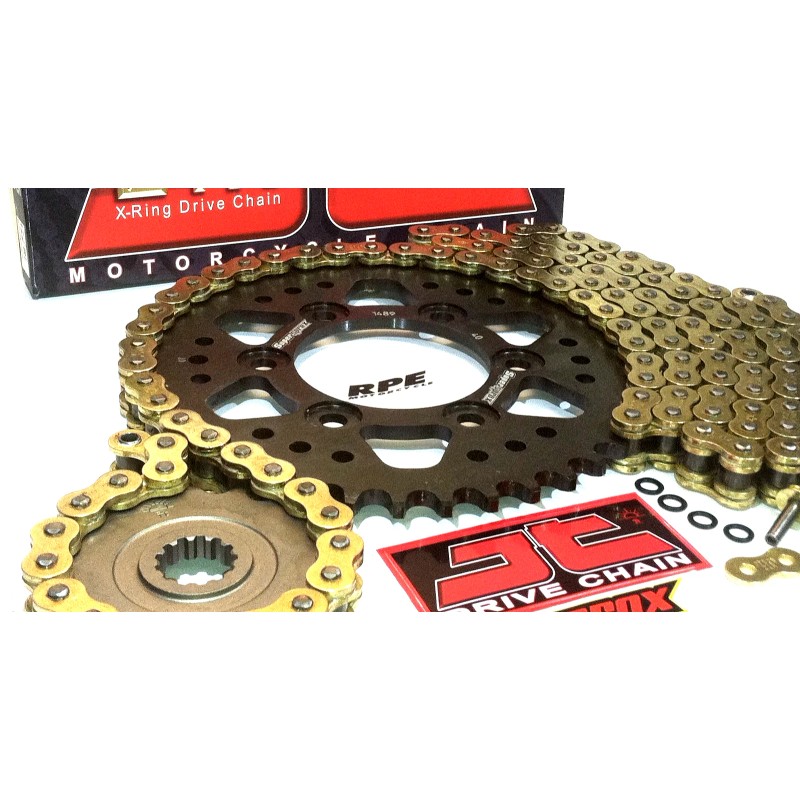

JT 15t (-1t) tooth  Front & 43t (+1t) tooth SuperSprox Black Steel Rear Sprocket (Silver sprocket only available in 42t) (scm420 Chromoly Japan steel alloy front, C49 High Carbon Black Japan steel rear) and a high strength JT Z3 GOLD 525x112L      X-Ring Chain including a RIVET type master link.

  JT Z3 525 X-Ring Chain is also available in  Natural Silver/BLACK  by request.

       (JT calls it Black, but it's more like Dark Silver)

Leave note in "Message To Seller" tab during step 2 of checkout to request optional size sprockets.

Available  optional gear ratios!  Message or Call RPE Motorcycle to special order

Unless otherwise specified, Chain & sprockets are sent in Quick Acceleration 15/43t sizes with a RIVET  type master link ONLY.

For Reference...

2003-2006 Honda CBR600rr  OEM size is 525x112 x-ring chain, 16t Ft. Sprocket, 43t Rear Sprocket

2007-2025 Honda CBR600rr  OEM size is 525x112 x-ring chain, 16t Ft. Sprocket, 42t Rear Sprocket

This 525 RACE kit is provided with all 525 size chain and sprocket components

For QUICK ACCELERATION gear ratio  (quicker off the line, quicker roll on's, wheelies), use a 15t front sprocket and 43t Black steel rear.  THIS IS THE DEFAULT SUPPLIED GEARING FOR THIS KIT UNLESS OTHERWISE SPECIFIED.     Silver JT Japan steel 42t is optional.

Original Factory Supplied OEM size sprockets are the calculated "Happy Medium" of off the line acceleration, roll on's, and high speed engine rpm's with the least amount of compromise on either top end or low end accelerationStock size teeth 525 sprockets are available if you simply want  lighter weight drive train components , but the same ratio. Request OEM 16/42t with a Silver JT steel rear sprocket during checkout in the "Add Message" tab. The SuperSprox Black Steel 525x42t (oem) rear sprocket is NOT available at this time.

JT 525 Japan Steel Front Sprocket is available in 525 x 14t, 15t, or 16 teeth

SuperSprox 525 BLACK steel rear sprocket is available in 42t or 43t **Black 43t is the default rear size/color for this kit.**

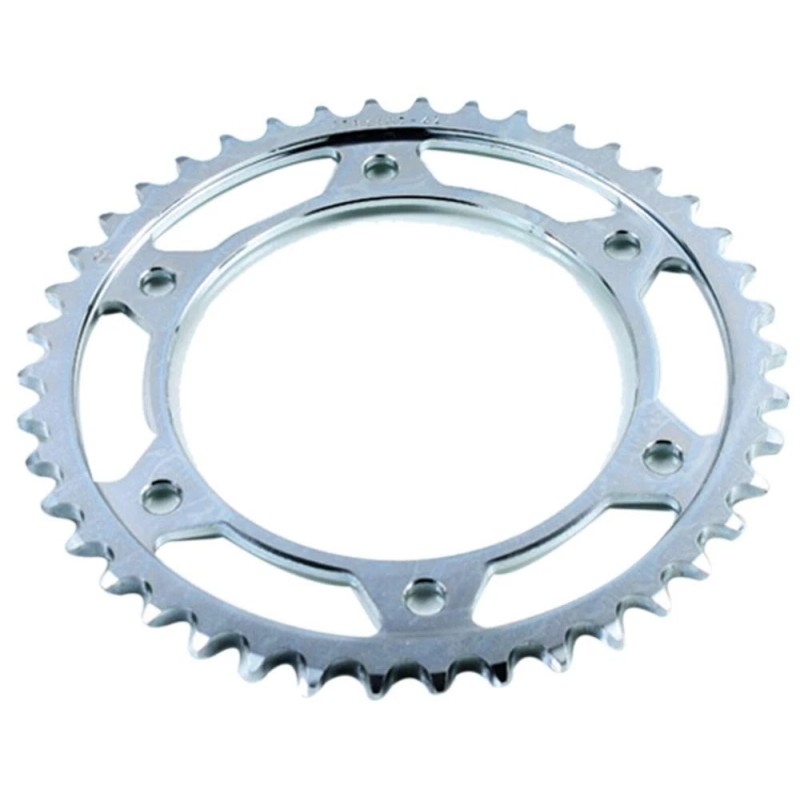

JT 525 Silver Steel Rear Sprocket is available in 520 x 41t, 42t, 43t, 44t, 45t, or 46 teeth

Teeth and Sizes Explained...

**   A -1t front sprocket change is EXACTLY the same ratio change as +3t rear sprocket change. (-1 Ft. = +3 Rr)

**   A +1t front sprocket change is EXACTLY the same ratio change as -3t rear sprocket change. (+1 Ft = -3 Rr)

**   A -1t front and +2t rear combination is EXACTLY the same as a +5t rear only change with stock front sprocket.

**   A 520 size chain is approx. 2mm narrower than a 525 chain, and 4mm narrower than a 530 chain. Less mass equals lighter weight equals easier to spin, but the ratio (teeth size) change makes the big difference. The sprocket width matches the chain width where it rides on the sprockets, thus a 520 chain must use 520 sprockets, and a 525 chain must use 525 sprockets, etc...

**   RPE Motorcycle has chain and sprocket conversion kits available in 520 , 525 , and 530 sizes for most motorcycles.

**  A larger rear sprocket number of teeth size requires a longer chain, however +1 or -1 tooth on the front sprocket only will use the same chain length.

**  If you gear your motorcycle for Quicker Acceleration, it will be Slower on the top end of your power band. If you gear your motorcycle for Top End (Faster Top Speed, lower top gear cruising rpm's) it will be slower off the line and less responsive in lower rpm's.

Also available with Supersprox Steel/Alum Stealth Sprockets in Gold/Black = $75 upgrade (Call or message us to upgrade)

    Optional  520 Sprocket Sizes Available;

JT Steel Front Sprocket also available in 520 x 14t, 15t, and 16 teeth

JT Steel Rear Sprocket also available in 520 x  40t, 42t, and 45 teeth

OEM kit 520 JT Sprockets Available in Silver STEEL     Less $$  CALL !

Commuter kit  530 Conversion  Available  MORE  $$  Upgrade  CALL!!

All chain and sprocket kits available in RK and DID 520 , 525 or 530 X-ring  (call for prices)

 Also available from RPE Motorcycle...

CHAIN TOOL IS AN  OPTIONAL ACCESSORY (NOT included with chain and sprockets price)

Pro Chain Tool Kit @ $79.95 when purchased with a chain & sprockets kit!

- Complete chain tool for most 520, 525 and 530 standard and o-ring chains

- Break, press and rivet your chain with one compact tool

- Will rivet hollow nose master links (will not rivet solid soft-nose pins)

- Will push pin completely through link/side plate

- Hardened body, riveting tip and breaker pin for strength and durability

- Removable handle for compact storage

- Perfect for trail/road tool pack if you have a chain with a rivet master link

 RPE Motorcycle

10725 Beverly Blvd,

Whittier,  CA  90601

Hours: Monday-Friday = 10am-6pm  (Pacific Std. Time)

We accept Visa, Master Charge, Discover, American Express

*FREE Shipping to USA only.. Hawaii, Guam, V.I., Puerto Rico, and Alaska included!!!

***** INTERNATIONAL BUYERS......PLEASE LEAVE YOUR PHONE NUMBER FOR SHIPPING DOCUMENTS!!

***** Shipping time varies by country, and individual customs department situations...

JT Sprockets and JT Chain, the leading edge technology in production and materials with total dedication to excellence gives you the ultimate motorcycle sprocket and chain range at unbeatable value. Our mission is to supply you the most innovative and competitive product line fully backed by complete availability and service. Your Absolute Satisfaction is our Commitment with JT Sprockets and JT Chain - World's No. 1 manufacturer of aftermarket motorcycle chain and sprockets, constantly raising the industry's standards in performance, longevity and reliability.

Half the Power Loss (Compared with Normal O-Ring)  X-Ring construction reduces friction by twisting between the side plates instead of being squashed.

Normal O-Rings and other makers’ modified O-Rings have squashed points that increase friction. The twisting action of the X-Ring disperses the pressure and minimizes power loss.

1.5 to 2 Times Longer Wear Resistance (Compared with Normal O-Ring) The X-Ring’s four contact points greatly increase its sealing performance. This keeps the dirt out and the lubrication in much better than any other O-Ring.   X-Rings have the greatest wear resistance of any other type of O-Ring or Non-O-Ring chain .

Why JT?

JT Sprockets is the world's leading manufacturer of aftermarket sprockets and chain, constantly raising the industry's standards for quality and service.

We are committed to supplying the most durable, best quality drive components available in the marketplace worldwide. This is why we produce and sell more sprockets than all the other aftermarket brands combined.

Raw Materials

JT sprockets are made using only the best available materials. Aviation-grade 7075-T6 aluminium alloy for lightweight competition sprockets, SCM415 chromoly steel alloy for front sprockets, and we are the only sprocket manufacturer using the ultra-durable high carbon C49 steel for rear sprockets.

Production

The JT Sprockets factory is the largest and most advanced in the world. It is fully equipped with high accuracy machinery, including the latest generation of CNC computer design and computer controlled metal cutting equipment.

The essence of a high quality sprocket is in the high precision of manufacturing and the inherent quality of the material. Through accurate machining, JT ensures maximum durability and performance.

JT Sprockets are manufactured the right way – by hobbing, machining and drilling. This is the only proven way to achieve the closest of tolerances and the most accurate teeth profiles.

Heat treated and hand finished to perfection, all JT sprockets meet or exceed the highest possible quality standards set for the motorcycle industry.

Quality Control

Every sprocket goes through up to 25 production stages and 10 individual quality control checks before it is ready to leave the factory and the production facility has achieved the highest European quality standards
