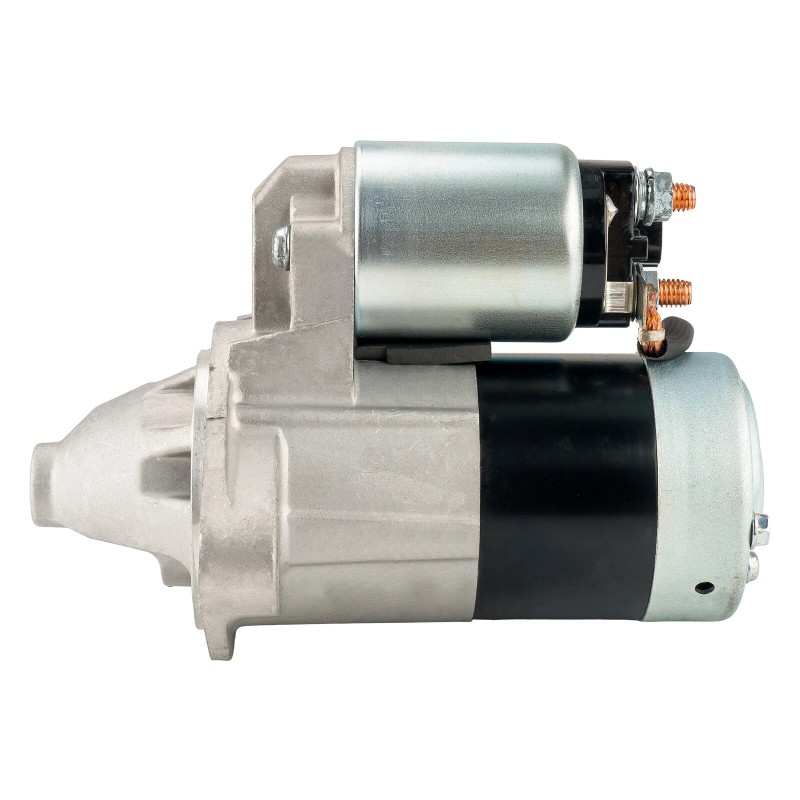

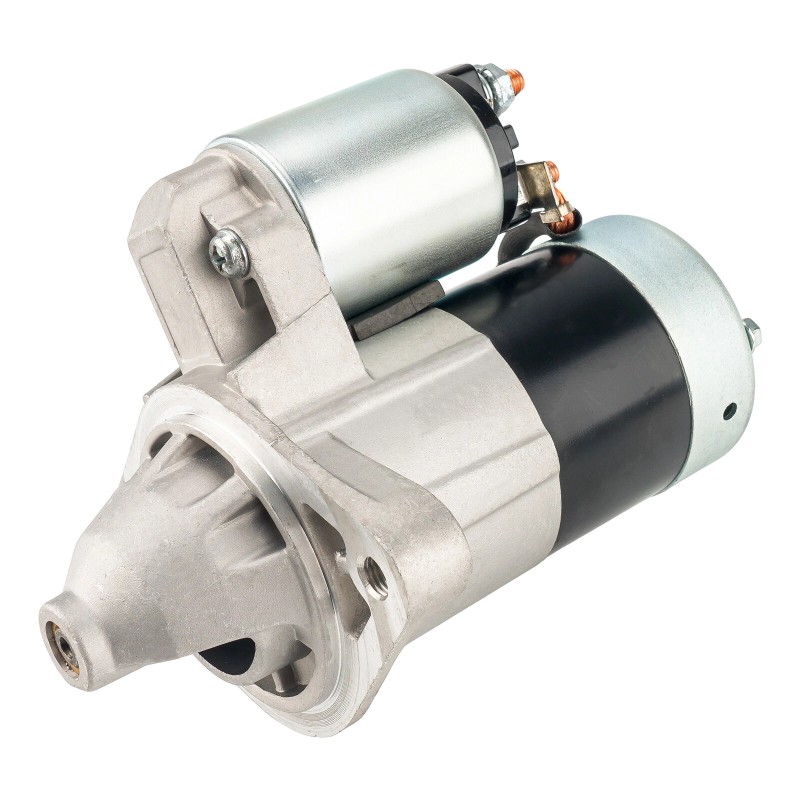

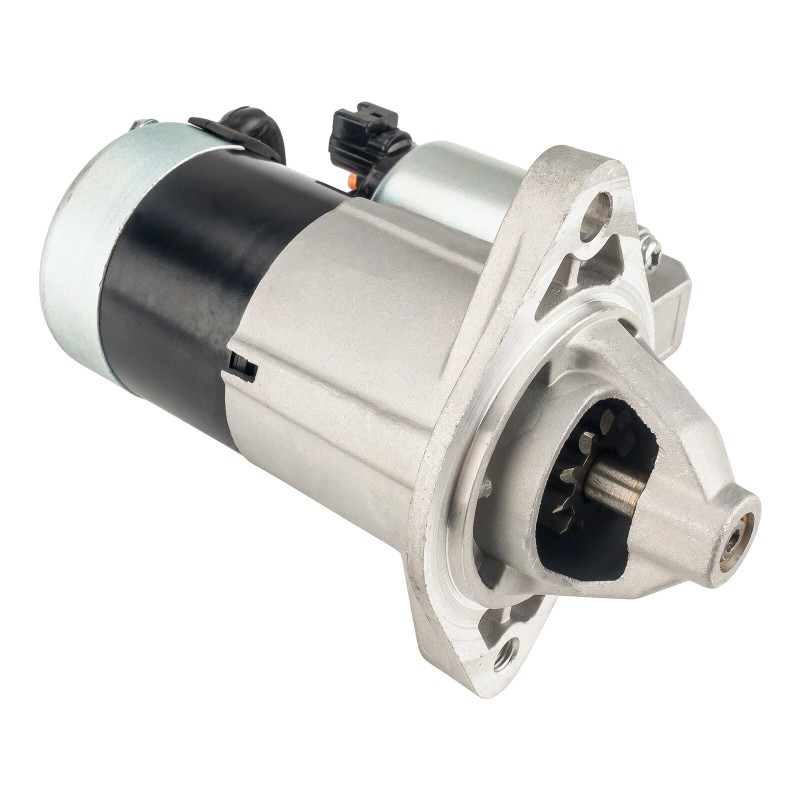

Starter Motor For 2003-2008 Toyota Corolla Matrix Pontiac Vibe 1.8L l4 17841
Introductions:
Starter is the meaning of through the electromagnetic induction principle, transform electric energy into mechanical energy. In order to satisfy the requirement of automatic, different models requires different types of starter. It is characterized by compact structure, simple operation and easy to maintain. It has large power and less affected by temperature, so you can widely use it anywhere. What is more, it is easy to operate by yourself if you want to change your starter. Come and order one at once!
Features:
1. It is characterized by compact structure, simple operation and easy to maintain
2. It has large power and less affected by temperature
3. It is easy to operate by yourself if you want to change your starter
4. Brand new and high quality
5. Save the raw materials, very convenient disassembling repair at the same time
6. Advanced manufacturing technology
Applications:
MAKE TYPE MODEL YEAR ENGINE
PONTIAC Auto and Light Truck VIBE 2003 1.8L
PONTIAC Auto and Light Truck VIBE 2004 1.8L
PONTIAC Auto and Light Truck VIBE 2005 1.8L
PONTIAC Auto and Light Truck VIBE 2006 1.8L
PONTIAC Auto and Light Truck VIBE 2007 1.8L
PONTIAC Auto and Light Truck VIBE 2008 1.8L
For toyota Auto and Light Truck COROLLA 2003 1.8L
For toyota Auto and Light Truck COROLLA 2004 1.8L
For toyota Auto and Light Truck COROLLA 2005 1.8L
For toyota Auto and Light Truck COROLLA 2006 1.8L
For toyota Auto and Light Truck COROLLA 2007 1.8L
For toyota Auto and Light Truck COROLLA 2008 1.8L
For toyota Auto and Light Truck MATRIX 2003 1.8L
For toyota Auto and Light Truck MATRIX 2004 1.8L
For toyota Auto and Light Truck MATRIX 2005 1.8L
For toyota Auto and Light Truck MATRIX 2006 1.8L
For toyota Auto and Light Truck MATRIX 2007 1.8L
For toyota Auto and Light Truck MATRIX 2008 1.8L
Specifications:
Unit Type Starter
Voltage 12
Rotation CW
Teeth 10
Starter Type PMGR
Brief For toyota COROLLA 2003-08
For toyota MATRIX 2003-08
PONTIAC VIBE 2003-08
Part#:
AC DELCO 336-1768
ARROWHEAD SND0295
ARROWHEAD (OEM) ND280-0330
DENSO 428000-0340, 428000-0341, 428000-1311
DENSO REMAN 9642809-034
For general motors 88969483
J & N 280-0330
LESTER 17841
REMY REMAN SR107298
For toyota 28100-0D080, 28100-22090
WAI 2-2360-ND
Package Includes:
1 x Starter
Fault check:
The starter often has failures and phenomena that cannot rotate or rotate slowly. In this case, check the following aspects:
1. The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.
2. The starter thread is loose or off, and the switch or adsorption switch fails.
3. The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.
5. The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.Organization maintenance
In the process of starting the engine, the starter must draw in 344~400Ah from the battery. Therefore, in order to prevent the battery from over-current or damage, the starting time should not exceed
5s. In winter, it is easy to start difficult to start. Multiple starting times should not be too long, and appropriate intervals should be left in each starting.
How to Install a Car Starter:
There’s never a convenient time for your vehicle’s starter to fail. A car starter's job is to kick over the engine in your car so your vehicle starts.When you find yourself with a vehicle that won’t start, there are a number of a number of issues that may be the culprit,but once you’ve narrowed it down to a faulty starter, you can replace it using just common hand tools.
Part 1: Removing a Bad Starter
(1).Disconnect the battery.
You will not need to remove the positive cable on the battery.
Always disconnect the battery before servicing the electrical system in your vehicle.
(2).Jack up the vehicle if need be.
Ensure you jack the vehicle up on firm, level ground.
(3).Locate the starter.
The smaller cylinder attached to the starter is the starter solenoid.
A wire should run directly from the positive terminal on the battery or from the fuse box under the hood to the top terminal on the starter solenoid.
(4).Disconnect the wiring to the solenoid.
In some cases, it may just be clips you need to disconnect for the wiring.
On some starters, you will need to loosen bolts or screws that hold the wires in place.
(5).Remove the starter retaining bolts then the starter.
Be sure to use the correct size socket, otherwise you risk damaging the bolts.
(6).Compare the new starter to the old one. Slide the starter into place.
If the two starters don’t look mostly identical, it may not be the correct starter for your vehicle.
New starter solenoids often come with four terminals, but can be used with only two.
Part 2: Installing a New Starter
(7).Insert the starter retainer bolts.
If the bolt does not thread properly, unscrew it and try again.
Make sure the bolts are tight so they can’t vibrate loose while the engine is running.
(8).Connect the wiring to the starter solenoid.
With the starter secured in place, reconnect the wiring you disconnected from the old starter onto the terminals on the new one. If your new solenoid has four terminals but your old one had two, only utilize the top and bottom terminal on the new solenoid. If your old one had four and the new one does as well, connect them to the same terminals they were connected to on the old one.
(9).Reconnect the battery.
With the starter installed and wired, reconnect the black cable to the negative terminal on the battery and tighten it in place. Insert the key into the ignition and attempt to start the vehicle.
If the vehicle fails to start with the new starter in place, ensure the battery is fully charged.
(10).Listen to the vehicle as you attempt to start it.
As you turn the key in the ignition, listen for the sounds the engine makes to help determine if you have an issue with your starter. If the engine makes no sound whatsoever, or you hear only a faint clicking, it may be because there isn’t enough power reaching the electric starter motor.
(11).Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.
A weak connection from the battery can prevent the engine from starting.
Wear gloves when cleaning battery terminals to avoid getting battery acid on your skin.
If you suspect the battery may simply be low on power, try charging it using either a trickle charger or another vehicle to jump start it. Be sure to connect the red cable to the positive terminal on each vehicle and the black to the negative.
(12).Check to see the starter solenoid is bad.
If the test light does not light up, it means power is not reaching the starter motor due to a faulty solenoid or a dead battery.
If the test light does light up, it means the solenoid is good, but the starter itself may have failed.
Frequently Asked Questions:
(1).Why is my car starter burning out?
You likely cranked the starter for too long.
(2).I have to change the starter fairly often in my car. What could be causing this?
A leak of some sort could be fouling the starter if fluid is dripping on it. If that's the case,
replacing the starter doesn't fix the leak so it's only a matter of time before the new starter fails.
(3).What is the black wire connected to?
He black wire can be commonly associated with the wire that connects the battery to the ignition.
If this is not the wire that you are referring to then it could be a random wire that has been detached from your fuse box?
How big is this wire? If it is rather stout then that would be your battery cables. If it is a small wire then it could be several different things.
Follow it and find the origin of the wire, it could be a simple fix just take a look at it.
(4).What does a bad starter sound like?
In my case, there was very little noise when the ignition was turned, and all that was heard was a distinctive click.
One really common sign is if you see any smoke coming from the starter.
(5).If my car is grinding when I turn the key, does that mean I have a bad starter?
No. It's your flywheel. When you start your car the grinding noise would be your flywheel that's connected to the starter.
Starter (engine):
A starter (also self-starter, cranking motor, or starter motor) is a device used to rotate (crank) an internal-combustion engine so as to initiate the engine's operation under its own power.Starters can be electric, pneumatic, or hydraulic. In the case of very large engines, the starter can even be another internal-combustion engine.
Fault check:
The starter often has failures and phenomena that cannot rotate or rotate slowly. In this case, check the following aspects:
✅The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.
✅The starter thread is loose or off, and the switch or adsorption switch fails.
✅The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.
✅Excitation coil or armature coil is short-circuited or disconnected.
✅The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.Organization maintenance
In the process of starting the engine, the starter must draw in 344~400Ah from the battery. Therefore, in order to prevent the battery from over-current or damage, the starting time should not exceed 5s. In winter, it is easy to start difficult to start. Multiple starting times should not be too long, and appropriate intervals should be left in each starting.
(1).Disconnect the battery.
You will not need to remove the positive cable on the battery.
Always disconnect the battery before servicing the electrical system in your vehicle.
(2).Jack up the vehicle if need be.
Ensure you jack the vehicle up on firm, level ground.
(3).Locate the starter.
The smaller cylinder attached to the starter is the starter solenoid.
A wire should run directly from the positive terminal on the battery or from the fuse box under the hood to the top terminal on the starter solenoid.
(4).Disconnect the wiring to the solenoid.
In some cases, it may just be clips you need to disconnect for the wiring.
On some starters, you will need to loosen bolts or screws that hold the wires in place.
(5).Remove the starter retaining bolts then the starter.
Be sure to use the correct size socket, otherwise you risk damaging the bolts.
(6).Compare the new starter to the old one. Slide the starter into place.
If the two starters don’t look mostly identical, it may not be the correct starter for your vehicle.
New starter solenoids often come with four terminals, but can be used with only two.
(7).Insert the starter retainer bolts.
If the bolt does not thread properly, unscrew it and try again.
Make sure the bolts are tight so they can’t vibrate loose while the engine is running.
(8).Connect the wiring to the starter solenoid.
With the starter secured in place, reconnect the wiring you disconnected from the old starter onto the terminals on the new one. If your new solenoid has four terminals but your old one had two, only utilize the top and bottom terminal on the new solenoid. If your old one had four and the new one does as well, connect them to the same terminals they were connected to on the old one.
(9).Reconnect the battery.
With the starter installed and wired, reconnect the black cable to the negative terminal on the battery and tighten it in place. Insert the key into the ignition and attempt to start the vehicle.
If the vehicle fails to start with the new starter in place, ensure the battery is fully charged.
(10).Listen to the vehicle as you attempt to start it.
As you turn the key in the ignition, listen for the sounds the engine makes to help determine if you have an issue with your starter. If the engine makes no sound whatsoever, or you hear only a faint clicking, it may be because there isn’t enough power reaching the electric starter motor.
(11).Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.
A weak connection from the battery can prevent the engine from starting.
Wear gloves when cleaning battery terminals to avoid getting battery acid on your skin.
If you suspect the battery may simply be low on power, try charging it using either a trickle charger or another vehicle to jump start it. Be sure to connect the red cable to the positive terminal on each vehicle and the black to the negative.
(12).Check to see the starter solenoid is bad.
If the test light does not light up, it means power is not reaching the starter motor due to a faulty solenoid or a dead battery.
If the test light does light up, it means the solenoid is good, but the starter itself may have failed.
1) we accepts all major credit cards via PayPal: MasterCard, Visa, American Express and Discover.
2) We will only ship to the confirmed PayPal shipping address given with the payment. Please make sure your PayPal and eBay address is correct. If not, please correct it before payment. Thank you.
3) If you want to ship to another address, please change your PayPal shipping address before you make payment.
4) To avoid initiating an unpaid item claim, please pay within 7 days.
5) Custom duties, taxes, or charges are not included in the cost you pay to us.
We only ship this item to United States !
1. We ship to your eBay address. Each package will be shipped by UPS or Fedex with tracking number.
2. Ship within 1 business day once payment completed. Orders placed on weekend will be shipped within 3 days.
4. Seriously promise: Refund or resend will be offered if item still not arrive in 7-10 business days. Just send us an email ,we will give you a satisfied solution as soon as possible.
If you send us an e-mail, it will be answered within 48 hours during our working hours.
Please feel free to contact us if you have any questions:
Dear my friend,we appreciate your support.And our goal is service you well and give you a pleasant shopping time in our store.
✅Dear customer, when you want to return or exchange goods
(Please contact us first, instead of directly initiating a dispute)
1: Contact the seller first
2: Send pictures: outer packaging&scanned labels&item itself&with complete accessories, etc
necessary condition
Rule A: The original packaging of the item is in an unused state.
Rule B: The outer packaging must not have any damage.
3: Obtain return label
4: Delivered Projects - Payment Repayment
✅A 15% restocking and shelving fee will be charged for returns or exchanges that are not caused by the seller and are in good condition.
Exchange will not charge restocking fees or shipping fees due to transportation errors
✅Priority
In case of the following reasons, the freight will be borne by the buyer
1: Unexpected order
2: Find a better price
3: Change your mind
4: Buy more items/make mistakes/misread model information
✅Please note
Missing accessories/quality issues/transportation damage, etc
Please contact us first to obtain a good solution, rather than directly opening a return dispute.
Thank you very much for your understanding. I hope we have a pleasant cooperation!
Contact us if you have any question, Give us a chance to serve you, negative
feedback could not solve anything, communication Please!
❎(NO) Three stars is LOW star, NO 1,2,3 stars PLEASE!
✅(YES) Please give us Five-star!
Have Question or Problem??
Step 1: Contact seller
Step 2: Select the 1st topic: I have a question about using my item or I want to send the seller a message. NO others please!
Step 3: Describe your question clearly; we will give you the best solution
Please leave five stars positive feedback positive comment and Five-Stars.
* We maintain a high standard of excellence (5 star rating) and strive for 100% customer satisfaction!
* Feedback is very important to us.
* We would like you to contact us immediately before giving us neutral or negative feedback so that we can address your concerns to our satisfaction.
* If we don't understand these problems, we won't be able to solve them!
* After understanding the problem, we will be able to give you a satisfactory answer!
It's highly appreciated you leave us positive feedback and 5 star rating comments if you are satisfied with our service!
Your comment is very important in our business success.
✅ Free repair: During the warranty period, if the product fails due to manufacturing defects, component failure or workmanship problems, please contact us to provide corresponding handling methods.
✅ Warranty period: The warranty period is usually calculated from the date of purchase, and the specific period may vary depend on the product type and brand.
✅ Warranty terms: The repairer needs to use components and spare parts that meet the technical requirements of the product, carefully record the failure and the quality of the product after repair, and ensure that the repaired product can be used normally for more than 30 days.
✅ Extended warranty: Some manufacturers may provide additional extended warranty services, which usually require additional fees and may extend the original warranty period or provide a wider warranty coverage
✅ Note: If there are any problems with the product received, please provide all relevant videos, pictures and other clues to facilitate our cunstomer service department and processing the issuse for you .
Thank you for your support
| Brand: | KAC |
|---|---|
| Isin: | IY3CTM3ROAKD |
This product is not available in the selected country
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

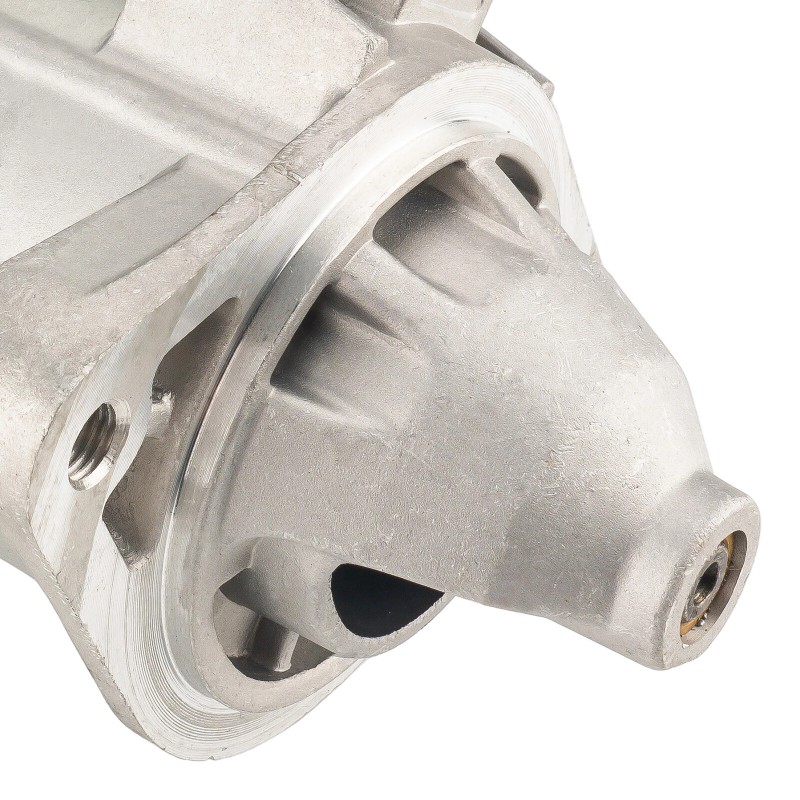

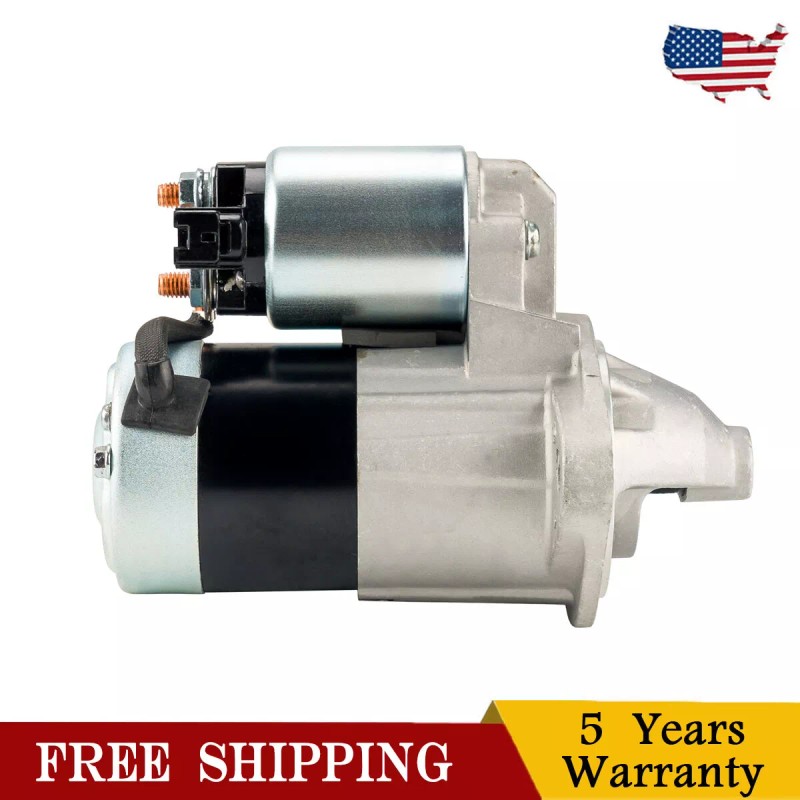

Starter Motor For 2003-2008 Toyota Corolla Matrix Pontiac Vibe 1.8L l4 17841
Introductions:
Starter is the meaning of through the electromagnetic induction principle, transform electric energy into mechanical energy. In order to satisfy the requirement of automatic, different models requires different types of starter. It is characterized by compact structure, simple operation and easy to maintain. It has large power and less affected by temperature, so you can widely use it anywhere. What is more, it is easy to operate by yourself if you want to change your starter. Come and order one at once!
Features:
1. It is characterized by compact structure, simple operation and easy to maintain
2. It has large power and less affected by temperature
3. It is easy to operate by yourself if you want to change your starter
4. Brand new and high quality
5. Save the raw materials, very convenient disassembling repair at the same time
6. Advanced manufacturing technology
Applications:
MAKE TYPE MODEL YEAR ENGINE
PONTIAC Auto and Light Truck VIBE 2003 1.8L
PONTIAC Auto and Light Truck VIBE 2004 1.8L
PONTIAC Auto and Light Truck VIBE 2005 1.8L
PONTIAC Auto and Light Truck VIBE 2006 1.8L
PONTIAC Auto and Light Truck VIBE 2007 1.8L
PONTIAC Auto and Light Truck VIBE 2008 1.8L
For toyota Auto and Light Truck COROLLA 2003 1.8L
For toyota Auto and Light Truck COROLLA 2004 1.8L
For toyota Auto and Light Truck COROLLA 2005 1.8L
For toyota Auto and Light Truck COROLLA 2006 1.8L
For toyota Auto and Light Truck COROLLA 2007 1.8L
For toyota Auto and Light Truck COROLLA 2008 1.8L
For toyota Auto and Light Truck MATRIX 2003 1.8L
For toyota Auto and Light Truck MATRIX 2004 1.8L
For toyota Auto and Light Truck MATRIX 2005 1.8L
For toyota Auto and Light Truck MATRIX 2006 1.8L
For toyota Auto and Light Truck MATRIX 2007 1.8L
For toyota Auto and Light Truck MATRIX 2008 1.8L
Specifications:
Unit Type Starter
Voltage 12
Rotation CW
Teeth 10
Starter Type PMGR
Brief For toyota COROLLA 2003-08
For toyota MATRIX 2003-08
PONTIAC VIBE 2003-08
Part#:
AC DELCO 336-1768
ARROWHEAD SND0295
ARROWHEAD (OEM) ND280-0330
DENSO 428000-0340, 428000-0341, 428000-1311
DENSO REMAN 9642809-034
For general motors 88969483
J & N 280-0330
LESTER 17841
REMY REMAN SR107298
For toyota 28100-0D080, 28100-22090
WAI 2-2360-ND
Package Includes:
1 x Starter
Fault check:
The starter often has failures and phenomena that cannot rotate or rotate slowly. In this case, check the following aspects:
1. The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.
2. The starter thread is loose or off, and the switch or adsorption switch fails.
3. The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.
5. The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.Organization maintenance
In the process of starting the engine, the starter must draw in 344~400Ah from the battery. Therefore, in order to prevent the battery from over-current or damage, the starting time should not exceed
5s. In winter, it is easy to start difficult to start. Multiple starting times should not be too long, and appropriate intervals should be left in each starting.
How to Install a Car Starter:
There’s never a convenient time for your vehicle’s starter to fail. A car starter's job is to kick over the engine in your car so your vehicle starts.When you find yourself with a vehicle that won’t start, there are a number of a number of issues that may be the culprit,but once you’ve narrowed it down to a faulty starter, you can replace it using just common hand tools.
Part 1: Removing a Bad Starter
(1).Disconnect the battery.
You will not need to remove the positive cable on the battery.
Always disconnect the battery before servicing the electrical system in your vehicle.
(2).Jack up the vehicle if need be.
Ensure you jack the vehicle up on firm, level ground.
(3).Locate the starter.
The smaller cylinder attached to the starter is the starter solenoid.
A wire should run directly from the positive terminal on the battery or from the fuse box under the hood to the top terminal on the starter solenoid.
(4).Disconnect the wiring to the solenoid.
In some cases, it may just be clips you need to disconnect for the wiring.
On some starters, you will need to loosen bolts or screws that hold the wires in place.
(5).Remove the starter retaining bolts then the starter.
Be sure to use the correct size socket, otherwise you risk damaging the bolts.
(6).Compare the new starter to the old one. Slide the starter into place.
If the two starters don’t look mostly identical, it may not be the correct starter for your vehicle.
New starter solenoids often come with four terminals, but can be used with only two.
Part 2: Installing a New Starter
(7).Insert the starter retainer bolts.
If the bolt does not thread properly, unscrew it and try again.
Make sure the bolts are tight so they can’t vibrate loose while the engine is running.
(8).Connect the wiring to the starter solenoid.
With the starter secured in place, reconnect the wiring you disconnected from the old starter onto the terminals on the new one. If your new solenoid has four terminals but your old one had two, only utilize the top and bottom terminal on the new solenoid. If your old one had four and the new one does as well, connect them to the same terminals they were connected to on the old one.
(9).Reconnect the battery.
With the starter installed and wired, reconnect the black cable to the negative terminal on the battery and tighten it in place. Insert the key into the ignition and attempt to start the vehicle.
If the vehicle fails to start with the new starter in place, ensure the battery is fully charged.
(10).Listen to the vehicle as you attempt to start it.
As you turn the key in the ignition, listen for the sounds the engine makes to help determine if you have an issue with your starter. If the engine makes no sound whatsoever, or you hear only a faint clicking, it may be because there isn’t enough power reaching the electric starter motor.
(11).Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.
A weak connection from the battery can prevent the engine from starting.
Wear gloves when cleaning battery terminals to avoid getting battery acid on your skin.
If you suspect the battery may simply be low on power, try charging it using either a trickle charger or another vehicle to jump start it. Be sure to connect the red cable to the positive terminal on each vehicle and the black to the negative.
(12).Check to see the starter solenoid is bad.
If the test light does not light up, it means power is not reaching the starter motor due to a faulty solenoid or a dead battery.
If the test light does light up, it means the solenoid is good, but the starter itself may have failed.
Frequently Asked Questions:
(1).Why is my car starter burning out?
You likely cranked the starter for too long.
(2).I have to change the starter fairly often in my car. What could be causing this?
A leak of some sort could be fouling the starter if fluid is dripping on it. If that's the case,
replacing the starter doesn't fix the leak so it's only a matter of time before the new starter fails.
(3).What is the black wire connected to?
He black wire can be commonly associated with the wire that connects the battery to the ignition.
If this is not the wire that you are referring to then it could be a random wire that has been detached from your fuse box?
How big is this wire? If it is rather stout then that would be your battery cables. If it is a small wire then it could be several different things.
Follow it and find the origin of the wire, it could be a simple fix just take a look at it.
(4).What does a bad starter sound like?
In my case, there was very little noise when the ignition was turned, and all that was heard was a distinctive click.
One really common sign is if you see any smoke coming from the starter.
(5).If my car is grinding when I turn the key, does that mean I have a bad starter?
No. It's your flywheel. When you start your car the grinding noise would be your flywheel that's connected to the starter.
Starter (engine):
A starter (also self-starter, cranking motor, or starter motor) is a device used to rotate (crank) an internal-combustion engine so as to initiate the engine's operation under its own power.Starters can be electric, pneumatic, or hydraulic. In the case of very large engines, the starter can even be another internal-combustion engine.
Fault check:
The starter often has failures and phenomena that cannot rotate or rotate slowly. In this case, check the following aspects:
✅The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.
✅The starter thread is loose or off, and the switch or adsorption switch fails.
✅The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.
✅Excitation coil or armature coil is short-circuited or disconnected.
✅The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.Organization maintenance
In the process of starting the engine, the starter must draw in 344~400Ah from the battery. Therefore, in order to prevent the battery from over-current or damage, the starting time should not exceed 5s. In winter, it is easy to start difficult to start. Multiple starting times should not be too long, and appropriate intervals should be left in each starting.
(1).Disconnect the battery.
You will not need to remove the positive cable on the battery.
Always disconnect the battery before servicing the electrical system in your vehicle.
(2).Jack up the vehicle if need be.
Ensure you jack the vehicle up on firm, level ground.
(3).Locate the starter.

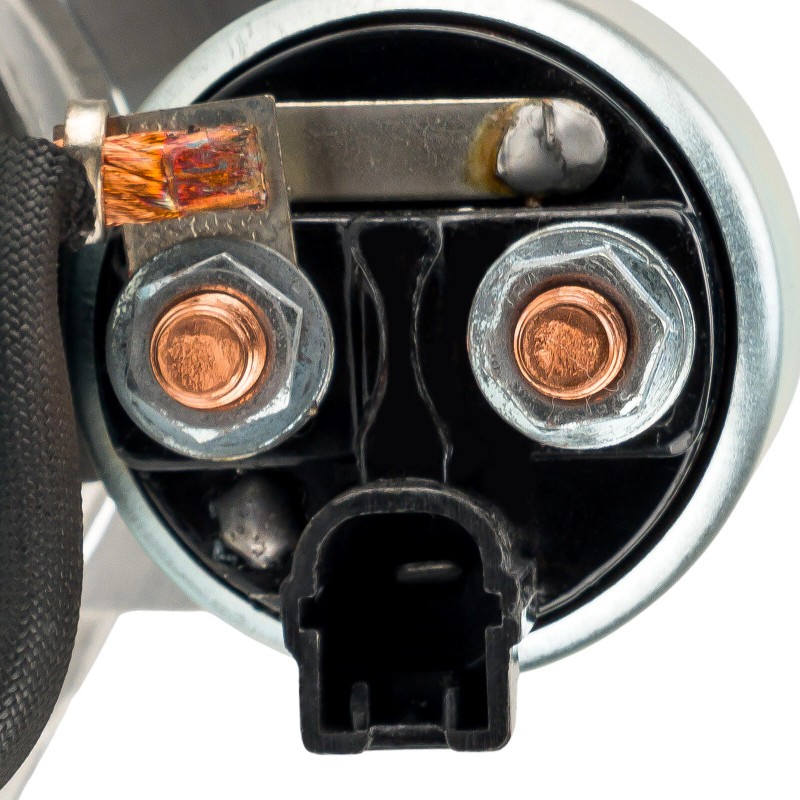

The smaller cylinder attached to the starter is the starter solenoid.
A wire should run directly from the positive terminal on the battery or from the fuse box under the hood to the top terminal on the starter solenoid.
(4).Disconnect the wiring to the solenoid.
In some cases, it may just be clips you need to disconnect for the wiring.
On some starters, you will need to loosen bolts or screws that hold the wires in place.
(5).Remove the starter retaining bolts then the starter.
Be sure to use the correct size socket, otherwise you risk damaging the bolts.
(6).Compare the new starter to the old one. Slide the starter into place.
If the two starters don’t look mostly identical, it may not be the correct starter for your vehicle.
New starter solenoids often come with four terminals, but can be used with only two.
(7).Insert the starter retainer bolts.
If the bolt does not thread properly, unscrew it and try again.
Make sure the bolts are tight so they can’t vibrate loose while the engine is running.
(8).Connect the wiring to the starter solenoid.
With the starter secured in place, reconnect the wiring you disconnected from the old starter onto the terminals on the new one. If your new solenoid has four terminals but your old one had two, only utilize the top and bottom terminal on the new solenoid. If your old one had four and the new one does as well, connect them to the same terminals they were connected to on the old one.
(9).Reconnect the battery.
With the starter installed and wired, reconnect the black cable to the negative terminal on the battery and tighten it in place. Insert the key into the ignition and attempt to start the vehicle.
If the vehicle fails to start with the new starter in place, ensure the battery is fully charged.
(10).Listen to the vehicle as you attempt to start it.
As you turn the key in the ignition, listen for the sounds the engine makes to help determine if you have an issue with your starter. If the engine makes no sound whatsoever, or you hear only a faint clicking, it may be because there isn’t enough power reaching the electric starter motor.
(11).Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.
A weak connection from the battery can prevent the engine from starting.
Wear gloves when cleaning battery terminals to avoid getting battery acid on your skin.
If you suspect the battery may simply be low on power, try charging it using either a trickle charger or another vehicle to jump start it. Be sure to connect the red cable to the positive terminal on each vehicle and the black to the negative.
(12).Check to see the starter solenoid is bad.
If the test light does not light up, it means power is not reaching the starter motor due to a faulty solenoid or a dead battery.
If the test light does light up, it means the solenoid is good, but the starter itself may have failed.
1) we accepts all major credit cards via PayPal: MasterCard, Visa, American Express and Discover.
2) We will only ship to the confirmed PayPal shipping address given with the payment. Please make sure your PayPal and eBay address is correct. If not, please correct it before payment. Thank you.
3) If you want to ship to another address, please change your PayPal shipping address before you make payment.
4) To avoid initiating an unpaid item claim, please pay within 7 days.
5) Custom duties, taxes, or charges are not included in the cost you pay to us.
We only ship this item to United States !
1. We ship to your eBay address. Each package will be shipped by UPS or Fedex with tracking number.
2. Ship within 1 business day once payment completed. Orders placed on weekend will be shipped within 3 days.
4. Seriously promise: Refund or resend will be offered if item still not arrive in 7-10 business days. Just send us an email ,we will give you a satisfied solution as soon as possible.
If you send us an e-mail, it will be answered within 48 hours during our working hours.
Please feel free to contact us if you have any questions:
Dear my friend,we appreciate your support.And our goal is service you well and give you a pleasant shopping time in our store.
✅Dear customer, when you want to return or exchange goods
(Please contact us first, instead of directly initiating a dispute)
1: Contact the seller first
2: Send pictures: outer packaging&scanned labels&item itself&with complete accessories, etc
necessary condition
Rule A: The original packaging of the item is in an unused state.
Rule B: The outer packaging must not have any damage.
3: Obtain return label
4: Delivered Projects - Payment Repayment
✅A 15% restocking and shelving fee will be charged for returns or exchanges that are not caused by the seller and are in good condition.
Exchange will not charge restocking fees or shipping fees due to transportation errors
✅Priority
In case of the following reasons, the freight will be borne by the buyer
1: Unexpected order
2: Find a better price
3: Change your mind
4: Buy more items/make mistakes/misread model information
✅Please note
Missing accessories/quality issues/transportation damage, etc
Please contact us first to obtain a good solution, rather than directly opening a return dispute.
Thank you very much for your understanding. I hope we have a pleasant cooperation!
Contact us if you have any question, Give us a chance to serve you, negative
feedback could not solve anything, communication Please!
❎(NO) Three stars is LOW star, NO 1,2,3 stars PLEASE!
✅(YES) Please give us Five-star!
Have Question or Problem??
Step 1: Contact seller
Step 2: Select the 1st topic: I have a question about using my item or I want to send the seller a message. NO others please!
Step 3: Describe your question clearly; we will give you the best solution
Please leave five stars positive feedback positive comment and Five-Stars.
* We maintain a high standard of excellence (5 star rating) and strive for 100% customer satisfaction!
* Feedback is very important to us.
* We would like you to contact us immediately before giving us neutral or negative feedback so that we can address your concerns to our satisfaction.
* If we don't understand these problems, we won't be able to solve them!
* After understanding the problem, we will be able to give you a satisfactory answer!
It's highly appreciated you leave us positive feedback and 5 star rating comments if you are satisfied with our service!
Your comment is very important in our business success.
✅ Free repair: During the warranty period, if the product fails due to manufacturing defects, component failure or workmanship problems, please contact us to provide corresponding handling methods.
✅ Warranty period: The warranty period is usually calculated from the date of purchase, and the specific period may vary depend on the product type and brand.
✅ Warranty terms: The repairer needs to use components and spare parts that meet the technical requirements of the product, carefully record the failure and the quality of the product after repair, and ensure that the repaired product can be used normally for more than 30 days.
✅ Extended warranty: Some manufacturers may provide additional extended warranty services, which usually require additional fees and may extend the original warranty period or provide a wider warranty coverage
✅ Note: If there are any problems with the product received, please provide all relevant videos, pictures and other clues to facilitate our cunstomer service department and processing the issuse for you .
Thank you for your support
- Brand: KAC
- Type: Starter Motor
- Voltage: 12V
- Manufacturer Part Number: Does not apply
- Manufacturer Warranty: 5 Years
- UPC: 6188051919190
- Fitment Type: Direct Replacement
- Rotation: CW
- Other Part Number: 17841, 2-2360-ND, 2-2360-ND-2, 28100-0D080-84
- Starter Type: PMGR
- MPN: Does not apply
- Teeth: 10
- KW: 1.1
- Interchange Part Number 3: 0341,88969483,28100-0D080, 28100-0D080-84
- Interchange Part Number 4: 28100-0D08084,428000-1311,19135622, 8886451
- Interchange Part Number 2: 281000D080,1870767, SR3282X, 4280000340,17382
- Interchange Part Number 1: 17841,428000-0340, 428000-, 88969483
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
| Shipping Method | Estimated Delivery | Cost |
|---|---|---|
| Free Shipping (US) | 5–10 business days | Free, available on eligible items |
| Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
| Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
| Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
-
Email: support@ibspot.com
-
Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
-
The item must be unused, in the same condition as received, and in its original packaging.
-
A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
-
Perishable goods (for example, food, flowers, newspapers, magazines)
-
Intimate or sanitary goods
-
Hazardous materials or flammable liquids/gases
-
Gift cards
-
Downloadable software
-
Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
-
Books with obvious signs of use
-
Opened CDs, DVDs, software, or vinyl records
-
Items not in their original condition, damaged, or missing parts not due to our error
-
Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
-
In-store returns are refunded to the original form of payment or issued as a gift card.
-
Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
-
5–7 business days for the return to reach our Returns Center.
-
An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
