KIRO&SEEU 5PCS DC5-15V 4.2V V-PP to 11.4V V-PP NE555 Pulse Frequency Duty Cycle Adjustable Generator Module Square Wave Rectangular Wave Signal Generator

Brand: KIRO&SEEU
  • Main chip: N5555;Input voltage: DC5-15V; Output amplitude: 4.2V V-PP(5v input) to 11.4V V-PP(12V input); Output frequency 1Hz-50Hz, 50Hz-1KHz, 1KHz-10KHz, 10KHz-200KHz Four Optional.

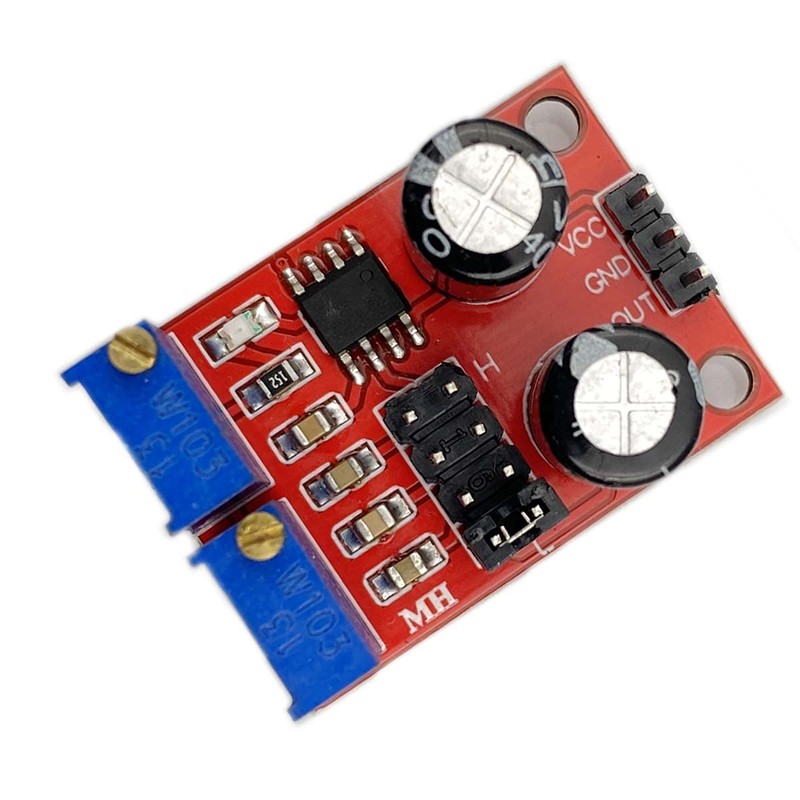

  • There are 4 jumpers and 2 variable resistors on the module, users can adjust the output wave with these components, to get their ideal wave easily.
  • Output LED indicator,: low-level LED light, high-level LED off, the frequency is low when the LED flashes.
  • Capacitive capacity determines the frequency range, the user can calculate the adjustment according to their own needs.
  • The output duty cycle can fine-tune. Duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency.
Brand: KIRO&SEEU
Manufacturer: KIRO&SEEU
Part Number: BM2X4JJ
Isin: I4XK5I6RWSOA

$33.62

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled By IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
KIRO&SEEU 5PCS DC5-15V 4.2V V-PP to 11.4V V-PP NE555 Pulse Frequency Duty Cycle Adjustable Generator Module Square Wave Rectangular Wave Signal Generator

KIRO&SEEU 5PCS DC5-15V 4.2V V-PP to 11.4V V-PP NE555 Pulse Frequency Duty Cyc...

$33.62

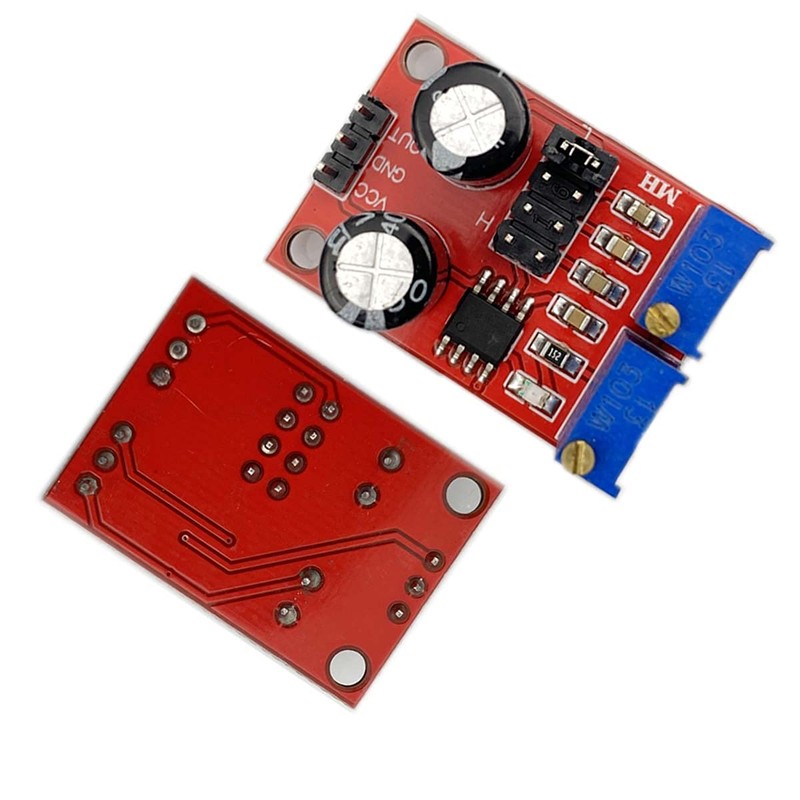

The 555 timer IC is an integrated circuit that is popular used in a variety of timer, pulse generation, and oscillator applications. This NE555 frequency adjustable pulse generator Module utilizes the NE555 timer IC to generate pulses from about 4Hz to 1.3Khz, which can be used for experimental development, or driving a stepper motor, it would be also a good choice for users learning&experiencing the analog RC circuits.

Technical Specifications:
Input Voltage: 5V-15VDC.(when power supply is 5V , the output current can be 15mA around;when 12V power supply, the output current can 35mA around)
Input current: ≥100mA
Output amplitude: 4.2V V-PP(5v input) to 11.4V V-PP(12V input). (Different input voltage, the output amplitude will be different)
Maximum output current: >=15mA (5V power supply, V-PP greater than50%),>=35mA (12V power supply, V-PP greater than 50%)
Output with the LED indicator
The output frequency is adjustable:T=0.7(RA+2RB)*C RA and RB can be adjusted (0-10k); Low frequency:C=0.001UF; Intermediate frequency:C=0.01UF; High-frequency:C=1UF; higher frequency:C=100UF

Application
As a square wave signal generator,generates a square wave signal used for experimental development
Used to drive a stepper motor
Generate adjustable pulse for MCU
Generate adjustable pulse to control circuitry associated

Package includes:

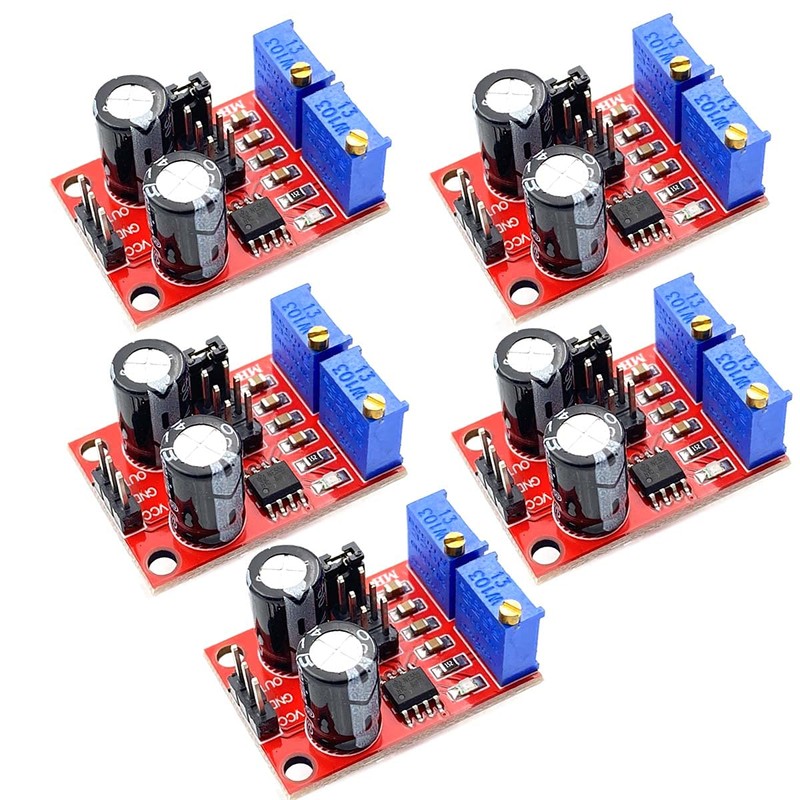

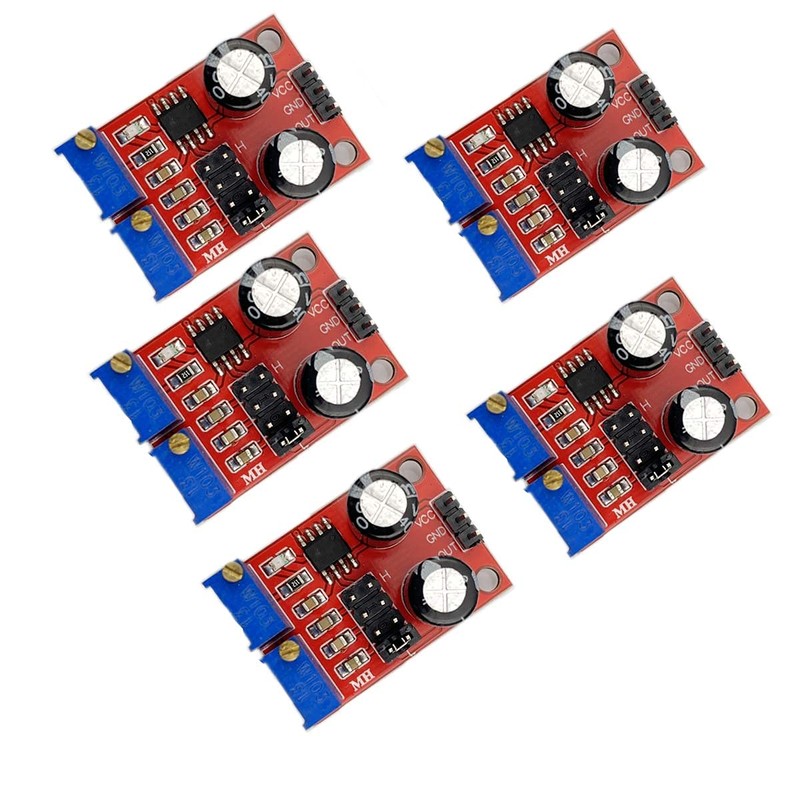

5 x NE555 Pulse Frequency Duty Cycle Adjustable Module
