KZYEE KM10 12V 24V Car Battery Tester Auto Electrical Current Voltage Test Automotive
KZYEE KM10 12V 24V Car Battery Tester Auto Electrical Current Voltage Test Automotive
KZYEE KM10 12V 24V Car Battery Tester Auto Electrical Current Voltage Test Automotive
The KZYEE KM10 Power Scan Kit is the most revolutionary circuit tester yet, operating at 12-24 volts. With voltmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and ground fault indicator, the Power Scan is indeed the ultimate in performance and affordability, allowing users to check circuits in a single step.
What are the advantages of the product？
- Detection of min/max voltage; Detecting short circuits without wasting fuses.
- The 8-amp input is protected by a circuit breaker.
- With a flip of the switch, you have an instant hot lead or ground lead.
- Use the probe tip and ground lead simultaneously to power components right in the palm of your hand.

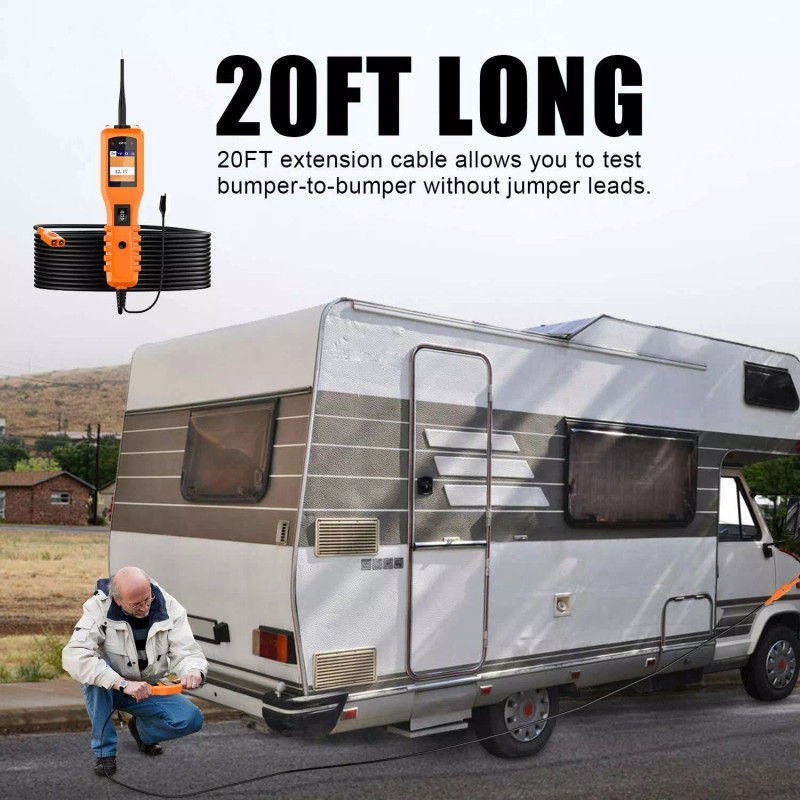

- With the 20ft. extension cord, you can test bumper to bumper without jumper cables.
- Instantly test components for continuity and identify positive, negative and open circuits without re-polarising the terminals.

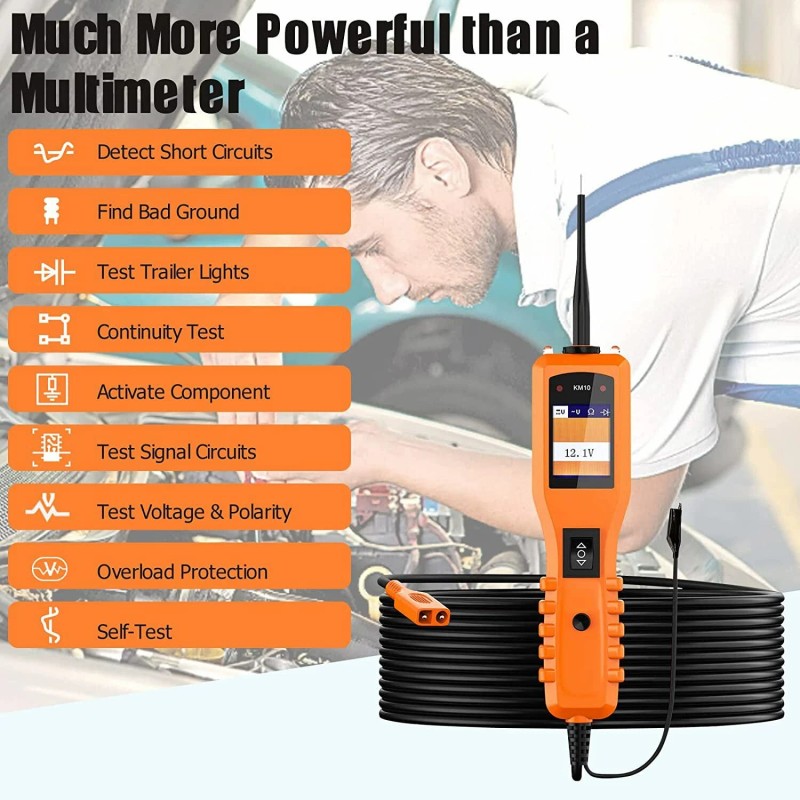

KM10 Electrical System Tester Main Features:
- Continuity Testing
- Testing of signal circuits
- Testing trailer lighting
- Check voltage and polarity
- Locate short circuits
- Testing relays and components
- Testing bad ground contacts
- Acoustic monitoring of electrical signals
KM10 has more highlights than other circuit testers.

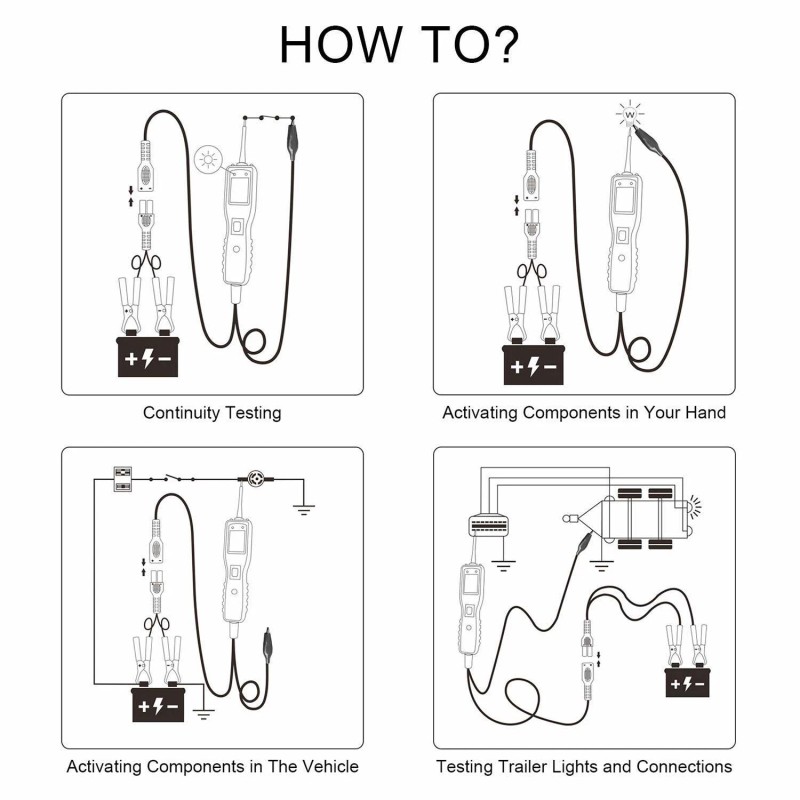

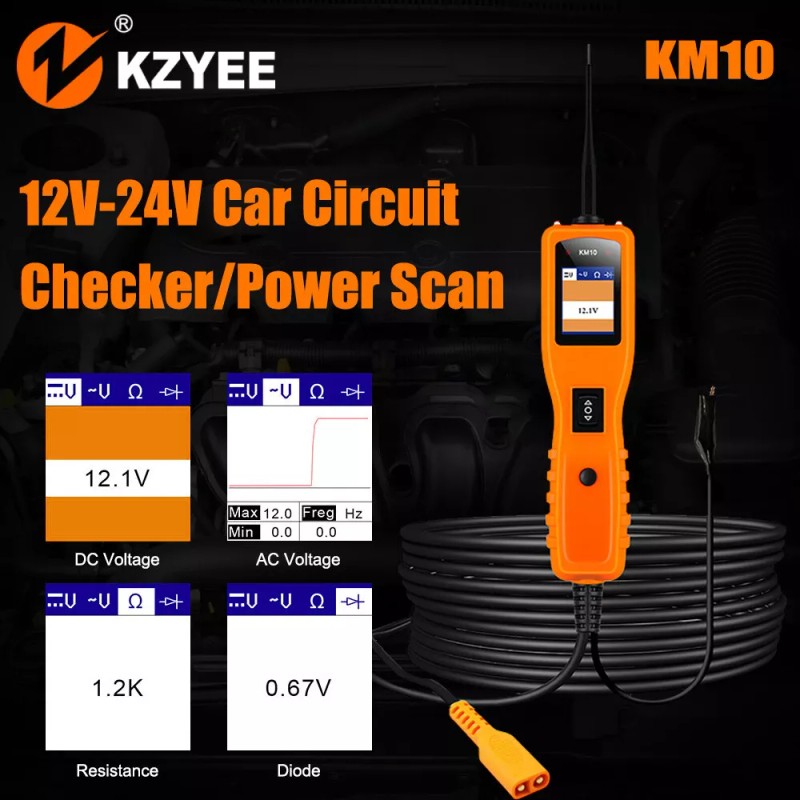

Resistance Test: While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
Diode Test: In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If exchange the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reverse bias.
Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.
Testing Trailer Lights and Connections: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.
Red/Green Polarity LED: The Red/Green Polarity LED lights up when the probe tip voltage matches the battery voltage within ±0.4 volts. It is added information that could be valuable to the technician.
Auto Circuit Breaker: The tool is short-circuit protected. Its internal circuit breaker will trip if it becomes overload. The circuit breaker is a valuable test tool as well as a safety measure to protect the tool from overload.
KM10 Test Tool Specifications
**DC voltage range: 0-65V +1digit
**Resistance range: 0-100 kΩ
**Rating current: 1-10 Amp
**Frequency response of tone pass through 0Hz to 10Khz.
**Testing Standard:100% current: Hold > 1 hour150% current: trip in one hour200% current: trip in 3-30 seconds.300% current: trip in 0.5-4.0 seconds.
KM10 Specifications:
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60 (32 to 140)
External Power: 12.0 or 24.0 V power provided via vehicle battery

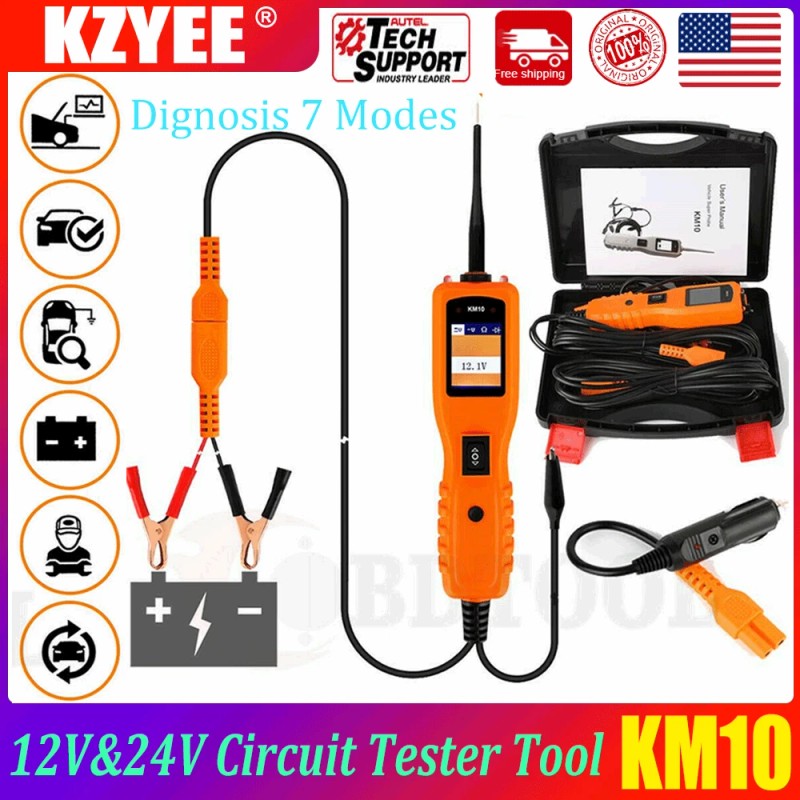

KM10 PowerScan Package List:
1 × KM10
1 × Rugged Blow Molded Case
1 × 20ft. Extension Cable
1 × Probe Tip
1 × Battery Hookup Clips
1 × Cigarette Lighter Adapter
1 × User Manual
| Brand: | KZYEE |
|---|---|
| Isin: | IP3EYWFNOACY |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
The KZYEE KM10 Power Scan Kit is the most revolutionary circuit tester yet, operating at 12-24 volts. With voltmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and ground fault indicator, the Power Scan is indeed the ultimate in performance and affordability, allowing users to check circuits in a single step.
What are the advantages of the product？
- Detection of min/max voltage; Detecting short circuits without wasting fuses.
- The 8-amp input is protected by a circuit breaker.
- With a flip of the switch, you have an instant hot lead or ground lead.
- Use the probe tip and ground lead simultaneously to power components right in the palm of your hand.
- With the 20ft. extension cord, you can test bumper to bumper without jumper cables.
- Instantly test components for continuity and identify positive, negative and open circuits without re-polarising the terminals.
KM10 Electrical System Tester Main Features:
- Continuity Testing
- Testing of signal circuits
- Testing trailer lighting
- Check voltage and polarity
- Locate short circuits
- Testing relays and components
- Testing bad ground contacts
- Acoustic monitoring of electrical signals
KM10 has more highlights than other circuit testers.
Resistance Test: While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
Diode Test: In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If exchange the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reverse bias.
Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.
Testing Trailer Lights and Connections: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.
Red/Green Polarity LED: The Red/Green Polarity LED lights up when the probe tip voltage matches the battery voltage within ±0.4 volts. It is added information that could be valuable to the technician.
Auto Circuit Breaker: The tool is short-circuit protected. Its internal circuit breaker will trip if it becomes overload. The circuit breaker is a valuable test tool as well as a safety measure to protect the tool from overload.
KM10 Test Tool Specifications
**DC voltage range: 0-65V +1digit
**Resistance range: 0-100 kΩ
**Rating current: 1-10 Amp
**Frequency response of tone pass through 0Hz to 10Khz.
**Testing Standard:100% current: Hold > 1 hour150% current: trip in one hour200% current: trip in 3-30 seconds.300% current: trip in 0.5-4.0 seconds.
KM10 Specifications:
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60 (32 to 140)
External Power: 12.0 or 24.0 V power provided via vehicle battery
KM10 PowerScan Package List:
1 × KM10
1 × Rugged Blow Molded Case
1 × 20ft. Extension Cable
1 × Probe Tip
1 × Battery Hookup Clips
1 × Cigarette Lighter Adapter
1 × User Manual
Item Specifics
- Brand: KZYEE
- Manufacturer Part Number: km10
- Voltage: 12V or 24V Car Electrical System Diagnostic tool
- Warranty: 2 Year
- Feature 1: Strong and stable, Automotive circuit tester
- Feature 2: Car Voltage Tester, Auto Workshop, Technician
- Feature 3: Car DIYer, Electrical System Circuit Tester tool
- Feature 4: Read voltage, Current and Resistance
- Battery Test Type: Circuit Tester PowerScan Electrical Test Tool
- Highlights: Resistance Test,Diode Test,Signal Circuit Testing
- Control Type: Power
- Accessories: Clamps, User Manual, Carrying Case
- Product: KM10 power scan circuit tester
- Test Volt: 12V or 24V Car Electrical System Diagnostic tool
- UPC: Does not apply
