Made in USA Commodore Amiga PC Mac "ALL-IN-ONE" Professional BRKT for Greaseweazle V4 Usb - Bracket PC, No

Brand: Made in USA

Amiga and PC floppy drives work the same for Greaseweazle for Amiga games and programs, and for PCs. Tested.


Paint: Black or Yellow-Beige (see pictures) powder coated all bracket.


Bracket Raw -  Cut and bent. May require drilling or tapping.

Bracket DB25 - Assembled and ready for installation in a DB25 cutout.

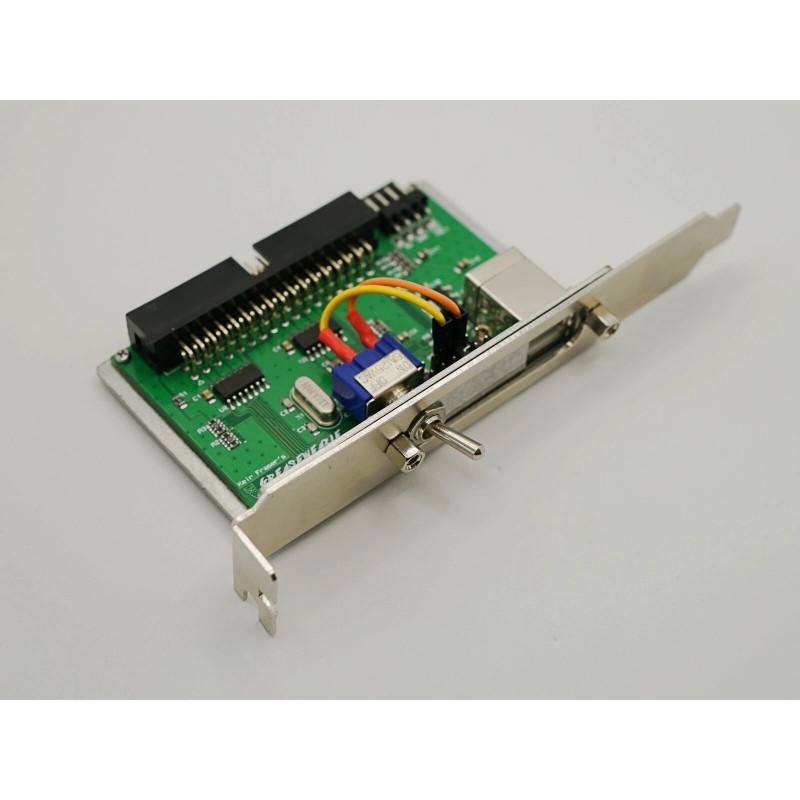

Bracket PC -  Assembled and ready for installation in a PC, Amiga 2000 desktop and etc. with PCI Slot cover.

Bracket Amiga 2000 -  Assembled and ready for installation in a Amiga 2000 desktop with special Amiga 2000 backplate.


*Greasewezale V4 according to availability in the offer.


GREASEWEAZLE NOTE:

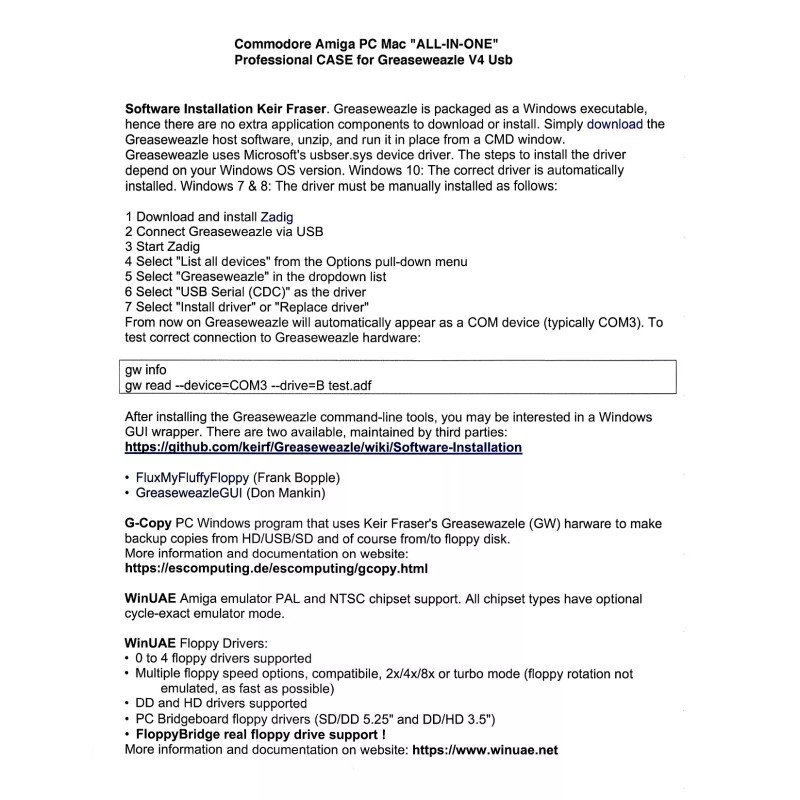

Software Installation Keir Fraser. Greaseweazle is packaged as a Windows executable, hence there are no extra application components to download or install. Simply download the Greaseweazle host software, unzip, and run it in place from a CMD window.

Greaseweazle uses Microsoft's usbser.sys device driver. The steps to install the driver depend on your Windows OS version. Windows 10: The correct driver is automatically installed. Windows 7 & 8: The driver must be manually installed as follows:

  1. Download and install Zadig
  2. Connect Greaseweazle via USB
  3. Start Zadig
  4. Select "List all devices" from the Options pull-down menu
  5. Select "Greaseweazle" in the dropdown list
  6. Select "USB Serial (CDC)" as the driver
  7. Select "Install driver" or "Replace driver"

From now on Greaseweazle will automatically appear as a COM device (typically COM3). To test correct connection to Greaseweazle hardware:


gw info

gw read --device=COM3 --drive=B test.adf


After installing the Greaseweazle command-line tools, you may be interested in a Windows GUI wrapper. There are two available, maintained by third parties: "See the description posted as a photo available in the auction."

G-Copy PC Windows program that uses Keir Fraser's Greasewazele (GW) harware to make backup copies from HD/USB/SD and of course from/to floppy disk.

More information and documentation on website: "See the description posted as a photo available in the auction."


WinUAE Amiga emulator PAL and NTSC chipset support. All chipset types have optional cycle-exact emulator mode.


WinUAE Floppy Drivers:

  • 0 to 4 floppy drivers supported
  • Multiple floppy speed options, compatibile, 2x/4x/8x or turbo mode (floppy rotation not emulated, as fast as possible)
  • DD and HD drivers supported
  • PC Bridgeboard floppy drivers (SD/DD 5.25" and DD/HD 3.5")
  • FloppyBridge real floppy drive support !

More information and documentation on website: "See the description posted as a photo available in the auction."

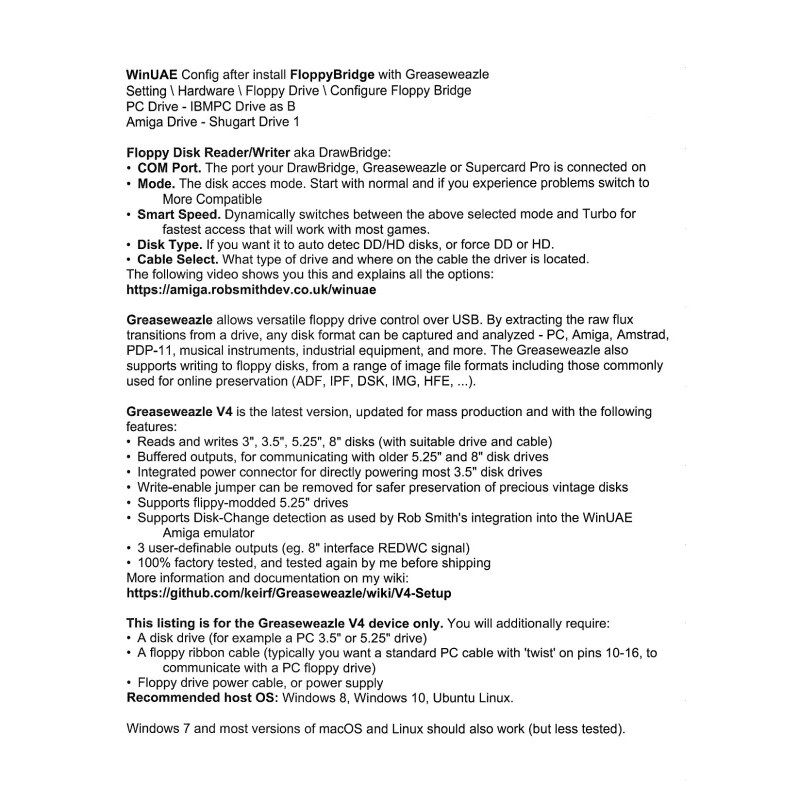

Floppy Disk Reader/Writer aka DrawBridge:

  • COM Port. The port your DrawBridge, Greaseweazle or Supercard Pro is connected on
  • Mode. The disk acces mode. Start with normal and if you experience problems switch to More Compatible
  • Smart Speed. Dynamically switches between the above selected mode and Turbo for fastest access that will work with most games.
  • Disk Type. If you want it to auto detec DD/HD disks, or force DD or HD.
  • Cable Select. What type of drive and where on the cable the driver is located.

The following video shows you this and explains all the options:  "See the description posted as a photo available in the auction."


Greaseweazle allows versatile floppy drive control over USB. By extracting the raw flux transitions from a drive, any disk format can be captured and analyzed - PC, Amiga, Amstrad, PDP-11, musical instruments, industrial equipment, and more. The Greaseweazle also supports writing to floppy disks, from a range of image file formats including those commonly used for online preservation (ADF, IPF, DSK, IMG, HFE, ...).


Greaseweazle V4 is the latest version, updated for mass production and with the following features:

  • Reads and writes 3", 3.5", 5.25", 8" disks (with suitable drive and cable)
  • Buffered outputs, for communicating with older 5.25" and 8" disk drives
  • Integrated power connector for directly powering most 3.5" disk drives
  • Write-enable jumper can be removed for safer preservation of precious vintage disks
  • Supports flippy-modded 5.25" drives
  • Supports Disk-Change detection as used by Rob Smith's integration into the WinUAE Amiga emulator
  • 3 user-definable outputs (eg. 8" interface REDWC signal)
  • 100% factory tested, and tested again by me before shipping

More information and documentation on my wiki: "See the description posted as a photo available in the auction."


This listing is for the Greaseweazle V4 device only. You will additionally require:

  • A disk drive (for example a PC 3.5" or 5.25" drive)
  • A floppy ribbon cable (typically you want a standard PC cable with 'twist' on pins 10-16, to communicate with a PC floppy drive)
  • Floppy drive power cable, or power supply

Recommended host OS: Windows 8, Windows 10, Ubuntu Linux.

Windows 7 and most versions of macOS and Linux should also work (but less tested).
