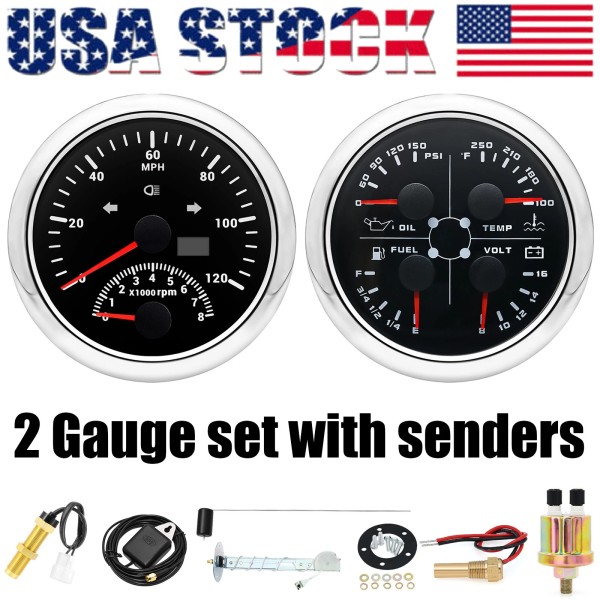

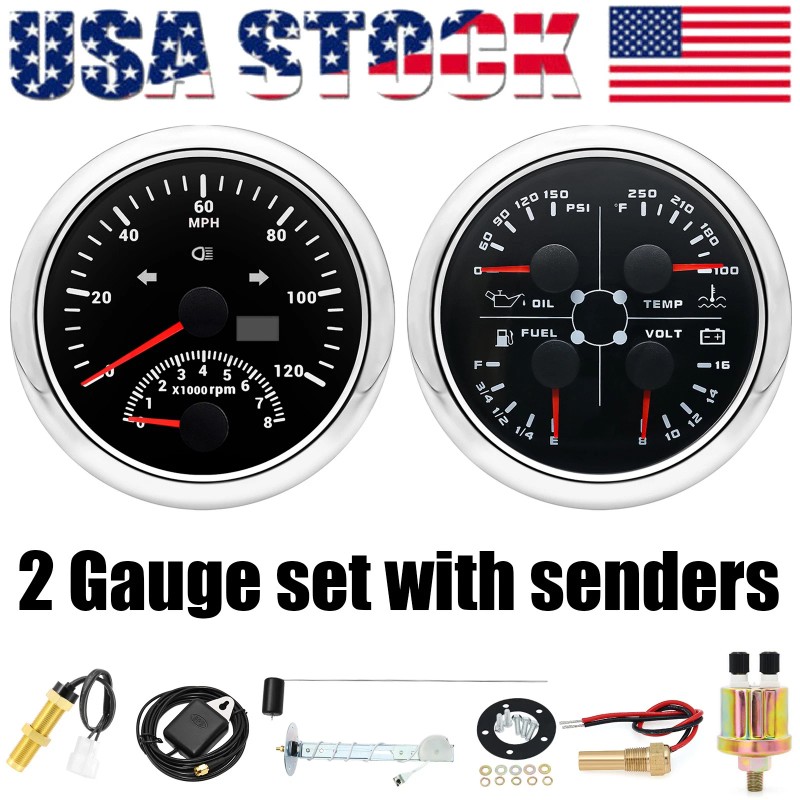

MAIMEIMI 2 Gauge Set With Senders 85mm GPS Speedometer 120MPH W/Tacho&85mm 4In 1 Gauge US

Brand: MAIMEIMI
2 Gauge Set With Senders 85mm GPS Speedometer 120MPH W/Tacho&85mm 4In 1 Gauge US

2 Gauge Set 85mm Car Boat GPS Speedometer 120MPH W/Tacho&85mm 4 In 1 Gauge With Sender US



Features:

  • The world's newest 4 in 1 multifunction gauge.
  • Convenient Installation by multi-plug socket connecting way.
  • The gauge has the advantages of high precision, quick location confirmation and short start up time.
  • Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles

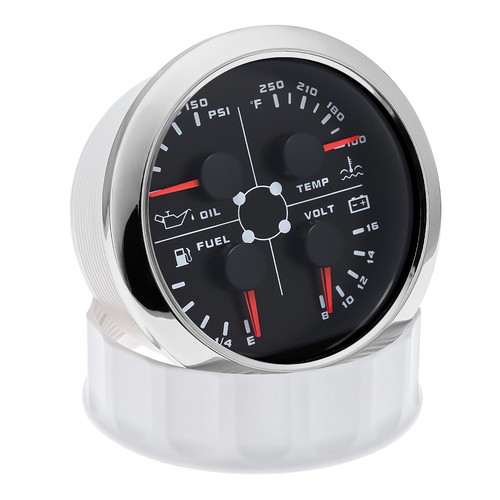

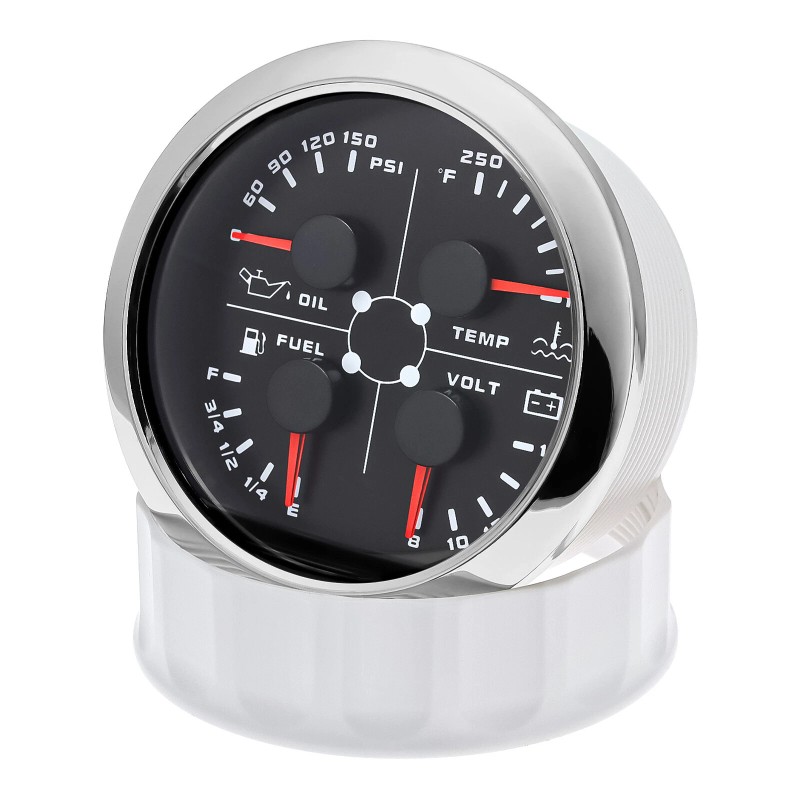

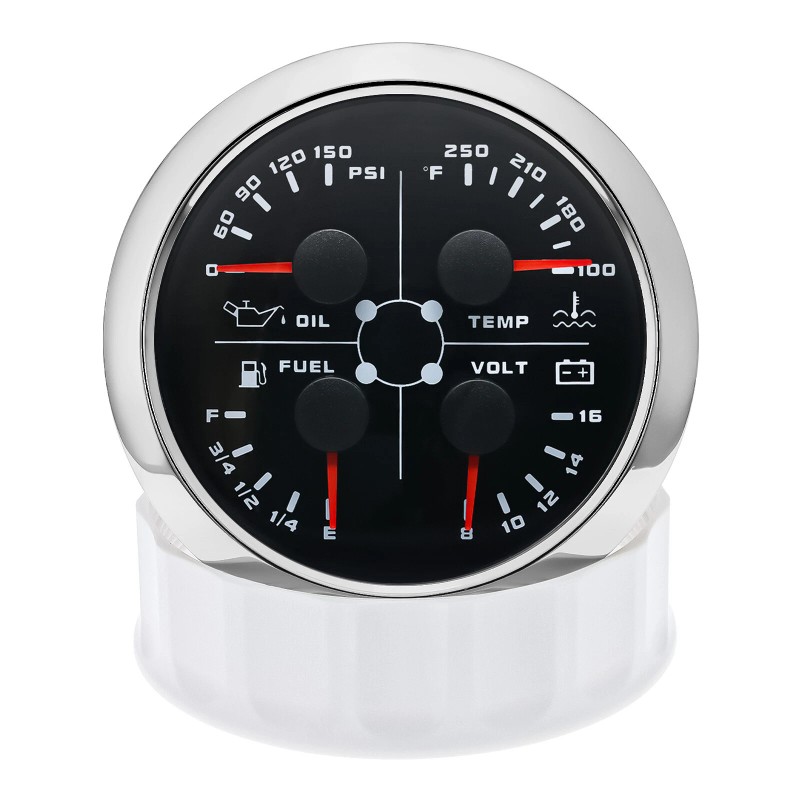

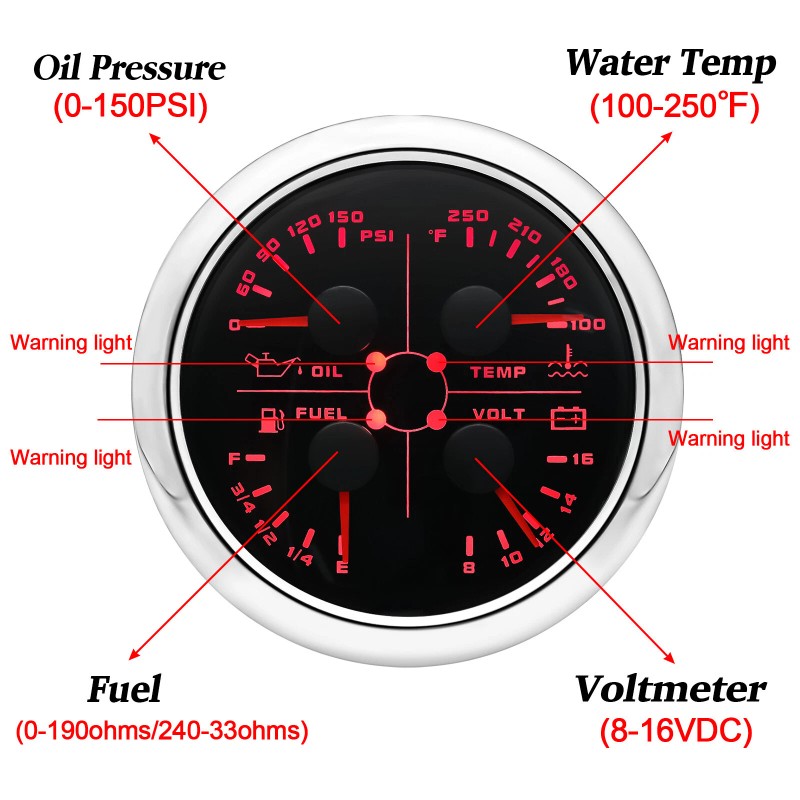

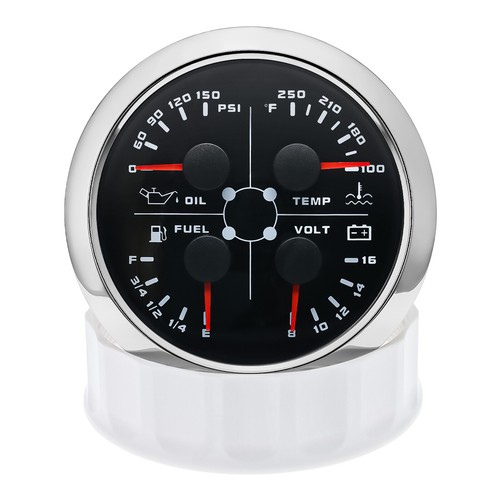

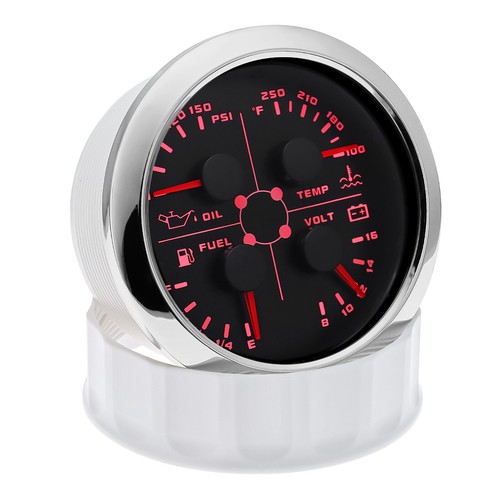

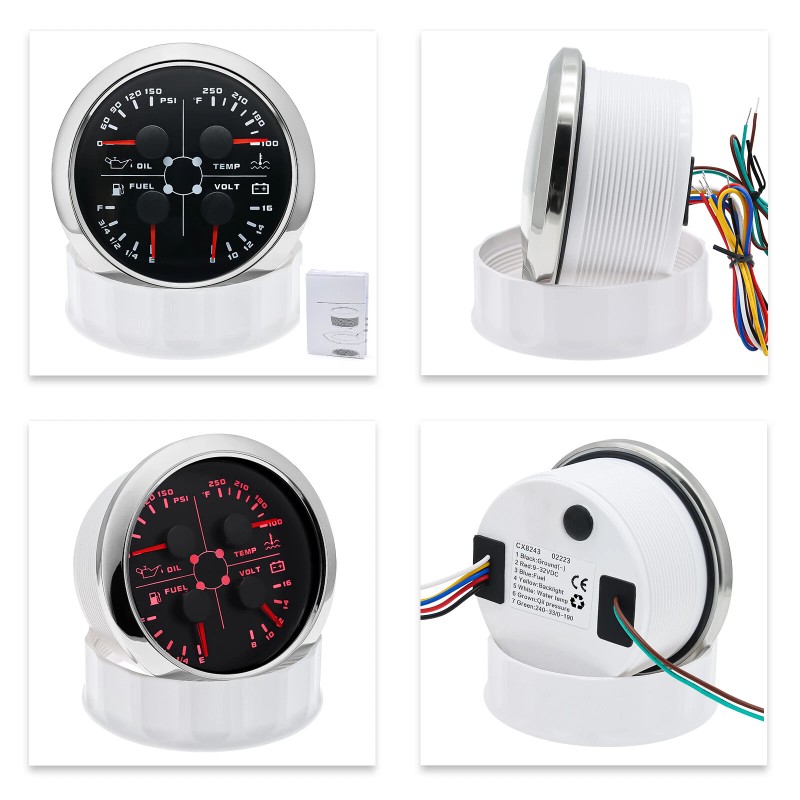

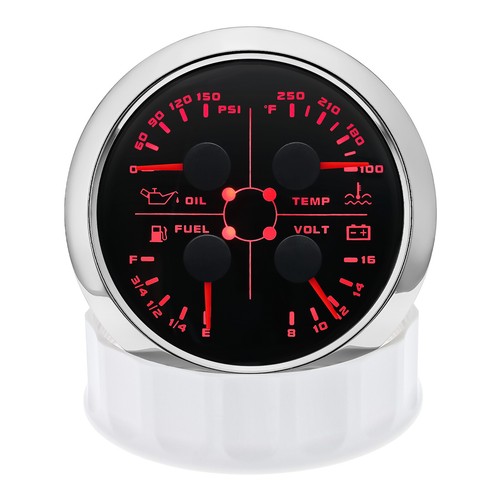

4IN 1 Mulfifunctional gauge Technical Data:
  • Fixing dimension: 85mm
  • Indicating Range: Oil press. meter: 0-150psi;
  • Water temp. meter: 100-250° F
  • Fuel level meter: 0-190ohms/240-33ohms, empty-full; (The signal can be adjusted)
  • Voltmeter: 8-16V
  • Working Voltage: 12V

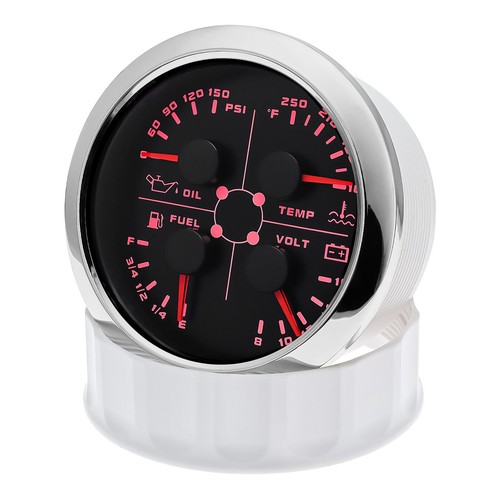

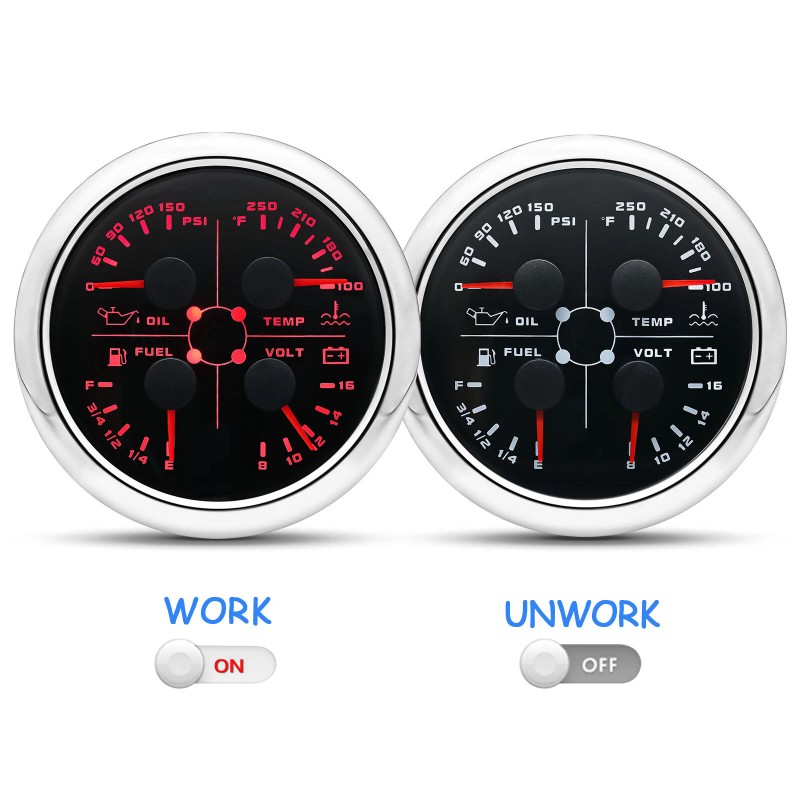

  • Backlight: Red
Input Signal:
  • 10-184ohms for 0-150PSI oil pressure meter;
  • 0-190ohms for fuel level meter;(Default 0-190ohms, can adjust to 240-33ohms)
  • 8-16V voltage meter;
  • Input Signal 287.4-22.4ohms for water temperature meter
  • Red backlight
  • Protection grade is IP67, the whole body is completely waterproof;
  • Excellent antifogging function;
  • 316 Stainless steel bezel with curved glass;

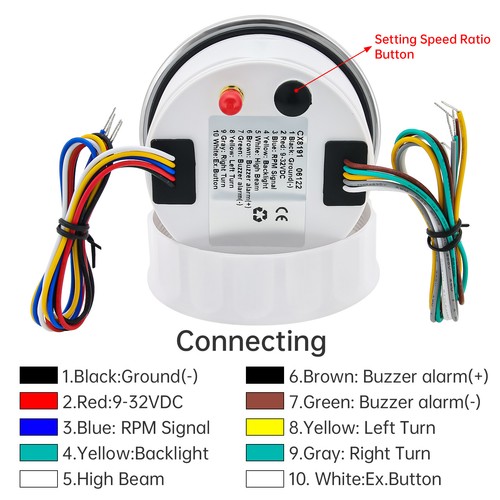

  • Convenient Installation by multi-plug socket connecting way;
  • Accessories: matched with connectors, Installation Instruction

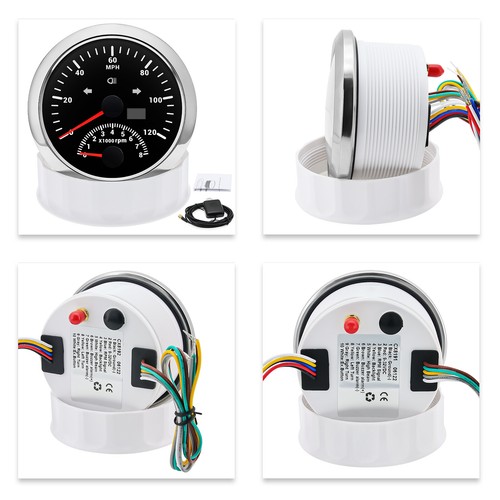

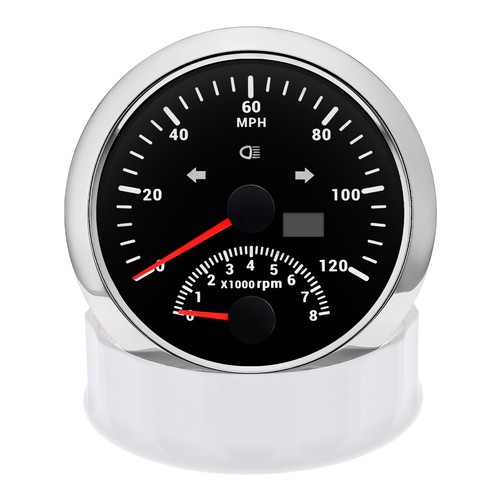

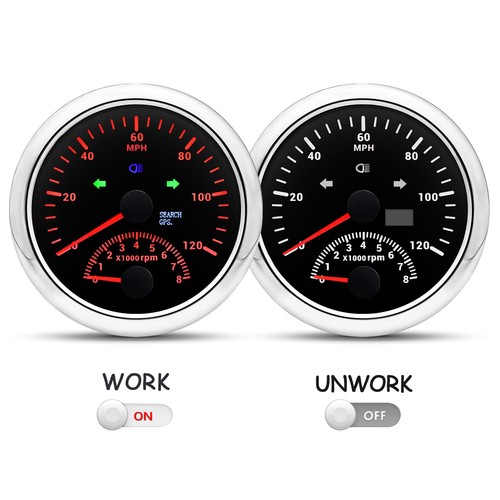

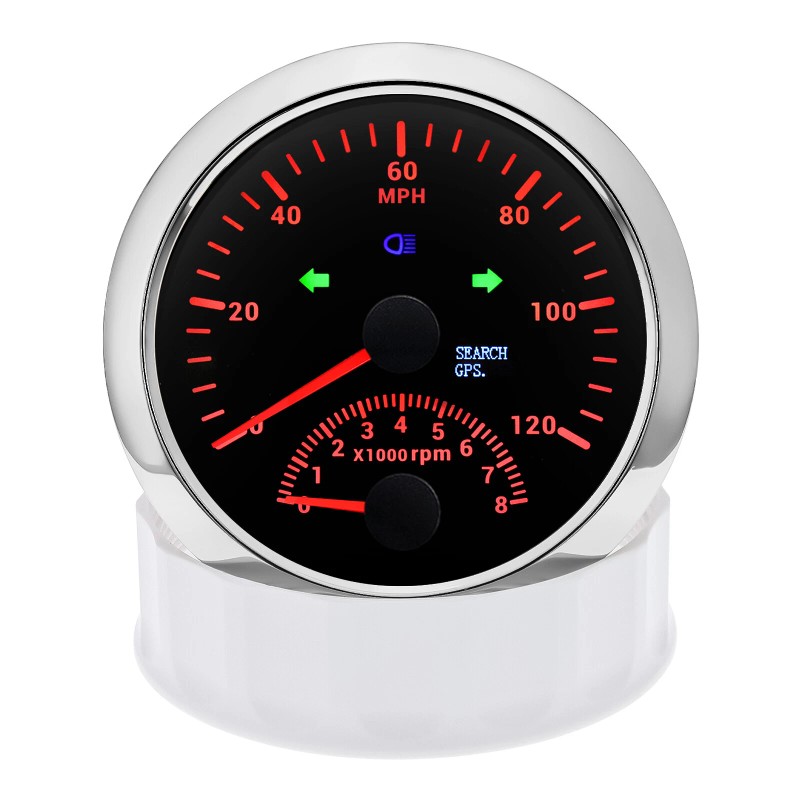

GPS Speedometer Specifications:
  • Application: Universal fit for Motorcycle/ Boat/Truck/Bus/Car
  • Electronic Speedometer (stepper motor)
  • No Mechanic Sensor, get speed signal from GPS
  • Speed ≠0 and show accurate speed in tunnel with the help of accelerometer
  • Total Mileage Adjustable
  • GPS Blind Area Odometer Compensation
  • OverSpeed Buzzer Alarm (Value Adjustable)
  • Indication Light (Left, Right and High Beam

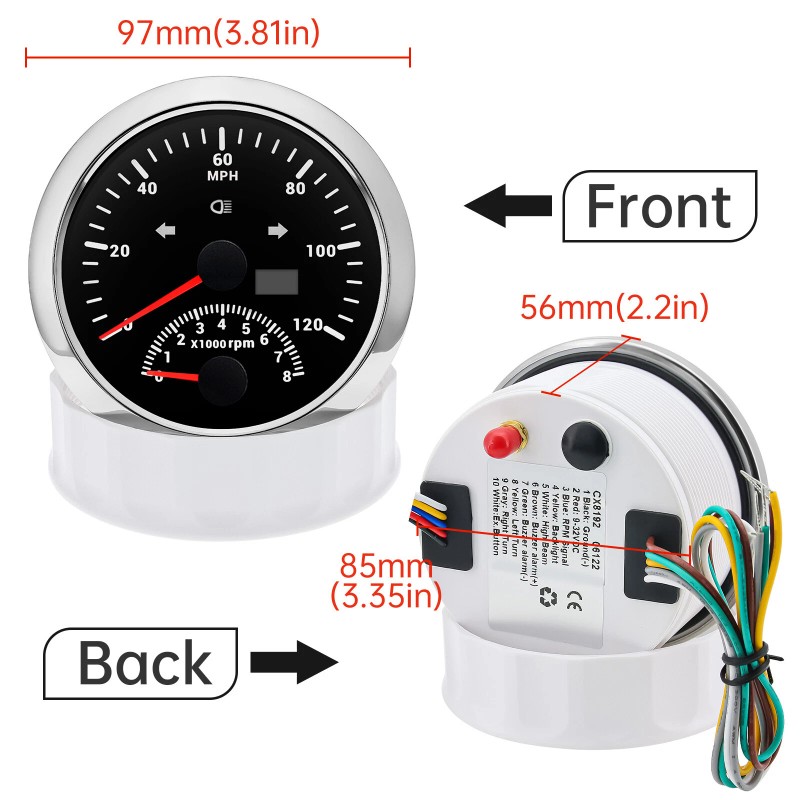

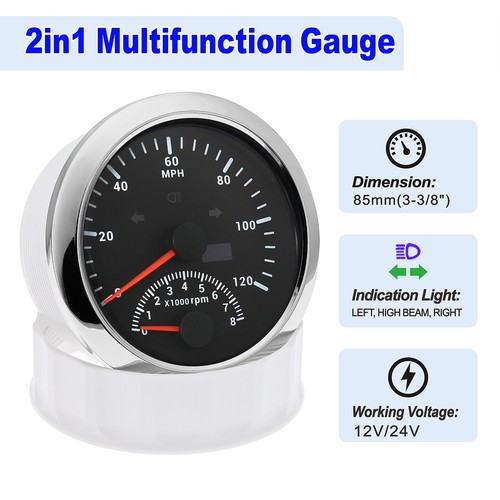

  • Installation Diameter: 85mm (3 3/8")
  • Speed Range: 0~120MPH
  • RPM Range : 0~8000RPM
  • Mileage Range: 0-99999.9miles
  • Working Voltage: 12V/24V
  • Working temperatures: - 40 to 85°C
  • Protection rank: IP67 Waterproof
  • Reverse polarity protection and anti-fogging performance

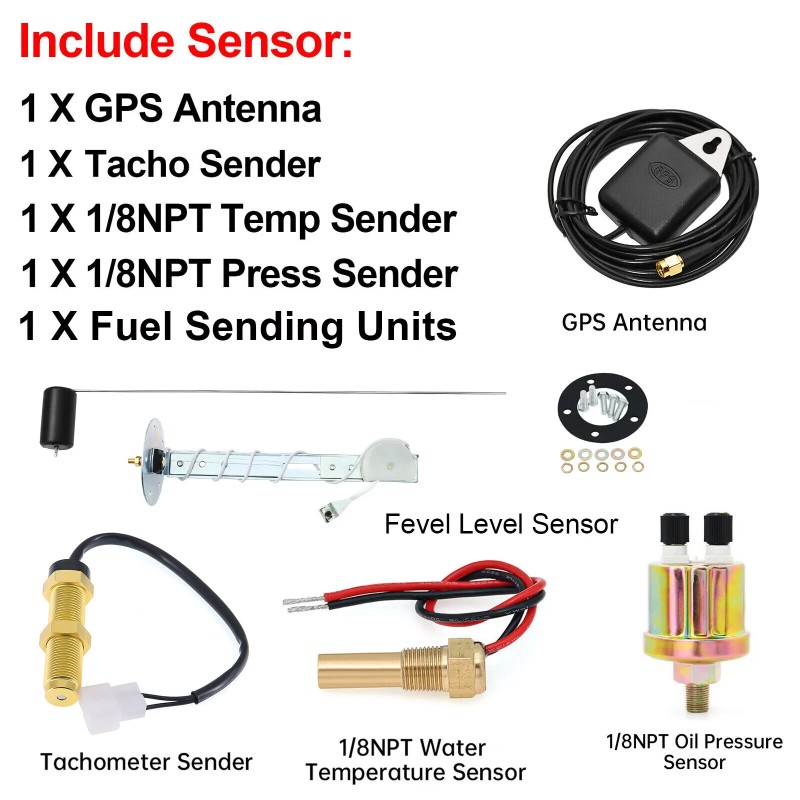

Package Included:

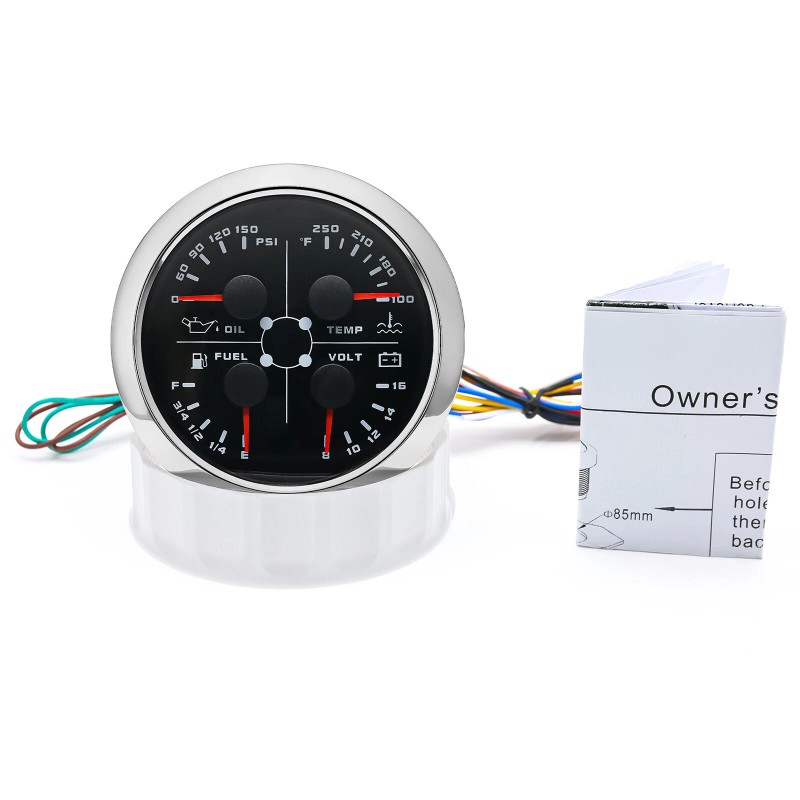

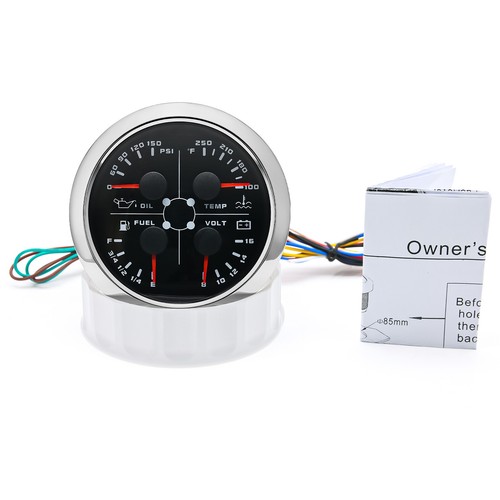

  • 1 x 85mm 4 in 1 Multifunctional Gauge
  • 1 x 85mm GPS Speedometer
  • 1 x GPS Antenna
  • 1 x Fuel sending units
  • 1 x M18 Tachometer
  • 1 x 1/8NPT Temp sensor
  • 1 x 1/8NPT Pressure sensor
  • 2 x Cable
  • 2 x Installation Instruction
Brand: MAIMEIMI
Isin: IR5VAT9GMLPZ

$247.42

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
MAIMEIMI 2 Gauge Set With Senders 85mm GPS Speedometer 120MPH W/Tacho&85mm 4In 1 Gauge US

MAIMEIMI 2 Gauge Set With Senders 85mm GPS Speedometer 120MPH W/Tacho&85mm 4I...

$247.42

2 Gauge Set With Senders 85mm GPS Speedometer 120MPH W/Tacho&85mm 4In 1 Gauge US

2 Gauge Set 85mm Car Boat GPS Speedometer 120MPH W/Tacho&85mm 4 In 1 Gauge With Sender US



Features:

  • The world's newest 4 in 1 multifunction gauge.
  • Convenient Installation by multi-plug socket connecting way.
  • The gauge has the advantages of high precision, quick location confirmation and short start up time.
  • Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles
4IN 1 Mulfifunctional gauge Technical Data:
  • Fixing dimension: 85mm
  • Indicating Range: Oil press. meter: 0-150psi;
  • Water temp. meter: 100-250° F
  • Fuel level meter: 0-190ohms/240-33ohms, empty-full; (The signal can be adjusted)
  • Voltmeter: 8-16V
  • Working Voltage: 12V
  • Backlight: Red
Input Signal:
  • 10-184ohms for 0-150PSI oil pressure meter;
  • 0-190ohms for fuel level meter;(Default 0-190ohms, can adjust to 240-33ohms)
  • 8-16V voltage meter;
  • Input Signal 287.4-22.4ohms for water temperature meter
  • Red backlight
  • Protection grade is IP67, the whole body is completely waterproof;
  • Excellent antifogging function;
  • 316 Stainless steel bezel with curved glass;
  • Convenient Installation by multi-plug socket connecting way;
  • Accessories: matched with connectors, Installation Instruction
GPS Speedometer Specifications:
  • Application: Universal fit for Motorcycle/ Boat/Truck/Bus/Car
  • Electronic Speedometer (stepper motor)
  • No Mechanic Sensor, get speed signal from GPS
  • Speed ≠0 and show accurate speed in tunnel with the help of accelerometer
  • Total Mileage Adjustable
  • GPS Blind Area Odometer Compensation
  • OverSpeed Buzzer Alarm (Value Adjustable)
  • Indication Light (Left, Right and High Beam
  • Installation Diameter: 85mm (3 3/8")
  • Speed Range: 0~120MPH
  • RPM Range : 0~8000RPM
  • Mileage Range: 0-99999.9miles
  • Working Voltage: 12V/24V
  • Working temperatures: - 40 to 85°C
  • Protection rank: IP67 Waterproof
  • Reverse polarity protection and anti-fogging performance

Package Included:

  • 1 x 85mm 4 in 1 Multifunctional Gauge
  • 1 x 85mm GPS Speedometer
  • 1 x GPS Antenna
  • 1 x Fuel sending units
  • 1 x M18 Tachometer
  • 1 x 1/8NPT Temp sensor
  • 1 x 1/8NPT Pressure sensor
  • 2 x Cable
  • 2 x Installation Instruction
PushAuction
  • Oil Pressure: 0-150PSI
  • Feature 1: Water Temperature Gauge 100-250℉
  • Working Voltage: 12V
  • Color: Black&Silver
  • Feature 3: Oil Pressure Gauge 0-150Psi
  • Manufacturer Part Number: CX8243+CX8191+880-00039+CX4003+CX4201+LS0007US
  • Material Type: stainless steel and plast
  • Feature 2: Fuel Level Gauge 240-33ohms/0-190ohms
  • Material: Plastic, Steel
  • Feature: Volt Meter Gauge 8-16V
  • Unit of Measure: Degrees Farenheit, psi
  • Brand: MAIMEIMI
  • Type: Volt Meter
  • Interchange Part Number: 85mm gps speedometer 0-120MPH, water temp gauge, oil pressure gauge, tachometer
  • Display Type: Digital
  • Backlight: Red
  • Manufacturer Warranty: 1 Year
  • Fuel: empty-full
  • Features: Waterproof, Alarm, Illuminated (Backlit), 7 Color Backlight
  • Volts: 8-16V
  • Water temp: 100-250 ℉
  • Needle Color: Red
  • Country/Region of Manufacture: China
  • OE/OEM Part Number: CX8243+CX8191+880-00039+CX4201+CX4003
  • Universal Fitment: Yes
  • Style: Chromed
  • Item Diameter: 85MM
  • Maximum Speedometer Value: 0-120MPH
  • Items Included: 6 gauge set
